TECHNICAL GUIDE

LX SERIES

SPLIT-SYSTEM HEAT PUMPS

13 SEER – R-410A – 1 PHASE

1.5 THRU 5 NOMINAL TONS

MODELS: YHJD18 THRU 60

Due to continuous product improvement, specifications

are subject to change without notice.

Visit us on the web at

www.upgnet.com and www.york.com

Additional rating information can be found at

www.ahridirectory.org

WARRANTY SUMMARY*

Standard 5-Years limited parts warranty.

Standard 10-Years limited compressor warranty.

Extended 10-Years limited parts warranty when product is

registered online within 90 days of purchase for replacement

or closing for new home construction.

*Does not apply to R-22 models, 3-Phase models, or internet sales.

See Limited Warranty certificate in User's Information Manual for details.

571209-YTG-C-1012

FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

DESCRIPTION

The 13 SEER Series unit is the outdoor part of a versatile cli-

mate system. It i76s designed with a matching indoor coil com-

ponent from Johnson Controls Unitary Products. Available for

typical applications this climate system is supported with acces-

sories and documents to serve specific functions.

FEATURES

•Small Footprint - The compact footprint is a perfect fit for

any application.

•Quality Condenser Coils - The coil is constructed of copper

tubing and enhanced aluminum fins for increased perfor-

mance.

•Coil Protection - Coils are protected from damage by a slot-

ted, stamped steel coil guard.

•Protected Compressor - Compressors are protected inter-

nally by a high pressure relief valve and a temperature sen-

sor, and externally by the system high pressure switch. A

factory installed liquid line filter-drier further protects the com-

pressor against moisture and debris.

•Environmentally Friendly Refrigerant - The next genera-

tion refrigerant R-410A delivers environmentally friendly per-

formance with zero ozone depletion.

•Durable Finish - The cabinet is made of G90-equivalent pre-

painted steel, with special primer formulas and matte cham-

pagne texture to insure less fading when exposed to sun-

light. The coated steel wire fan guard and pre-treated,

galvanized steel chassis components resist corrosion and

rust creep.

•Lower Installed Cost - Installation time and costs are

reduced by easy power and control wiring connections. The

unit is factory charged for a 15-foot lineset. The small base

dimension means less space is required on the ground or

roof.

•Top Discharge - Warm air from the top mounted fan is blown

up, away from the structure and any landscaping. This allows

compact location on multi-unit applications.

•Low Operating Sound Level - The upward air flow carries

the normal operating noise away from the living area. The

rigid top panel effectively isolates any motor sound. Isolator

mounted compressor and the condenser coil muffle the nor-

mal fan motor and compressor operating sounds.

•Low Maintenance - Long life, permanently lubricated motor-

bearings need no annual servicing.

•Easy Service Access - Fully exposed refrigerant connec-

tions and a single panel covering the electrical controls make

for easy servicing of the unit.

•Secured Service Valves - Secured, re-usable service

valves are provided on both the liquid and vapor sweat con-

nections for ease of evacuating and charging.

•Agency Listed - Safety certified by CSA to UL 1995 / CSA

22.2. Performance certified to ANSI/AHRI Standard 210/240

in accordance with the Unitary Small Equipment certification

program.

571209-YTG-C-1012

2Johnson Controls Unitary Products

* Adapter fitting required for 1-1/8" line set.

All dimensions are in inches and are subject to change without notice.

Overall height is from bottom of base pan to top of fan guard.

Overall length and width include screw heads.

Physical and Electrical Data

MODEL YHJD18

S41S2 YHJD24

S41S4 YHJD30

S41S4 YHJD36

S41S4 YHJD42

S41S4 YHJD48

S41S4 YHJD60

S41S5

Unit Supply Voltage 208-230V, 1 60Hz

Normal Voltage Range 1187 to 252

Minimum Circuit Ampacity 11.9 11.2 14.1 19.7 20.9 25.6 42.6

Max. Overcurrent Device Amps 220 15 20 30 35 45 70

Min. Overcurrent Device Amps 315 15 15 20 25 30 45

Compressor Type Scroll Recip Recip Recip Recip Recip Scroll

Compressor Amps Rated Load 9.0 8.3 10.6 14.7 15.7 19.4 33.0

Locked Rotor 48.0 43.0 54.0 74.0 88.0 88.0 134.0

Crankcase Heater No Yes Yes Yes Yes Yes No

Factory External Discharge Muffler Yes No No No No No Yes

Factory External Check Valve No No No No No No No

HS Kit Required with TXV 4No Yes Yes Yes Yes Yes* No

Fan Motor Amps Rated Load 0.70 0.80 0.80 1.3 1.3 1.3 1.5

Fan Diameter Inches 24 24 24 24 24 24 24

Fan Motor Rated HP 1/10 1/8 1/8 1/4 1/4 1/4 1/4

Nominal RPM 825 1075 1075 850 850 850 850

Nominal CFM 2000 2900 3000 3800 3800 3600 3550

Coil Face Area Sq. Ft. 15.7 18.3 21.0 23.6 23.6 23.6 23.6

Rows Deep 1 1 1 1 1 2 2

Fins / Inch 22 22 22 22 22 18 18

Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8 3/8

Vapor Line Set OD (Field Installed) 3/4 3/4 3/4 3/4 7/8 7/8 1-1/8

Unit Charge (Lbs. - Oz.) 56 - 6 9 - 6 9 - 0 10 - 0 9 - 10 14 - 12 15 - 0

Charge Per Foot, Oz. 0.62 0.62 0.62 0.62 0.67 0.67 .76

Operating Weight Lbs. 172 194 206 218 218 285 290

* These models are shipped with a Hard Start Kit installed at the factory.

1. Rated in accordance with AHRI Standard 110-2012, utilization range “A”.

2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.

3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.

4. See Hard Start Kit Accessory Installation Manual for Hard Start Kit part number for each model.

5. The Unit Charge is correct for the outdoor unit, smallest matched indoor unit, and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add or subtract

the amount of refrigerant, using the difference in length multiplied by the per foot value.

Unit

Model

Dimensions

(Inches) Refrigerant Connection

Service Valve Size

A B C Liquid Vapor

18 28-1/4 34 34

3/8

3/4

24 32-1/4 34 34

30 36-1/4 34 34

36 40-1/4 34 34

42 40-1/4 34 34 7/8

48 40-1/4 34 34

60 40-1/4 34 34 7/8*

571209-YTG-C-1012

Johnson Controls Unitary Products 3

PROCEDURES:

1. Unit factory charge listed on the unit nameplate includes refrigerant for the outdoor unit, the smallest matched indoor unit, and 15 feet of interconnecting line tubing.

2. Verify the TXV or orifice and additional charge required for specific matched indoor unit in the system using the above table.

3. Add additional charge for the amount of interconnecting line tubing greater than 15 feet at the rate specified in Physical and Electrical Data Table.

4. For indoor matches requiring additional charge, the refrigerant needs to be weighed in for specific matched indoor unit and lineset length.

5. Permanently mark the unit nameplate with the total system charge. Total System Charge = Base Charge (as shipped) + charge adder for matched indoor unit +

charge adder for line set.

System Charge for Various Matched Systems

Outdoor Unit YHJD18S41S2 YHJD24S41S4 YHJD30S41S4 YHJD36S41S4 YHJD42S41S4 YHJD48S41S4 YHJD60S41S5

Required Orifice or TXV 1,2 .051/4F1 .054, .059/4G1 .063/4G1 .071/4H1 .075/4H1 4J1 4K1

Indoor Unit 3,4,5 Additional Charge, Oz

AHE18B .051/ TXV + 0 – – – – – –

AHE24B –.054 / TXV + 0 – – – – –

AHE30B –.054 / TXV + 0 .063 / TXV + 0 – – – –

AHE36C – – .063 / TXV + 25 .071 / TXV + 0 – – –

AHE42D – – – .071 / TXV + 16 – – –

AHE48D – – – – .075 / TXV + 0 TXV + 0 –

AHE60D – – – – – TXV + 25 TXV + 0

AHR18B .051/ TXV + 0 – – – – – –

AHR24B –.054 / TXV + 0 – – – – –

AHR30B – – .063 / TXV + 0 – – – –

AHR36B – – .063 / TXV + 25 .071 / TXV + 6 – – –

AHR42C – – – .071 / TXV + 16 – – –

AHR48D – – – – .075 / TXV + 0 TXV + 0 –

AHR60D – – – – – TXV + 25 TXV + 0

AHV18B .051/ TXV + 0 – – – – – –

AHV24B –.054 / TXV + 0 – – – – –

AHV30B –.054 / TXV + 0 .063 / TXV + 0 – – – –

AHV36C –.059 / TXV + 23 .063 / TXV + 25 .071 / TXV + 6 – – –

AHV42D – – – .071 / TXV + 16 – – –

AHV48D – – – – .075 / TXV + 0 TXV + 0 –

AHV60D – – – – – TXV + 25 TXV + 0

AV*24 .051/ TXV + 3 – – – – – –

AV*36 –.059 / TXV + 23 .063 / TXV + 25 .071 / TXV + 6 – – –

AV*48 – – – – .075 / TXV + 0 TXV + 0 –

AV*60 – – – – .075 / TXV + 0 TXV + 0 –

FC/MC/PC18 .051/ TXV + 0 – – – – – –

FC/MC/PC24 .051/ TXV + 5 – – – – – –

FC/MC/PC30 .051/ TXV + 5 – – – – – –

FC/MC/PC32 –.059 / TXV + 0 .063 / TXV + 0 – – – –

FC/MC/PC35 –.059 / TXV + 0 .063 / TXV + 0 – – – –

FC/MC/PC37 –.059 / TXV + 23 .063 / TXV + 25 .071 / TXV + 6 – – –

FC/MC/PC43 –.059 / TXV + 23 .063 / TXV + 25 .071 / TXV + 6 – – –

FC/MC/PC/UC48 – – – .071 / TXV + 16 – – –

FC/MC/PC/UC60 – – – – .075 / TXV + 0 TXV + 0 –

FC/MC62 – – – – – TXV + 25 TXV + 0

FC64 – – – – – – TXV + 23

UC18 .051/ TXV + 1 – – – – – –

UC24 .051/ TXV + 7 – – – – – –

UC30 .051/ TXV + 7 – – – – – –

UC48 – – – .071 / TXV + 25 – – –

UC60 – – – – .075 / TXV + 2 TXV + 11 –

Some of the combinations shown in the above System Charge table require Advanced Main Air Circulating Fan indoor product. For approved coil

only matches, please see the “COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils” table.

FOOTNOTES:

1. For applications requiring a TXV use S1-1TVM*** series kit.

2. Approved orifice(s) shipped with outdoor unit.

3. Systems matched with furnaces or air handlers not equipped with blower-off delays may require blower Time Delay Kit S1-2FD06700224.

4. PC coils cannot be used in downflow or horizontal applications. FC coils cannot be used in horizontal applications.

5. Refer to Cooling and Heating Performance Data tables for actual performance for specified system matches.

571209-YTG-C-1012

4Johnson Controls Unitary Products

COOLING CAPACITY - With Air Handler Coils

UNIT

MODEL

AIR HANDLER COIL

MODEL1

COOLING

MODEL WIDTH RATED

CFM NET MBH SEER EER

TOTAL SENS.

13 SEER HP WITH AIR HANDLERS

YHJD18S41S2

AHE18B 17.5 – 610 18.0 14.6 14.00 12.00

AHR18B 17.5 –665 18.0 14.9 13.00 11.00

AHV18B 17.5 –615 18.0 13.2 14.00 12.00

AV*24 17.5 –610 18.0 13.7 14.50 12.00

MV12B 17.5 FC/MC18B 600 18.0 13.7 14.50 12.00

MV12B 17.5 FC/MC24B 600 18.0 13.7 14.50 12.00

MV12B 17.5 FC/MC30B 600 18.0 13.7 14.50 12.00

MX12B 17.5 FC/MC18B 585 18.0 14.5 14.50 12.00

MX12B 17.5 FC/MC24B 645 18.0 15.0 14.50 12.00

MX12B 17.5 FC/MC30B 645 18.0 15.0 14.50 12.00

YHJD24S41S4

AHE24B 17.5 – 795 24.0 17.4 14.50 12.00

AHE30B 17.5 –795 24.0 17.4 14.50 12.00

AHR24B 17.5 –740 24.0 16.9 13.00 11.00

AHV24B 17.5 –710 24.0 17.0 14.00 12.00

AHV30B 17.5 –775 24.0 17.6 14.00 12.00

AHV36C 21.0 –760 24.0 17.8 14.00 12.00

AV*36 21.0 –725 24.0 17.0 14.50 12.00

MV12B 17.5 FC/MC35B 800 24.0 17.5 14.50 12.00

MV12B 17.5 FC/MC43B 800 24.0 17.3 14.50 12.00

MX12B 17.5 FC/MC35B 815 24.0 17.6 14.50 12.00

MX12B 17.5 FC/MC43B 735 24.0 17.1 14.50 12.00

YHJD30S41S4

AHE30B 17.5 – 985 29.2 21.0 14.00 12.00

AHE36C 21.0 –1000 29.8 21.8 14.00 12.00

AHR30B 17.5 –1090 29.2 21.8 13.00 11.00

AHR36B 17.5 –1060 29.6 21.6 13.00 11.00

AHV30B 17.5 –1000 29.6 27.0 13.50 11.50

AHV36C 21.0 –895 29.8 26.6 14.00 12.00

AV*36 21.0 –960 30.0 22.4 14.50 12.00

MV12B 17.5 FC/MC35B 1010 30.0 22.0 14.50 12.00

MV12B 17.5 FC/MC43B 1000 30.0 22.2 14.50 12.00

MV16C 21.0 FC/MC35C 1070 30.0 23.0 14.50 12.00

MV16C 21.0 FC/MC43C 1000 30.0 22.2 14.50 12.00

MX12B 17.5 FC/MC35B 1085 29.6 22.2 14.00 12.00

MX12B 17.5 FC/MC43B 1095 29.4 22.6 14.00 12.00

MX16C 21.0 FC/MC35C 1035 29.6 22.2 14.00 12.00

MX16C 21.0 FC/MC43C 970 29.6 21.6 14.00 12.00

YHJD36S41S4

AHE36C 21.0 – 1190 35.6 25.7 14.50 12.00

AHE42D 24.5 –1180 35.6 25.6 14.50 12.00

AHR36B 21.0 –1245 35.6 26.1 13.00 11.00

AHR42C 21.0 –1230 35.6 25.8 13.00 11.00

AHV36C 21.0 –1215 36.0 27.4 14.00 12.00

AHV42D 24.5 –1180 36.0 27.6 14.50 12.00

AV*36 21.0 –1190 36.0 26.8 14.50 12.00

MV12B 17.5 FC/MC43B 1225 36.0 27.2 14.50 12.00

MV12D 24.5 FC/MC48D 1160 36.0 26.6 14.50 12.00

MV16C 21.0 FC/MC43C 1200 36.0 26.8 14.50 12.00

MV16C 21.0 FC/MC48C 1200 36.0 26.6 14.50 12.00

MX12B 17.5 FC/MC43B 1220 35.6 26.0 14.00 12.00

MX12D 24.5 FC/MC48D 1225 35.6 25.7 14.50 12.00

MX16C 21.0 FC/MC43C 1140 35.6 25.5 14.00 12.00

MX16C 21.0 FC/MC48C 1150 35.6 25.6 14.00 12.00

For Notes See Page 5.

571209-YTG-C-1012

Johnson Controls Unitary Products 5

— = Not applicable.

MA Modular Air Handlers use Coil Only Ratings.

YHJD42S41S4

AHE48D 24.5 – 1385 40.5 33.2 14.00 12.00

AHR48D 24.5 –1320 39.5 29.6 13.00 11.00

AHV48D 24.5 –1300 39.5 30.2 13.75 11.50

AV*48 24.5 –1385 42.0 32.6 14.50 12.00

AV*60 24.5 –1360 42.0 32.6 14.50 12.00

MV16C 21.0 FC60C 1400 40.0 30.0 13.50 11.75

MV20D 24.5 FC/MC60D 1400 42.0 32.4 14.00 12.00

MX16C 21.0 FC60C 1420 41.5 32.2 14.50 12.00

MX20D 24.5 FC/MC60D 1470 41.5 32.2 14.50 12.00

YHJD48S41S4

AHE48D 24.5 – 1635 44.0 33.2 14.00 12.00

AHE60D 24.5 –1565 45.0 34.4 14.50 12.00

AHR48D 24.5 –1610 43.5 32.8 13.00 11.00

AHR60D 24.5 –1620 44.0 33.8 13.25 11.35

AHV48D 24.5 –1585 44.5 33.2 14.50 12.00

AHV60D 24.5 –1570 44.5 34.0 14.50 12.00

AV*48 24.5 –1625 45.0 34.4 14.50 12.00

AV*60 24.5 –1560 45.0 34.6 14.50 12.00

MV16C 21.0 FC60C 1625 44.5 34.2 14.50 12.00

MV20D 24.5 FC/MC60D 1600 44.5 33.8 14.50 12.00

MV20D 24.5 FC/MC62D 1630 45.5 34.4 14.50 12.00

MX16C 21.0 FC60C 1630 45.0 34.4 14.50 12.00

MX20D 24.5 FC/MC60D 1585 45.5 34.6 14.50 12.00

MX20D 24.5 FC/MC62D 1605 45.0 34.4 14.50 12.00

YHJD60S41S5

AHE60D 24.5 – 1950 58.0 41.50 13.00 11.00

AHR60D 24.5 –1835 58.0 41.00 14.00 12.00

AHV60D 24.5 –1635 57.5 39.0 13.75 11.80

MV20D 24.5 FC/MC62D 1855 58.0 41.5 13.75 11.80

MV20D 24.5 FC64D 1855 57.0 43.0 13.25 11.35

MX20D 24.5 FC/MC62D 1795 58.0 41.0 14.00 12.00

MX20D 24.5 FC64D 1795 57.0 42.5 13.75 12.00

Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ANSI/AHRI Standard 210/240.

Cooling MBH based on 80 °F entering air temperature, 50% RH (Relative Humidity), and rated air flow.

EER (Energy Efficiency Ratio) is the total cooling output in BTUs at 95 °F outdoor ambient divided by the total electric power in watt-hours at those conditions.

SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTUs during a normal annual usage period for cooling divided by the total electric power input in

watt-hours during the same period.

1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.

COOLING CAPACITY - With Air Handler Coils (Continued)

UNIT

MODEL

AIR HANDLER COIL

MODEL1

COOLING

MODEL WIDTH RATED

CFM NET MBH SEER EER

TOTAL SENS.

13 SEER HP WITH AIR HANDLERS

571209-YTG-C-1012

6Johnson Controls Unitary Products

MA Modular Air Handlers use Coil Only Ratings.

PSC furnaces, such as the TG8S, TGLS, and TG9S, use Coil Only Ratings.

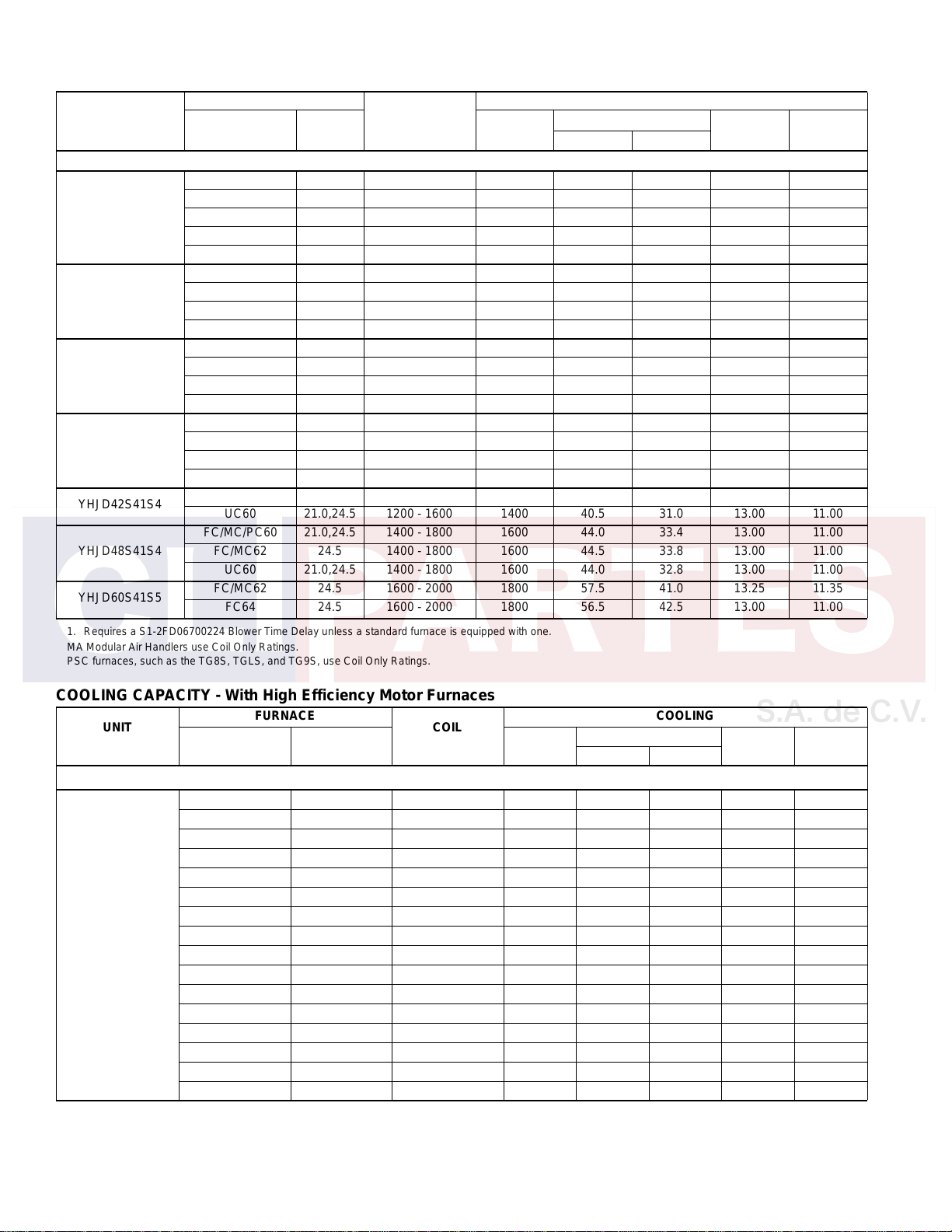

COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils (Coil Only Ratings)

UNIT MODEL

COIL CFM RANGE

(Min.-max.)

COOLING

MODEL WIDTH RATED

CFM NET MBH SEER1EER

TOTAL SENS.

13 SEER HP COIL ONLY RATINGS

YHJD18S41S2

FC/MC/PC18 14.5,17.5 450 - 750 600 18.0 14.0 13.00 11.00

FC/MC/PC24 14.5,17.5 450 - 750 600 18.0 14.0 13.50 11.00

FC/MC/PC30 14.5,17.5 450 - 750 600 18.0 13.7 13.00 11.00

UC24 14.5,17.5 450 - 750 600 18.0 13.8 13.05 11.00

UC30 14.5,17.5 450 - 750 600 18.0 13.8 13.05 11.00

YHJD24S41S4

FC/MC/PC32 14.5 600 - 1000 800 23.8 17.1 13.00 11.00

FC/MC/PC35 17.5,21.0 600 - 1000 800 23.6 17.1 13.00 11.00

FC/MC/PC37 14.5 600 - 1000 800 24.0 17.3 13.00 11.00

FC/MC/PC43 17.5,21.0 600 - 1000 800 24.0 17.3 13.00 11.00

YHJD30S41S4

FC/MC/PC32 14.5 800 - 1200 1000 29.8 21.8 13.00 11.00

FC/MC/PC35 17.5,21.0 800 - 1200 1000 29.8 21.8 13.00 11.00

FC/MC/PC37 14.5 800 - 1200 1000 30.0 22.2 13.00 11.00

FC/MC/PC43 17.5,21.0 800 - 1200 1000 30.0 22.2 13.00 11.00

YHJD36S41S4

FC/MC/PC37 14.5 1000 - 1400 1200 36.0 26.8 13.00 11.00

FC/MC/PC43 17.5,21.0 1000 - 1400 1200 36.0 26.6 13.00 11.00

FC/MC/PC48 21.0,24.5 1000 - 1400 1200 36.0 26.6 13.00 11.00

UC48 21.0,24.5 1000 - 1400 1200 36.0 26.8 13.00 11.00

YHJD42S41S4 FC/MC/PC60 21.0,24.5 1200 - 1600 1400 41.0 31.8 13.00 11.00

UC60 21.0,24.5 1200 - 1600 1400 40.5 31.0 13.00 11.00

YHJD48S41S4 FC/MC/PC60 21.0,24.5 1400 - 1800 1600 44.0 33.4 13.00 11.00

FC/MC62 24.5 1400 - 1800 1600 44.5 33.8 13.00 11.00

UC60 21.0,24.5 1400 - 1800 1600 44.0 32.8 13.00 11.00

YHJD60S41S5 FC/MC62 24.5 1600 - 2000 1800 57.5 41.0 13.25 11.35

FC64 24.5 1600 - 2000 1800 56.5 42.5 13.00 11.00

1. Requires a S1-2FD06700224 Blower Time Delay unless a standard furnace is equipped with one.

COOLING CAPACITY - With High Efficiency Motor Furnaces

UNIT

MODEL

FURNACE COIL

MODEL1

COOLING

MODEL WIDTH RATED

CFM Net MBH SEER EER

TOTAL SENS.

13 SEER HP WITH HIGH EFFICIENCY MOTOR FURNACES2

YHJD18S41S2

T*(8,L)V*A12 14.5 FC/MC/PC18A 620 18.0 12.3 14.50 12.30

T*(8,L)V*A12 14.5 FC/MC/PC24A 640 18.0 12.7 14.80 12.50

T*(8,L)V*A12 14.5 FC/MC/PC30A 640 18.0 12.7 14.80 12.50

T*(8,L)V*A12 14.5 UC18A 620 18.0 12.4 14.60 12.30

T*(8,L)V*A12 14.5 UC24A 640 18.0 12.8 14.80 12.50

T*(8,L)V*A12 14.5 UC30A 640 18.0 12.8 14.80 12.50

T*(8,L)V*B12 14.5 FC/MC/PC18A 620 18.0 12.3 14.50 12.30

T*(8,L)V*B12 17.5 FC/MC/PC24B 575 18.0 12.2 14.90 12.60

T*(8,L)V*B12 17.5 FC/MC/PC30B 575 18.0 12.2 14.90 12.60

T*(8,L)V*B12 17.5 UC18B 580 18.0 12.0 14.60 12.30

T*(8,L)V*B12 17.5 UC24B 575 18.0 12.3 14.90 12.60

T*(8,L)V*B12 17.5 UC30B 575 18.0 12.3 15.00 12.60

T*(8,L)X*A12 14.5 FC/MC/PC18A 540 18.0 14.3 14.00 12.00

T*(8,L)X*A12 14.5 FC/MC/PC24A 595 18.0 14.9 14.00 12.00

T*(8,L)X*A12 14.5 FC/MC/PC30A 595 18.0 14.9 14.00 12.00

T*(8,L)X*A12 14.5 UC18B 590 18.0 13.9 14.50 12.00

For Notes See Page 12.

571209-YTG-C-1012

Johnson Controls Unitary Products 7

YHJD18S41S2

T*(8,L)X*A12 14.5 UC24B 570 18.0 14.1 14.50 12.00

T*(8,L)X*A12 14.5 UC30B 570 18.0 14.1 14.50 12.00

T*(8,L)X*B12 17.5 FC/MC/PC18B 580 18.0 14.6 14.00 12.00

T*(8,L)X*B12 17.5 FC/MC/PC24B 620 18.0 14.9 14.00 12.00

T*(8,L)X*B12 17.5 FC/MC/PC30B 620 18.0 14.9 14.00 12.00

T*(8,L)X*B12 17.5 UC18B 595 18.0 13.9 14.50 12.00

T*(8,L)X*B12 17.5 UC24B 575 18.0 14.2 14.50 12.00

T*(8,L)X*B12 17.5 UC30B 575 18.0 14.2 14.50 12.00

T*9V*A10 17.5 FC/MC/PC18A 580 18.0 13.6 14.00 12.00

T*9V*A10 17.5 FC/MC/PC24A 575 18.0 14.0 14.00 12.00

T*9V*A10 17.5 FC/MC/PC30A 575 18.0 14.0 14.00 12.00

T*9(C,V)*B12 17.5 FC/MC/PC18B 610 18.0 12.2 14.60 12.40

T*9(C,V)*B12 17.5 FC/MC/PC24B 610 18.0 12.7 14.90 12.60

T*9(C,V)*B12 17.5 FC/MC/PC30B 610 18.0 12.7 14.90 12.60

T*9(C,V)*B12 17.5 UC18B 610 18.0 12.3 14.80 12.40

T*9(C,V)*B12 17.5 UC24B 610 18.0 12.8 14.90 12.60

T*9(C,V)*B12 17.5 UC30B 610 18.0 12.8 15.00 12.60

T*9X*A10 14.5 FC/MC/PC18A 575 18.3 13.7 14.00 12.00

T*9X*A10 14.5 FC/MC/PC24A 595 18.7 14.1 14.00 12.00

T*9X*A10 14.5 FC/MC/PC30A 595 18.7 14.1 14.00 12.00

T*9X*B12 17.5 FC/MC/PC18B 590 18.0 14.7 14.00 12.00

T*9X*B12 17.5 FC/MC/PC24B 615 18.0 14.9 14.00 12.00

T*9X*B12 17.5 FC/MC/PC30B 615 18.0 14.9 14.00 12.00

T*9X*B12 17.5 UC18B 17 590.0 18.5 13.90 14.50

T*9X*B12 17.5 UC24B 17 615.0 18.9 14.20 14.50

T*9X*B12 17.5 UC30B 17 615.0 18.9 14.20 14.50

Y*(8,L)C*A12 14.5 FC/MC/PC18A 620 18.0 12.3 14.50 12.30

Y*(8,L)C*A12 14.5 FC/MC/PC24A 640 18.0 12.7 14.80 12.50

Y*(8,L)C*A12 14.5 FC/MC/PC30A 640 18.0 12.7 14.80 12.50

Y*(8,L)C*A12 14.5 UC18A 620 18.0 12.4 14.60 12.30

Y*(8,L)C*A12 14.5 UC24A 640 18.0 12.8 14.80 12.50

Y*(8,L)C*A12 14.5 UC30A 640 18.0 12.8 14.80 12.50

Y*(8,L)C*B12 14.5 FC/MC/PC18A 620 18.0 12.3 14.50 12.30

Y*(8,L)C*B12 17.5 FC/MC/PC24B 575 18.0 12.2 14.90 12.60

Y*(8,L)C*B12 17.5 FC/MC/PC30B 575 18.0 12.2 14.90 12.60

Y*(8,L)C*B12 17.5 UC18B 580 18.0 12.0 14.60 12.30

Y*(8,L)C*B12 17.5 UC24B 575 18.0 12.3 14.90 12.60

Y*(8,L)C*B12 17.5 UC30B 575 18.0 12.3 15.00 12.60

Y*9C*B12 17.5 FC/MC/PC18B 610 18.0 12.2 14.60 12.40

Y*9C*B12 17.5 FC/MC/PC24B 610 18.0 12.7 14.90 12.60

Y*9C*B12 17.5 FC/MC/PC30B 610 18.0 12.7 14.90 12.60

Y*9C*B12 17.5 UC18B 610 18.0 12.3 14.80 12.40

Y*9C*B12 17.5 UC24B 610 18.0 12.8 14.90 12.60

Y*9C*B12 17.5 UC30B 610 18.0 12.8 15.00 12.60

For Notes See Page 12.

COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)

UNIT

MODEL

FURNACE COIL

MODEL1

COOLING

MODEL WIDTH RATED

CFM Net MBH SEER EER

TOTAL SENS.

13 SEER HP WITH HIGH EFFICIENCY MOTOR FURNACES2

571209-YTG-C-1012

8Johnson Controls Unitary Products

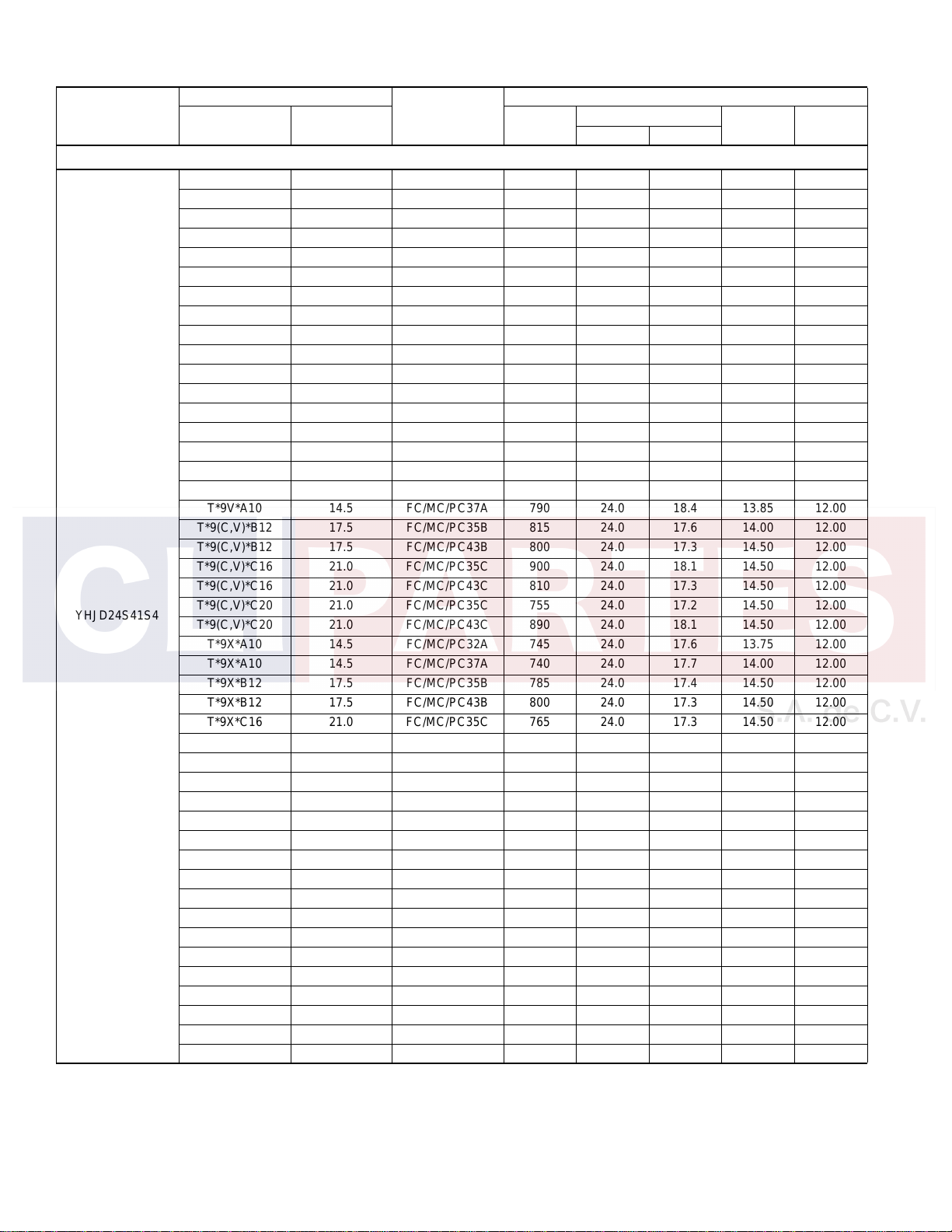

YHJD24S41S4

T*(8,L)V*A12 14.5 FC/MC/PC32A 775 24.0 17.2 14.00 12.00

T*(8,L)V*A12 14.5 FC/MC/PC37A 805 24.0 17.3 14.50 12.00

T*(8,L)V*B12 17.5 FC/MC/PC35B 760 24.0 17.2 14.00 12.00

T*(8,L)V*B12 17.5 FC/MC/PC43B 760 24.0 17.2 14.00 12.00

T*(8,L)V*C16 21.0 FC/MC/PC35C 855 24.0 17.6 14.50 12.00

T*(8,L)V*C16 21.0 FC/MC/PC43C 895 24.0 18.1 14.50 12.00

T*(8,L)V*C20 21.0 FC/MC/PC35C 740 24.0 17.0 14.50 12.00

T*(8,L)V*C20 21.0 FC/MC/PC43C 760 24.0 17.2 14.50 12.00

T*(8,L)X*A12 14.5 FC/MC/PC32A 800 24.0 17.5 14.50 12.00

T*(8,L)X*A12 14.5 FC/MC/PC37A 840 24.0 17.8 14.50 12.00

T*(8,L)X*B12 17.5 FC/MC/PC35B 850 24.0 17.6 14.50 12.00

T*(8,L)X*B12 17.5 FC/MC/PC43B 865 24.0 18.0 14.50 12.00

T*(8,L)X*C16 21.0 FC/MC/PC35C 865 24.0 17.6 14.50 12.00

T*(8,L)X*C16 21.0 FC/MC/PC43C 855 24.0 17.9 14.50 12.00

T*(8,L)X*C20 21.0 FC/MC/PC35C 885 24.0 17.6 14.50 12.00

T*(8,L)X*C20 21.0 FC/MC/PC43C 815 24.0 17.3 14.50 12.00

T*9V*A10 14.5 FC/MC/PC32A 785 24.0 18.0 13.75 12.00

T*9V*A10 14.5 FC/MC/PC37A 790 24.0 18.4 13.85 12.00

T*9(C,V)*B12 17.5 FC/MC/PC35B 815 24.0 17.6 14.00 12.00

T*9(C,V)*B12 17.5 FC/MC/PC43B 800 24.0 17.3 14.50 12.00

T*9(C,V)*C16 21.0 FC/MC/PC35C 900 24.0 18.1 14.50 12.00

T*9(C,V)*C16 21.0 FC/MC/PC43C 810 24.0 17.3 14.50 12.00

T*9(C,V)*C20 21.0 FC/MC/PC35C 755 24.0 17.2 14.50 12.00

T*9(C,V)*C20 21.0 FC/MC/PC43C 890 24.0 18.1 14.50 12.00

T*9X*A10 14.5 FC/MC/PC32A 745 24.0 17.6 13.75 12.00

T*9X*A10 14.5 FC/MC/PC37A 740 24.0 17.7 14.00 12.00

T*9X*B12 17.5 FC/MC/PC35B 785 24.0 17.4 14.50 12.00

T*9X*B12 17.5 FC/MC/PC43B 800 24.0 17.3 14.50 12.00

T*9X*C16 21.0 FC/MC/PC35C 765 24.0 17.3 14.50 12.00

T*9X*C16 21.0 FC/MC/PC43C 785 24.0 17.3 14.50 12.00

T*9X*C20 21.0 FC/MC/PC35C 825 24.0 17.6 14.50 12.00

T*9X*C20 21.0 FC/MC/PC43C 790 24.0 17.3 14.50 12.00

Y*(8,L)C*A12 14.5 FC/MC/PC32A 775 24.0 17.2 14.00 12.00

Y*(8,L)C*A12 14.5 FC/MC/PC37A 805 24.0 17.3 14.50 12.00

Y*(8,L)C*B12 17.5 FC/MC/PC35B 760 24.0 17.2 14.00 12.00

Y*(8,L)C*B12 17.5 FC/MC/PC43B 760 24.0 17.2 14.00 12.00

Y*(8,L)C*C16 21.0 FC/MC/PC35C 855 24.0 17.6 14.50 12.00

Y*(8,L)C*C16 21.0 FC/MC/PC43C 895 24.0 18.1 14.50 12.00

Y*(8,L)C*C20 21.0 FC/MC/PC35C 740 24.0 17.0 14.50 12.00

Y*(8,L)C*C20 21.0 FC/MC/PC43C 760 24.0 17.2 14.50 12.00

Y*9C*B12 17.5 FC/MC/PC35B 815 24.0 17.6 14.00 12.00

Y*9C*B12 17.5 FC/MC/PC43B 800 24.0 17.3 14.50 12.00

Y*9C*C16 21.0 FC/MC/PC35C 900 24.0 18.1 14.50 12.00

Y*9C*C16 21.0 FC/MC/PC43C 810 24.0 17.3 14.50 12.00

Y*9C*C20 21.0 FC/MC/PC35C 755 24.0 17.2 14.50 12.00

Y*9C*C20 21.0 FC/MC/PC43C 890 24.0 18.1 14.50 12.00

For Notes See Page 12.

COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)

UNIT

MODEL

FURNACE COIL

MODEL1

COOLING

MODEL WIDTH RATED

CFM Net MBH SEER EER

TOTAL SENS.

13 SEER HP WITH HIGH EFFICIENCY MOTOR FURNACES2

571209-YTG-C-1012

Johnson Controls Unitary Products 9

YHJD30S41S4

T*(8,L)V*A12 14.5 FC/MC/PC32A 1045 30.0 22.0 13.50 11.00

T*(8,L)V*A12 14.5 FC/MC/PC37A 950 30.0 22.0 14.50 12.00

T*(8,L)V*B12 17.5 FC/MC/PC35B 995 30.0 22.0 14.50 12.00

T*(8,L)V*B12 17.5 FC/MC/PC43B 1040 30.0 22.8 14.50 12.00

T*(8,L)V*C16 21.0 FC/MC/PC35C 1025 30.0 22.0 14.50 12.00

T*(8,L)V*C16 21.0 FC/MC/PC43C 990 30.0 22.2 14.50 12.00

T*(8,L)V*C20 21.0 FC/MC/PC35C 1080 30.0 23.0 14.50 12.00

T*(8,L)V*C20 21.0 FC/MC/PC43C 1000 30.0 22.2 14.50 12.00

T*(8,L)X*A12 14.5 FC/MC/PC32A 970 30.0 22.0 14.00 12.00

T*(8,L)X*A12 14.5 FC/MC/PC37A 1105 30.0 23.2 14.50 12.00

T*(8,L)X*B12 17.5 FC/MC/PC35B 1120 30.0 23.2 14.50 12.00

T*(8,L)X*B12 17.5 FC/MC/PC43B 1125 30.0 23.4 14.50 12.00

T*(8,L)X*C16 21.0 FC/MC/PC35C 1105 30.0 23.2 14.50 12.00

T*(8,L)X*C16 21.0 FC/MC/PC43C 955 30.0 22.2 14.50 12.00

T*(8,L)X*C20 21.0 FC/MC/PC35C 850 29.8 21.4 14.50 12.00

T*(8,L)X*C20 21.0 FC/MC/PC43C 870 30.0 21.6 14.50 12.00

T*9(C,V)*B12 17.5 FC/MC/PC35B 1045 30.0 22.0 14.00 11.50

T*9(C,V)*B12 17.5 FC/MC/PC43B 1035 30.0 22.2 14.50 12.00

T*9(C,V)*C16 21.0 FC/MC/PC35C 1005 30.0 22.0 14.50 12.00

T*9(C,V)*C16 21.0 FC/MC/PC43C 1030 30.0 22.2 14.50 12.00

T*9(C,V)*C20 21.0 FC/MC/PC35C 985 30.0 22.0 14.50 12.00

T*9(C,V)*C20 21.0 FC/MC/PC43C 995 30.0 22.2 14.50 12.00

T*9X*B12 17.5 FC/MC/PC35B 1085 30.0 23.0 14.50 12.00

T*9X*B12 17.5 FC/MC/PC43B 1095 30.0 23.2 14.50 12.00

T*9X*C16 21.0 FC/MC/PC35C 1075 30.0 23.0 14.50 12.00

T*9X*C16 21.0 FC/MC/PC43C 1055 30.0 22.8 14.50 12.00

T*9X*C20 21.0 FC/MC/PC35C 835 29.8 21.2 14.50 12.00

T*9X*C20 21.0 FC/MC/PC43C 720 29.2 19.9 14.50 12.00

Y*(8,L)C*A12 14.5 FC/MC/PC32A 1045 30.0 22.0 13.50 11.00

Y*(8,L)C*A12 14.5 FC/MC/PC37A 950 30.0 22.0 14.50 12.00

Y*(8,L)C*B12 17.5 FC/MC/PC35B 995 30.0 22.0 14.50 12.00

Y*(8,L)C*B12 17.5 FC/MC/PC43B 1040 30.0 22.8 14.50 12.00

Y*(8,L)C*C16 21.0 FC/MC/PC35C 1025 30.0 22.0 14.50 12.00

Y*(8,L)C*C16 21.0 FC/MC/PC43C 990 30.0 22.2 14.50 12.00

Y*(8,L)C*C20 21.0 FC/MC/PC35C 1080 30.0 23.0 14.50 12.00

Y*(8,L)C*C20 21.0 FC/MC/PC43C 1000 30.0 22.2 14.50 12.00

Y*9C*B12 17.5 FC/MC/PC35B 1045 30.0 22.0 14.00 11.50

Y*9C*B12 17.5 FC/MC/PC43B 1035 30.0 22.2 14.50 12.00

Y*9C*C16 21.0 FC/MC/PC35C 1005 30.0 22.0 14.50 12.00

Y*9C*C16 21.0 FC/MC/PC43C 1030 30.0 22.2 14.50 12.00

Y*9C*C20 21.0 FC/MC/PC35C 985 30.0 22.0 14.50 12.00

Y*9C*C20 21.0 FC/MC/PC43C 995 30.0 22.2 14.50 12.00

YHJD36S41S4

T*(8,L)V*A12 14.5 FC/MC/PC37A 1150 36.0 26.4 13.75 11.50

T*(8,L)V*B12 17.5 FC/MC/PC43B 1270 36.0 27.2 13.75 11.50

T*(8,L)V*C16 21.0 FC/MC/PC43C 1205 36.0 26.8 14.50 12.00

T*(8,L)V*C16 21.0 FC/MC/PC48C 1210 36.0 26.6 14.50 12.00

T*(8,L)V*C16 21.0 UC48C 1210 36.0 26.8 14.50 12.00

T*(8,L)V*C20 21.0 FC/MC/PC43C 1190 36.0 26.8 14.50 12.00

For Notes See Page 12.

COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)

UNIT

MODEL

FURNACE COIL

MODEL1

COOLING

MODEL WIDTH RATED

CFM Net MBH SEER EER

TOTAL SENS.

13 SEER HP WITH HIGH EFFICIENCY MOTOR FURNACES2

571209-YTG-C-1012

10 Johnson Controls Unitary Products

YHJD36S41S4

T*(8,L)V*C20 21.0 FC/MC/PC48C 1155 36.0 26.6 14.50 12.00

T*(8,L)V*C20 21.0 UC48C 1155 36.0 26.8 14.50 12.00

T*(8,L)X*A12 14.5 FC/MC/PC37A 1290 36.0 27.6 14.50 12.00

T*(8,L)X*B12 17.5 FC/MC/PC43B 1300 36.0 27.6 14.50 12.00

T*(8,L)X*C16 21.0 FC/MC/PC43C 1175 36.0 26.8 14.50 12.00

T*(8,L)X*C16 21.0 FC/MC/PC48C 1185 36.0 26.6 14.50 12.00

T*(8,L)X*C16 21.0 UC48C 1185 36.0 26.8 14.50 12.00

T*(8,L)X*C20 21.0 FC/MC/PC43C 1250 36.0 27.4 14.50 12.00

T*(8,L)X*C20 21.0 FC/MC/PC48C 1270 36.0 27.2 14.50 12.00

T*(8,L)X*C20 21.0 UC48C 1270 36.0 27.4 14.50 12.00

T*9(C,V)*B12 17.5 FC/MC/PC43B 1200 36.0 26.8 14.00 11.50

T*9(C,V)*C16 21.0 FC/MC/PC43C 1240 36.0 27.0 14.00 12.00

T*9(C,V)*C16 21.0 FC/MC/PC48C 1195 36.0 26.6 14.50 12.00

T*9(C,V)*C16 21.0 UC48C 1195 36.0 26.8 14.50 12.00

T*9(C,V)*C20 21.0 FC/MC/PC43C 1200 36.0 26.8 14.50 12.00

T*9(C,V)*C20 21.0 FC/MC/PC48C 1330 36.0 27.6 14.50 12.00

T*9(C,V)*C20 21.0 UC48C 1330 36.0 27.8 14.50 12.00

T*9(C,V)*D20 24.5 FC/MC/PC48D 1240 36.0 26.6 14.50 12.00

T*9(C,V)*D20 24.5 UC48D 1240 36.0 26.8 14.50 12.00

T*9X*B12 17.5 FC/MC/PC43B 1270 36.0 27.4 14.50 12.00

T*9X*C16 21.0 FC/MC/PC43C 1260 36.0 27.4 14.50 12.00

T*9X*C16 21.0 FC/MC/PC48C 1280 36.0 27.2 14.50 12.00

T*9X*C16 21.0 UC48C 1280 36.0 27.4 14.50 12.00

T*9X*C20 21.0 FC/MC/PC43C 1185 36.0 26.8 14.50 12.00

T*9X*C20 21.0 FC/MC/PC48C 1205 36.0 26.6 14.50 12.00

T*9X*C20 21.0 UC48C 1205 36.0 26.8 14.50 12.00

T*9X*D20 24.5 FC/MC/PC48D 1240 36.0 26.6 14.50 12.00

T*9X*D20 24.5 UC48D 1240 36.0 26.8 14.50 12.00

Y*(8,L)C*A12 14.5 FC/MC/PC37A 1150 36.0 26.4 13.75 11.50

Y*(8,L)C*B12 17.5 FC/MC/PC43B 1270 36.0 27.2 13.75 11.50

Y*(8,L)C*C16 21.0 FC/MC/PC43C 1205 36.0 26.8 14.50 12.00

Y*(8,L)C*C16 21.0 FC/MC/PC48C 1210 36.0 26.6 14.50 12.00

Y*(8,L)C*C16 21.0 UC48C 1210 36.0 26.8 14.50 12.00

Y*(8,L)C*C20 21.0 FC/MC/PC43C 1190 36.0 26.8 14.50 12.00

Y*(8,L)C*C20 21.0 FC/MC/PC48C 1155 36.0 26.6 14.50 12.00

Y*(8,L)C*C20 21.0 UC48C 1155 36.0 26.8 14.50 12.00

Y*9C*B12 17.5 FC/MC/PC43B 1200 36.0 26.8 14.00 11.50

Y*9C*C16 21.0 FC/MC/PC43C 1240 36.0 27.0 14.00 12.00

Y*9C*C16 21.0 FC/MC/PC48C 1195 36.0 26.6 14.50 12.00

Y*9C*C16 21.0 UC48C 1195 36.0 26.8 14.50 12.00

Y*9C*C20 21.0 FC/MC/PC43C 1200 36.0 26.8 14.50 12.00

Y*9C*C20 21.0 FC/MC/PC48C 1330 36.0 27.6 14.50 12.00

Y*9C*C20 21.0 UC48C 1330 36.0 27.8 14.50 12.00

Y*9C*D20 24.5 FC/MC/PC48D 1240 36.0 26.6 14.50 12.00

Y*9C*D20 24.5 UC48D 1240 36.0 26.8 14.50 12.00

For Notes See Page 12.

COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)

UNIT

MODEL

FURNACE COIL

MODEL1

COOLING

MODEL WIDTH RATED

CFM Net MBH SEER EER

TOTAL SENS.

13 SEER HP WITH HIGH EFFICIENCY MOTOR FURNACES2

Other manuals for LX series

This manual suits for next models

Other York Heat Pump manuals

Popular Heat Pump manuals by other brands

MICROWELL

MICROWELL HP 1000 GREEN Installation and user manual

Sanyo

Sanyo SAP120FCH Service manual

Daikin

Daikin EHYHBH05AA Operation manual

Panasonic

Panasonic WH-SDF03E3E5 Design handbook

Bryant

Bryant 544B Specifications

Airxcel

Airxcel 45000 Series Installation, operation and maintenance instructions

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Service manual

Dimplex

Dimplex LI 16I-TUR Installation and operating instruction

Carrier

Carrier WSHP Open v3 Integration guide

TGM

TGM CTV14CN018A Technical manual

Carrier

Carrier 38MGQ Series installation instructions

Kokido

Kokido K2O K880BX/EU Owner's manual & installation guide

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Installation and service instructions

Carrier

Carrier 48EZN installation instructions

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Installation and service instructions for contractors

Ariston

Ariston NIMBUS user manual

Weishaupt

Weishaupt WWP L 7 Installation and operating instruction

GE Zoneline AZ85H09EAC datasheet
