Yealink W53P User manual

For W60B firmware: 77.83.0.X or later

For W53H firmware: 88.83.0.X or later

Quick Start Guide(V83.X)

DECT IP Phone

W53P & W53H

Note: We recommend that you use the accessories provided or approved by

Yealink.

The use of unapproved third-party accessories may result in reduced

performance.

W53P Package Contents

Note: Yealink W53P DECT IP phone consists of one W60B base station and one

W53H handset.

W53H Package Contents

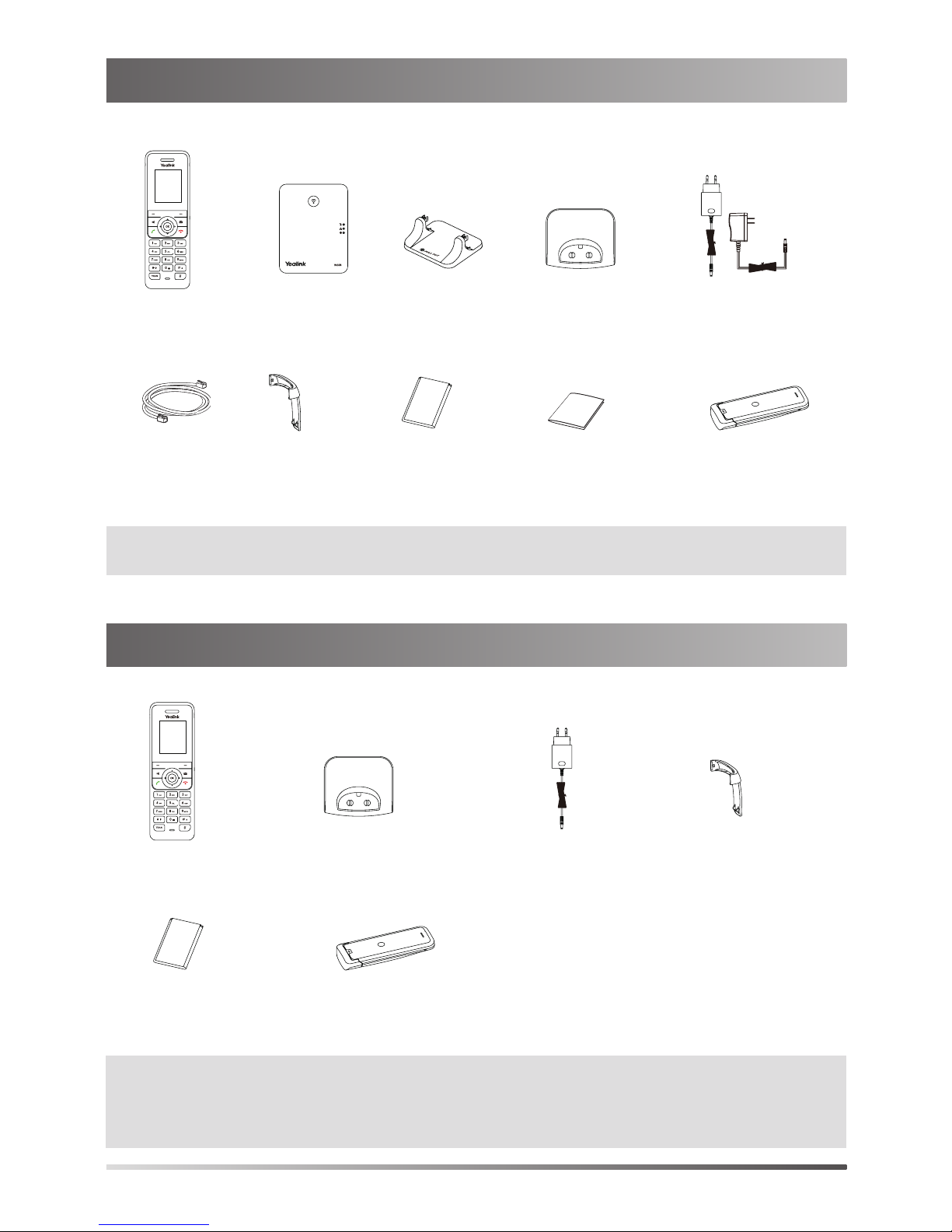

W53H Headset W60B Base Station Base Stand USB Charger Cradle 2 Power Adapters

Ethernet Cable Belt Clip Rechargeable Battery Quick Start Guide Handset Protective Case

(Optional)

W53H Headset USB Charger Cradle 2 Power Adapters Belt Clip

Rechargeable Battery Handset Protective Case

(Optional)

Remove the snap-fits from the

holes horizontally.

MAC

W60B Package Contents

1. Connect the base station power and the network using

Method a or Method b.

a. AC Power Option b. PoE (Power Over Ethernet) Option

Note

• If you choose Method a, use Yealink-supplied power adapter (5V/600mA).

A third-party power adapter may damage the base station.

• If you choose Method b, you do not need to connect the power adapter.

Make sure the hub/switch is PoE-compliant.

2a. (Desktop Installation) Attach and remove the base stand.

Attach the Base Stand Remove the Base Stand

Assembling the DECT Phone

W60B Base Station Base Stand Power Adapter Ethernet Cable Quick Start Guide

Align the snap-fits with the corresponding holes

and push forward, snapping them into the holes.

2b. (Wall-Mount Installation) Attach the base station.

3. Insert the battery into the handset.

4. Attach the Belt Clip.

5. (Optional) Mount the charger cradle to the wall.

MAC

59mm

MAC

40mm

6. Connect the charger cradle and charge the handset.

Note

• Use Yealink-supplied power adapter (5V/600mA). A third-party power adapter

may damage the handset.

• Check the charging status on the top right corner of the LCD screen.

Shortcut Keys

Shortcut keys help you quickly access to frequently used phone features. De-

scribe the default shortcut-keys behaviors:

Entering and Editing Data

• Press one or more times to switch among different input modes or type

“#”.

• Press to provide the special characters to choose or to type “*”.

• Press a digit key one or more times to type the desired character or digit.

• Press the Del soft key to delete entered characters.

• Press the Save soft key to accept the change or Back to cancel.

Access the call history record.

Check the line status.

Access the intercom list, select one to place an

internal call.

Decrease the ringer volume.

Increase the ringer volume.

Access the directory list.

Getting Started

Handset Registration

You can register up to 8 handsets to one W60B base station. Each handset can

be registered to 4 different base stations.

When the handset LCD screen prompts “Unregistered!”, long press on the

base station till the registration LED flashes.

There are two methods to register a new handset:

Easy Registration:

1. Press the Reg soft key on the handset to register quickly.

Normal Registration:

1. Press the OK soft key on the handset, and then select Register Handset.

2. Select the desired base station and then press the OK soft key. The handset

begins searching the base station.

3. Press the OK soft key after searching a base station successfully.

4. Enter the base station PIN (default: 0000), and then press the Done soft key to

complete registration.

To register to multiple base stations, press OK to enter the main menu, and se-

lect Settings->Registration->Register Handset, then repeat steps 2-4.

Note:

• If the handset is registered to the base station successfully, the handset LCD

scree prompts “Handset Subscribed” and “Base NO.”( the last 4 characters

indicate the base station’s MAC address).

• If the handset LCD screen prompts “Searching for Base”, check that your base

station is powered on.

Network Settings

You can configure the base station to obtain network settings in one of the fol-

lowing ways:

DHCP

By default, the base station attempts to contact a DHCP server in your network to

obtain the valid network settings, such as IP address, subnet mask, gateway ad-

dress and DNS address.

Static

If the base station cannot contact a DHCP server for any reason, you need to

configure the IP address, subnet mask, gateway address, primary DNS address

and secondary DNS address for the base station manually.

To configure the network parameters for the base station manually:

1. Press the OK key to enter the main menu, and then select Settings->System

Settings ->Network (default PIN: 0000)->Basic.

2. Select the desired IP addressing mode from the IP Mode field.

3. Press to select the desired IP addressing mode.

4. Make the desired changes.

5. Press the Save soft key to accept the change.

Note:

• The IP DECT phone supports either or both IPv4 and IPv6 addressing modes,

but IPv6 is disabled by default.

• Wrong network settings may result in inaccessibility of your DECT phone and

may affect the network performance. Contact your system administrator for

the network parameters.

Turning Handset On/Off

To turn the handset on, do one of the following:

• Press , then the LCD screen lights up.

• Place the handset in the charger cradle. The handset will be turned on

automatically.

To turn the handset off:

Long press to turn the handset off.

Locking/Unlocking Keypad

• Long press when the handset is idle to lock the keypad.

• Long press again to unlock the keypad.

Silent Mode

• Long press when the handset is idle to switch the silent mode to on.

• Long press again to switch the silent mode to off.

Basic Operations

Handset Name

To rename the handset:

1. Press the OK key to enter the main menu, and then select Settings->Handset

Name.

2. Edit the value in the Rename field.

3. Press the Save soft key to accept the change.

Volume Adjustment

• Press or when the handset is idle or ringing to adjust the ringer volume.

• Press or during a call to adjust the receiver volume of speakerphone/

earpiece/earphone.

Ring Tones

1. Press the OK key to enter the main menu, and then select Settings->

Audio->Ring Tones->Melodies.

2. Press or to highlight the Intercom Call or the desired line.

3. Press or to select the desired ring tone.

4. Press the Save soft key to accept the change.

Local Directory

To add a contact:

1. Press the OK key to enter the main menu, and then select Directory->Local

Directory.

2. Press the Options soft key, and then select New Contact.

3. Enter the desired value in the Name, Office, Mobile and Other field

respectively.

4. Press the Save soft key to accept the change.

To edit a contact:

1. Press the OK key to enter the main menu, and then select Directory->Local

Directory.

2. Press or to highlight the desired entry.

3. Press the Options soft key, and then select Edit.

4. Edit the desired value in the Name, Office, Mobile and Other field

respectively.

5. Press the Save soft key to accept the change.

Handset Settings

To delete a contact:

1. Press the OK key to enter the main menu, and then select Directory->Local

Directory.

2. Press or to highlight the desired entry.

3. Press the Options soft key, and then select Delete to delete the selected entry.

Speed Dial

1. Press the OK key to enter the main menu, and then select Settings->

Telephony->Speed Dial.

2. Press or to highlight the desired digit key, and then press the Assign soft

key.

3. Press or to select the desired directory type.

4. Press or to highlight the desired entry, and then press the OK soft key.

If both the office number and mobile number are stored, press or to

highlight the desired number, and then press the OK soft key again.

Basic Call Features

Placing Calls

To place a call directly:

1. Do one of the following:

• Enter the desired number when the handset is idle.

• Press to enter the pre-dialing screen. Enter the desired number using the

keypad.

If there are multiple lines assigned to your handset as outgoing lines, press

the Line soft key to select the desired line. If you do not select a line, the hand

set uses the default outgoing line to dial out.

2. Press , or to dial out.

To place a call from the local directory:

1. Press when the handset is idle.

2. Press or to select the desired directory type.

3. Highlight the desired entry, and then press or to dial out using the default

line.

If multiple numbers for the contact are stored, press or to highlight the

desired number, and then press or again to dial out using the default line.

To place a call from the call history:

1. Press the History soft key when the handset is idle, and then select the

desired call history list.

2. Press or to highlight the desired entry, and then press or to dial out

using the default line.

To place a call from the redial list:

1. Press when the handset is idle.

2. Press or to highlight the desired entry, and then press or .

To place a call using the speed dial key:

Long press the speed dial key to call the preset number directly.

Answering Calls

To answer a call, do one of the following:

• Press the Accept soft key.

• Press .

Note: You can ignore an incoming call by pressing the Silence soft key or reject

an incoming call by pressing .

Ending Calls

Press .

Call Mute

• Press during a call to mute the call.

• Press again to un-mute the call.

Call Hold and Resume

To place a call on hold:

Press the Options soft key during a call, and then select Hold.

To resume a call, do one of the following:

• If there is only a call on hold, press the Resume soft key.

• If there are two calls on hold, press the Resume soft key to resume the current

call.

Press the Swap soft key to swap between calls.
