Yakima Twotimer User manual

1034509A-1/11

PART# 1034509 Rev.A

CONTENTS • CONTENU • CONTENIDO

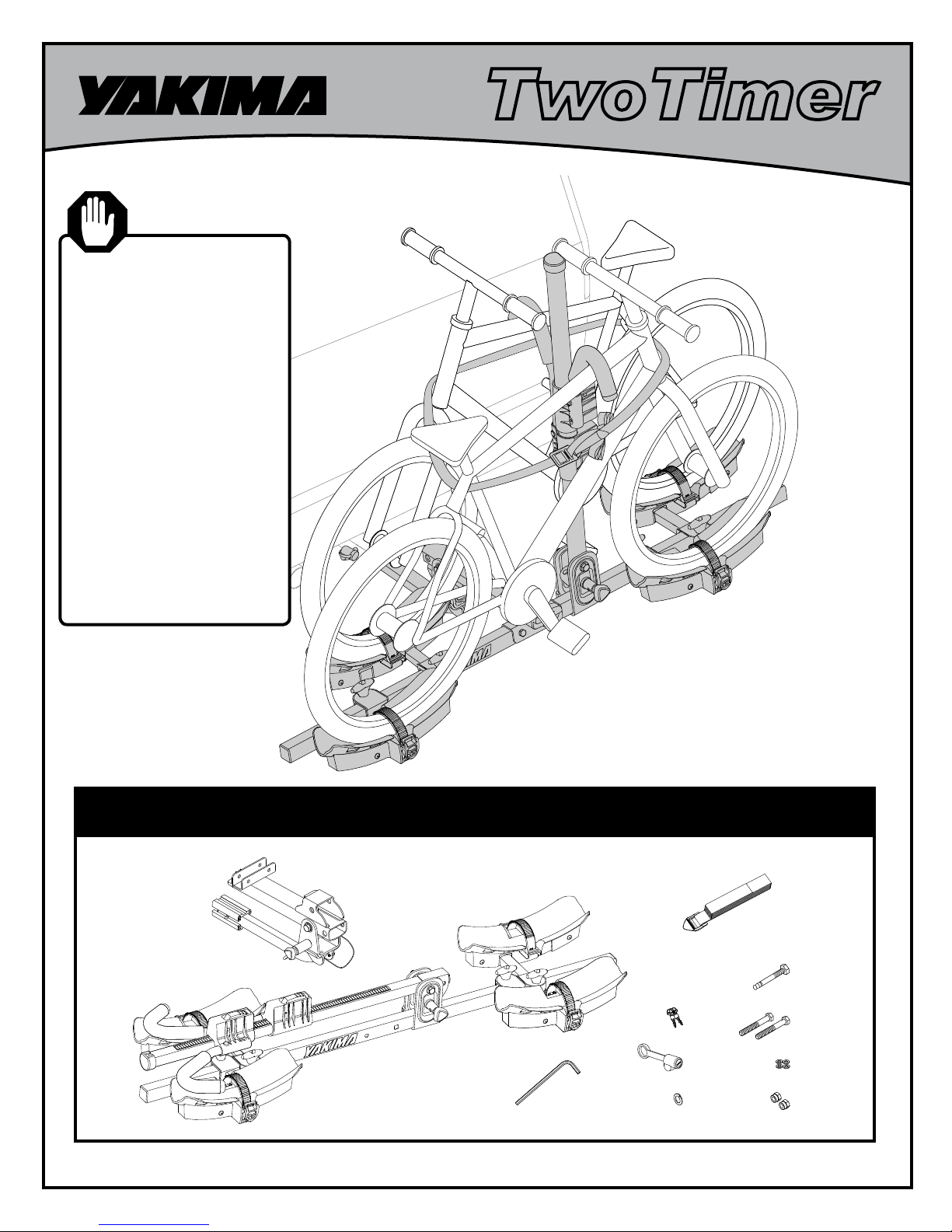

TwoTimer

Tools Required:

Adjustable Wrenches

Or

3/4” socket/wrenches

9/16” socket/wrenches

Outils nécessaires:

Clés à molette

OU

Clé et douille 3/4 po (± 19 mm)

Clé et douille 9/16 po (± 14 mm)

Herramientas requeridas:

Llaves ajustables

O

Llave de cubo de 3/4”

Llave de cubo de 9/16”

1X

1X

1X

1X 2X

2X

4X

2X

1X

1X

1X

1034509A-2/11

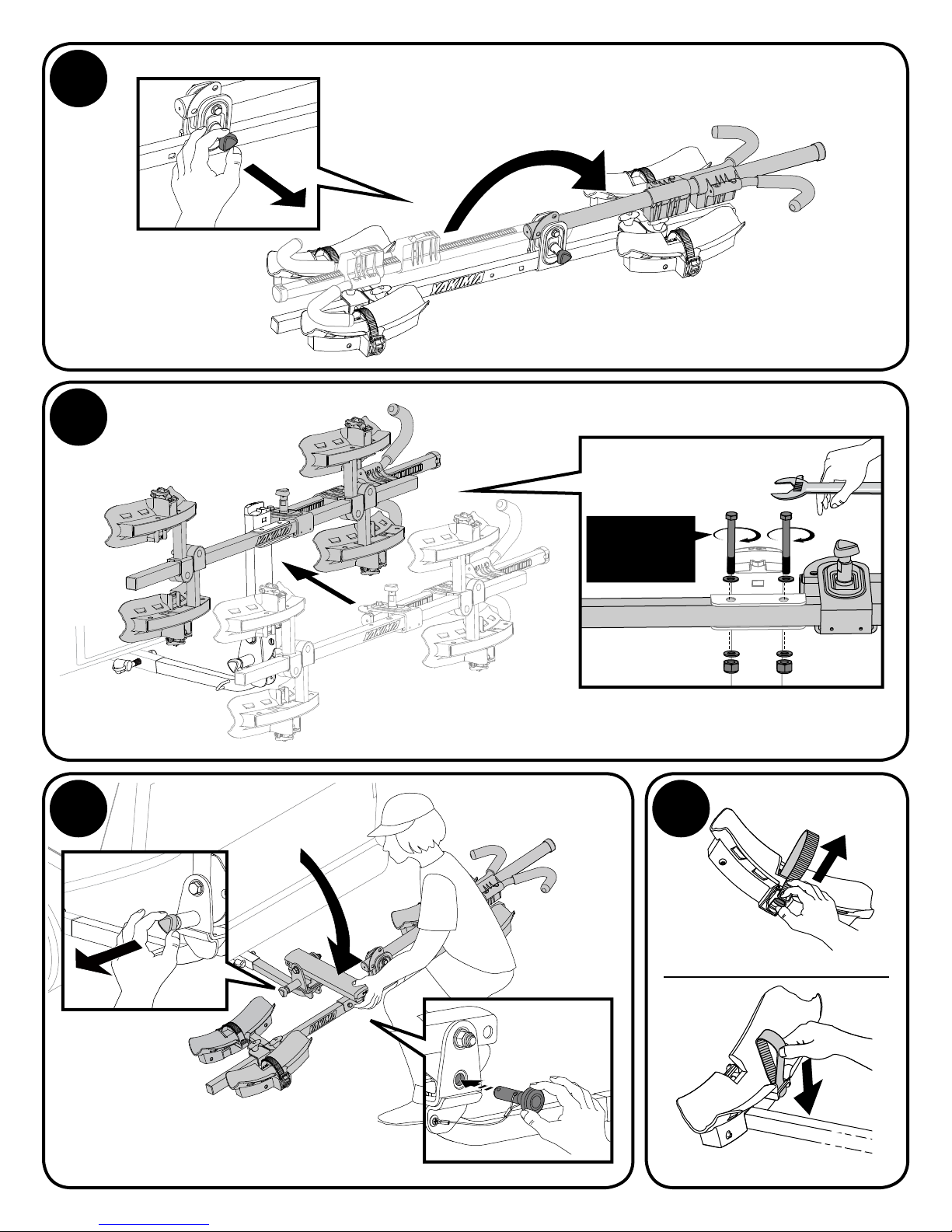

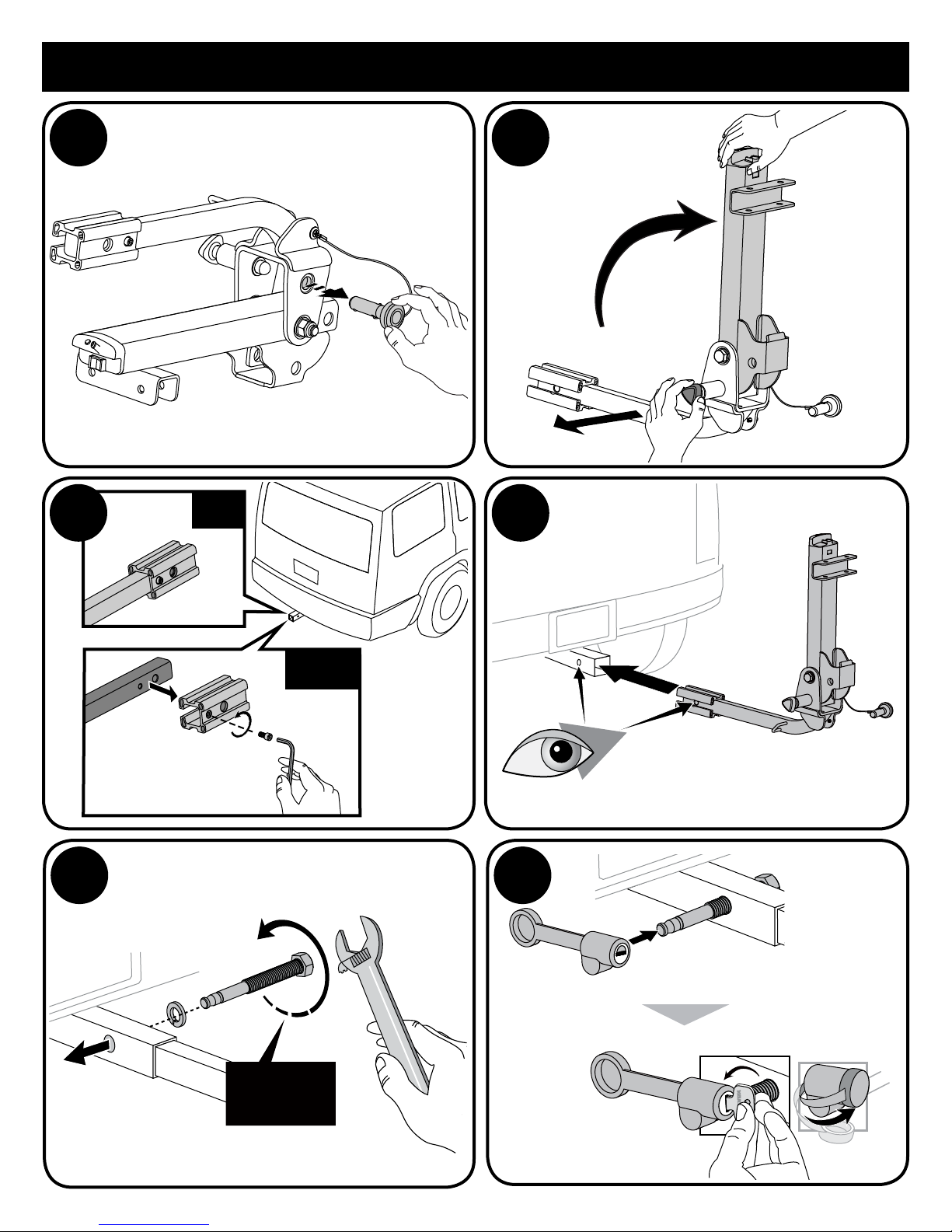

INSTALLATION

1 ”

1/4

2

”

1

75 ft-lbs

(101Nm)

3

5 6

4

2

1034509A-3/11

20 ft-lbs

(27Nm)

8

10

4X

9

7

1034509A-4/11

14

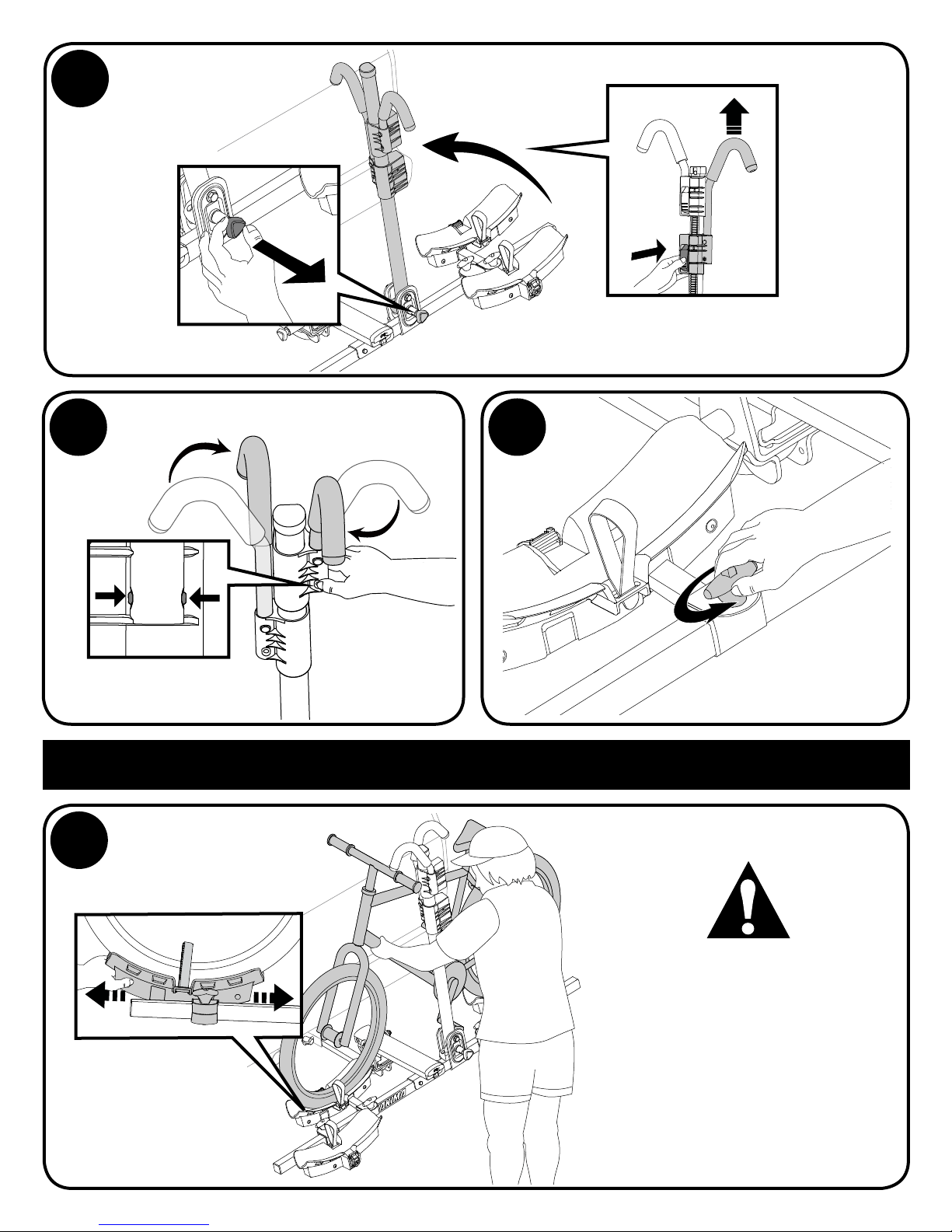

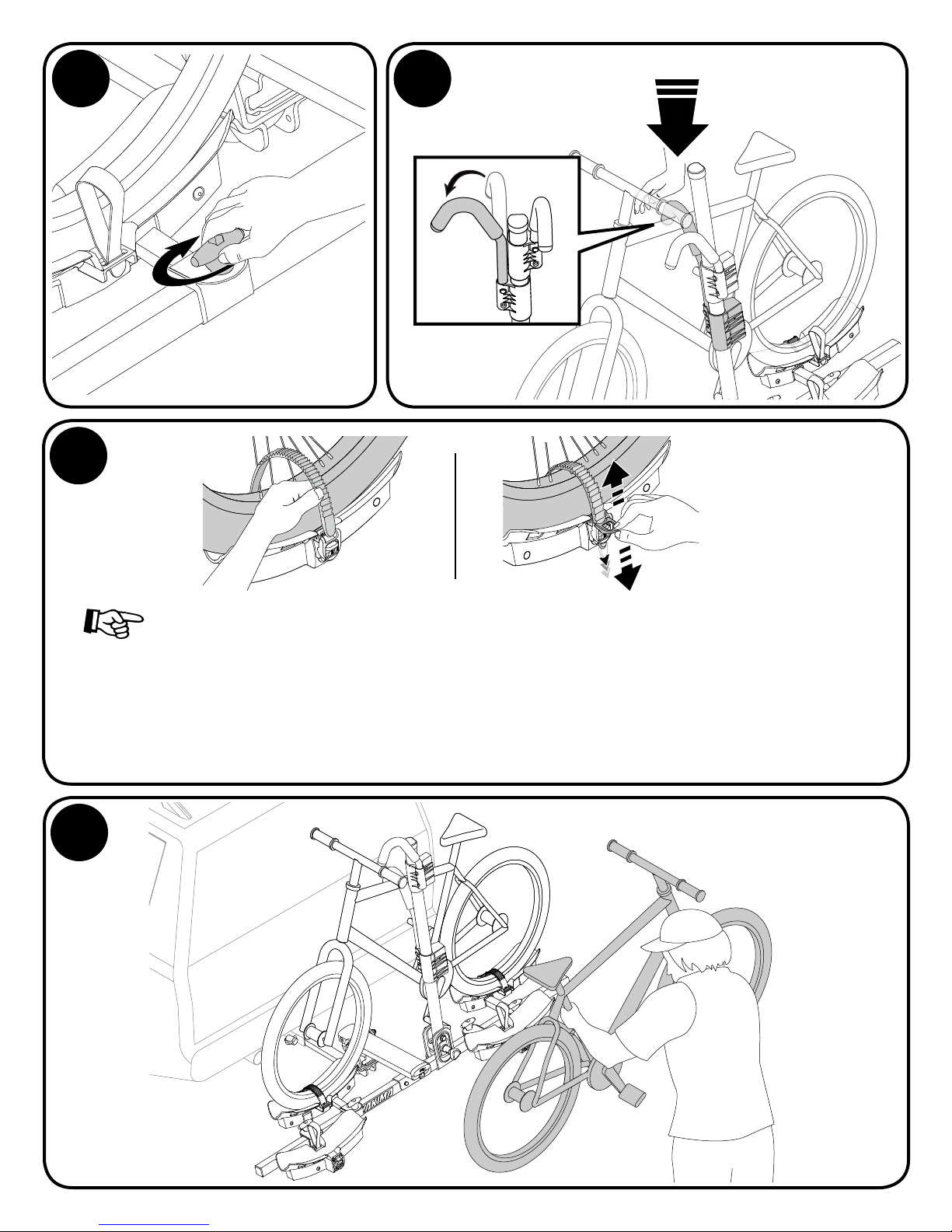

LOADING

Load heaviest bike closest to

vehicle.

13

12

11

2X

1034509A-5/11

2X

17

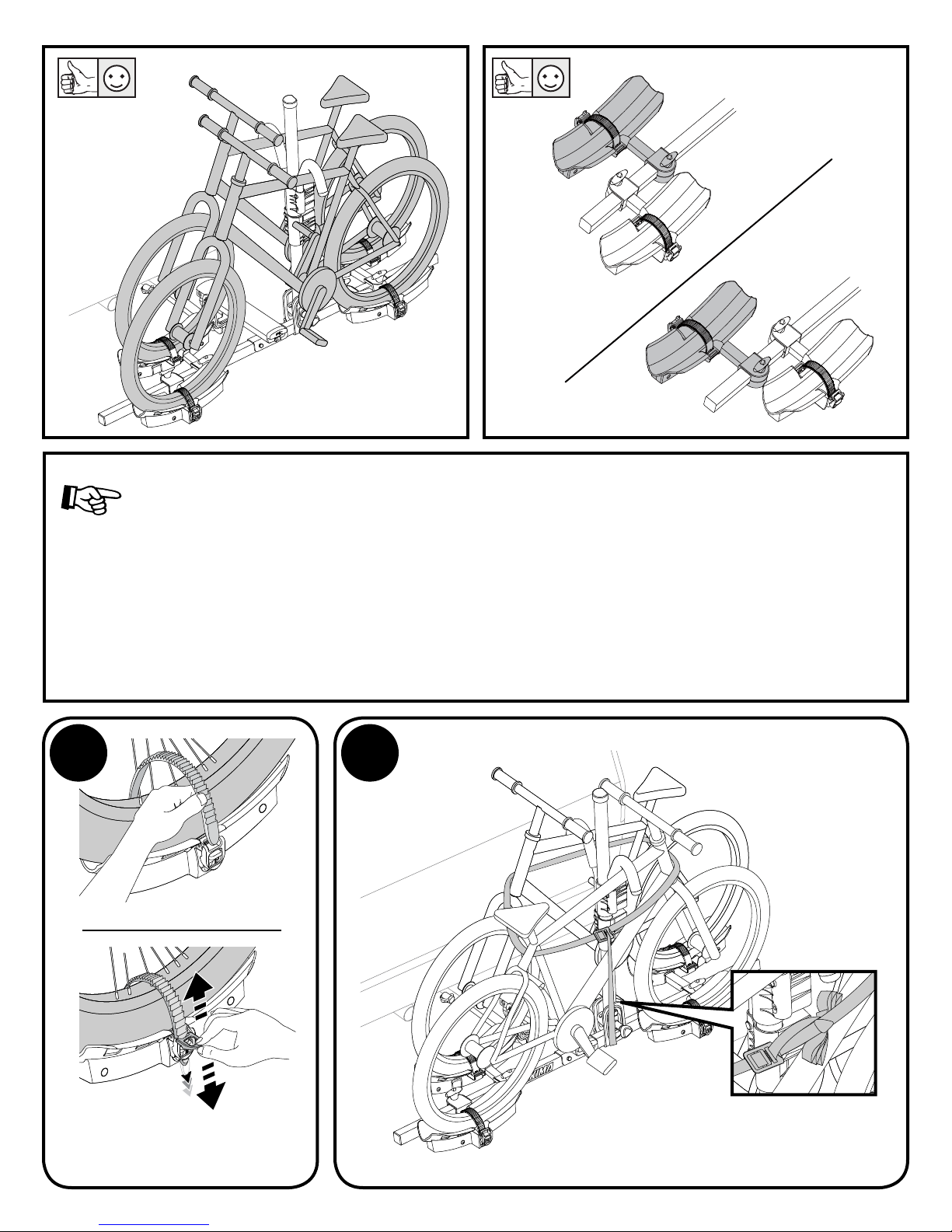

TIP: For larger tire sizes up to 4.5” use 8002470 FAT STRAPS.

16

15

2X

18

1034509A-6/11

1034509A-7/11

19 20

2X

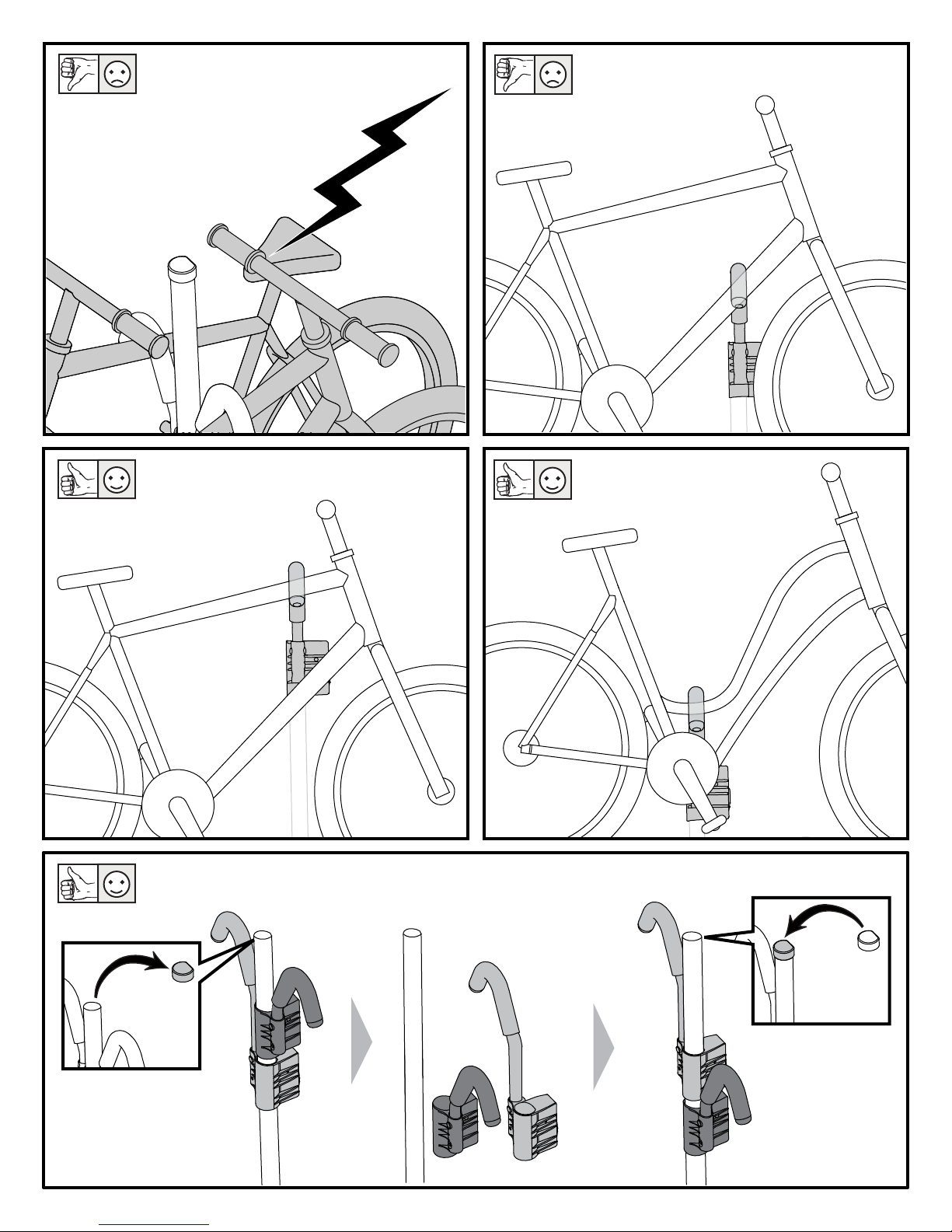

TIP: You can replace the short hook with 8880525 LONG HOOK “A” or replace the long hook

with 8880526 SHORT HOOK ‘B’.

1034509A-8/11

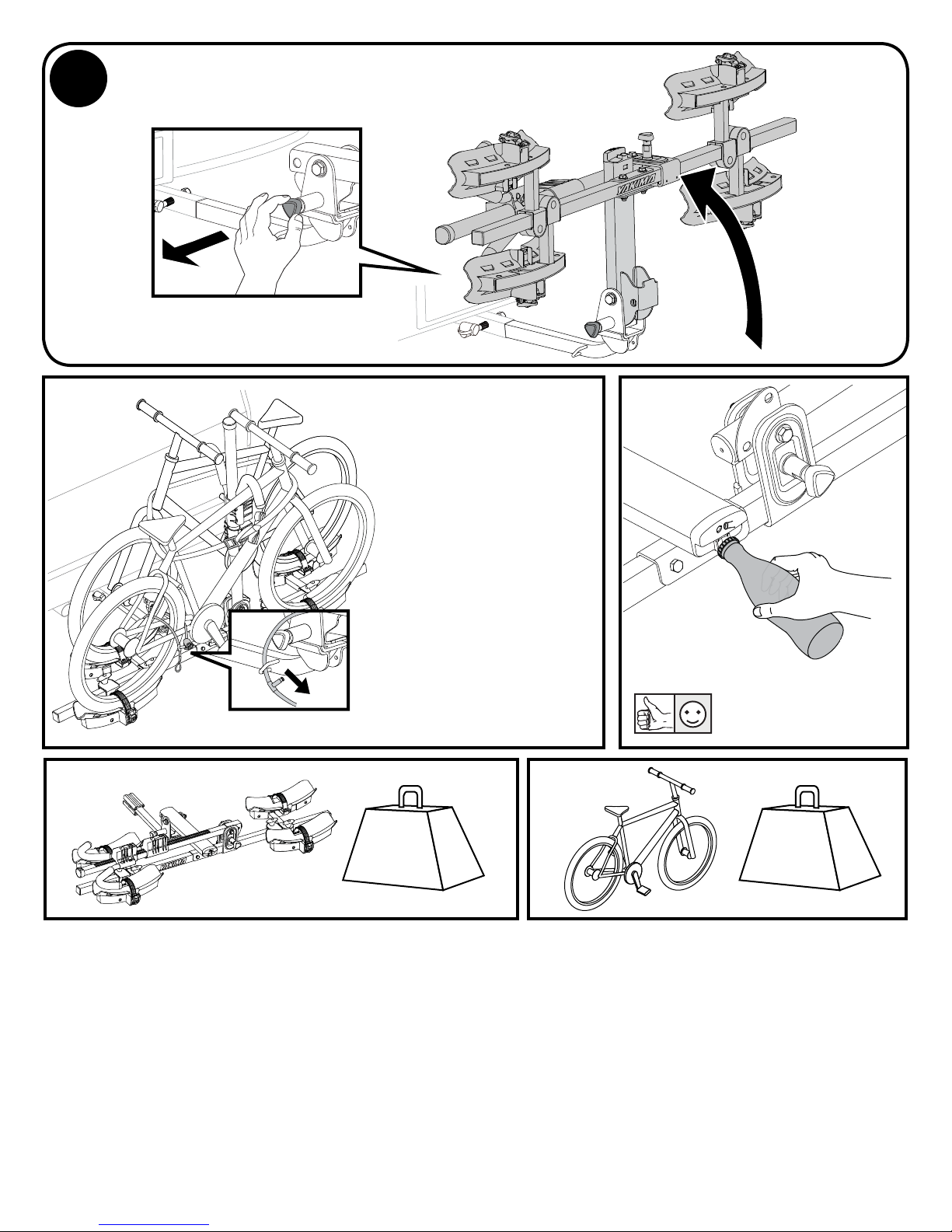

24

FOLDING

23

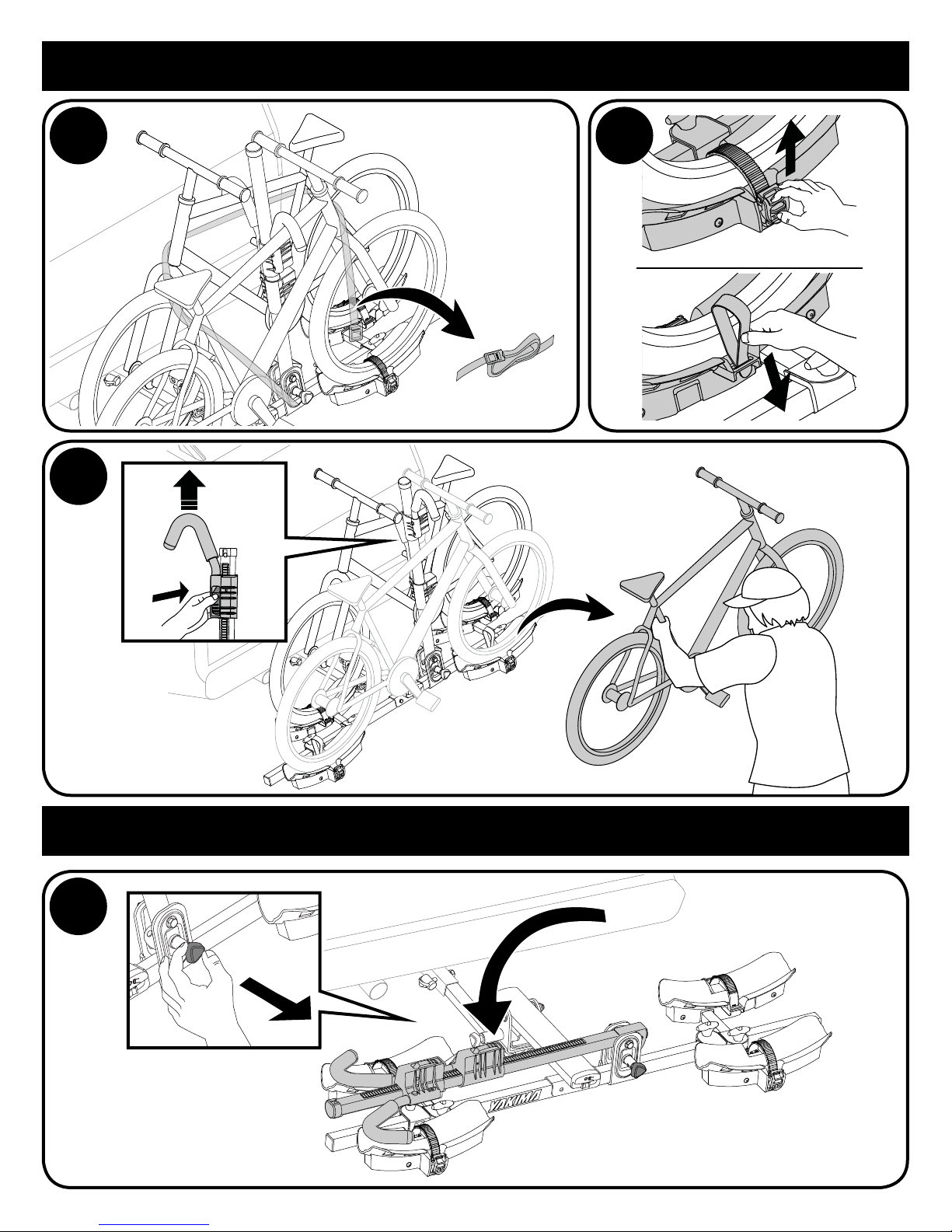

UNLOADING

22

21

45 lbs.

(20.5kg)

MAX.

39 lbs.

(17.5kg)

25

Use hoop for cable lock

(not included) for additional

bike security.
