Yakima LockNLoad Mk2 User manual

6100003631-Rev0.2 1/2

FIXED AND TRACK MOUNT KITS

®LockNLoad Mk2 Leg Kit Instruction

THESE INSTRUCTIONS SUPPLEMENT

THE BAR/LEG INSTALLATION

SECTIONS THAT MAY STILL

FEATURE THE MK1 LEG IN YOUR

VEHICLE FIXED OR TRACK MOUNT

FITTING KIT INSTRUCTION

BAR INSTALLATION

INSERT LEGS

Slide the pre-assembled Leg assemblies into the

underside channel of LockNLoad Bars.

If Leg assemblies will not slide in,

loosen Screws to increase gap.

1

Note: Nut Plates

are not required.

LEVEL BARS - FIXED POINT

With vehicle on a level surface, adjust all

Bar angles to be level using a Spirit Level.

The Bar angle can be adjusted to reduce

any wind noise. In most cases this is

achieved by getting the Bar in-line

with air low parallel to the ground.

2

Air Flow

SECURE LEGS TO BARS

Tighten all M8 Set

Screws to 9 Nm using

a 13 mm Spanner.

3

6100003631-Rev0.2 2/2

Disassemble Leg

components as

shown and store

in a safe place.

2

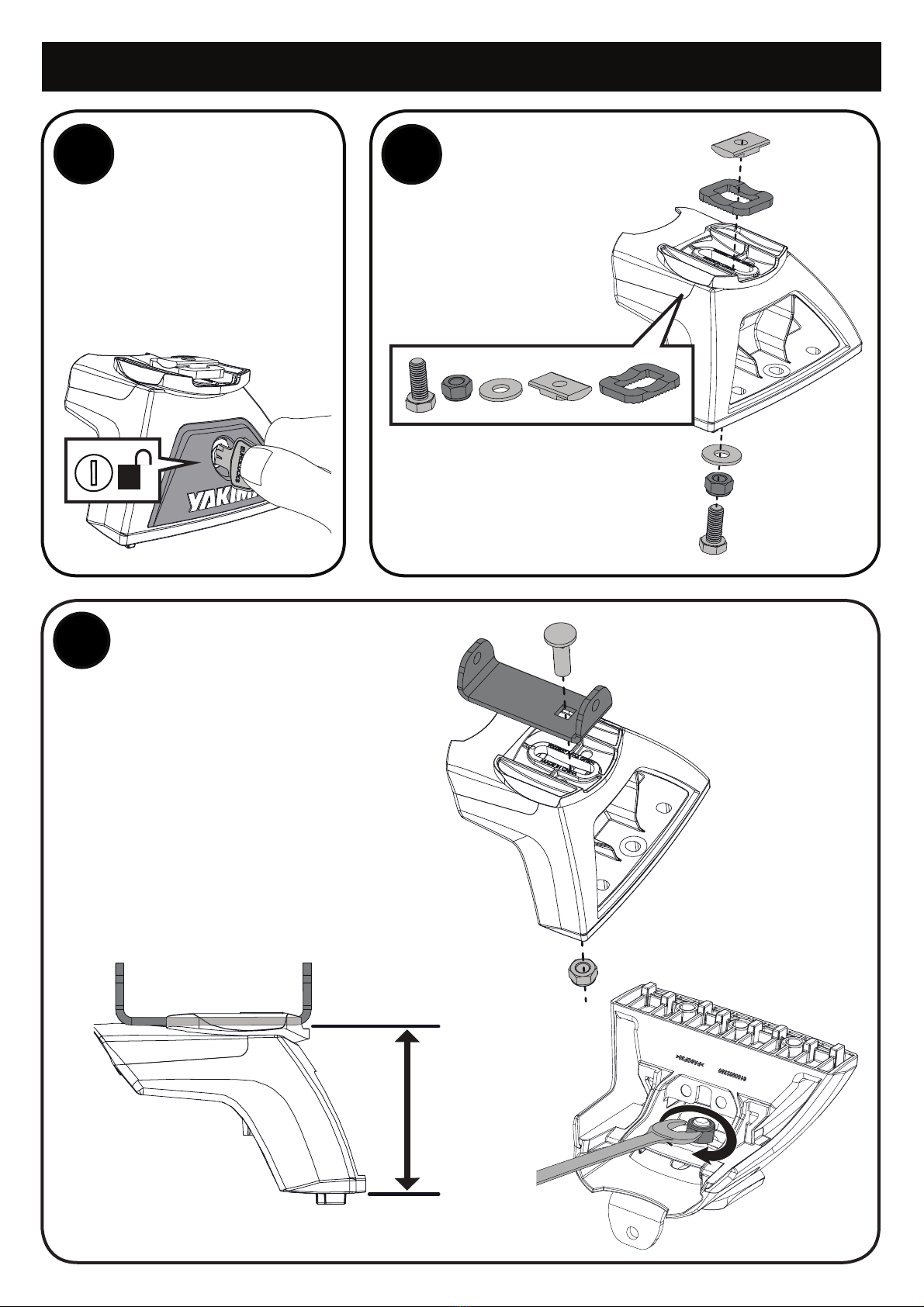

REMOVE LEG

COVERS

Using the keys

supplied in the

LockNLoad Leg Kit

(sold separately),

remove all Leg

Covers.

1DISASSEMBLE LEG

ASSEMBLIES

ASSEMBLE LEGS

Assemble each Leg as shown using

one Platform Mount Bracket, M8

Coach Bolt and M8 Nut from the

LockNLoad Leg Kit.

All Brackets should be parallel

with the base of the Leg prior to

tightening.

Tighten all M8 nuts to 9 Nm

using a 13 mm Spanner.

3

PLATFORM LEG MOUNTING INSTRUCTIONS
