M Series Ovens Installation Guide
M SERIES OVENS
Contents
3M Series Ovens
4Specications
12 Installation
14 Troubleshooting
Features and specications are subject to change at any
time without notice. Visit wolfappliance.com/specs for the
most up-to-date information.
2
|
Wolf Customer Care 800.222.7820
Important Note
To ensure this product is installed and operated as safely
and efciently as possible, take note of the following types
of highlighted information throughout this guide:
IMPORTANT NOTE highlights information that is especially
important.
CAUTION indicates a situation where minor injury or product
damage may occur if instructions are not followed.
WARNING states a hazard that may cause serious injury or
death if precautions are not followed.
IMPORTANT NOTE: Throughout this guide, dimensions in
parentheses are millimeters unless otherwise specied.
IMPORTANT NOTE: Save these instructions for the local
electrical inspector.
wolfappliance.com
|
3
M SERIES OVENS
Product Information

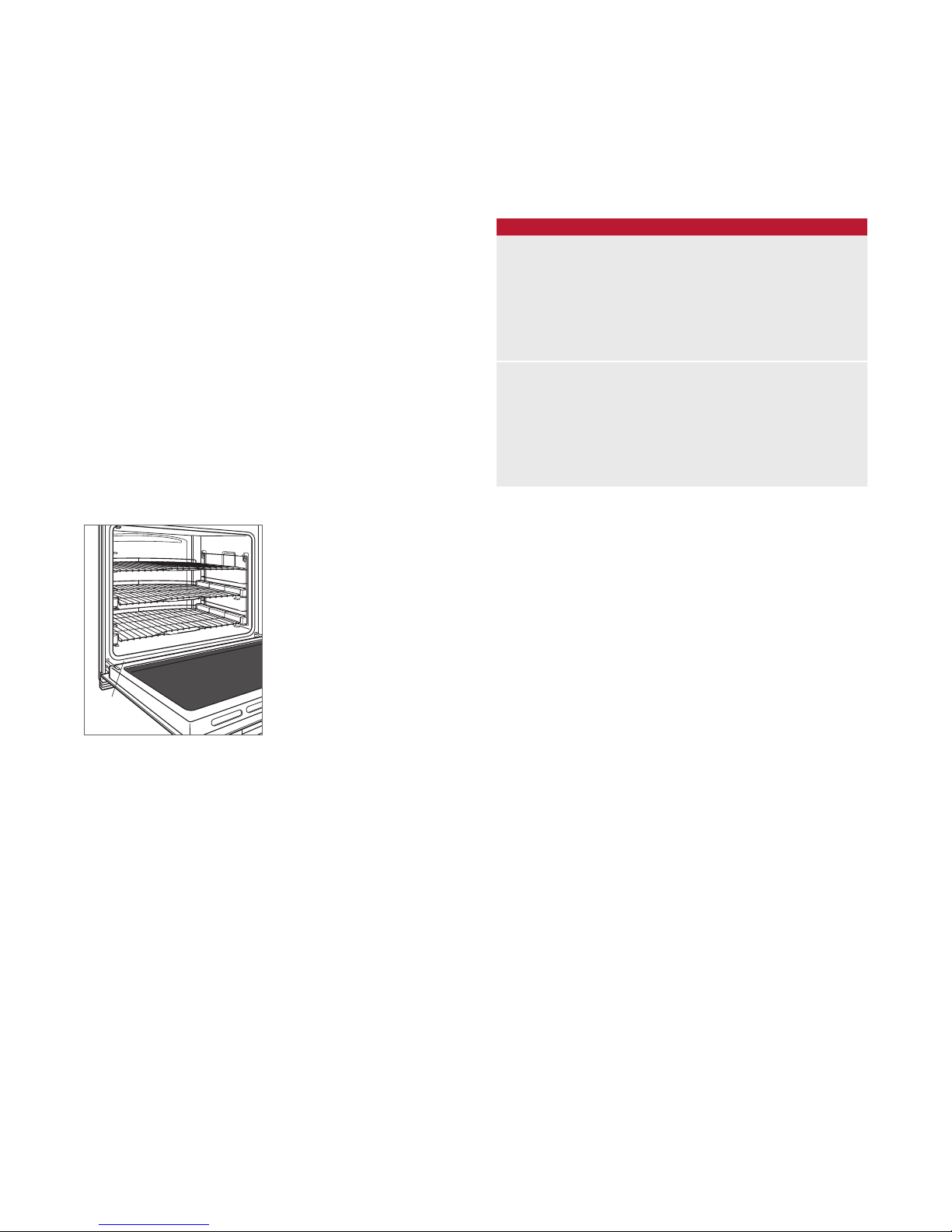

Important product information including the model and
serial number are listed on the product rating plate. The
rating plate is located near the bottom trim on the left. The
oven door must be open to view the rating plate. Refer to
the illustration below.
If service is necessary, contact Wolf factory certied service
with the model and serial number. For the name of the
nearest Wolf factory certied service or for questions
regarding the installation, visit the contact & support section
of our website, wolfappliance.com or call Wolf customer
care at 800-222-7820.

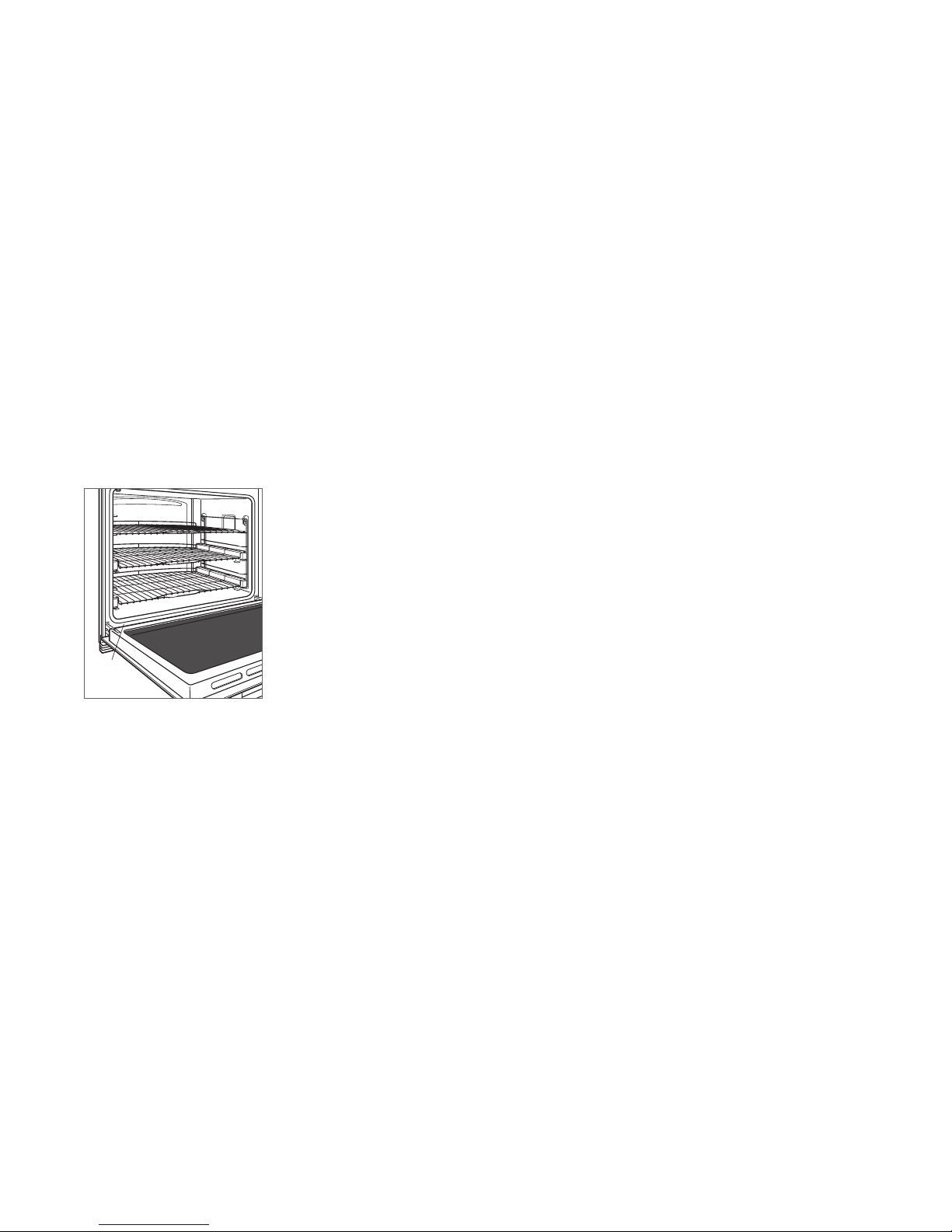

Rating plate location.
RATING
PLATE
4
|
Wolf Customer Care 800.222.7820
SPECIFICATIONS
Installation Requirements
The M series oven can be installed in a standard or ush
inset application. If a cooktop is being installed above an
oven, a minimum of 1/4"(6) is required between units. Loca-
tion of the electrical supply within the oven opening may
require additional cabinet depth.
Finish the edges of the opening. They may be visible when
the door is open.
For standard installations, face trim will overlap stiles and
rails. Refer to the chart below.
For ush inset installations, a minimum 1/8"(3) reveal is
required on all sides. To ensure consistent reveals, each
corner of the opening must be exactly 90°.
INSTALLATION REQUIREMENTS
BASE SUPPORT MIN
Single Oven 250 lb (115 kg)
Double Oven 400 lb (181 kg)
TRIM OVERLAP
Top 1" (25)
Bottom 0" (0)
Sides 11/16"(18)
DUAL INSTALLATION
Two M series ovens can be installed side by side in a
standard or ush inset application. A dual installation kit is
required. To maintain appropriate airow, the ovens must be
installed into one opening. Any cosmetic or structural mate-
rial placed between the ovens will impede airow and is not
recommended. Refer to illustrations on the following pages.
The dual installation kit is available through an authorized
Wolf dealer. For local dealer information, visit the nd a
showroom section of our website, wolfappliance.com.
wolfappliance.com
|
5
Electrical
Installation must comply with all applicable electrical codes.
Locate the electrical supply ush with the back wall and
within the shaded area shown in the illustrations on the
following pages. For ease of installation, the electrical
supply for the oven can be placed in an adjacent cabinet
within reach of the conduit.
Performance may be compromised if the electrical supply is
less than 240 volts.
The oven is supplied with a conduit consisting of two
insulated hot lead conductors and a bare ground conductor.
The wiring diagram covering the control circuit is provided
with the oven.
Rating plate location.
RATING
PLATE
ELECTRICAL REQUIREMENTS
SINGLE OVEN
Electrical Supply grounded, 240/208 VAC, 60 Hz
Service 30 amp dedicated circuit
Conduit 4' (1.2 m)
Total Amps 22
Max Connected Load 5.4 kW
Min Supply Wire L1, L2, ground—10 AWG
DOUBLE OVEN
Electrical Supply grounded, 240/208 VAC, 60 Hz
Service 50 amp dedicated circuit
Conduit 5' (1.5 m)
Total Amps 45
Max Connected Load 10.8 kW
Min Supply Wire L1, L2, ground—8 AWG
SPECIFICATIONS
6
|
Wolf Customer Care 800.222.7820
SPECIFICATIONS
M Series Single Oven
STANDARD INSTALLATION
E
5"
(127)
E
E
4"
(102)
FRONT VIEW
SIDE
VIEW
NOTE: Location of electrical supply within opening may require additional cabinet depth.
231/4" (591)
OPENING
DEPTH
TOP VIEW
W
OPENING WIDTH
271/2"
(699)
OPENING
HEIGHT
OPENING WIDTH
SINGLE OVEN W
27" Model 251/2"(648)
30" Model 281/2"(724)
36" Model 341/2"(876)
wolfappliance.com
|
7
SPECIFICATIONS
M Series Single Oven
FLUSH INSET INSTALLATION
*1
"(25) minimum depth. Shaded areas will be visible and should be finished to match cabinetry.
**
7/8"(22) for professional and transitional models and 1" (25) for contemporary model.
**
*Dimension provides minimum reveals.
NOTE: Location of electrical supply within opening may require additional cabinet depth.
283/4"
(730)
FLUSH INSET
HEIGHT***
E
5"
(127)
4"
(102)
FRONT VIEW
SIDE
VIEW
11/8" (29)
1/8" (3)
13/16" (21)
24" (610)
FLUSH INSET
DEPTH
7/8" (22)
OR
1"(25)**
W
FLUSH INSET WIDTH***
TOP VIEW
E
E
FINISHED
CLEATS*
FLUSH INSET WIDTH
SINGLE OVEN W
27" Model 271/8"(689)
30" Model 301/8"(765)
36" Model 361/8"(918)
8
|
Wolf Customer Care 800.222.7820
SPECIFICATIONS
M Series Double Oven
STANDARD INSTALLATION
E
5"
(127)
4"
(102)
E
E
FRONT VIEW
SIDE
VIEW
NOTE: Location of electrical supply within opening may require additional cabinet depth.
497/8"
(1267)
OPENING
HEIGHT
231/4" (591)
OPENING
DEPTH
W
OPENING WIDTH
17" (432)
TYPICAL
TOP VIEW
OPENING WIDTH
DOUBLE OVEN W
27" Model 251/2"(648)
30" Model 281/2"(724)
wolfappliance.com
|
9
SPECIFICATIONS
M Series Double Oven
FLUSH INSET INSTALLATION
*1
"(25) minimum depth. Shaded areas will be visible and should be finished to match cabinetry.
**
7/8"(22) for professional and transitional models and 1" (25) for contemporary model.
**
*Dimension provides minimum reveals.
NOTE: Location of electrical supply within opening may require additional cabinet depth.
E
5"
(127)
4"
(102)
FRONT VIEW
SIDE
VIEW
511/8"
(1299)
FLUSH INSET
HEIGHT***
11/8" (29)
1/8" (3)
13/16" (21)
24" (610)
FLUSH INSET
DEPTH
7/8" (22)
OR
1"(25)**
W
FLUSH INSET WIDTH***
17" (432)
TYPICAL
TOP VIEW
E
E
FINISHED
CLEATS*
FLUSH INSET WIDTH
DOUBLE OVEN W
27" Model 271/8"(689)
30" Model 301/8"(765)
10
|
Wolf Customer Care 800.222.7820
E
5"
(127)
E E
4"
(102)
E
5"
(127)
4"
(102)
FRONT VIEW
SIDE
VIEW
NOTE: Location of electrical supply within opening may require additional cabinet depth.
231/4" (591)
OPENING
DEPTH
TOP VIEW
271/2"
(699)
OPENING
HEIGHT
581/2"(1486)
OPENING WIDTH
Dual M Series Ovens
STANDARD INSTALLATION
SPECIFICATIONS
