Winmate 7'' S-Series User manual

Please read these instructions carefully before using this product, and save this manual for future use.

10.1” S-Series HMI

W10FA3S-PCH2AC-PoE

W10FA3S-PCH2-PoE

Quick Start Guide

V1.0

Document Part Number: 9152100I0001

Contents

Getting Started 3

Unpacking 4

Description Of Parts 5

Dimensions 6

Mounting 7

VESA Mount 7

Flush/ Panel Mount 7

Connector Description 8

DC Input Terminal Block Connector 8

Serial Port Connector 8

PoE/ LAN (RJ45) Connector 8

USB 2.0 Connector 9

USB OTG Connector 9

Micro SD Card Slot 9

Turning On or Off 10

Turning ON 10

Turning OFF 11

Configuring Serial Port Settings 12

Brightness Adjustment 14

Operating the HMI Device 15

Setting up the Device 15

Home Screen 15

Quick Settings 16

Ethernet AP 16

Configuring Ethernet 17

Checking Ethernet 18

Testing LED Light Bar 18

Reading NFC Tag 19

Using Front Camera 22

The Camera Menu 22

Shooting Photos 23

Shooting Videos 25

Winmate® Home Manager (WHM) 26

How to Lock Applications 26

How to Unlock Applications 29

How to Change Password 30

Software Developer Support 31

Winmate Software Development Kit 31

Technical Specifications 32

HMI Device Specifications 32

NFC Tag Support 35

Getting Started

Congratulations on purchasing Winmate® 10.1” S-Series HMI. Interactive and

smart automation systems of intelligent buildings are in a fast growing phase.

Winmate multi-touch S-Series HMI is suitable for home automation and room

management systems. Flat surface is easy-to-clean and delivers aesthetically

pleasing look for any interior. By connecting to centralized database, it can provide

real time update for booking status and available schedule, or perform as a

synchronous display in meetings. Optional NFC is especially useful in access

control applications.

S-Series HMI run on Freescale Cortex A9 i.MX6 Dual Core 1GHz (can be

upgraded to Quad Core) processor and support Android 4.4 and Linux Kernel

3.0.35 operating systems. The HMI device features P-Cap touch-screen. These

models designed with front IP 65 dust and water proof, and IP22 on the back side.

S-Series HMI has an exceptional feature - LED light bar. With the help of red,

green, blue and orange LED indicators you can see the status of the machine or

processes afar. It significantly reduces power consumption by keeping the display

turned off.

Winmate® 10.1” S-Series HMI features:

10.1'' 1280 x 800 Resolution with P-Cap multi-touch screen

PoE standard IEEE 802.3at (25 W)

Fanless cooling system and ultra-low power consumption

2 x USB; 2 x RS232(optional 422/485); 1 x micro SD slot

Room booking schedule, access control, room information display

Front IP65 water and dust proof

Red/ Green/ Blue/ Orange LED light bar indicators on both sides

Optional NFC Reader

Optional 2MP Front Camera

Please read these instructions carefully before using this product, and save this guide for future

use.

Unpacking

Carefully remove the box and unpack your device. Please check if all the items

listed below are inside your package. If any of these items are missing or

damaged contact us immediately.

Standard factory shipment list:

10.1” HMI Device

Quick Start Guide

(Hardcopy)

Driver CD & User

Manual

AC Adapter

(12V/ 36W)

Power Cable

Terminal Block 3 pin

External USB Cable

VESA Mounting Screws

Description Of Parts

W10FA3S-PCH2AC-PoE

Please read these instructions carefully before using this product, and save this guide for future

use.

Dimensions

Dimensions (W x L x H): 263.28 x 171 x 35.7 mm

*Note: Measurements shown in mm.

**Note: this is a simplified drawing and some components are not marked in detail.

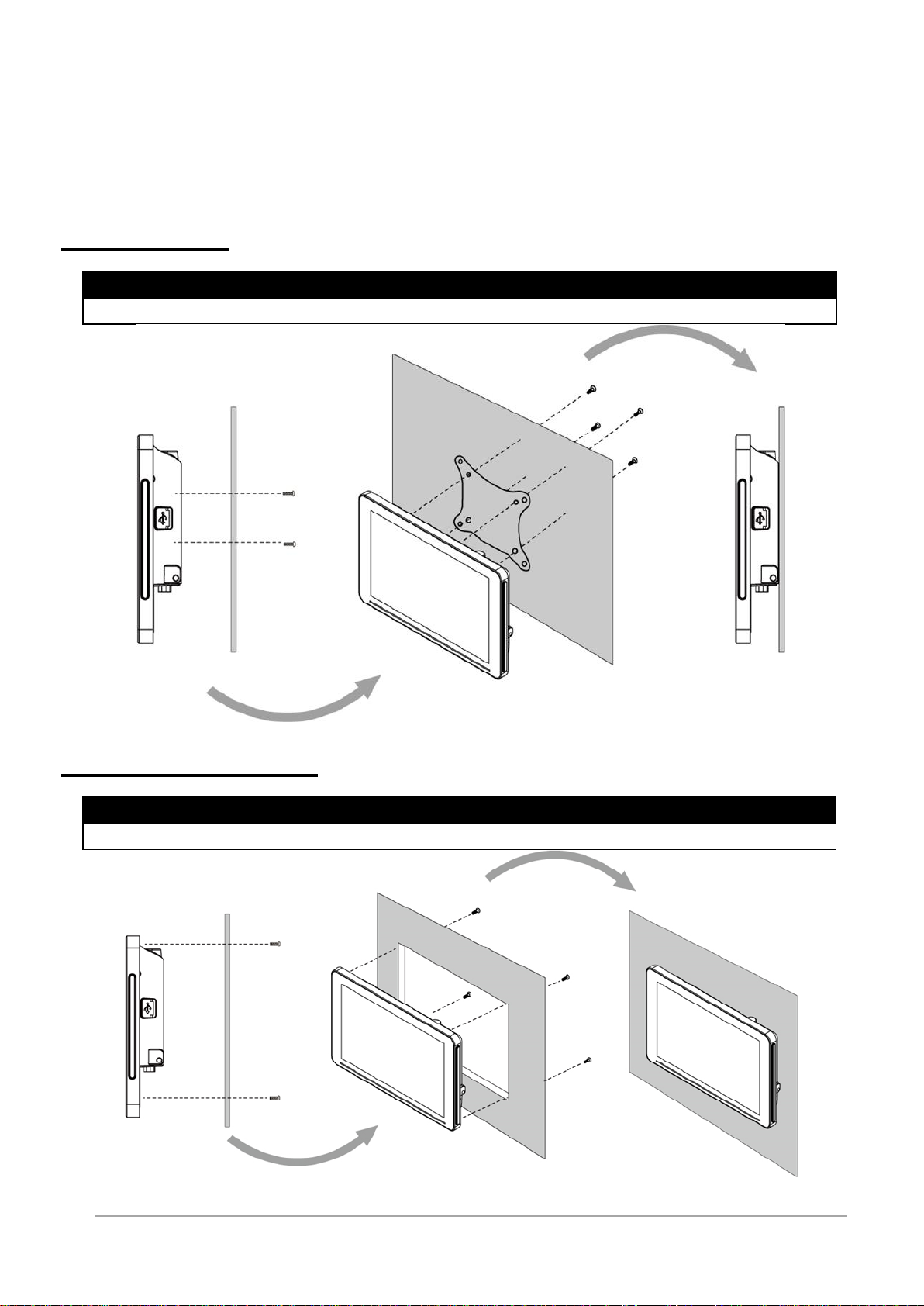

Mounting

S-series HMI devices come with different mounting options suitable for most of the

industrial and commercial applications.

VESA Mount

Dimensions

Screw hole diameter

Compatibility

75 x 75 mm

VESA M4x3 mm

Swing arm mountingkits

Flush/ Panel Mount

Wall cutout

Screw hole diameter

157.6 x 249 mm

M3x4 mm

Please read these instructions carefully before using this product, and save this guide for future

use.

Connector Description

This section explains how to connect external interfaces to the HMI device.

DC Input Terminal Block Connector

DC power source input is a 3 pin terminal block connector.

Serial Port Connector

Use COM1 serial port connector to connect your HMI to external devices such as

mouse, modem or printer. You can configure serial port settings via APP.

PoE/ LAN (RJ45) Connector

The 10.1” S-Series HMI supports one 10/100/1000 Mbps Ethernet interface for

connecting to the internet. Support IEEE 802.3at PoE.

Voltage

Minimum Voltage 11.4V

Maximum Voltage 12.6V

Maximum Current 4.2A

Pin №

RS-232

(Default)

RS-422

RS-485

DCD

TxD-

D-

RXD

TxD+

D+

TXD

RxD+

DTR

RxD-

GND

DSR

RTS

CTS

Pin №

Name

Pin №

Name

TX1+

TX1-

TX2+

TX2-

TX3+

TX3-

TX4+

TX4-

USB 2.0 Connector

Use USB A Type (USB 2.0) connector to connect your HMI device to other USB

2.0 compatible devices.

USB1 / USB2

USB OTG Connector

Use USB OTG connector to connect the HMI device to other USB On-The-Go

compliant devices such as flash drives, digital cameras, mice or keyboards.

Use USB OTG cable to install software on the HMI device.

Refer to the User Manual for more details on how to install software.

Micro SD Card Slot

Insert microSD card to microSD card slot to extend the memory of your HMI device.

Pin №

Name

Pin №

Name

+5V

USB_D-

USB_D+

GND

+5V

USB_D-

USB_D+

GND

Pin №

Name

Pin №

Name

+5V

USB_OTG_D-

USB_OTG_D+

USB_OTG_ID

GND

Pin №

Symbol

Pin №

Symbol

DATA2

DATA3

CMD

+3.3V

CLK

GND

DATA0

DATA1

Card_Det
