Winegard TRAV'LER SK-73UP Quick start guide

SK-73UP

MPEG-4 Upgrade Instructions

for TRAV’LER®Shaw Direct Antenna

Model SK-7003

Manuel disponible en français au www.winegard.com/travler-shaw

For Technical Services, email [email protected] or call 1-800-788-4417

Product Registration:

Please register your Winegard product by completing the online registration form

at http://www.winegard.com/registration.

2452441

Rev1 8-19

Intro

The SK-73UP is compatible with any Shaw Trav’ler manufactured prior to August 23, 2017.

However, if you have a Winegard SK-7002 you need to contact Shaw (888-472-2222) to

upgrade your LNB to the required triple xKU LNB before completing this upgrade process.

Included Parts

IDU

Recommended tools needed:

½" Wrench

7/16" Wrench

3/16" Allen wrench

Adjustable wrench

Wire cutter

Included in Hardware Bag:

5/16" Nut driver

4 Modiﬁed mounting screws

2 Zip ties

5/16" Nut driver

ODU with four

modiﬁed mounting screws

1. IDU Reset

A) Power on IDU by pressing and holding the Power

button for 3 seconds, then press and hold ENTER to

enter the user menu.

B) Once “Enter User Menu” appears, press SELECT to

move the asterisk to “Yes” and press enter.

C) Press SELECT twice until “Installation” is on the top

line with an asterisk and press ENTER.

D) You will be prompted to enter the password. Press

ENTER four times.

E) Press SELECT once until “Raise Antenna” is on the

top line with an asterisk and press ENTER.

F) Press SELECT to the move the asterisk to “Yes” and

press ENTER.

G) Once the antenna has raised, you will receive a

“Raise Antenna - Raised” message. Press ENTER

and repeat the “Raise Antenna” process until

you receive the “Raise Antenna - Motor Stalled”

message.

(H) Power off IDU by pressing and holding POWER and

SELECT simultaneously. If done correctly you will

receive a “Powering Off Thank You” message.

I) Please unplug the 6-wire data

cable by pressing down the

locking tab and gently pulling

the cable out of the “DC OUT/

ANT. COMM.”.

Now remove the DC power cord

from the “DC IN” terminal.

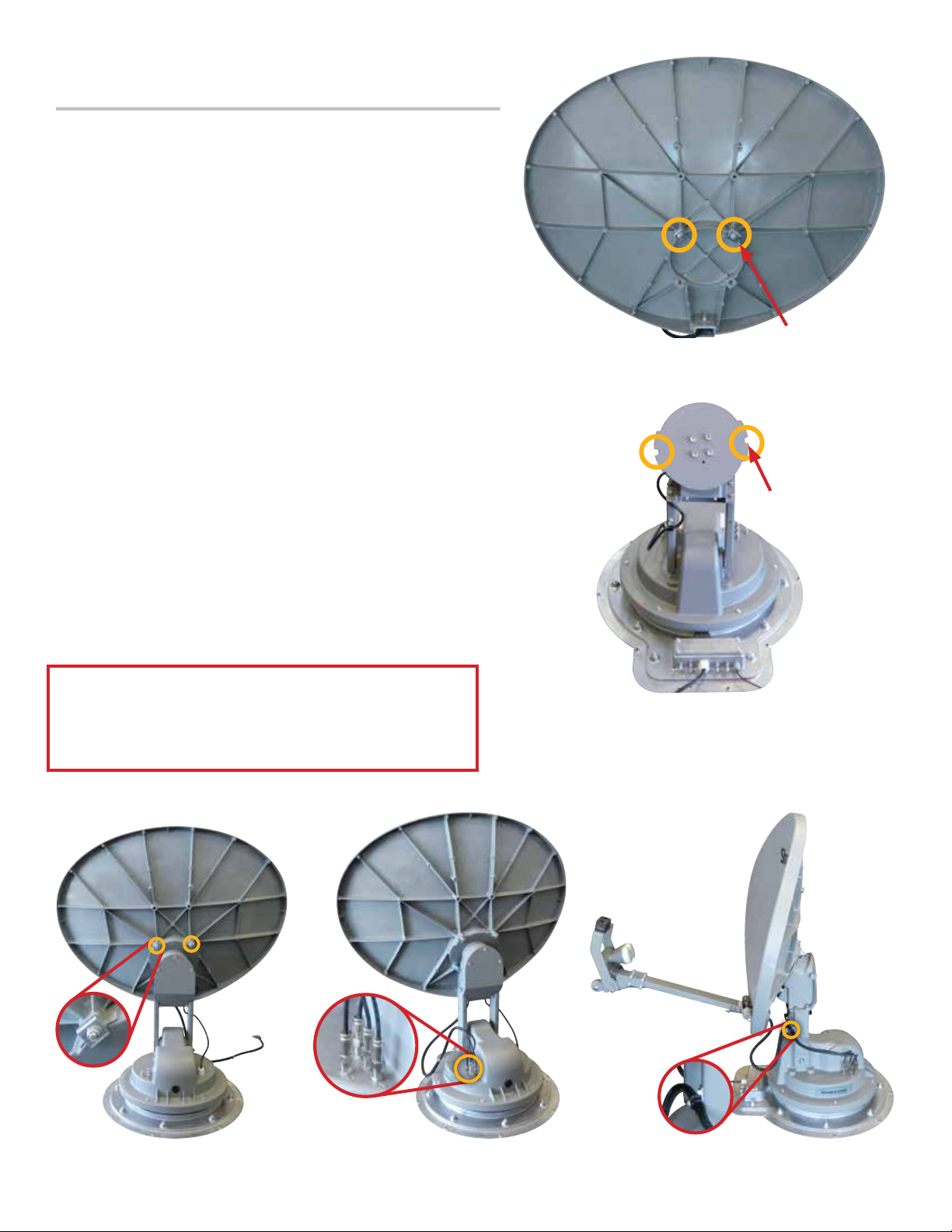

2. Reﬂector Removal

Once the IDU has been powered off and the data cable and

power cord have been disconnected you will need to get

on top of the coach. The tools needed are a ½" and 7/16"

wrench, 3/16" Allen wrench, adjustable wrench, and the

provided 5/16" nut driver.

NOTE: Images shown are for reference only, your

unit should be resting on the hardstop – Notice the

“PINCH POINT!” label.

A) To remove the reﬂector you start with removing the ½"

nuts from the back of the reﬂector (Figure 1) using a ½"

wrench. You may also need to use the 3/16" Allen wrench

on the front of the reﬂector to assist you with the removal.

Once the two longer screws have been removed you can

now remove the wedge shaped clamps.

B) Proceed to removing the lower ½" screws on the reﬂector

bracket. Once removed, you can remove the coax cables

with a 7/16" wrench (Figure 2) and the P-Clip (Figure 3)

with the provided 5/16" nut driver. Figure 1

Figure 2 Figure 3

3. Disconnecting Cables

A) Remove the four 5/16" screws from the cable cover, and

remove the cable cover (Figure 4).

B) Loosen the exterior nut for the 30' power/control cable

(Figure 5).

NOTE: You may need to use the adjustable wrench

to loosen the exterior nut.

C) Depending on the tightness of the GPS cable you may

need to disconnect the GPS cable as well. To do so you

need to gently pull to disconnect the GPS cable and then

loosen the exterior GPS nut.

D) Unclip the power coupler from the internal power cable,

and unthread and remove the power/control cable

retaining nut located inside the turret (Figure 6).

WARNING: Be careful not to lose the retaining nut inside

the turret.

Retaining nut

Power coupler

Power/

control cable Figure 6

Exterior nut

30' Power/

control cable

Figure 5

Retaining nut

Cable

cover

Figure 4 GPS cable

5/16"

Screws

WARNING: DO NOT remove the screws around

the edge of the transition plate or the screws on

the top side of the turret assembly; these areas

are marked in red on the image below.

C) Remove two coax cables with the

7/16" wrench. Gently pull the GPS

cable to disconnect from ODU. Once

removed, cut the zip tie located on

the rubber grommet, then pull the

grommet away from the housing.

WARNING: Do NOT cut any cables

when cutting zip tie.

B) Remove four 5/16" screws from

the ODU with the provided 5/16"

nut driver (Figure 8).

Figure 7

Figure 8

Figure 9

Turret assembly

Transition plate

Base

coax cables

zip tie

GPS cable

4. Motor Mount Removal

A) Remove the nine 5/16"

screws around the edge of

the transition plate (Figure

7). Once removed, ﬂip over

the turret top and remove the

plastic base seal and gasket,

giving you access to the

electronics.

Screws

Motor Mount Removal cont.

D) From center of ODU moving

right, remove Gray 6-Pin

connector (#1), Black 8-Pin

connector (#2), and the

Black 12-Pin connector (#3)

from the ODU. Be sure to

press down on the locking tab

to remove connectors.

E) Conﬁrm all cables and

grommet have been removed

from ODU. Once conﬁrmed,

remove ODU.

F) The replacement ODU will

come with a longer GPS cable.

Figure 12

  

Figure 10

Figure 11

B) Pull existing GPS cable

through the grommet.

Reattach two coaxes to ODU

(#1 Red Cable on left and #2

Blue cable on right). Finger

tighten the coax cables then

use a 7/16" wrench to tighten

an additional 1/8 turn.

WARNING: Be careful not to

overtighten coax.

5. Install New

Electronics

A) Install the new electronics

(do not screw down the electronics

at this point) and reattach

rubber grommet to housing.

Once completed, reinsert the

Black 12-Pin connector (#1),

Black 8-Pin connector (#2),

and Gray 6-Pin connector (#3).

Make sure all 3 connectors are

fully inserted into the mating

connector.

C) Reconnect GPS cable, secure

it to the rubber grommet

with a zip tie and cut off

the excess zip tie. You can

now install the four modiﬁed

5/16" screws to the ODU.

Figure 13

Figure 14

Figure 15







 

Install New Electronics cont.

D) Once complete you need to make sure the

base seal and gasket are properly seated

on the mounting plate (Figure 16).

E) You can now reinstall the nine 5/16”

screws to the transition plate (Figure 17).

6. Reinstall Data Cable

A) Reinstall the data cable, once connected

tighten down the retaining nut (Figure 18).

NOTE: Install retaining nut before

reconnecting data cable.

B) If you had to remove the GPS cable, feed

the GPS cable through the exterior GPS

nut and reconnect it. Once connected

tighten the exterior GPS nut (Figure 19).

C) Place gasket and cable cover back into

position and reinstall the four 5/16"

screws (Figure 20).

Base seal and gasket

Figure 16

Figure 17

Figure 18

Figure 19 Figure 20

Retaining nut,

power coupler

30' Power/

control cable

Retaining nut

Power/

control cable

Base

Cable cover

5/16" screws

7. Install Reﬂector, LNBF

and Feed Arm

A) Insert the two longer screws into the top two holes in the

front of the reﬂector.

B) Slide a wedge-shaped clamp onto each screw sticking out

the back of the reﬂector (Figure 21).

C) Thread a nut onto each screw; make sure the nut is tight

to keep the clamp from falling.

D) Align the two anchor posts on the back of the reﬂector

with the two notches in the skew plate (Figure 22). Then,

set the reﬂector on the skew plate; the reﬂector should be

positioned with the LNB arm at the bottom of the plate.

Carefully use the clamps on the back of the reﬂector to

hold the reﬂector in place (Figure 23); make sure that the

thicker part of the clamp is to the outside of the reﬂector.

E) Once the top screws and clamps are in place, install the

lower screws and clamps.

F) With the bracket mounted securely, connect the four coax

cables to the mount (Figure 24).

G) Locate the cable tie on the coax cables that you just

connected to the mount. Place the p-clamp on the cables

so that it is just below this cable tie. If the cable tie

is missing, install the clamp 14” from the end of the

connectors.

H) Carefully screw this clamp to the front of the lift arm

using the provided 5/16" screw (Figure 25).

WARNING: Be careful not to strip out the hole for the

5/16” screw when replacing the clamp holding the

coax cables to the arm. Do not use a power tool. Do not

overtighten this screw.

Figure 25Figure 24Figure 23

Figure 21

Figure 22

Notches in

skew plate

Anchor posts

in reﬂector
