WIKA CPB3800 User manual
Operating instructions
Betriebsanleitung
EN
DE
Dead-weight tester in compact design, model CPB3800
Druckwaage in Kompaktausführung, Typ CPB3800
Dead-weight tester in compact design, model CPB3800
avrora-arm.ru
+7 (495) 956-62-18
EN
DE
2WIKA operating instructions model CPB3800
14062232.04 03/2015 EN/DE
Operating instructions model CPB3800 Page 3 - 46
Betriebsanleitung Typ CPB3800 Seite 47 - 90
Further languages can be found at www.wika.com.
© 2013 WIKA Alexander Wiegand SE & Co. KG
All rights reserved. / Alle Rechte vorbehalten.
WIKA®is a registered trademark in various countries.
WIKA®ist eine geschützte Marke in verschiedenen Ländern.
Prior to starting any work, read the operating instructions!
Keep for later use!
Vor Beginn aller Arbeiten Betriebsanleitung lesen!
Zum späteren Gebrauch aufbewahren!
3
WIKA operating instructions model CPB3800
14062232.04 03/2015 EN/DE
EN
1. General information 4
2. Safety 6
2.1 Intended use 6
2.2 Personnel qualication 7
2.3 Personal protective equipment 7
2.4 Special hazards 8
2.5 Labelling, safety marks 10
3. Specications 11
4. Design and function 20
4.1 Description 20
4.2 Scope of delivery 20
4.3 Base unit 20
4.4 Piston unit 23
4.5 Function 23
5. Transport, packaging and storage 24
6. Commissioning, operation 25
6.1 Unpacking the dead-weight tester 25
6.2 Environmental requirement 25
6.3 Assembly of base units 25
6.4 Assembly of piston unit 26
6.5 Assembly of the dead-weight tester 27
6.6 Procedure 29
6.7 Completion 31
6.8 Pressure calculation computer software standard accuracy program 32
6.9 Temperature measurement of piston units 32
6.10 Cleaning gauges 33
7. Maintenance, cleaning and recalibration 34
7.1 Periodic maintenance 34
7.2 Corrective maintenance 34
7.3 Cleaning 38
7.4 Recalibration 39
8. Faults 41
9. Return and disposal 43
10. Accessories 45
Appendix: EC Declaration of conformity for model CPB3800 46
Declarations of conformity can be found online at www.wika.com.
Contents
Contents
4WIKA operating instructions model CPB3800
14062232.04 03/2015 EN/DE
EN
1. General information
1. General information
■
The model CPB3800 dead-weight tester in compact design described in the
operating instructions has been designed and manufactured using state-of-the-
art technology. All components are subject to stringent quality and environmental
criteria during production. Our management systems are certied to ISO 9001 and
ISO 14001.
■
These operating instructions contain important information on handling the
instrument. Working safely requires that all safety instructions and work instructions
are observed.
■
Observe the relevant local accident prevention regulations and general safety
regulations for the instrument’s range of use.
■
The operating instructions are part of the product and must be kept in the immediate
vicinity of the instrument and readily accessible to skilled personnel at any time. Pass
the operating instructions onto the next operator or owner of the instrument.
■
Skilled personnel must have carefully read and understood the operating instructions
prior to beginning any work.
■
The general terms and conditions contained in the sales documentation shall apply.
■
Subject to technical modications.
■
Factory calibrations / DKD/DAkkS calibrations are carried out in accordance with
international standards.
5
WIKA operating instructions model CPB3800
14062232.04 03/2015 EN/DE
EN
1. General information
■
Further information:
DH-Budenberg
A division of WIKA Instruments Ltd.
- Internet address: www.wika.de / www.wika.com
- Relevant data sheet: CT 31.06
- Application consultant: Tel.: +44 844 4060086
Fax: +44 844 4060087
WIKA Alexander Wiegand SE & Co. KG
- Internet address: www.wika.de / www.wika.com
- Relevant data sheet: CT 31.06
- Application consultant: Tel.: +49 9372 132-0
Fax: +49 9372 132-406
info@wika.com
Explanation of symbols
WARNING!
... indicates a potentially dangerous situation that can result in serious
injury or death, if not avoided.
CAUTION!
... indicates a potentially dangerous situation that can result in light
injuries or damage to equipment or the environment, if not avoided.
Information
... points out useful tips, recommendations and information for ecient
and trouble-free operation.
6WIKA operating instructions model CPB3800
14062232.04 03/2015 EN/DE
EN
2. Safety
2. Safety
WARNING!
Before installation, commissioning and operation, ensure that the
appropriate dead-weight tester has been selected in terms of measuring
range, design and specic measuring conditions.
Non-observance can result in serious injury and/or damage to the
equipment.
Further important safety instructions can be found in the individual
chapters of these operating instructions.
2.1 Intended use
Pressure balances (dead-weight testers) are the most accurate instruments available
on the market for the calibration of electronic or mechanical pressure measuring
instruments. By direct measurement of the pressure as the quotient of force and area
(p = F/A), pressure balances (dead-weight testers) are approved as primary standards.
The core component of the CPB3800 is therefore a very precisely-manufactured piston-
cylinder system, onto which a mass load is applied in order to generate the individual
test points.The mass load applied are proportional to the target pressure and this is
achieved through graduated disc weight. A maximum pressure of 1,200 bar must not be
exceeded.
The pressure is set via an integrated, nely-adjustable, precision dual area spindle
pump. As soon as the measuring system reaches equilibrium, there is a balance of
forces between the pressure and the mass load applied.Then the test item can be
calibrated or adjustments can be carried out.
Due to its stand-alone operation (integrated pressure generation and the pure
mechanical measuring principle), the model CPB3800 is ideal for on-site use for
maintenance and service.
The instrument has been designed and built solely for the intended use described here,
and may only be used accordingly.
The technical specications contained in these operating instructions must be
observed. Improper handling or operation of the instrument outside of its technical
specications requires the instrument to be taken out of service immediately and
inspected by an authorised DH-Budenberg/WIKA service engineer.
7
WIKA operating instructions model CPB3800
14062232.04 03/2015 EN/DE
EN
2. Safety
Handle mechanical precision measuring instruments with the required care (protect
from humidity, impacts, strong magnetic elds, static electricity and extreme
temperatures, do not insert any objects into the instrument or its openings).
If the instrument is transported from a cold into a warm environment, the formation of
condensation may result in instrument malfunction. Before putting it back into operation,
wait for the instrument temperature and the room temperature to equalise.
The manufacturer shall not be liable for claims of any type based on operation contrary
to the intended use.
2.2 Personnel qualication
WARNING!
Risk of injury should qualication be insucient!
Improper handling can result in considerable injury and damage to
equipment.
■
The activities described in these operating instructions may only be
carried out by skilled personnel who have the qualications described
below.
■
Keep unqualied personnel away from hazardous areas.
Skilled personnel
Skilled personnel are understood to be personnel who, based on their technical training,
knowledge of measurement and control technology and on their experience and
knowledge of country-specic regulations, current standards and directives, are capable
of carrying out the work described and independently recognising potential hazards.
Special operating conditions require further appropriate knowledge, e.g. of aggressive
media.
DH-Budenebrg/WIKA can provide dedicated training courses on the correct use of our
products. Please contact your local oce for further details.
2.3 Personal protective equipment (P.P.E.)
The personal protective equipment is designed to protect the skilled personnel from
hazards that could impair their safety or health during work. When carrying out the
various tasks on and with the instrument, the skilled personnel must wear personal
protective equipment.
8WIKA operating instructions model CPB3800
14062232.04 03/2015 EN/DE
EN
2. Safety
Follow the instructions, displayed in the work area, regarding personal
protective equipment!
The required personal protective equipment must be provided by the operating
company.
Wear safety goggles!
Protect eyes from ying particles and liquid splashes.
Wear protective gloves!
Protect hands from contact with aggressive media.
2.4 Special hazards
WARNING!
To ensure safe working on the instrument, the operating company must
ensure
■
that suitable rst-aid equipment is available and aid is provided
whenever required.
■
that the operating personnel are regularly instructed in all topics
regarding work safety, rst aid and environmental protection and
knows the operating instructions and, in particular, the safety
instructions contained therein.
WARNING!
Residual media at the dead-weight tester can result in a risk to persons,
the environment and the equipment. Take sucient precautionary
measures.
2.4.1 Mineral oils health and safety information
DH-Budenberg/WIKA provide hydraulic mineral oil in 500 ml containers labelled “ISO
VG 22” for use up to 4,000 bar in dead-weight testers. It is no more hazardous than other
common lubricating oils.
9
WIKA operating instructions model CPB3800
14062232.04 03/2015 EN/DE
EN
2. Safety
It is the nature of the way in which this equipment is used, that there
could be frequent and/or prolonged skin contact; in a few individuals this
could give rise to skin irritation (Keratosis or Dermatitis).The use of an
eective barrier cream and/or protective gloves will greatly reduce this
possibility.
Description
Closed ash point greater than 120 °C
Storage not above 30 °C
Oral LD 50 15 g per kg body weight
Threshold limit value 5 mg/m³
Fire extinguishing media CO2/dry chemical foam or water fog
Spillage Soak with absorbent clay or proprietary absorbent
Waste disposal Burn or dump in approved area
Emergency treatment of acute eects
Ingestion Do not induce vomiting.
Administer 250 ml milk or olive oil.
The main hazard following accidental ingestion is aspiration
of liquid into lungs.
Aspiration Send to hospital immediately
Inhalation Remove to fresh air, if nausea persists seek medical
attention.
Eye contact Wash with copious amounts of water for at least 10 minutes.
If irritation results or persists, obtain medical advice.
Skin contact Where skin rashes or other abnormalities occur as a result
of prolonged or repeated contact, medical advice should be
obtained as soon as possible.
2.4.2 Other liquids
For some very particular applications we supply specially constructed liquids. Copies of
manufacturer’s data can be sent on request.
10 WIKA operating instructions model CPB3800
14062232.04 03/2015 EN/DE
EN
2. Safety
For an explanation of
symbols, see below.
Date of manufacture
Pressure range
Serial No.
2.4.3 Lifting of masses
WARNING!
Care must be taken when lifting the masses onto the dead-weight tester.
Each mass must be lifted individually and never attempt to lift stack of
masses on or o the dead-weight tester.

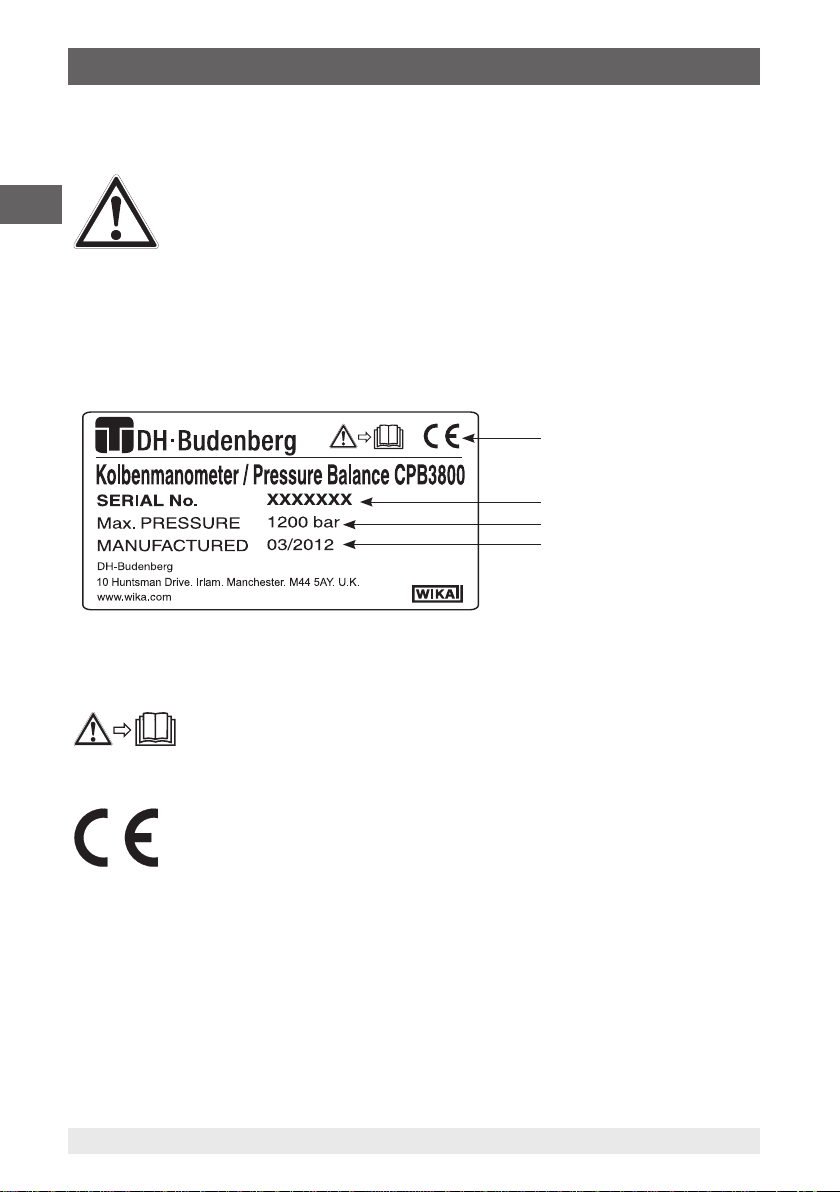

2.5 Labelling, safety marks
Product label
Explanation of symbols
Before mounting and commissioning the instrument, ensure you read the
operating instructions!
CE, Communauté Européenne
Instruments bearing this mark comply with the relevant European
directives.
Table of contents
Languages:
Other WIKA Test Equipment manuals
WIKA
WIKA CPH8000-ET User manual
WIKA
WIKA CPP 3000-X User manual
WIKA
WIKA mensor CPG2500 User manual
WIKA
WIKA CPB 5800 User manual
WIKA
WIKA CEP6100 User manual
WIKA
WIKA CPP 7 User manual
WIKA
WIKA CEP6500 User manual
WIKA
WIKA NETRIS 3 User manual
WIKA
WIKA CPH7650 User manual
WIKA
WIKA DELTA-comb DPGS40TA User manual
WIKA
WIKA CPH7000 User manual
WIKA
WIKA Wally Box III User manual
WIKA
WIKA CPH65I0 User manual
WIKA
WIKA Pascal ET User manual
WIKA
WIKA CPB 5000 DP User manual
WIKA
WIKA CTD9100 series User manual
WIKA
WIKA CPH6600 User manual
WIKA
WIKA Mensor CPA8001 User manual
WIKA
WIKA PASCAL 100 User manual
WIKA
WIKA BCS10 User manual
