Widex C4-m User manual

USER INSTRUCTIONS

THE WIDEX CLEAR™440,

330, 220 SERIES

C4-m/C4-m-CB/C3-m/C3-m-CB/

C2-m/C2-m-CB model

Behind-the-ear

YOUR WIDEX CLEAR™ HEARING AID

(To be filled out by the hearing care professional)

CLEAR

CLEAR

CLEAR

Programs:

Master

Music

TV

Comfort

Audibility Extender

Reverse focus

Phone

Zen

Master + Zen

Master + Audibility Extender

Master + Reverse focus

Master + Phone

Zen+



Date Your hearing care professional

CONTENTS

THEHEARINGAID ................................

Acousticindicators ..................................

Thebattery .........................................

Insertingthebattery................................

Removingthebattery .............................

Batterydrawerwithoutanailgrip...................

Lowbatteryindication .............................

Turningthehearingaidonandoff....................

Rightleftidentification .............................

Positioningthehearingaid ..........................

Removingthehearingaid...........................

Volumeadjustment .................................

Lostpartneralarm ..................................

Programs ..........................................

Switchingbetweenthelisteningprograms ...........

Zen.............................................

Usingatelephone ..................................

CLEANING......................................

Thehearingaid.....................................

Themicrophoneopenings..........................

ACCESSORIES...................................

INCASEOFMALFUNCTION .......................

CARINGFORYOURHEARINGAID..................

WARNINGS.....................................

ADVICE ........................................

Adaptingtoyourhearingaids .......................

REGULATORYINFORMATION......................

ADDITIONALPROGRAMFORMS ...................

SYMBOLS.......................................

THE HEARING AID

The illustration below shows the hearing aid without an

ear-set. The choice of ear-set solution depends on your

specific needs. Please refer to the separate ear-set user

manual.

1. Microphone openings

2. On/off function

3. Nail grip

4. LED & Right/Left identification

If you need help to identify the serial number (usually six or seven

digits) on the product, please contact your hearing care profes-

sional.

NOTE

In addition to these user instructions, a separate user manual is

provided describing the various ear-set solutions available for

your hearing aid: “Ear-sets for Widex BTE hearing aids”.

WARNING

This booklet and the manual “Ear-sets for Widex BTE hearing

aids” contain important information and instructions. Read

these booklets carefully before you start using the hearing aid.

NOTE

Your hearing aid, ear-set and accessories may not look exactly

as illustrated in this booklet. We also reserve the right to make

any changes considered necessary.

Intended use

The hearing aids are intended as air conduction amplifi-

cation devices to be used in everyday listening environ-

ments. The hearing aids may be provided with the Zen

program intended to provide a relaxing sound back-

ground (i.e. music/noise source) for adults who desire

to listen to such a background in quiet.

Indications for use

The devices are indicated for individuals with a range of

hearing loss severity from minimal (10 dB HL)to mod-

erately severe (85 dB HL) and all hearing loss configu-

rations.

They are to be programmed by licensed hearing care

professionals (audiologists, hearing aid specialists, oto-

laryngologists) who are trained in hearing (re)habilita-

tion.

Description of device

Your hearing aid is used with an ear-set which consists

of a tube and an ear-tip or earmould. The hearing aid

uses a proprietary wireless technology, WidexLink, to

enable communication between the left and the right

hearing aid, as well as between the hearing aids and the

DEX accessories.

Your hearing aid may be provided with a listening pro-

gram called Zen. It makes musical tones (and some-

times a rushing noise) in the background. These sounds

are shaped according to your hearing loss.

Acoustic indicators

The hearing aid may be set to produce a signal to indi-

cate the use of certain functions. The signal may be a

spoken message or tones. The signal can also be deac-

tivated.

Functions Default

settings

Other

settings

Adjusting volume via remote control Tone Off

Confirming RC program key use Clicking

sound

Off

Changing program via remote control Message Tones/off

Starting up the hearing aid Message Tone/off

Warning about low battery Message 4 tones/off

Warning about lost partner Off Message

Service reminder Off Message

Note: “Warning about lost partner” can only be made available

in CLEAR440 and CLEAR330.

The battery

We recommend zinc-air batteries. Use a size 10 battery

for the hearing aid.

To obtain replacement batteries, please consult your

hearing care professional. It is important to take note of

the expiry date and the recommendations on the bat-

tery pack regarding disposal of used batteries.

Inserting the battery

Before inserting a new battery into the

hearing aid, remember to remove the adhe-

sive tab. Once the tab has been removed,

the battery will start functioning after a few

seconds.

CAUTION

Do not use batteries if there is a sticky residue from the tab or

other unwanted substance, as this can cause the hearing aid to

malfunction.

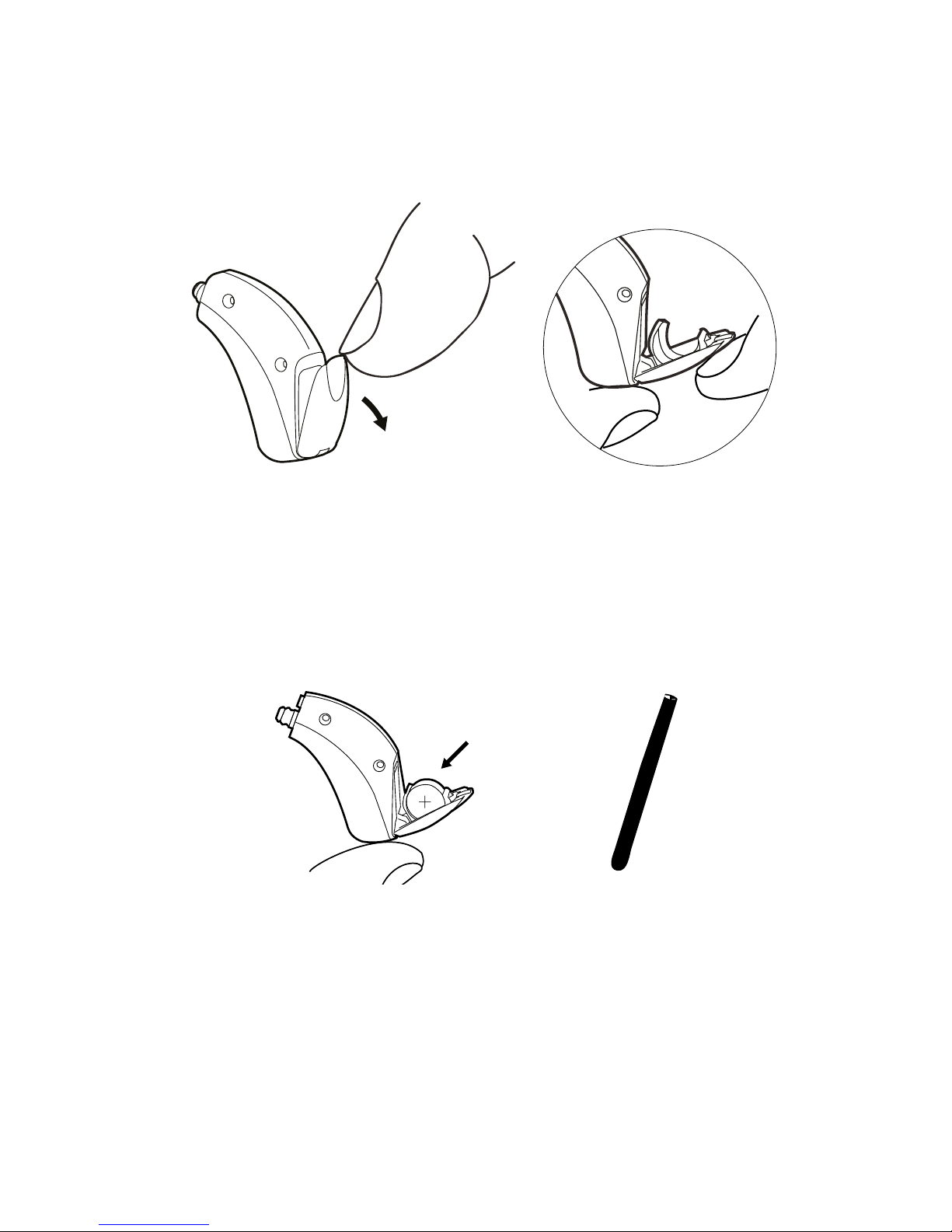

Use the nail grip to gently swing the battery drawer

open. Do not press the drawer beyond the open posi-

tion.

Place the battery in the drawer as illustrated, so that the

plus (+) sign on the battery is facing towards you when

you hold the hearing aid as shown. You can use the bat-

tery magnet provided to steer the battery into place.

If the battery drawer does not close easily, the battery

is incorrectly inserted.

When changing battery, it is a good idea to hold the

hearing aid over a table.

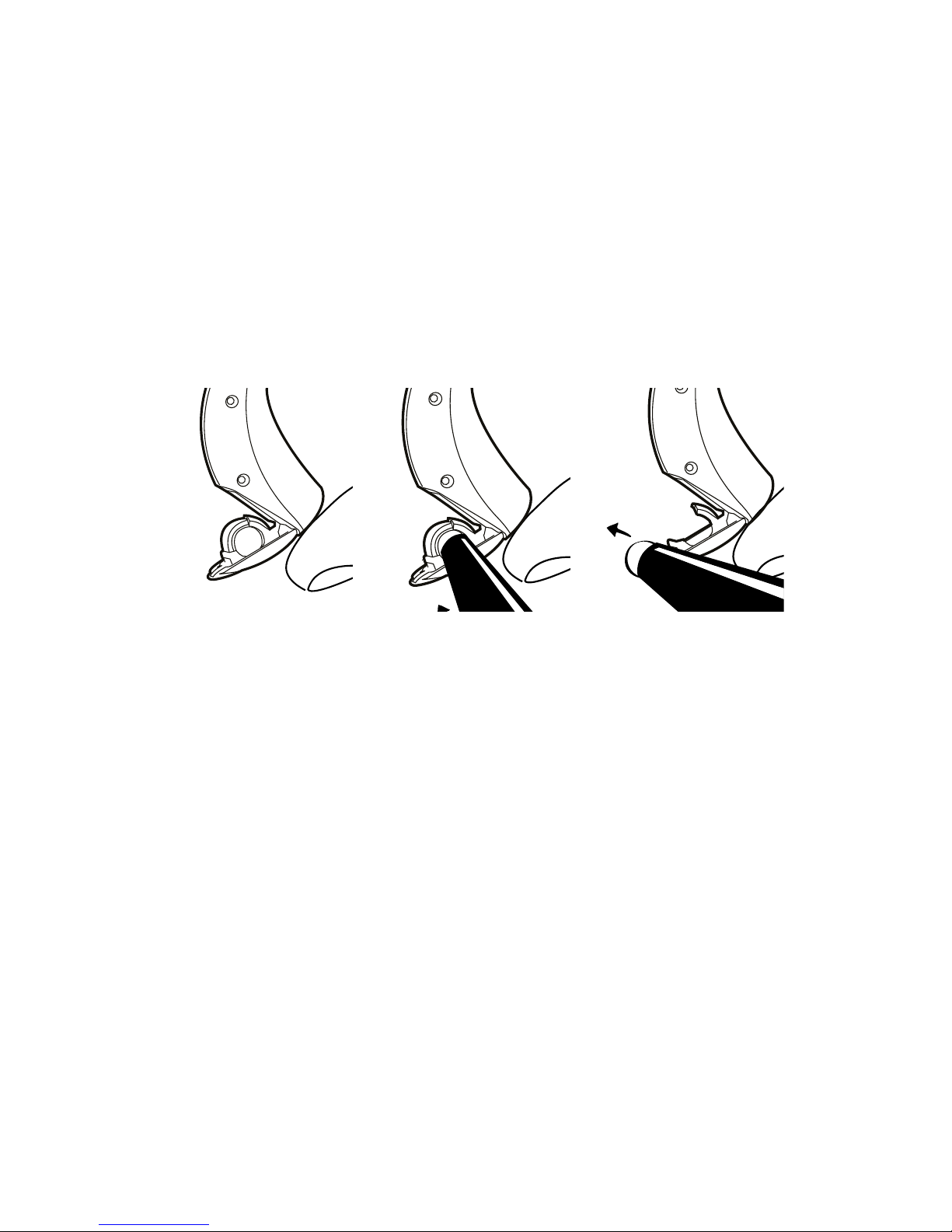

Removing the battery

1. Open the battery drawer as previously described.

Place the hearing aid on the provided cloth on a

clean, plane surface and turn it as illustrated.

2. Supporting the drawer with your finger, use the

battery magnet provided to push the battery out of

the battery drawer from the minus side.

1 2
