White Rodgers 1F72-151 User manual

Non-Programmable

ACCURACY

OPTIMUM COMFORT

AND PERFORMANCE

70 Series®Heat Pump

White-Rodgers

1F79-111

Heat Pump

Non-Programmable

1F72-151

Heat Pump

5/2 Day Programmable

Changing the World of Heat Pump Thermostats for the Better.

With a 70 Series Heat Pump thermostat, your customers can economically upgrade to digital accuracy and energy

savings. It is easy to install and is compatible with most heat pump systems. The 70 Series is perfect for customers

who want an economical and easy digital upgrade for their heat pump system. Plus, White-Rodgers 70 Series

versatility means less inventory for you.

Programming

Choice of 5/2 day programming

(weekday/weekend) or non-programmable

4 time and 4 temperature settings per

program for heating and cooling

(1F72-151)

Energy savings up to 33% (1F72-151)

Display

Large, easy-to-read thermostat display

Lighted display for low-light viewing

Comfort & Convenience

Electronic temperature accuracy

Adjustable room temperature calibration

Performance

For 2-stage heat, 1-stage cool systems

B or O terminal

Meets California Building Code, Title 24

(1F72-151)

System power with optional battery

back-up

Heat Pump

Thermostats

• 5/2 Day Programmable or

Non-Programmable

• Hardwired

Lighted

Display

The Emerson logo is a trademark and

a service mark of Emerson Electric Co.

The Emerson logo is a trademark and

a service mark of Emerson Electric Co.

70 Series®

Heat Pump Thermostats

White-Rodgers

WR-5617-1

St. Louis, Missouri Markham, Ontario

314-553-3600 905-201-4701

www.white-rodgers.com

Programming

Choice of 5/2 day programmable or

non-programmable

4 time and 4 temperature settings per

program (heat & cool) (1F72-151)

Energy savings up to 33% (1F72-151)

Patented pre-programmed software

simplifies time and temperature

programming (1F72-151)

Display

Large LCD with improved contrast for

easier reading

Lighted display for low-light viewing

Comfort & Convenience

Indefinite setpoint Hold (1F72-151)

Temporary temperature override until next

program period (1F72-151)

Soft-touch keypad

Maintains room temperature differential

within +/- 1°

Display temperature recalibration (+/- 3°)

Performance

Selectable Energy Management Recovery

(1F72-151)

Powerful next-generation microprocessor

Meets California Building Code, Title 24

(1F72-151)

Fast (FA) or slow (SL) heating cycle anticipation

B or O terminal (selectable)

Compressor lockout protection (optional)

Dimensions

5.1"W x 3.7"H x 1.1"D

Electrical Specifications

Rating

20 to 30 VAC, 50/60 Hz or DC

0.05 to 1.0 Amp (load per terminal)

1.5 Amps maximum load (all terminals combined)

Standard Systems

Heat Pump—2 stage heat, 1 stage cool

Single stage heat pump

Thermal Specifications

Setpoint Temperature Range:

45° to 90°F (7° to 32°C)

Rated Differential:

0.6° to 1.6°F with adjustable anticipation

Operating Ambient Temperature:

32° to 105°F (0° to 40°C)

Operating Humidity Range:

90% non-condensing maximum

Shipping Temperature Range:

-4° to 150°F (-20° to 65°C)

Accessories

Wall Plate F61-2510 (6.5" x 4.5")

Thermostat Guard F29-0231

(For additional guard options refer

to White-Rodgers catalog)

For Additional Information

Visit www.white-rodgers.com

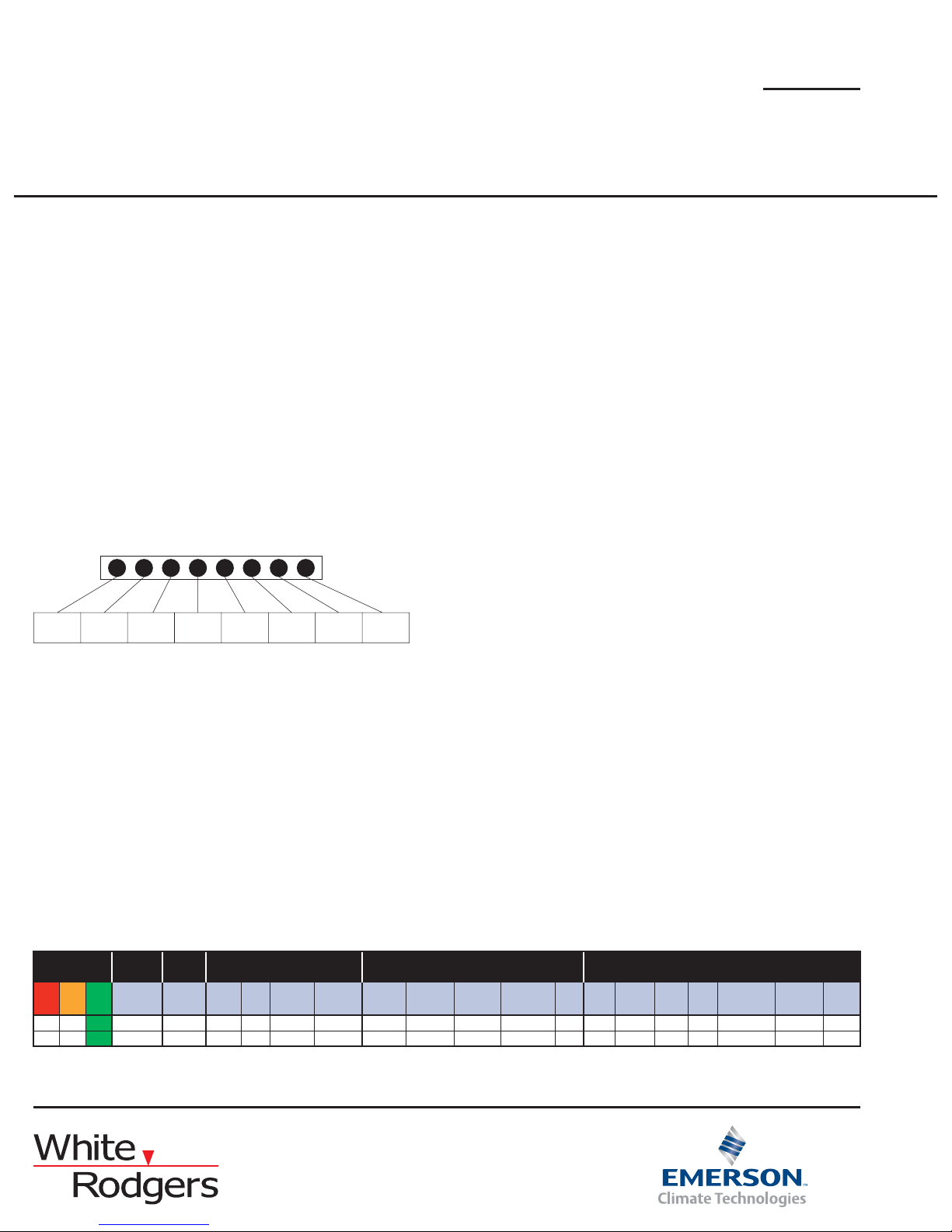

R YW2 B/O

G E LC

24V Hot 24V

Common

Auxiliary

Heat

Relay

Compressor

Relay

(Stg. 1)

Reversing

Valve Emergency

Heat Relay

System

Monitor

Blower/Fan

Terminal Designations

1F72-151

Heat Pump

5/2 Day Programmable

1F79-111

Heat Pump

Non-Programmable

• 5/2 Day Programmable or Non-Programmable • Hardwired

Programs

Program

Options

Programmable

Fan

Energy

Star

Diplay

Size

(sq. in.)

Cool

Savings

Warranty

(Years)

Model

Number

Model

Gas/Oil/

Electric

3 Wire

Zone

Valve

Thermostat

Power

Source*

Millivolt

Compatible

Applications Selectable Performance Features Comfort & Convenience Features

Stages Heat/Cool

by System

Single

Stage

Multi-

Stage

Heat

Pump

Auto

Changeover

Memory

Back-up

P-Permanent

B-Battery

Lighted

Display

Energy

Management

Recovery

Alkaline

Battery Life

(Years)

Furnace Lockout

Ignition

Module Reset

Program

Override

2/1

1F72-151

1F79-111

5+2

1.2

✓

✓✓

* H = Hardwire (Requires Common)
