WHITE-RODGERS DIVISION

EMERSON ELECTRIC CO.

9797 REAVIS RD., ST. LOUIS, MO. 63123

(314) 577-1300, Fax (314) 577-1517

9999 HWY. 48, MARKHAM, ONT. L3P 3J3

(905) 475-4653, FAX (905) 475-4625

Printed in U.S.A.

PART NO. 37-5427C

Replaces 37-5427B

9520

INSTALLATION INSTRUCTIONS

1A65/1A65W

ELECTRIC-HEAT THERMOSTAT

(Single Pole)

FAILURETOREADANDFOLLOWALLINSTRUCTIONSCAREFULLYBEFORE

INSTALLING OR OPERATING THIS CONTROL COULD CAUSE PERSONAL

INJURY AND/OR PROPERTY DAMAGE.

WHITE-RODGERS

Operator: Save these instructions for future use!

DESCRIPTION

The Type 1A65/1A65W Electric Heat Thermostat is de-

signed for use on all types of electrical heating installa-

tionssuchascableheat,baseboards,wallinsertheaters,

etc. Its narrow operating differential and the ability of its

fully exposed knob to sense both radiant heat and room

air temperature make this control ideal for use on such

installations.

Dial Setting: Knob may be set anywhere between 40°

and85°Fbysimplyturningknobsothatindicatoronknob

points to the desired setting.

PRECAUTIONS

This control is a precision instrument, and should be

handled carefully. Rough handling or distorting compo-

nents could cause the control to malfunction. Take care

not to push or damage the knob sensing element

during installation.

To prevent electrical shock and/or equipment

damage,disconnectelectricpower tosystem,at

mainfuseorcircuitbreakerbox,untilinstallation

is complete.

All wiring must conform to local and national electrical

codes and ordinances.

Do not use on circuits exceeding specified volt-

ages. Higher voltages will damage control and

could cause shock or fire hazard.

Do not use on inductive loads. Inductive (motor)

loadswilldamagecontrolandcouldcauseshock

or fire hazard.

CAUTION

WARNING

SPECIFICATIONS

Switch Rating: Non-Inductive

22A (2500W) 120 VAC

22A (5000W) 240 VAC

18A (5000W) 277 VAC

Temperature Range: 40°to 85°F

Differential: 1°F

Switch Action: Open on rise

Contact Structure: SPST

INSTALLATION

If the heating equipment manufacturer has made provi-

sions or recommendations for the location of this control,

thenfollowthoseinstructions.Ifnot,thefollowingsugges-

tions should be observed.

1. The control should be mounted in the wall, approxi-

mately five feet from the floor, as near as possible to

the centre of the controlled area.

2. It should be mounted on a partitioning wall, not on an

outside wall.

3. Itshouldbemountedasfaraspossiblefromundesir-

able sources of heat and cold such as:

a. Windows and doors

b. Direct rays from sun

c. Hot water or cold water pipes

d. Adjoining outside walls

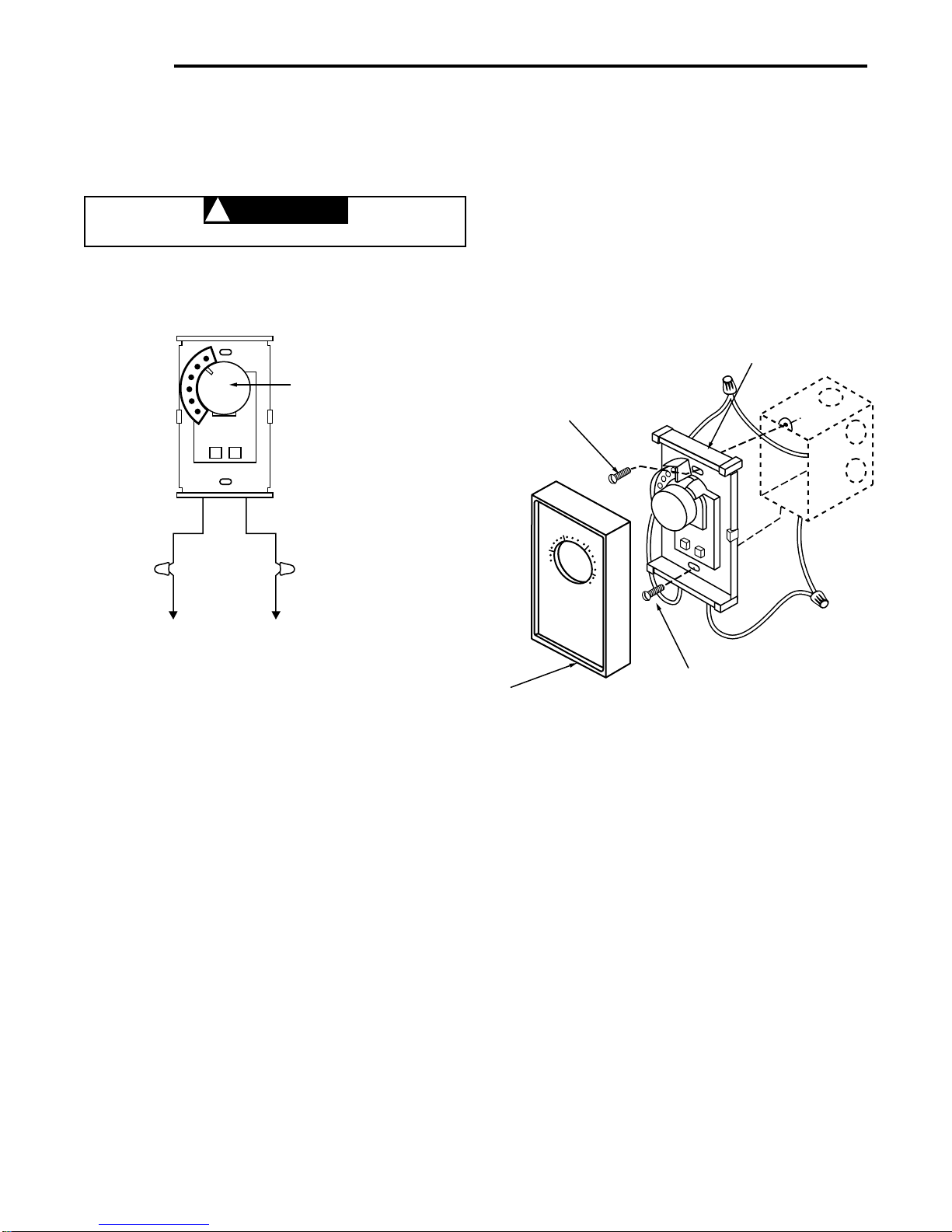

WIRING

CAUTION

Thermostat

Mounting Screw

Cover

BLUE

BLACK

LINE LOAD

Note: Do not

push on this knob

because calibration

will be changed

if knob is bent.

All wiring must conform to local and national electrical codes and ordinances.

The thermostat may be mounted in any standard 2” x 3”

electrical outlet box. For ease of installation use a deep

type box.

USE WITH COPPER CONDUCTORS ONLY.

1. Make electrical connection to thermostat leads with

wire nuts or other local code approved devices. All

connections must be tight.

2. Pushthelead wiresintothe outletboxand mountthe

thermostat to the outlet box with screws provided.

Take care not to push or damage the knob sens-

ing element during installation.

3. Snap on the thermostat cover and turn knob to

desired setting.
