K677W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 4 x 4

x 1 x 4

Revision No: 2B 1

Fitting Kit K677W

MAX kgs (lbs)

W/P WHD

Mitsubishi

Outlander Aspire, 5dr SUV 12-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Outlander ES, 5dr SUV 12-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Outlander ES, 5dr SUV 13-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)

Outlander GX1, 5dr SUV 12-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Outlander GX2, 5dr SUV 12-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Outlander LS 2WD, 5dr SUV 12-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Outlander LS, 5dr SUV 12-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

2

Fitting Kit K677W

X

A B C 1 2 3

Outlander Aspire, 5dr SUV 12-+ (AU) -300mm 450mm - 960mm 910mm -

-11 -13/16ths" 17 11/16ths" - 37 13/16ths" 35 13/16ths" -

Outlander ES, 5dr SUV 12-+ (AU) -300mm 450mm - 960mm 910mm -

-11 -13/16ths" 17 11/16ths" - 37 13/16ths" 35 13/16ths" -

Outlander ES, 5dr SUV 13-+ (US) -300mm 450mm - 960mm 910mm -

-11 -13/16ths" 17 11/16ths" - 37 13/16ths" 35 13/16ths" -

Outlander GX1, 5dr SUV 12-+ (EU) -300mm 450mm - 960mm 910mm -

-11 -13/16ths" 17 11/16ths" - 37 13/16ths" 35 13/16ths" -

Outlander GX2, 5dr SUV 12-+ (EU) -300mm 450mm - 960mm 910mm -

-11 -13/16ths" 17 11/16ths" - 37 13/16ths" 35 13/16ths" -

Outlander LS 2WD, 5dr SUV 12-+ (NZ) -300mm 450mm - 960mm 910mm -

-11 -13/16ths" 17 11/16ths" - 37 13/16ths" 35 13/16ths" -

Outlander LS, 5dr SUV 12-+ (AU) -300mm 450mm - 960mm 910mm -

-11 -13/16ths" 17 11/16ths" - 37 13/16ths" 35 13/16ths" -

3

Fitting Kit EN

K677W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

4

Fitting Kit EN

K677W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Attaches to factory-fitted mounting points

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

5

Fitting Kit EN

K677W

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

6

Fitting Kit EN

K677W

Drilling not needed for US vehicles.

Fitment

●Pull ditch moulding back towards you.

●(For US vehicles, skip this step.)

●Mark reference point with a pen onto

removed section of ditch mould.

●(For US vehicles, skip this step.)

7

Fitting Kit EN

K677W

●Use drill bit supplied, to drill holes in

marked positions.

●(For US vehicles, skip this step.)

●Re-install rubber ditch mould in roof

channel.

●(For US vehicles, skip this step.)

●(This step is for US vehicles only.)

●Open or remove fixed-point covers.

8

Fitting Kit EN

K677W

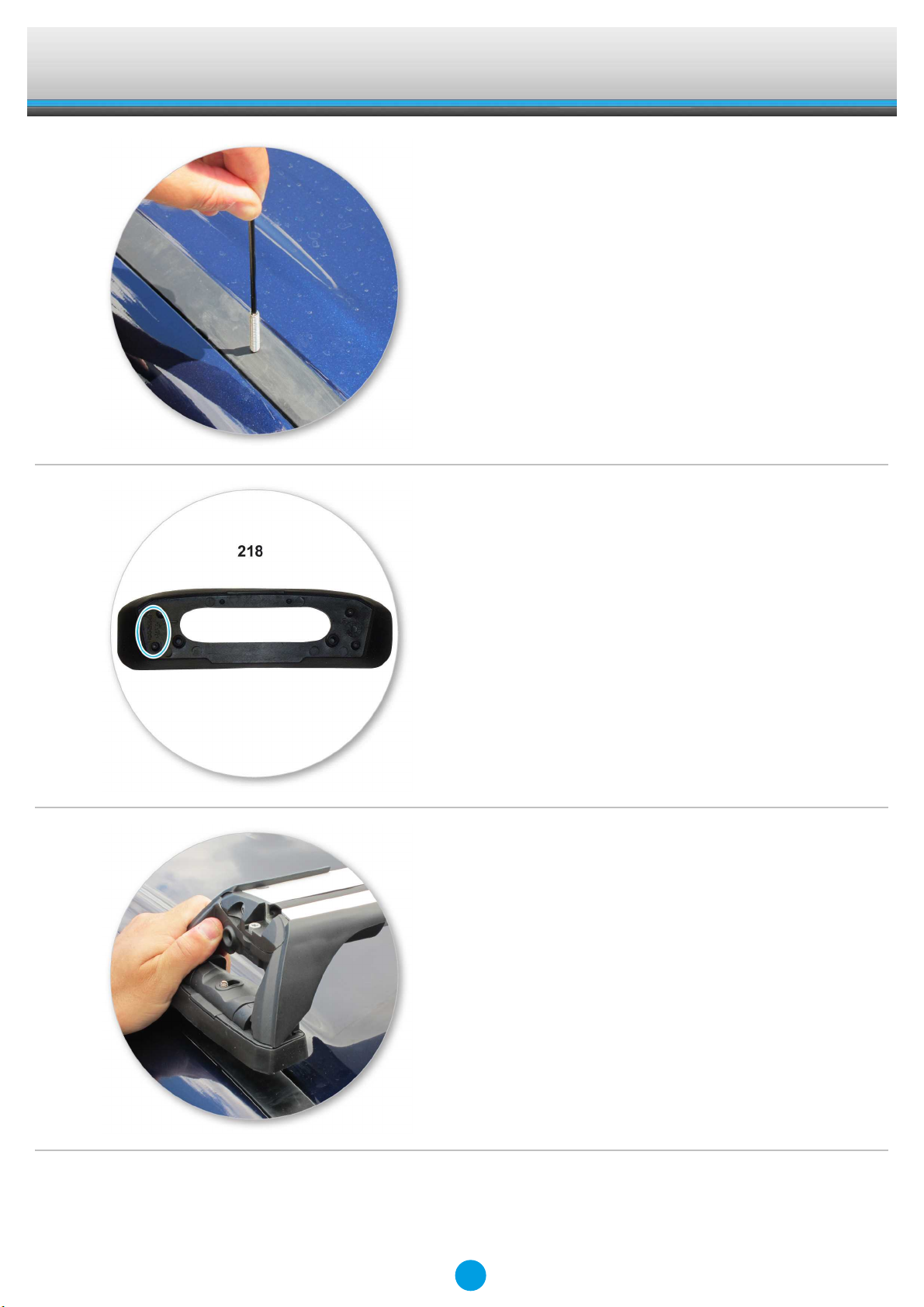

●Select grubscrews and screw into the

vehicle's fixed points.

●Do not over tighten.

●Repeat for all four positions.

●Refer to the underside of the pad for the

part number.

●Place crossbars on pads ensuring the pads

fit into the holes underneath the foot and

the grubscrew passes through the hole in

the foot.

●Repeat for all four positions.

9

Fitting Kit EN

K677W

●Tighten the plastic knob. The side with the

nut showing should be facing up.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all legs.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

10
