Whispbar K426W User manual
K426W
Fitting Kit
EN Fitting Instructions for Basic Carrier
DMontageanleitung für Basisträgersystem
ES Instrucciones de montaje para el sistema
de transporte
FInstructions de montage pour Basic Carrier
NO Monteringsanvisning for takstativ
PT Instruções de Montagem para sistema de
transporte.
RU Установочные Инструкции для
Поперечных Балок
x 1 x 2 x 4 x 4
x 4 x 2 x 2 x 4
x 4
Revision No: 10D 1
Fitting Kit K426W
MAX kgs (lbs)
W/P WHD
Holden
Commodore VE, 4dr Sedan Aug 06-May 13 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Commodore VF, 4dr Sedan Jun 13-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Commodore VF, 4dr Sedan Jun 13-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Commodore VE, 4dr Sedan Sep 06-May 13 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Commodore VE, 5dr Wagon Apr 08-May 13 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Commodore VE, 5dr Wagon Jul 08-May 13 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Commodore VF, 5dr Wagon Jun 13-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Commodore VF, 5dr Wagon Jun 13-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Pontiac
G8 , 4dr Sedan 08-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
Chevrolet
SS , 4dr Sedan 14-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
2
Fitting Kit EN
K426W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●Use keys to remove covers.
3
Fitting Kit EN
K426W
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Set bars to length (revert to rear of these
instructions).
●Please check the rear of this manual for
information relating specifically to your
vehicle.
4
Fitting Kit EN
K426W
●Tighten adjusting screw to 3 Nm (2.2 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
5
Fitting Kit EN
K426W
Fitment
●Cut protective strip as shown.
●Open or remove fixed-point covers.
●Apply protective strip to roof of the vehicle
as shown.
Trim if required.
●Note C: Excess sealant may need to be
removed to fit/attach parts correctly.
●Note D: There are concealed mounting
points hidden by the vehicles rubber insert
on the roof.
●Do not mistake rubber insert for mounting
point attachment.
6
Fitting Kit EN
K426W

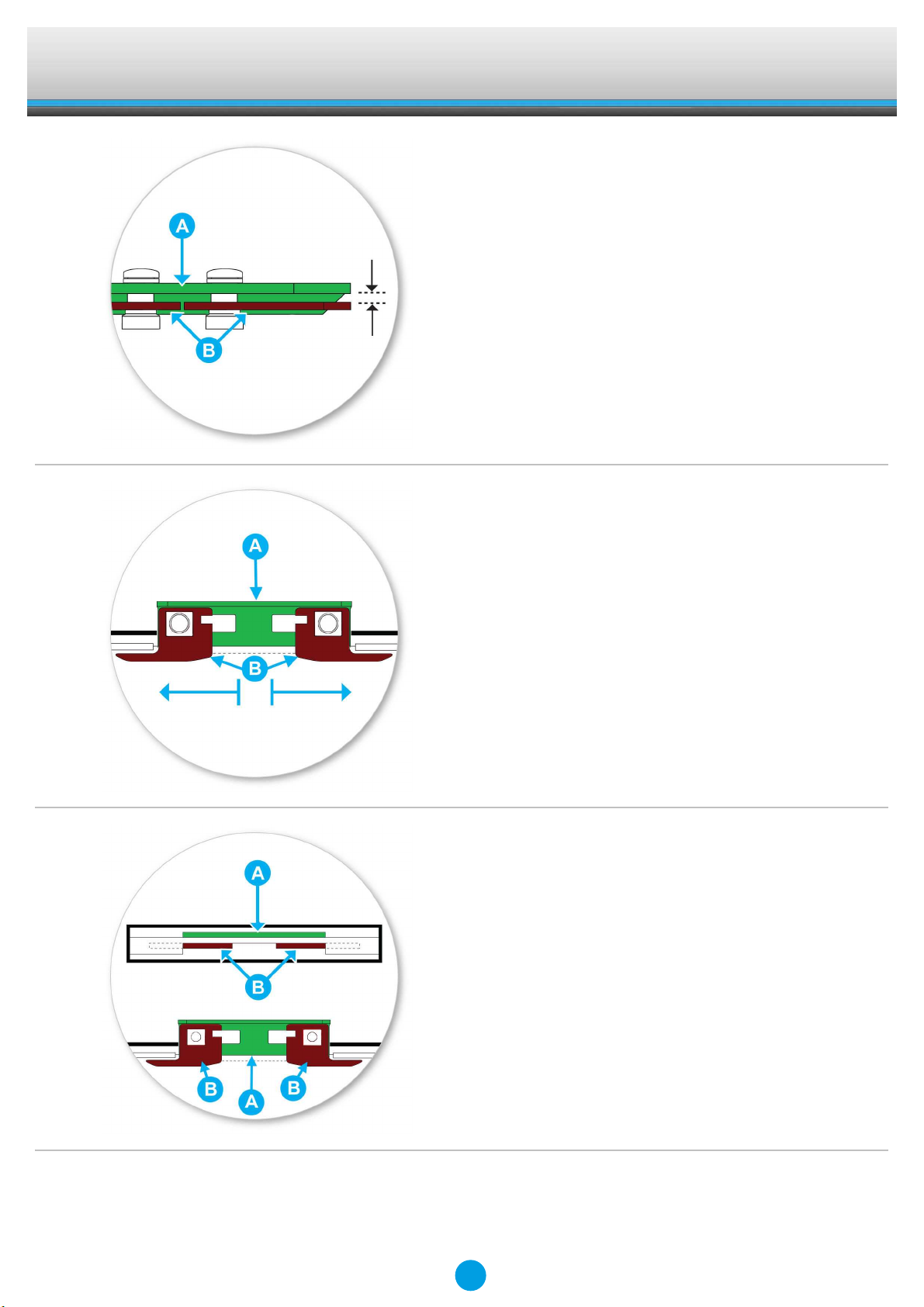

●Loosen both screws on the clamp so there
is a gap between part A and part B.
●Insert clamp into the mounting point.
●Slide parts B under mounting point.
●Ensure part B is engaged under mounting
point and part A is behind the mounting
point.
7
Fitting Kit EN
K426W
●Clamp placement as shown.
●Clamps shown engaged under mounting
point.
●Repeat for all four positions.
●Select four internal clamps and fit them to
the inside of the installed clamps on the
vehicle.
8
Fitting Kit EN
K426W
●Tighten locking screws on both sides of
clamps evenly.
●Ensure clamp A and B are secure.
●Ensure internal clamp sits upright.
●Refer to the underside of the pad for the
part number.
●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 11-04-229
B = 11-04-230
9
Fitting Kit EN
K426W
●Fit rubber pads (supplied with fitting kit)
over clamp. Pad may vary in shape to that
shown.
●Repeat for all four positions.
●Ensure the roof rack face towards the front
of vehicle.
●Place crossbar foot over clamp bolt.
●Place washer over clamp thread as shown.
●Ensure that tab is inserted into clamp
block.
10
