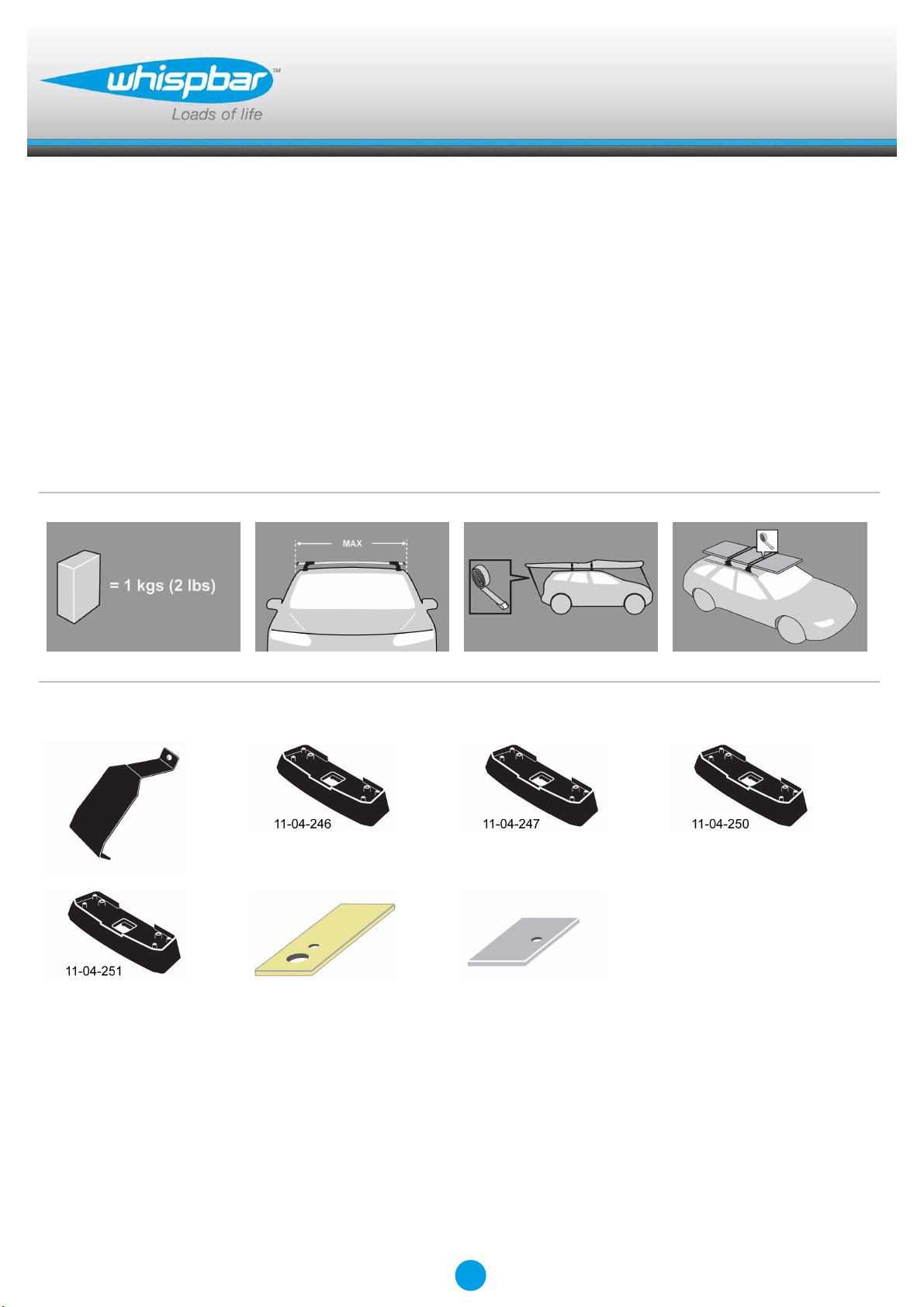

Whispbar K390W User manual
K390W
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 4 x 1 x 1 x 1
x 1 x 4 x 4
Revision No: 7G 1
Fitting Kit K390W
MAX kgs (lbs)
W/P WHD
Audi
A4, 4dr Sedan 07-Nov 15 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
A4, 4dr Sedan 08-Feb 16 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
A4, 4dr Sedan 08-Nov 15 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
A4, 4dr Sedan 08-Nov 15 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
A4, 4dr Sedan 08-Nov 15 CN 75 kgs (165 lbs) 75 kgs (165 lbs)
A4, 4dr Sedan 09-Feb 16 US 75 kgs (165 lbs) 75 kgs (165 lbs)
S4, 4dr Sedan 08-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
S4, 4dr Sedan 08-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)
S4, 4dr Sedan 08-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
S4, 4dr Sedan 08-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
S4, 4dr Sedan 08-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
S4, 4dr Sedan 08-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
2

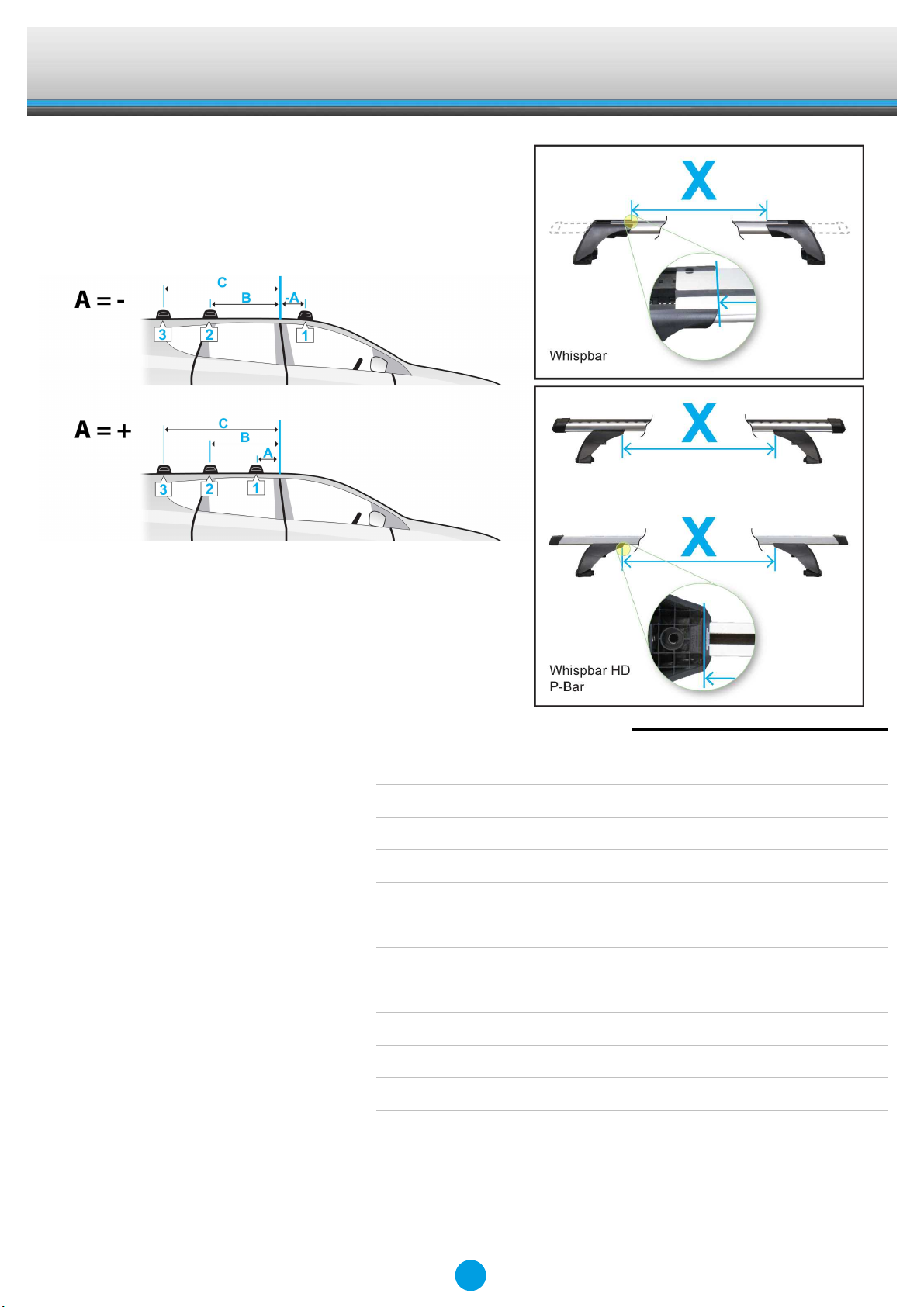

Fitting Kit K390W
X
A B C 1 2 3
A4, 4dr Sedan 07-Nov 15 (ZA) -330mm 410mm - 842mm 830mm -
-12 -1/1ths" 16 1/8ths" - 33 1/8ths" 32 11/16ths" -
A4, 4dr Sedan 08-Feb 16 (NZ) -330mm 410mm - 842mm 830mm -
-12 -1/1ths" 16 1/8ths" - 33 1/8ths" 32 11/16ths" -
A4, 4dr Sedan 08-Nov 15 (AU) -330mm 410mm - 842mm 830mm -
-12 -1/1ths" 16 1/8ths" - 33 1/8ths" 32 11/16ths" -
A4, 4dr Sedan 08-Nov 15 (EU) -330mm 410mm - 842mm 830mm -
-12 -1/1ths" 16 1/8ths" - 33 1/8ths" 32 11/16ths" -
A4, 4dr Sedan 08-Nov 15 (CN) -330mm 410mm - 842mm 830mm -
-12 -1/1ths" 16 1/8ths" - 33 1/8ths" 32 11/16ths" -
A4, 4dr Sedan 09-Feb 16 (US) -330mm 410mm - 842mm 830mm -
-12 -1/1ths" 16 1/8ths" - 33 1/8ths" 32 11/16ths" -
S4, 4dr Sedan 08-+ (AU) -330mm 410mm - 842mm 830mm -
-12 -1/1ths" 16 1/8ths" - 33 1/8ths" 32 11/16ths" -
S4, 4dr Sedan 08-+ (CN) -330mm 410mm - 842mm 830mm -
-12 -1/1ths" 16 1/8ths" - 33 1/8ths" 32 11/16ths" -
S4, 4dr Sedan 08-+ (EU) -330mm 410mm - 842mm 830mm -
-12 -1/1ths" 16 1/8ths" - 33 1/8ths" 32 11/16ths" -
S4, 4dr Sedan 08-+ (NZ) -330mm 410mm - 842mm 830mm -
-12 -1/1ths" 16 1/8ths" - 33 1/8ths" 32 11/16ths" -
S4, 4dr Sedan 08-+ (ZA) -330mm 410mm - 842mm 830mm -
-12 -1/1ths" 16 1/8ths" - 33 1/8ths" 32 11/16ths" -
S4, 4dr Sedan 08-+ (US) -330mm 410mm - 842mm 830mm -
-12 -1/1ths" 16 1/8ths" - 33 1/8ths" 32 11/16ths" -
3
Fitting Kit EN
K390W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4
Fitting Kit EN
K390W
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5
Fitting Kit EN
K390W
●Remove locking screw.
●Apply protective strip as shown.
Trim if required.
●A = Clear
B = Grey
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
6
Fitting Kit EN
K390W

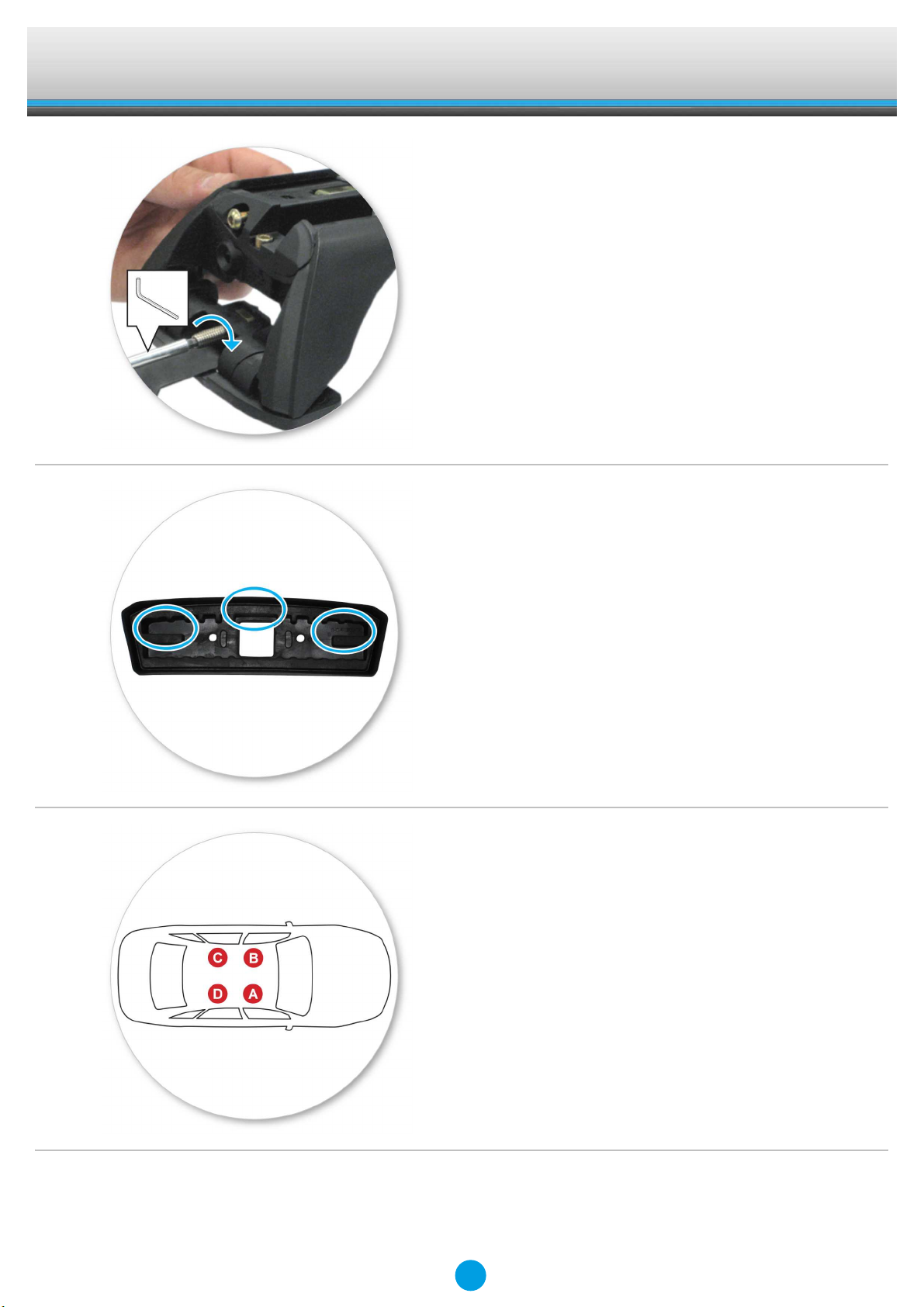

●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Refer to the underside of the pad for the
part number.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 11-04-251
B = 11-04-250
C = 11-04-246
D = 11-04-247
7
Fitting Kit EN
K390W

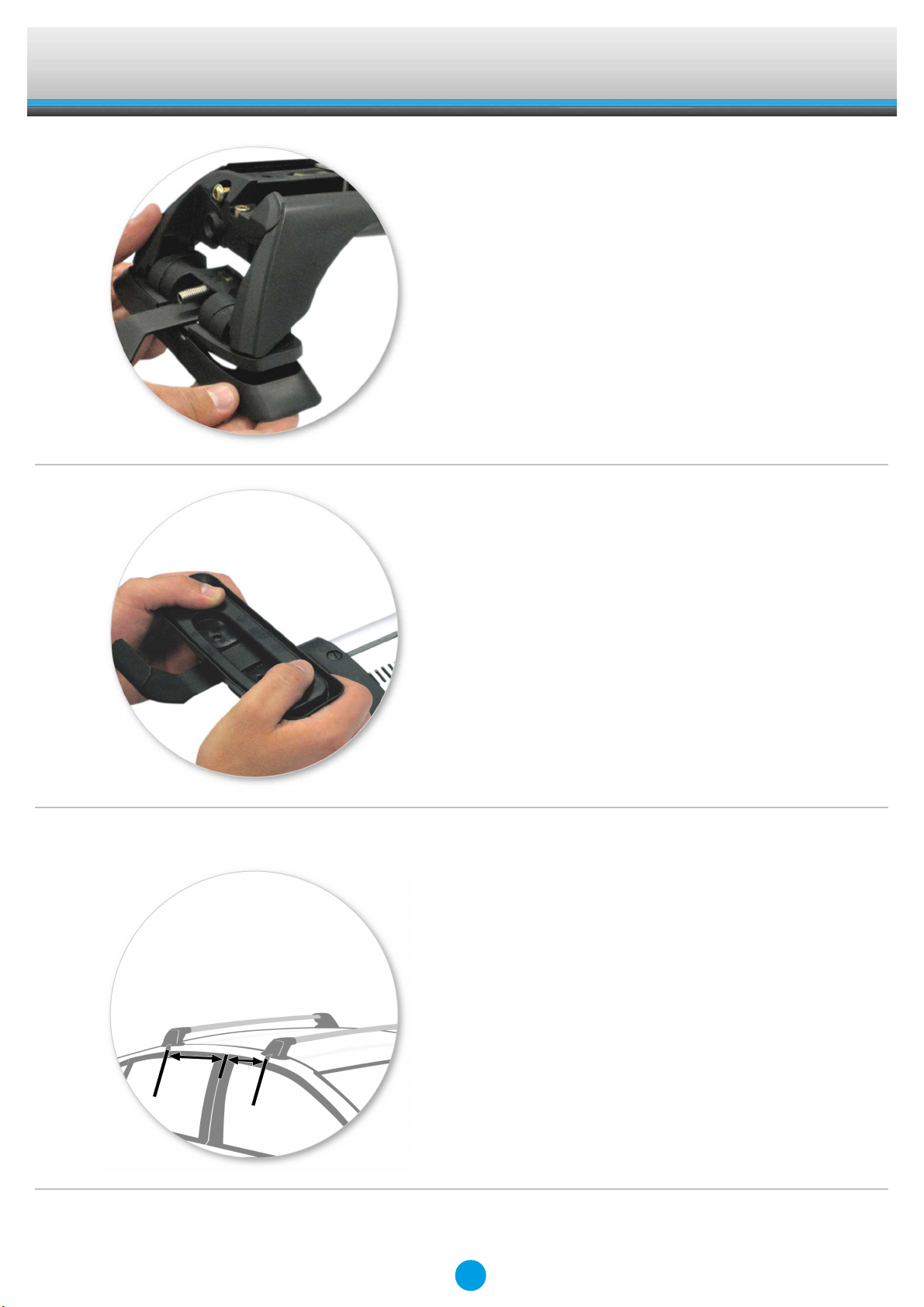

●Fit rubber pads (supplied with fitting kit) to
foot. Pad may vary in shape to that shown.
●Make sure the pad fits into the holes
underneath the foot.
Fitment
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Please check the front of this manual for
information relating specifically to your
vehicle.
8
Fitting Kit EN
K390W
●Locate vehicle's fixed points.
●Clamps directly to edge of roof under the
doors, pin locates in hole on vehicle

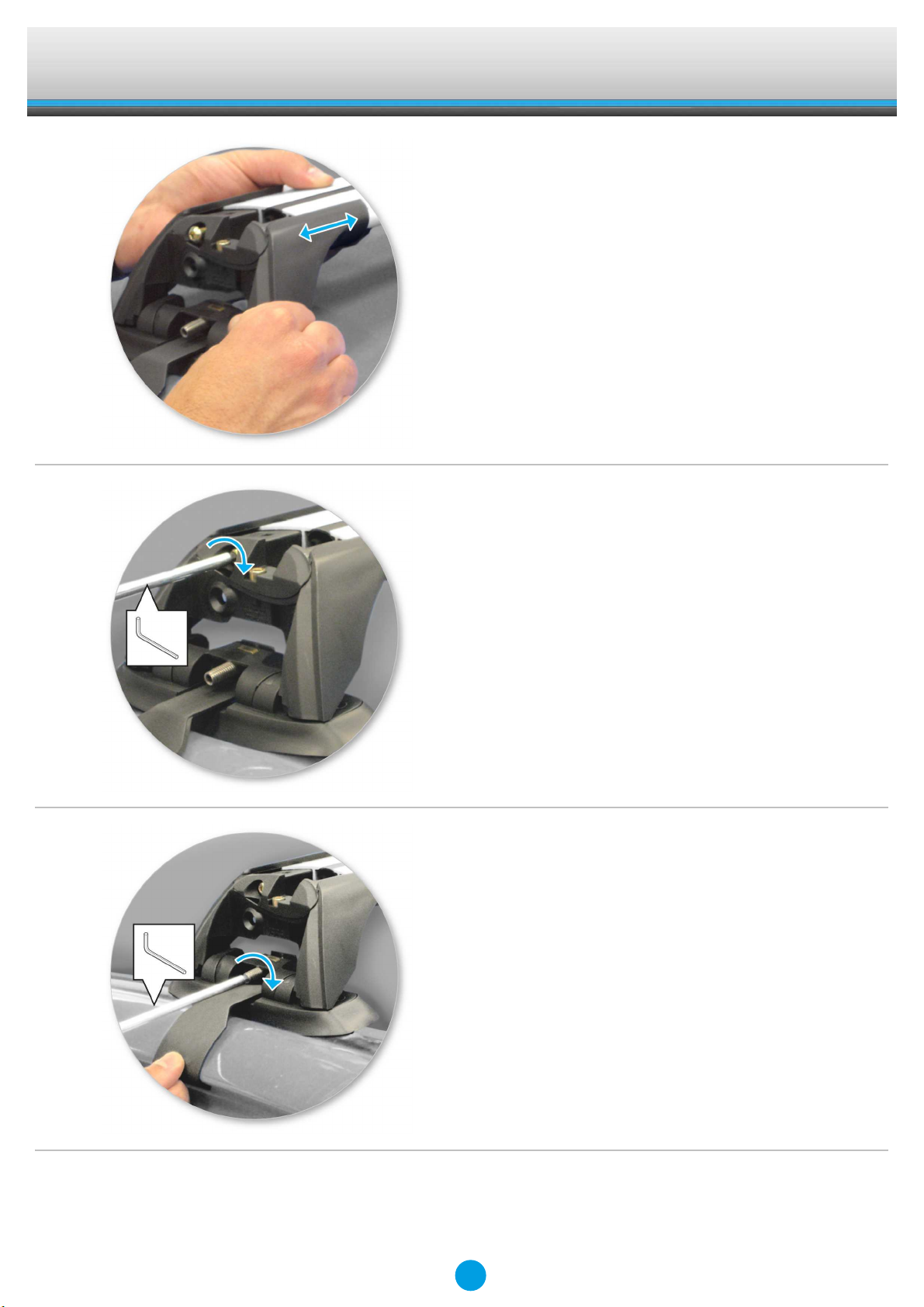

●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
●Tighten locking screw on both legs evenly.
9
Fitting Kit EN
K390W

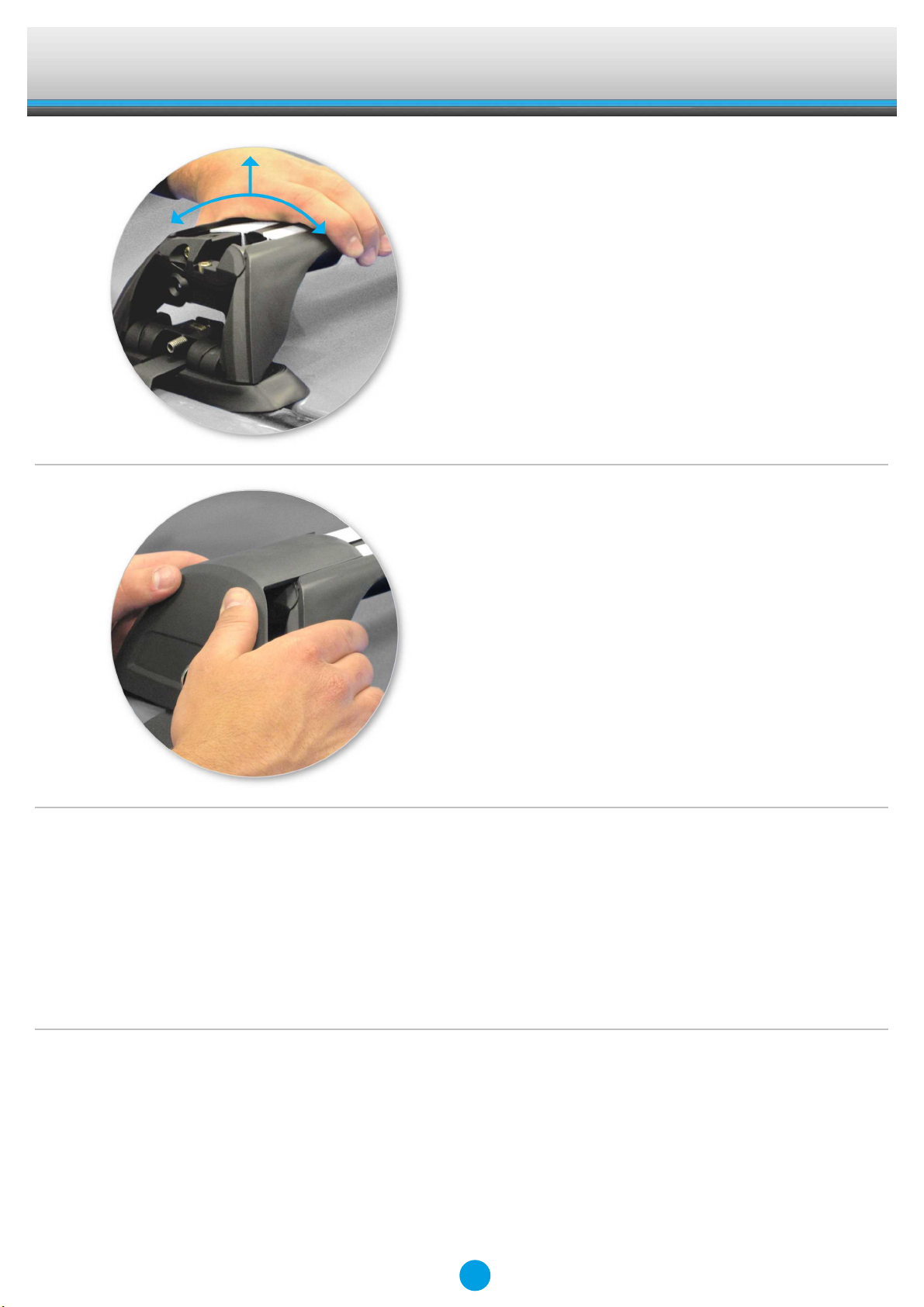

●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
10
