TOP AND CABINET PARTS

6−94 Litho in U.S.A. (L.T.) Part No. 881100

AUTOMATIC

WASHER

For Models: LSS8244AQ0, LSS8244AZ0

(Designer White)(Designer Almond)

TOP AND CABINET PARTS

LITERATURE AND OPTIONAL PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2881100

For Models: LSS8244AQ0, LSS8244AZ0

(Designer White)(Designer Almond)

1 357213 Nut, Push−In (2)

2 Top

3358200 For Designer

White Model

3358201 For Designer

Almond Model

3 62750 Spacer, Cabinet To

Top (4)

5 Cabinet

63424 For Designer

White Model

63425 For Designer

Almond Model

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

7 3363519 Sheild, Splash

8 3356311 Screw & Washer,

Lid Switch (2)

11 3352629 Switch, Lid

13 3351355 Screw, Lid Hinge

Mounting (4)

14 21097 Pad, Lid Hinge (2)

15 54584 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid

Hinge (2)

19 Lid

3351652 For Designer

White Model

3351653 For Designer

Almond Model

20 358684 Strike, Lid Switch

22 93770 Bumper, Lid (2)

28 384435 Screw,

10−16 x 1/2 (5)

31 90016 Clip, Harness

32 63401 Dispenser, Bleach

LITERATURE PARTS

LIT3360057 Sheet, Installation

Instructions

LIT3357478 Guide, Use and

Care

LIT3361378 Energy Guide

LIT3359090 Label, Wiring

Diagram

LIT4313896 Manual, (Washer)

Do−It−Yourself

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

72110 Golden Harvest

PAINT, PRESSURIZED SPRAY

(13 oz.)

350941 Leveler (Thinner)

350938 Primer, Gray

350930 White

350956 Almond

261890 Golden Harvest

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest

(Uncut)

OIL

350572 Oil, Gearcase

(16 Oz.)

LUBRICANT

285208 Lubricant (Use

Only in Brake

Shoe Assembly

On Roller and

Pin)

SEALER

285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

SHIPPING KIT

3348675 Shipping Kit

ACCESSORY PARTS

89121 Stand−Pipe Kit

367031 Drain Protector

285320 Siphon Break Kit

881100

CONTROLS AND REAR PANEL PARTS

For Models: LSS8244AQ0, LSS8244AZ0

(Designer White)(Designer Almond)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

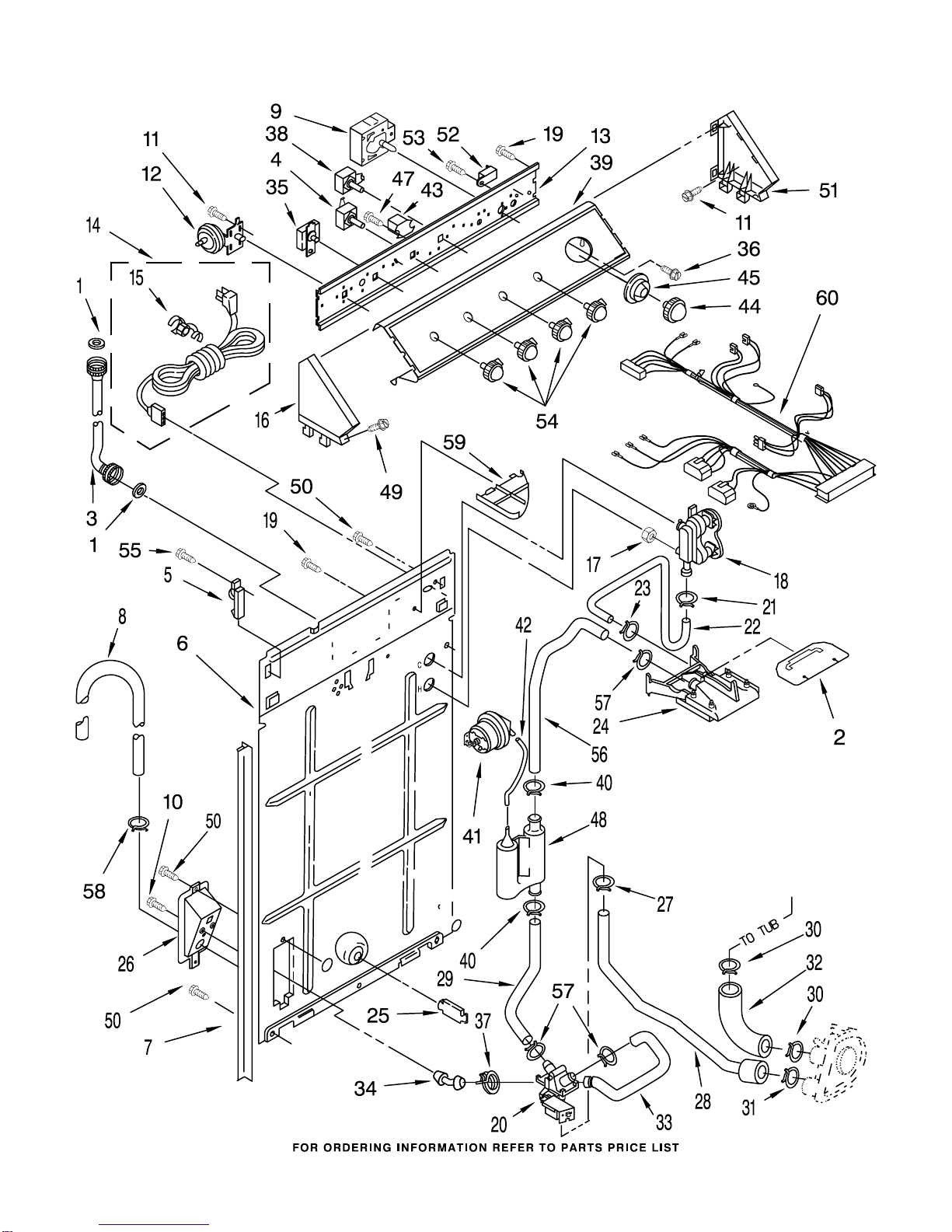

CONTROLS AND REAR PANEL PARTS

4881100

For Models: LSS8244AQ0, LSS8244AZ0

(Designer White)(Designer Almond)

1 16123 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

2 3363517 Sheild, Vaccum

Break

3 3354858 Hose, Water

Inlet (2)

4 3361226 Switch, Rotary

5 387402 Hinge, Console (2)

6 3362719 Panel, Rear

7 62747 Pad, Rear Panel

8 96743 Hose, Rubber

Drain

9 3359089 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

10 3352299 Screw

11 3390646 Screw, 8−18 x 5/16

12 3356466 Switch, Water Level

13 3360936 Bracket, Control

14 3360514 Cord, Power

15 63848 Strain Relief,

Power Cord

16 Cap, End (L.H.)

3358531 For Designer

White Model

3358532 For Designer

Almond Model

17 96160 Screen, Filter (2)

18 3360391 Valve, Water

Mixing

19 90864 Screw,

10−24 x 3/8 (2)

20 3358559 Valve−Two Way

21 660632 Clamp, Hose

272846 (Alt.)

353367 (Alt.)

22 62662 Hose, Vacuum

Break

23 371503 Clamp, Hose

24 3358551 Break, Vacuum

25 63290 Support, Rear

Panel

26 3358567 Bracket, Valve

Mounting

27 356138 Clamp, Hose

28 3358562 Hose, Pump To

Two−Way Valve

29 3358563 Hose/Two−way Valve

To Air Dome.

30 371502 Clamp, Hose

31 660628 Clamp, Hose

272858 (Alt.)

370447 (Alt.)

353097 (Alt.)

32 62731 Hose, Pump To Tub

33 3358564 Hose/Two−Way

Valve To Drain

34 95440 Connector Hose

35 661537 Switch, Rotary

36 96435 Screw, Timer

Mounting

(10−32 x 1) (2)

37 660626 Clamp−Hose

38 3354281 Switch, Rotary

39 Panel, Console

3363287 For Designer

White Model

3363288 For Designer

Almond Model

40 3363365 Clamp−Hose

41 3358570 Switch, Pressure

42 3347781 Hose, Pressure

Switch

43 697811 Cancel, Relay

44 Knob, Timer

3358417 For Designer

White Model

3358420 For Designer

Almond Model

45 Dial, Timer

3358447 For Designer

White Model

3358448 For Designer

Almond Model

47 3388228 Screw, 6−20 x 3/8

48 3358556 Air−Dome

49 3353145 Screw, 8−18 (2)

(Panel to Top)

50 62863 Screw, 10−16 x 3/8

51 Cap , End (R.H.)

3358516 For Designer

White Model

3358517 For Designer

Almond Model

52 694419 Mini, Buzzer

53 90767 Screw, 8A x 3/8

54 Knob/Controls

3358435 For White Model

3358436 For Almond Model

55 3357011 Screw,

10−16 x 1/2

56 3358555 Hose, Air−Dome

To Vaccum Break

57 3358557 Clamp−Hose

58 3357331 Clamp, Drain

Hose

59 3348424 Shield, Suds

60 3362315 Harness, Wiring

(For Detail See

Page 9.) Also

See Clips.

Illus. Part

No. No. DESCRIPTION

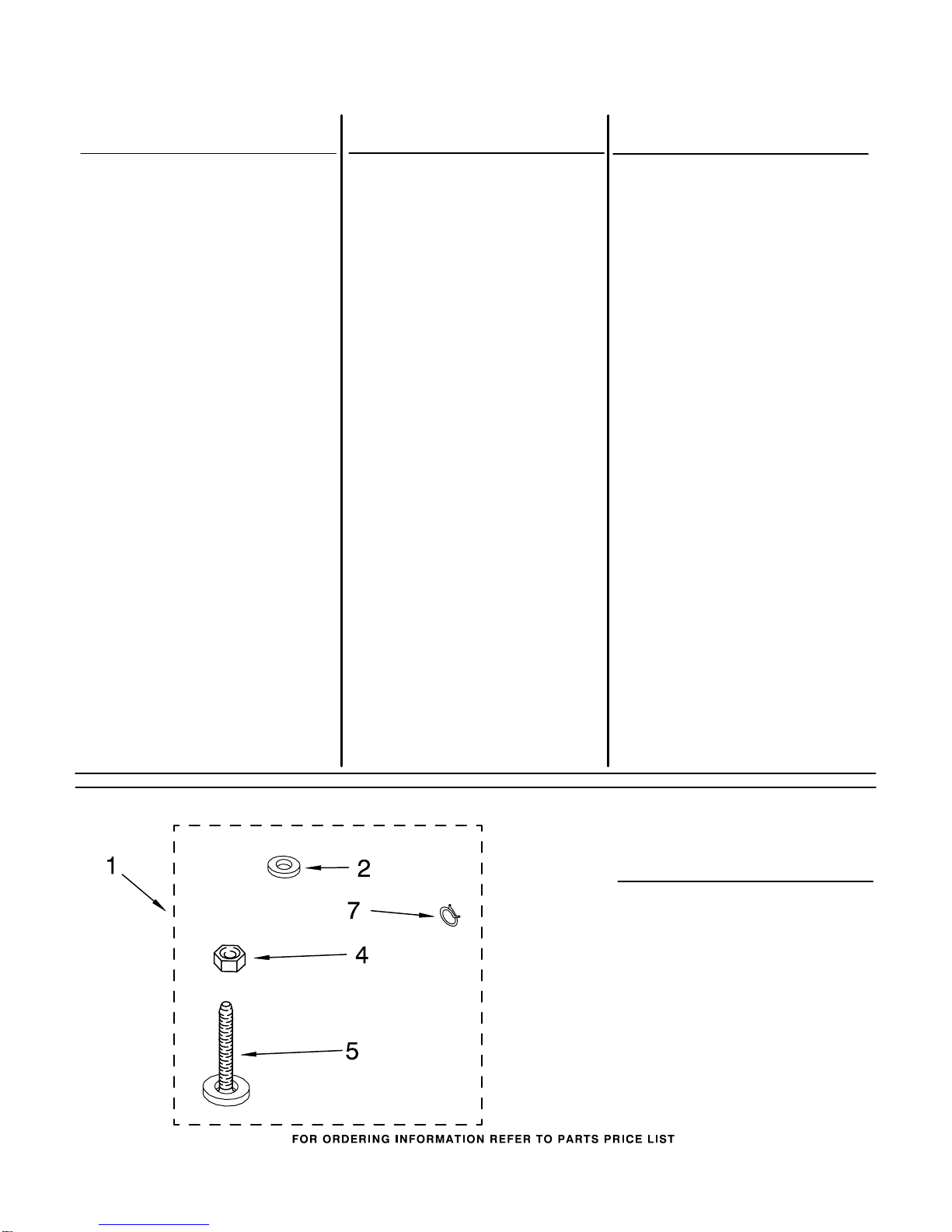

MISCELLANEOUS PARTS

1 3359460 Miscellaneous

Parts Bag

2 16123 Washer, Inlet

Hose

(1−1/16 x 5/8) (4)

4 3359452 Nut, Lock

(3/8−16)

5 389102 Foot, Front (2)

7 356138 Clamp, Hose

AGITATOR, BASKET AND TUB PARTS

881100

For Models: LSS8244AQ0, LSS8244AZ0

(Designer White)(Designer Almond)

Illus. Part

No. No. DESCRIPTION

AGITATOR, BASKET AND TUB PARTS

6881100

2 358237 Screw & Washer

(5−16−24 x 1)

3 3348752 Clothes Mover

4 3347288 Agitator

5 63851 Tub Ring & Gasket

6 3359585 Gasket, Tub Ring

7 3354845 Clip, Agitator

8 3355921 Washer, Agitator

9 3351001 Cam Driven

10 387091 Dog, Agitator

Clutch

12 21366 Nut, Spanner

13 3350649 Basket & Balance

Ring

14 3361948 Filter, Plate

16 388893 Tub

(Includes Item 25)

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

20 3348117 Agitator Asy.

(Complete)

22 3350389 Spacer, Thrust

23 3347290 Cap, Barrier

24 3348855 Seal, Inner Cap

25 3358198 Hose, Bleach

For Models: LSS8244AQ0, LSS8244AZ0

(Designer White)(Designer Almond)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

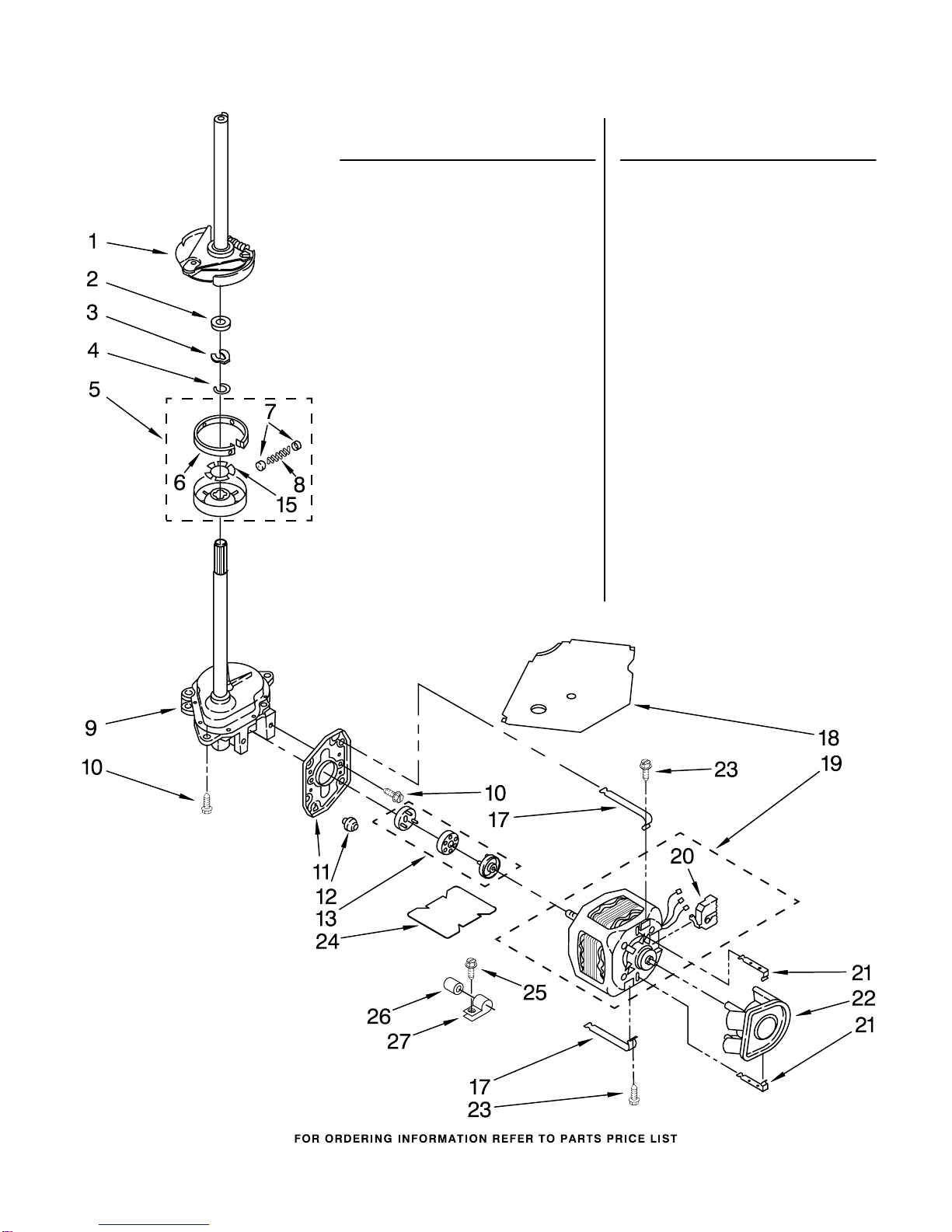

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

881100

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3350114 Clutch (Complete)

6 388190 Band & Lining,

Clutch (Includes

Illus. 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3354732 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 62693 Coupling, Motor

& Isolation

15 3355454 Clip,

Anti−Rattle

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 3349644 Motor, Main

Drive

20 62850 Switch, Main

Drive Motor

21 62700 Retainer, Pump (2)

22 3352492 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3351341 Shield, Motor

25 62863 Screw,

10−16 x 5/16

26 357021 Capacitor

27 357030 Clamp, Capacitor

For Models: LSS8244AQ0, LSS8244AZ0

(Designer White)(Designer Almond)

Illus. Part

No. No. DESCRIPTION

MACHINE BASE PARTS

8881100

1 343641 Screw, Bracket

Mounting

(10−16 x 1/2)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 3362087 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 3348727 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

13 3347047 Bearing,

Centerpost (2)

14 357409 Seal, Centerpost (3)

15 388492 Spring,

Counterweight

16 62568 Pad, Plate

17 389299 Plate, Suspension

(Includes Illus. 16)

18 62602 Pad, Base

19 3359886 Base Assembly

(Includes Illus, 6,

7, 8, 9, 18 & 26)

21 3359452 Nut, Lock

(3/8−16)

22 389102 Foot, Front (2)

23 356934 Seal, Centerpost (2)

24 285203 Centerpost

Bearing Kit

(Includes Illus.

13, 14 & 23)

25 63134 Ring, Sound

Deadening

26 63806 Retainer,

Suspension Spring

For Models: LSS8244AQ0, LSS8244AZ0

(Designer White)(Designer Almond)

WIRING HARNESS PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Clip, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 389379 Retainer,

(Suds Models)

8 352090 Timer, Block

Disconnect

(White)

9 352089 Timer, Block

Disconnect

(Black)

10 62889 Receptacle,

Terminal

(3−Way)

(Lid Switch)

(Use Term. 94613

or 94614 )

11 353424 Plug, Terminal

(3−Way)

(Power Cord)

(Use Term. 94613)

12 62505 Block, Disconnect

(Motor 2 Speed)

(Use Term. 352088)

13 3348075 Block, Disconnect

(Motor 3 Speed)

(Use Term. 94613

or 94614)

14 3347243 Block, Disconnect

(Use Term. 352088)

15 63523 Protector

16 717252 Connector

(2−Way)

(Suds Valve)

(Use Term. 94614)

17 387566 Plug, Terminal

(4−Way)

(Power Cord)

(Use M3 Screws)

18 3352944 Clip, Harness

19 3390423 Block, Disconnect

(12−Way)

(Timer)

(Use Term. 94613)

20 3347730 Receptacle,

(6−Way)

(Use Term. 94613)

21 388818 Plug, Terminal

(12−Way)

(Use Term. 94613

or 94614)

22 3369366 Timer, Block

Disconnect

(Black) (Amp)

(Use Term. 3369365)

23 3349494 Connector, ETC

(Use Term. 340795)

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

24 60687 Connector, Relay

(Use Term, 308569

or 338664)

WH2C

881100 9

For Models: LSS8244AQ0, LSS8244AZ0

(Designer White)(Designer Almond)

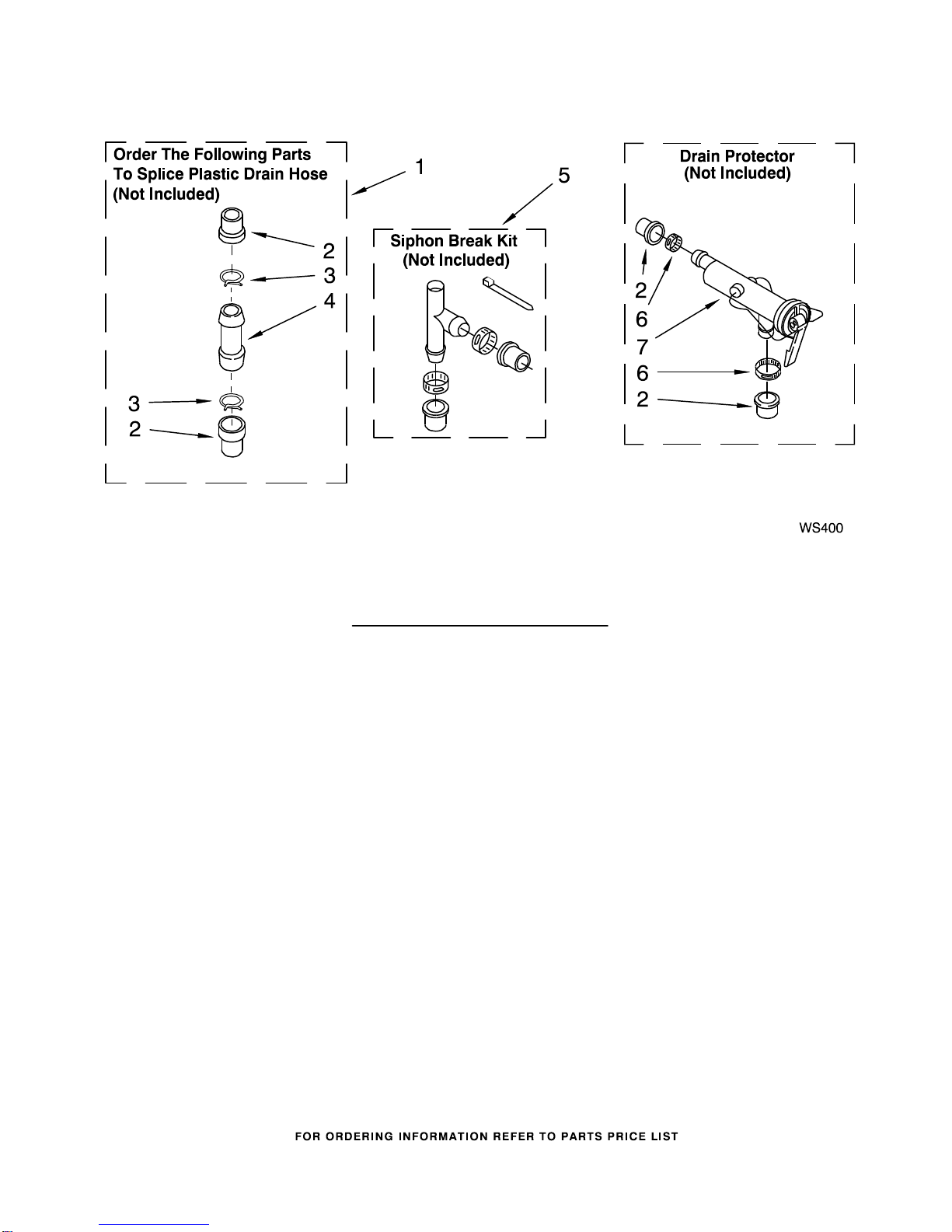

WATER SYSTEM PARTS

Illus. Part

No. No. DESCRIPTION

1 285442 Connector Kit,

Plastic Drain

Hose

2 285321 Sleeve Kit,

(Contains 2

Sleeves)

3 370447 Clamp, Hose

4 16272 Connector,

Straight

5 285320 Siphon Break

Kit

(Not Included)

6 65349 Clamp, Hose

7 367031 Drain Protector

(Not Included)

10 881100

For Models: LSS8244AQ0, LSS8244AZ0

(Designer White)(Designer Almond)

This manual suits for next models

Table of contents

Other Whirlpool Washer manuals

Whirlpool

Whirlpool Duet GHW9160PW0 User manual

Whirlpool

Whirlpool 2DLSQ7533JQ4 User manual

Whirlpool

Whirlpool FULL ELECTRONIC WASHING MACHINE User manual

Whirlpool

Whirlpool 4KWTW5600JW User manual

Whirlpool

Whirlpool FSCR12441 Installation guide

Whirlpool

Whirlpool WTW4850XQ Assembly instructions

Whirlpool

Whirlpool FFB9448BVUA User manual

Whirlpool

Whirlpool W11114976B User guide

Whirlpool

Whirlpool AWA 5085 User manual

Whirlpool

Whirlpool GSQ9612KQ0 User manual

Whirlpool

Whirlpool TDLR70123 Installation guide

Whirlpool

Whirlpool Cabrio WTW8200YW Assembly instructions

Whirlpool

Whirlpool ADP 688IX User manual

Whirlpool

Whirlpool LA553OXS User manual

Whirlpool

Whirlpool CAM2752TQ - COMMCL WSHR 2SP 3CYC WH DIG D User manual

Whirlpool

Whirlpool WFS1274AW User manual

Whirlpool

Whirlpool 3XLA87W92BQ0 User manual

Whirlpool

Whirlpool FFCR70820 User manual

Whirlpool

Whirlpool Duet HT GHW9300PW0 User manual

Whirlpool

Whirlpool AWG 640-1/WP-HU User manual

Whirlpool

Whirlpool Cabrio WTW8800YC User manual

Whirlpool

Whirlpool GCAM2792TQ User manual

Whirlpool

Whirlpool Estate TAWS800JQ3 User manual

Whirlpool

Whirlpool AWM 312/3 User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Beko

Beko WKB 51231 PTMA manual
