Whirlpool LSQ9549LG1 User manual

TOP AND CABINET PARTS

For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1

(Designer White) (White/Grey) (Biscuit/Gold)

6−03 Litho in U.S.A. (drd) Part No. 8180071

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1

(Designer White) (White/Grey) (Biscuit/Gold)

8180071

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT3956025

Installation

Instructions

LIT3955904

Feature Sheet

LIT3955869

Use & Care Guide

LIT3956339

Energy Guide

LIT8541273

Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT4313896

Manual, Washer

Do−It−Yourself

2 Top

3955792 White

3955793 Biscuit

3 62750 Spacer, Cabinet To

Top (4)

4 357213 Nut, Push−In (2)

5 Cabinet

63424 White

3954357 Biscuit

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

7 3976348 Cabinet −

Sound Damper

8 3400611 Screw,

Lid Switch (2)

9 3357011 Screw, 10−16 x 1/2

10 8054939 Seal, Lid

11 8054980 Switch, Lid

13 355274 Screw, Lid Hinge

Mounting (4)

15 8055257 Hinge, Lid (L.H.)

16 8055256 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 8319539 Bearing, Lid

Hinge (2)

19 Lid

3956016 White

3956017 Biscuit

22 3351614 Screw, Ground

28 3390631 Screw,

10−16 x 3/8 (4)

31 3955788 Cover, Dispenser

32 8519517 Dispenser, Bleach

CONTROLS AND REAR PANEL PARTS

For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1

(Designer White) (White/Grey) (Biscuit/Gold)

8180071

CONTROLS AND REAR PANEL PARTS

For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1

(Designer White) (White/Grey) (Biscuit/Gold)

8180071

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3976300 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

2 3400073 Screw, Ground

3 Hose, Water

Inlet (2)

3949374 Blue Coupler

3949375 Red Coupler

4 9740848 Screw

5 8318255 Strap, Console (2)

6 3357978 Panel, Rear

7 62747 Pad, Rear Panel

8 3951609 Hose, Drain

(4 ft.)

661577 Hose, Drain

(9 ft.)

(Not Included)

3357090 Extension

Drain Hose

(21 Inches)

(Not Included.)

9 8541270 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

10 3351614 Screw

11 90767 Screw 8−18 x 3/8

12 3366845 Switch, Water Level

13 3948608 Bracket, Control

14 661661 Cord, Power

(Includes Item 15)

15 3952821 Strain Relief,

Power Cord

16 Cap, End (L.H.)

8271365 White

8271368 Biscuit

17 8318201 Clip, Capacitor

18 3952164 Valve, Water

Mixing

19 3976286 Shield, Capacitor

20 694419 Mini−Buzzer

21 370451 Clamp, Hose

22 3357328 Hose, Vacuum

Break

23 371503 Clamp, Hose

24 387606 Break, Vacuum

25 303294 Edge Protector

26 661606 Capacitor,

Motor Start

27 3366912 Clamp, Hose

28 3976395 Clamp, Hose

29 3347812 Clip, Harness

30 3363366 Clamp, Hose

31 8317496 Clamp, Hose

32 3951449 Hose, Pump To Tub

(Includes #30)

33 8055003 Clip, Harness

& Pressure Hose

34 8317975 Retainer, Harness

35 661614 Switch, Water

Temperature

36 3400818 Screw, Timer

Mounting

37 8528333 Switch, Rotary

39 Panel, Console

3955834 White

3955835 Grey

(Includes Item 40)

3955836 Gold

(Includes Item 40)

40 3955775 Medallion

44 Knob, Timer

8271345 (For LSQ9549LQ1)

8538949 (For LSQ9549LW1)

8538952 (For LSQ9549LG1)

45 Dial, Timer

8271351 (For LSQ9549LQ1)

8538955 (For LSQ9549LW1)

8538956 (For LSQ9549LG1)

46 8536939 Clip, Knob (Except

LSQ9549LQ1)

47 Knob, Control

8271339 (For LSQ9549LQ1)

8538957 (For LSQ9549LW1)

(Includes Item 46)

8538958 (For LSQ9549LG1)

(Includes Item 46)

49 388326 Screw, 8−18 x 1.25

(Panel to Top)

50 62863 Screw, 10−16 x 3/8

51 Cap, End (R.H.)

8271359 White

8271362 Biscuit

58 3366913 Clamp, Hose

59 8539874 Shield, Suds

60 3956522 Harness, Wiring

(For Detail See

Pages 9 & 10)

61 3357027 Nozzle−Drain

Hose

62 8317940 Drain Hose

Assembly

AGITATOR, BASKET AND TUB PARTS

For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1

(Designer White) (White/Grey) (Biscuit/Gold)

8180071

AGITATOR, BASKET AND TUB PARTS

For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1

(Designer White) (White/Grey) (Biscuit/Gold)

8180071

Illus. Part

No. No. DESCRIPTION

1 63580 Dispenser

2 358237 Screw & Washer

(5/16−24 x 1)

3 3363003 Clothes Mover

4 3951632 Agitator

5 8528150 Tub Ring & Gasket

6 3976308 Gasket, Tub Ring

7 3354845 Clip, Agitator

8 3355921 Washer, Agitator

9 3951682 Cam Driven

10 3366877 Dog, Agitator

Clutch

11 3952374 Bearing−Driven

Cam

12 21366 Nut, Spanner

13 8526016 Basket & Balance

Ring

15 8519788 Balance Ring

16 63849 Tub

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

20 3951744 Agitator

(Complete)

22 3951608 Spacer, Thrust

23 3354733 Cap, Barrier

24 3348855 Seal, Inner Cap

26 3949550 Washer

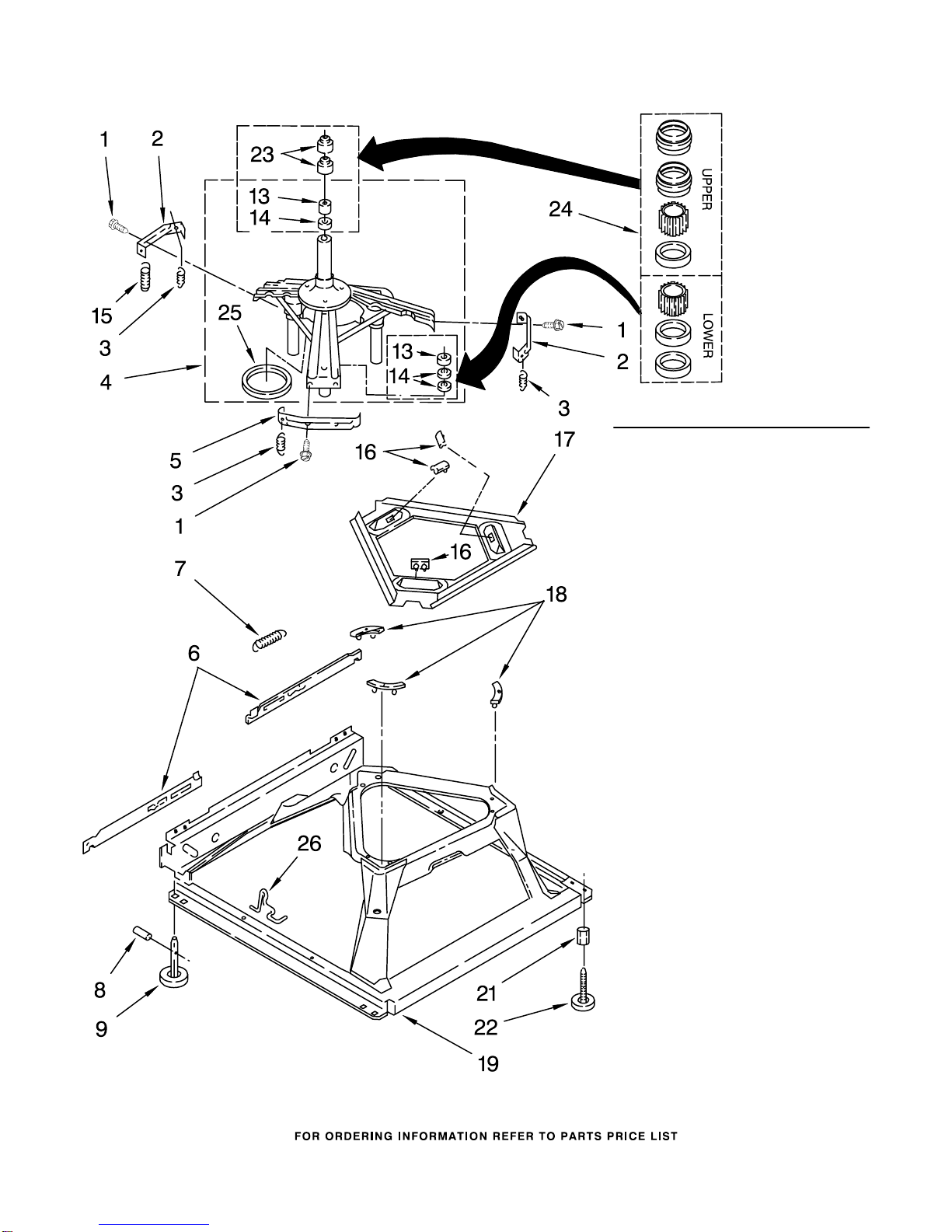

MACHINE BASE PARTS

For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1

(Designer White) (White/Grey) (Biscuit/Gold)

8180071

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 3362087 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

13 3347047 Bearing,

Centerpost (2)

14 357409 Seal, Centerpost (3)

15 388492 Spring,

Counterweight

16 62568 Pad, Plate

17 3946509 Plate, Suspension

(Includes Illus. 16)

18 3363660 Pad, Base

19 3946512 Base Assembly

(Includes Illus, 6,

7, 8, 9, 16, 17,

18, & 26 )

21 3359452 Nut, Lock

(3/8−16) (2)

22 389102 Foot, Front (2)

23 356934 Seal, Centerpost (2)

24 285203 Centerpost

Bearing Kit

(Includes Illus.

13, 14 & 23)

25 63134 Ring, Sound

Deadening

26 63806 Retainer,

Suspension Spring

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1

(Designer White) (White/Grey) (Biscuit/Gold)

8180071

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3951311 Clutch (Complete)

6 3951308 Band & Lining,

Clutch (Includes

Illus. 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 285753 Coupling, Motor

& Isolation

15 3355454 Clip,

Anti−Rattle

16 3400516 Screw

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 8528157 Motor, Main

Drive

20 3952056 Switch, Main

Drive Motor

21 62700 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3946532 Shield, Motor

WIRING HARNESS PARTS

WH2G

For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1

(Designer White) (White/Grey) (Biscuit/Gold)

8180071

WIRING HARNESS PARTS

WH2G

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

1 3349557 Clip, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 389379 Retainer,

(Suds Models)

8 352090 Timer, Block

Disconnect

(White)

9 352089 Timer, Block

Disconnect

(Black)

10 62889 Receptacle,

Terminal

(3−Way)

(Lid Switch)

(Use Term.94613)

Or 94614.)

11 353424 Plug, Terminal

(3−Way)

(Power Cord)

(Use Term.94613)

12 62505 Block, Disconnect

(Motor 2 Speed)

(Use Term.352088)

13 3348075 Block, Disconnect

(Motor 3 Speed)

(Use Term. 94613

Or 94614.)

14 3347243 Block, Disconnect

(Use Term. 352088)

15 63523 Protector

16 717252 Connector

(2−Way)

(Use Term.94614)

17 387566 Plug, Terminal

(4−Way)

(Power Cord)

(Use M3 Screws)

18 3352944 Clip, Harness

19 3390423 Block, Disconnect

(12−Way)

(Timer)

(Use Term. 94613)

20 3347730 Receptacle

(6−Way)

(Use Term. 94613)

21 388818 Plug, Terminal

(12−Way)

(Use Term. 94613

Or 94614.)

22 3369366 Timer, Block

Disconnect

(Black) (Amp)

(Use Term.3369365)

23 3349494 Connector, Etc

24 60687 Connector, Relay

(Use Term.308569)

25 3407125 E.T.C. Control

26 3948617 Connector (T.P.A.)

(3−Circuit)

(Lid Switch)

(Use Term. 3948619

OR 3948620.)

27 3360056 Connector (T.P.A)

(3−Circuit)

(Pressure Switch)

(Use Term.3948619

OR 3948620.)

28 3354925 Block, Connector

(Cold Valve)

(Use Term.693217)

29 3354926 Block, Connector

(Hot Valve)

(Use Term.693217)

30 3948615 Connector (T.P.A.)

(6−Circuit)

(Temp. Switch)

(Use Term.3948619

OR 3948620.)

For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1

(Designer White) (White/Grey) (Biscuit/Gold)

8180071

This manual suits for next models

Table of contents

Other Whirlpool Washer manuals

Whirlpool

Whirlpool WFW9750W Series Owner's manual

Whirlpool

Whirlpool 1CWTW4740YQ1 User manual

Whirlpool

Whirlpool AWA 5305 User manual

Whirlpool

Whirlpool Gold GST9675JQ1 User manual

Whirlpool

Whirlpool 8539782 User manual

Whirlpool

Whirlpool GLA5580XS User manual

Whirlpool

Whirlpool FWL61452W User manual

Whirlpool

Whirlpool LSC5000PQ1 User manual

Whirlpool

Whirlpool LBT6133AW1 User manual

Whirlpool

Whirlpool 8540321-D-WH Manual

Whirlpool

Whirlpool W10200890B User manual

Whirlpool

Whirlpool LA9800XT User manual

Whirlpool

Whirlpool 3RLSQ8600 User manual

Whirlpool

Whirlpool Cabrio WTW8500DW User manual

Whirlpool

Whirlpool WTW57ESVW - Plus Ing Washer Assembly instructions

Whirlpool

Whirlpool Compact Washe User manual

Whirlpool

Whirlpool 8TWFW8620HW User manual

Whirlpool

Whirlpool LA6400XP User manual

Whirlpool

Whirlpool AWM 6145/3 User manual

Whirlpool

Whirlpool 8TWFW6620HW User manual

Whirlpool

Whirlpool LW4203W/L2 User manual

Whirlpool

Whirlpool Duet WFW9050X User manual

Whirlpool

Whirlpool AWM 285/3 User manual

Whirlpool

Whirlpool AWO/D6188 User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Beko

Beko WKB 51231 PTMA manual
