TWO AND THREE SPEED AUTOMATIC WASHERS

A Note ToYou

Thank you for buying a Whirlpool appliance.

You have purchased a quality, world-classhome appliance. Years of engineering experience have

gone into its manufacturing. To ensure many years of trouble-free operation, we have developed

this Use and Care Guide. It is full of valuable information on how to operate and maintain your

appliance properly and safely. Please read it carefully. Also, please complete and mail the Owner-

ship Registration Card provided with your appliance. This will help us notify you about any new

information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these symbols

and follow any instructions given. Here is a brief explanation of the use of each symbol.

This symbol will help alert you to such dangers

as personal injury, burns, fire and electrical

shock.

This symbol will help you avoid actions which

could cause product damage (scratches,

dents, etc.) and damage to your personal

property.

Our Consumer Assistance number, 1-800-253-1301, is

toll-free 24 hours a day,

If you have aquestion concerning your appliance's operation,or if you need service, first see "If

You Need Assistance Or Service" on page 22. If you need further help, call us. When calling, you

will need to know your appliance's complete model number and serial number. You can find this

information on the model and serial number plate (see diagram on page 4). For your convenience,

we have included a handy place below for you to record these numbers, the purchase date from

the sales slip and your dealer's name and telephone number. Keep this book and the sales slip

together in a safe place for future reference.

Model Number Dealer Name

Serial Number Dealer Phone

Purchase Date

IMPORTANT SAFETY INSTRUCTIONS

•Read all instructions before using your

washer.

•Do not machine wash or machine dry

items cleaned, washed, soaked in, or

spotted with wax, paint, gasoline, oil, or

other flammable fluids. The fumes can

create a fire hazard or explosion. Always

hand wash and line dry items containing

these materials.

•Flammable fluids (dry-cleaning solvents,

kerosene, gasoline, etc.) should not be

used or stored in or near your washer. Do

not add flammable fluids to your wash

water. These substances give off vapors

that can create a fire hazard or explosion.

• Do not allow children to operate, play with,

or crawl on or inside your washer. Super-

vise children closely when your washer is

used near them.

•Before your washer is removed from

service or discarded, remove the lid to

prevent accidental entrapment.

• After starting a cycle, de not reach into the

basket unless the Cycle Control Knob is

pushed in and all motion stops,

• Do not tamper with the controls.

• If your hot water has not been used

recently (usually 2 weeks or longer),

hydrogen gases may build up in your

water heater and your hot water pipes.

HYDROGEN GAS IS EXPLOSIVE To

prevent injury or damage, before using

your washer, turn on all hot water faucets

and allow water to run for several min-

utes. This will allow gases to escape. Do

not smoke or use any open flame near

your faucet while it is open.

Please ...

• Have only a qualified repairman install,

repair, or replace parts on washer,

• Maintain washer properly.

• Protect washer from the weather and

keep it where the temperature will not fall

below freezing,

• Install and level washer on a floor that

can support the weight.*

• Connect washer to the correct 3-prong

outlet, electrical supply, water supply, and

drain.*

• Ground washer properly.*

*See the Installation Instructions.

Understanding your responsibilities

• Store detergent, laundry aids and other

materials in a cool, dry place where

children cannot reach them (in a locked

cabinet if possible).

• Read and follow instructions on pack-

ages of detergent and laundry aids,

especially warnings and precautions.

,, Do not wash or dry items that are soiled

with vegetable or cooking oil. These

items may contain some oil after launder-

ing. Due to the remaining oil, the fabric

may smoke or catch fire by itself.

• Do not use chlorine bleach and ammonia

or acids (such as vinegar or rust re-

mover) in the same wash, Hazardous

fumes can form.

• Unplug power supply cord before

attempting to service your washer.

• Do not machine wash fiberglass materi-

als. Small particles can stick to the

fabrics washed in following loads and

cause skin irritation.

-SAVE THESE INSTRUCTIONS -

Knowing Your Washer's

Features

The parts and features of your washer are illustrated in this section. Become familiar with all parts

and features before using your washer.

NOTE: The drawings in this book may vary from your washer model. They are designed to show

the different features of all models covered by this book. Your model may not include all features.

Load size Temperature Cycle control

selector selector knob

Fabric softener

dispenser*

Agitato_

Consumer Assistance

._------( Center number

1-800-253-1301)

Model and serial

number plate

(under lid)

Bleach dispenser"

Basket

Tub

Other features not shown:

MAGIC CLEAN®lint filter*

Manualclean lintfilter (inside agitator)*

Extra rinse option*

*Available on some models

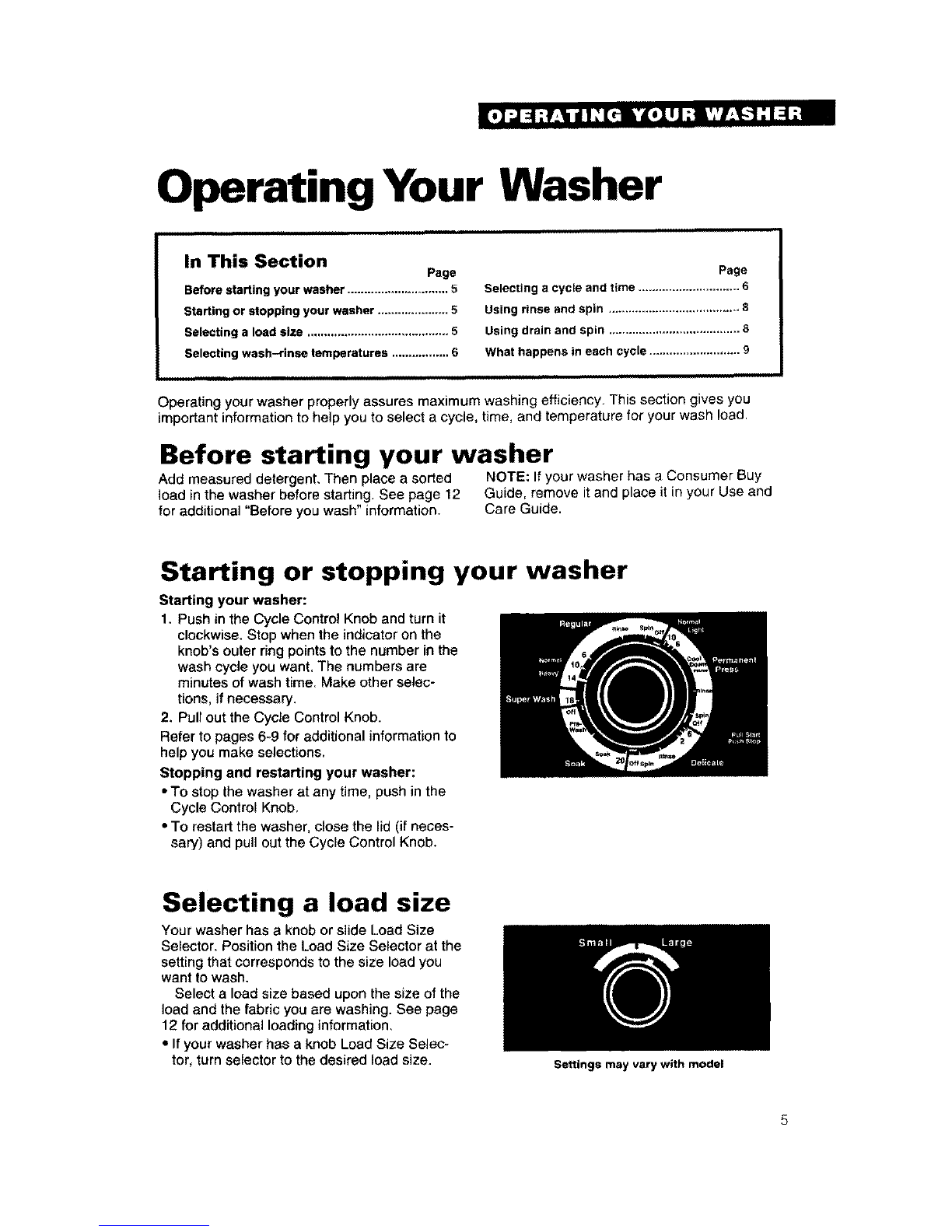

Operating Your Washer

In This Section Page

Before starting your washer .............................. 5

Starting or stopping your washer ..................... 5

Selecting a load size .......................................... 5

Selecting wash-rinse temperatures ................. 6

Page

Selecting a cycle and time .............................. 6

Using rinse and spin ....................................... 8

Using drain and spin ....................................... 8

What happens in each cycle ........................... 9

Operating your washer properly assures maximum washing efficiency. This section gives you

important information to help you to select a cycle, time, and temperature for your wash load.

Before starting your washer

Add measured detergent. Then place a sorted NOTE: If your washer has a Consumer Buy

load in the washer before starting. See page 12 Guide, remove it and place it in your Use and

for additional "Before you wash" information. Care Guide.

Starting or stopping your washer

Starting your washer:

1. Push in the Cycle Control Knob and turn it

clockwise. Stop when the indicator on the

knob's outer ring points to the number in the

wash cycle you want, The numbers are

minutes of wash time. Make other selec-

tions, if necessary,

2. Pull out the Cycle Control Knob.

Refer to pages 6-g for additional information to

help you make selections.

Stopping and restarting your washer:

•To stop the washer at any time, push in the

Cycle Control Knob

• To restart the washer, close the lid (if neces-

sary) and pull out the Cycle Control Knob.

Selecting a load size

Your washer has a knob or slide Load Size

Selector. Position the Load Size Selector at the

setting that corresponds to the size load you

want to wash.

Select a load size based upon the size of the

load and the fabric you are washing. See page

12 for additional loading information,

• If your washer has a knob Load Size Selec-

tor, turn selectorto the desired load size. Settings may vary with model

-If your machine has a slide Load Size Selec-

tor, you may set the load size anywhere on or

between the ex small and ex large settings.

To change the load size setting after the washer

has started to fill, move the Selector to the

desired new setting.

NOTE: If your washer has RESET on the Load

Size Selector, change the load size selection by

first moving the Selector to RESET, then to the

new load size.

Load size tips

•Items should move freely in the washer. Do

not overload the machine or select a load size

that is too small for the wash load.

• Use a large load size setting for best results

with permanent press clothes.

• Reduce wash time when using a smalI load

size setting. Loads with only a few small items

need less wash time.

Slide selector with "Reset"

Selecting wash-rinse temperatures

Your washer has a knob, CLEAN TOUCH'" or

push button Water Temperature Selector. Match

the water temperature to the type of fabric and

soils being washed. The top temperature is the

wash water and the bottom temperature is the

rinse water.

Water temperature tips

• Use warm wash water with the Permanent

Press and Delicate cycles.

• Always use cold rinse water for permanent

press fabrics.

• For heavily soiled permanent press or knit

clothes, pre-wash or pre-soak before washing

in warm water.

Knob selector

Push button selector

CLEAN TOUCH selector-

an indicator appears

above the water

temperatures selected

See the "Water usage guide" on page 16 for

mnr_ information.

Selecting a cycle and time

You willfind information you need to help you

make correct cycle selections inthis section

• Pages 7-8: Use the information on these

pages to guide you when selecting a wash

cycle and time.

• Page 9: Use this page to help you understand

what happens during a wash cycle,

6Cycles may vary with model

Regular cycle

The Regular cycle features the Gentle Wash

system and high spin speeds to shorten drying

time.

• Use 10-14 minutes of wash time to clean

sturdily constructed fabrics and heavily soiled

loads.

• Use 6-!0 minutes of wash time to clean

regular loads of fabrics that are moderately

soiled.

Permanent Press cycle

The Permanent Press cycle features the

Gentle Wash system, a cool-down rinse, and

low spin speeds to reduce wrinkling.

•Use 10 minutes of wash time to clean

moderately soiled permanent press and

some synthetic fabrics.

•Use 6 minutes of wash time to clean lightly

soiled permanent press and some synthetics.

NOTE: The washer pauses briefly during the

wash cycle. This is normal for washer

operation.

Delicate cycle

The Delicate cycle features a reduced agitation

speed for gentle soft removal. Low spin speeds

reduce wrinkling.

•Use 6 minutes of wash time, to clean lightly

and moderately soiled delicate items and

washable knits.

Soak cycle

(on some models)

The Soak cycle features brief periods of

agitation and soak time to help remove heavy

soils and stains that need pretreatment.

• Use warm water when soaking laundry (hot

water can set stains), See page 13 for stain

removal information.

• Use the amount of detergent or presoak

additive recommended by manufacturer.

• After the Soak cycle ends, add detergent

and set a new wash cycle,

Regular cycle

Permanent press cycle

Delicate cycle

Soak cycle

Pre-Wash cycle

(on some models)

The Pre-Wash cycle features a brief period of

high speed agitation to help remove heavy

soils and stains that need pretreatment.

• Use warm water for prewashing stained

laundry (hot water can set stains). See page

13 for stain removal information.

•After the Pre-Wash cycle ends, add deter-

gent and set a new wash cycle.

Super Wash cycle

(on some models)

Super Wash automatically pre-washes the

laundry and advances into the Regular wash

cycle (the washer does not need to be reset

after the Super Wash cycle). Use this cycle

when washing heavily soiled loads that need

maximum soil removal.

• For proper cleaning use double the amount

of detergent recommended for a regular

wash cycle.

NOTE: The machine pauses during Super

Wash. This is normal for washer operation.

Using rinse and spin

NOTE: If your washer has the Extra Rinse

option, see page 11.

When using extra detergent for heavily soiled

clothes, or washing special-care items, you

may want an extra rinse and spin.

1. Push Cycle Control Knob in and turn

clockwise to RINSE, as illustrated.

2. Pull Cycle Control Knob out. The washer

will fill to selected load size, agitate, drain,

and soin.

Using drain and spin

A drain and spin may help shorten drying times

for some heavy fabdcs or special-care items

by removing excess water.

1, Push Cycle Control Knob in and turn

clockwise to SPIN, as illustrated.

2. Pull Cycle Control Knob out. The washer

will drain and spin.

Pre-wash cycle

Super wash cycle

What happens in each cycle

Permanent Press cycle

Fill to selected load size

When the cycle Control Knob is set to a

number and pulled out. the washer fills to the

selected load size with the selected water

temperature before agitation and timing start.

The washer will begin agitating immediately

after filling; agitation can occur with the washer

lid up or down. After agitation starts, the knob {2r_.,_ Wash selected time

turns clockwise until it points to OFF and the _J

cycle ends,

The washer pauses briefly throughout lJm=-I

each cycle. These pauses are normal for Partial drain-No agitation

washer operation. _

NOTE: A Gentle Wash system helps protect _ Fill to selected load size

your fabrics by reducing wash agitation speed _

during the last few minutes of wash agitation in

the Regular and Permanent Press cycles. _T_ Brief agitation

Regular and Delicate cycles _-qF

Fill tOselected load size t-_-I Drain-No agitation

Wash selected time Spin

_ Drain-No agitation _ Fill

Spin Rinse

Fill _ Drain-No agitation

___ Rinse _ Spin-Spray rinse

_ Drain-No agitation _ Spin

Spin-Spray rinse

Spin

Other Features

In This Section Page

Using the fabric softener dispenser ............... 10

Using the chlorine bleach dispenser .............. 10

Using the extra rinse option ............................ t 1

Page

MAGIC CLEAN _lint tilter ............................... 11

Manual clean lint filter ................................... 11

Your washer may have some of the following features. Understandingthe use of the features on

your machine will help you efficiently use your washer.

Using the fabric softener dispenser

(on some models)

1. Add detergent and loadthe basket.

2. Add liquid fabric softener to the dispenser

using the amount recommended on the

package. Avoid dripping or spilling any

fabric softener on the load.

3. Dilute fabric softener with warm waten Fill

dispenser with warm water until liquid

reaches the opening.

4. Start the washer. Diluted fabric softener will

be added to the loadduring the final rinse.

NOTE: Do not stop thewasher before the

rinse partof the cycle begins. Staining can

OCCUr.

5. Flush dispenser periodically with warm

water.

NOTE: Do not wash clothes with dispenser

removed. Do not add detergent or all-fabric

bleach to dispenser. The dispenser can clo9.

Using the chlorine bleach dispenser

(on some models)

Always measure chlorine bleach. Do not guess.

Never use more than 1 cup (250 mL) for a full

load. Use less with lower water level settings.

Follow manufacturer's directions for safe use.

Use a cup with a pouring spout to avoid spilling.

1. Load the washer.

2. Pour measured chlorine bleach carefully into

dispenser. Do net let bleach splash, drip or

run down intowasher basket Undiluted

bleach will damage any fabric it touches.

3. Start the washer. Bleach will be diluted

automatically during wash part of cycle.

NOTE: Do not add all-fabric bleach to the

dispenser. The dispenser can clog.

This manual suits for next models

Table of contents

Other Whirlpool Washer manuals

Whirlpool

Whirlpool WFW3090JW User manual

Whirlpool

Whirlpool AWM 8125 User manual

Whirlpool

Whirlpool AWZ 9993 User manual

Whirlpool

Whirlpool GSL9365EZ1 User manual

Whirlpool

Whirlpool LA3400XT User manual

Whirlpool

Whirlpool WFW8400TW - Front Load Washer User manual

Whirlpool

Whirlpool WFW81HEDW User manual

Whirlpool

Whirlpool WFW94HEAW User manual

Whirlpool

Whirlpool AWD80AGP User manual

Whirlpool

Whirlpool TDLR70123 Installation guide

Whirlpool

Whirlpool LLR8233BW0 User manual

Whirlpool

Whirlpool CABRIO WTW6300SB1 User manual

Whirlpool

Whirlpool W11355380A User manual

Whirlpool

Whirlpool 6AWTW5550XW0 User manual

Whirlpool

Whirlpool WFW6620HW User manual

Whirlpool

Whirlpool 4GWTW4800 User manual

Whirlpool

Whirlpool LSQ9600JQ1 User manual

Whirlpool

Whirlpool 2LA5700XK User manual

Whirlpool

Whirlpool Cabrio WTW8200YW0 User manual

Whirlpool

Whirlpool LSN2000LW0 User manual

Whirlpool

Whirlpool WFW80HEBW0 User manual

Whirlpool

Whirlpool WTW4880AW Assembly instructions

Whirlpool

Whirlpool Gold GSW9545JQ0 User manual

Whirlpool

Whirlpool LA6680XP User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Beko

Beko WKB 51231 PTMA manual
