Whirlpool LA6200XP User manual

) &d!& SERIES 1

AUTOMATIC

WASHER

Design 2000”

~oF&CaP=iW

LA62OOXP

Microwave Ovens. Trash Compactors. Room Aar Condltloners. Oehumldtflers Aulomatlc Washers. Clothes Oryers. Freezers Relrqeralor-F

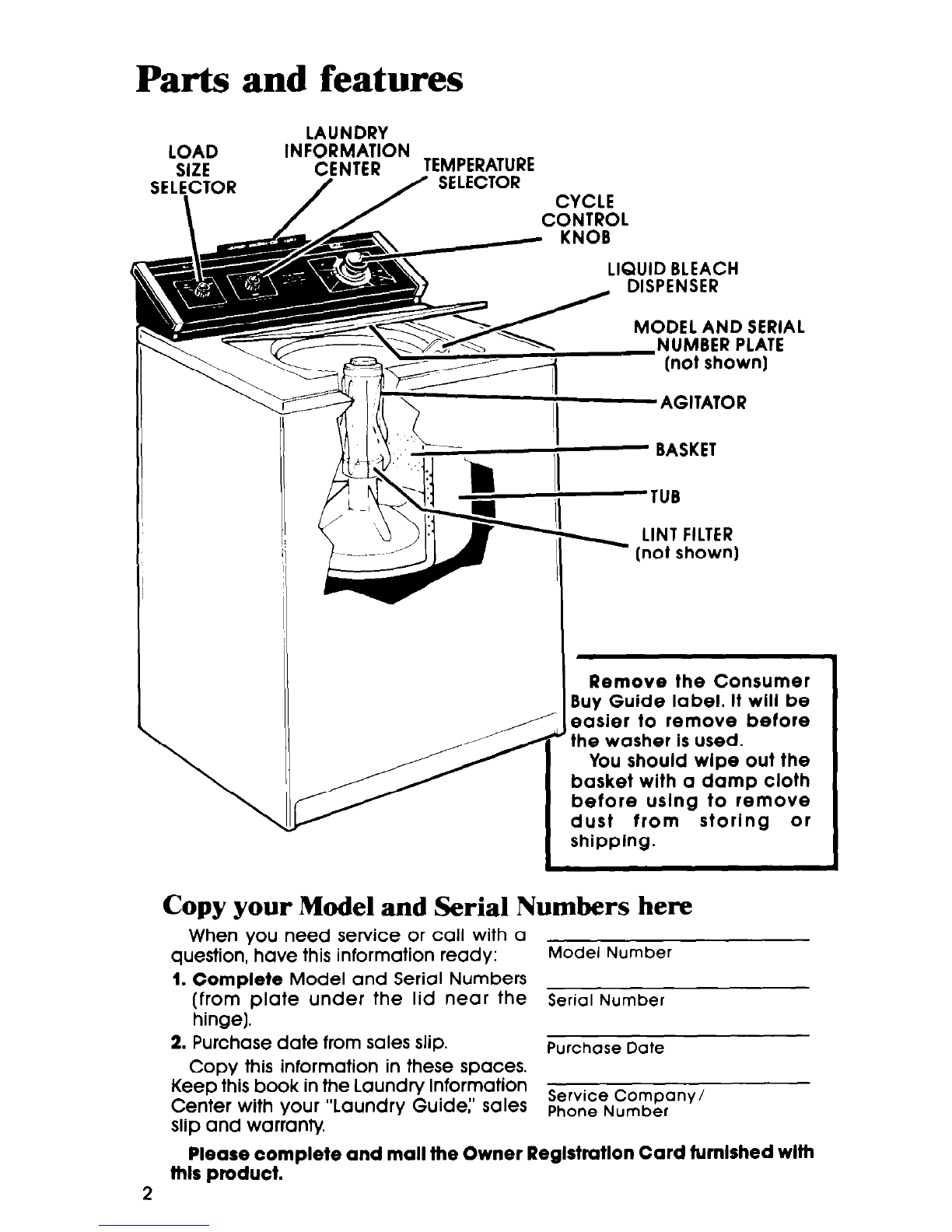

Parts and features

LAUNDR”

LOAD INFORMAl

:;ON

SIZE

CFNTFI

TEMPERATURE

SELECTOR 7”“” / SELECTOR

\ CYCLE

CONTROL

LIQUID BLEACH

DISPENSER

- BASKET

-TUB

\ LINT FILTER

(not shown)

Remove

the Consumer

Buy Guide label. It will be

easier to remove before

the washer is used.

You should wipe out the

dust fromdust from storingstoring oror

shipplng.shipplng.

MODEL AND SERIAL

NUMBER PLATE

(not shown]

-AGITATOR

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

Model Number

1. Complete Model and Serial Numbers

(from plate under the lid near the

Serial Number

hinge).

2. Purchase date from sales slip.

Purchase Date

Copy this information in these spaces.

Keep this book in the Laundry Information

Center with your “Laundry Guide:’

SaleS ~~~~~eN~,$,~~~nY’

slip and warranty.

Please complete and mall the Owner Reglstratlon Card turnlshed with

this product.

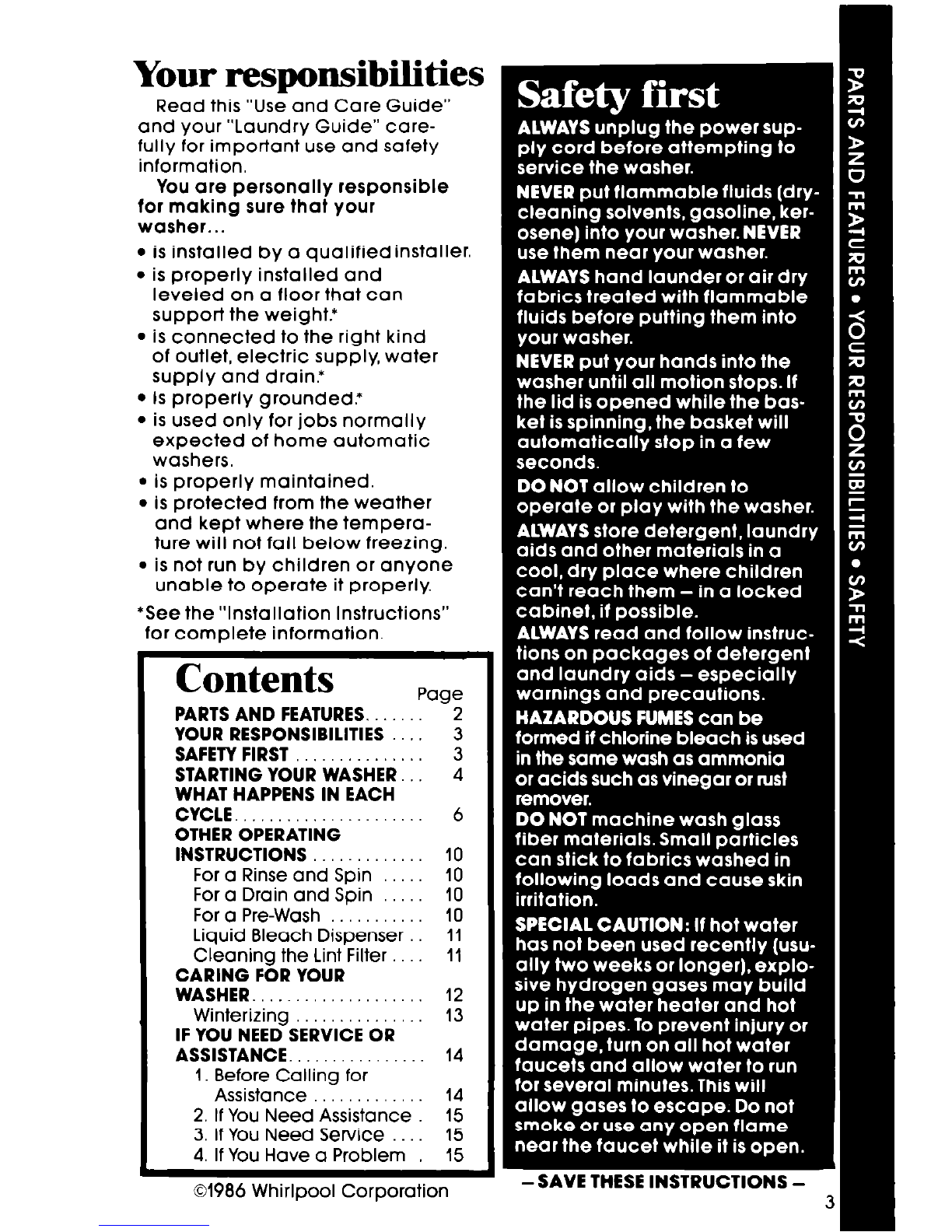

ur :sponsibilitie :s

Read this “Use and Care Guide”

and your “Laundry Guide” care-

fully for important use and safety

information.

You are personally responsible

for making sure that your

washer...

is installed by a qualifiedinstaller,

is properly installed and

leveled on a floor that can

support the weight.*

is connected to the right kind

of outlet, electric supply, water

supply and drain.*

is properly grounded:

is used only for jobs normally

expected of home automatic

washers.

is properly maintained.

is protected from the weather

and kept where the tempera-

ture will not fall below freezing.

is not run by children or anyone

unable to operate it properly.

*See the “Installation Instructions”

for complete information.

Contents

Page

PARTS AND FEATURES.. 2

YOUR RESPONSIBILITIES 3

SAFETY FIRST 3

STARTING YOUR WASHER. 4

WHAT HAPPENS IN EACH

CYCLE. 6

OTHER OPERATING

INSTRUCTIONS 10

For a Rinse and Spin 10

For a Drain and Spin 10

For a Pre-Wash 10

Liquid Bleach Dispenser 11

Cleaning the Lint Filter. 11

CARING FOR YOUR

WASHER.. 12

Winterizing 13

IF YOU NEED SERVICE OR

ASSISTANCE., 14

1. Before Calling for

Assistance 14

2. If You Need Assistance 15

3. It You Need Service 15

4. If You Have a Problem 15

01986 Whirlpool Corporation

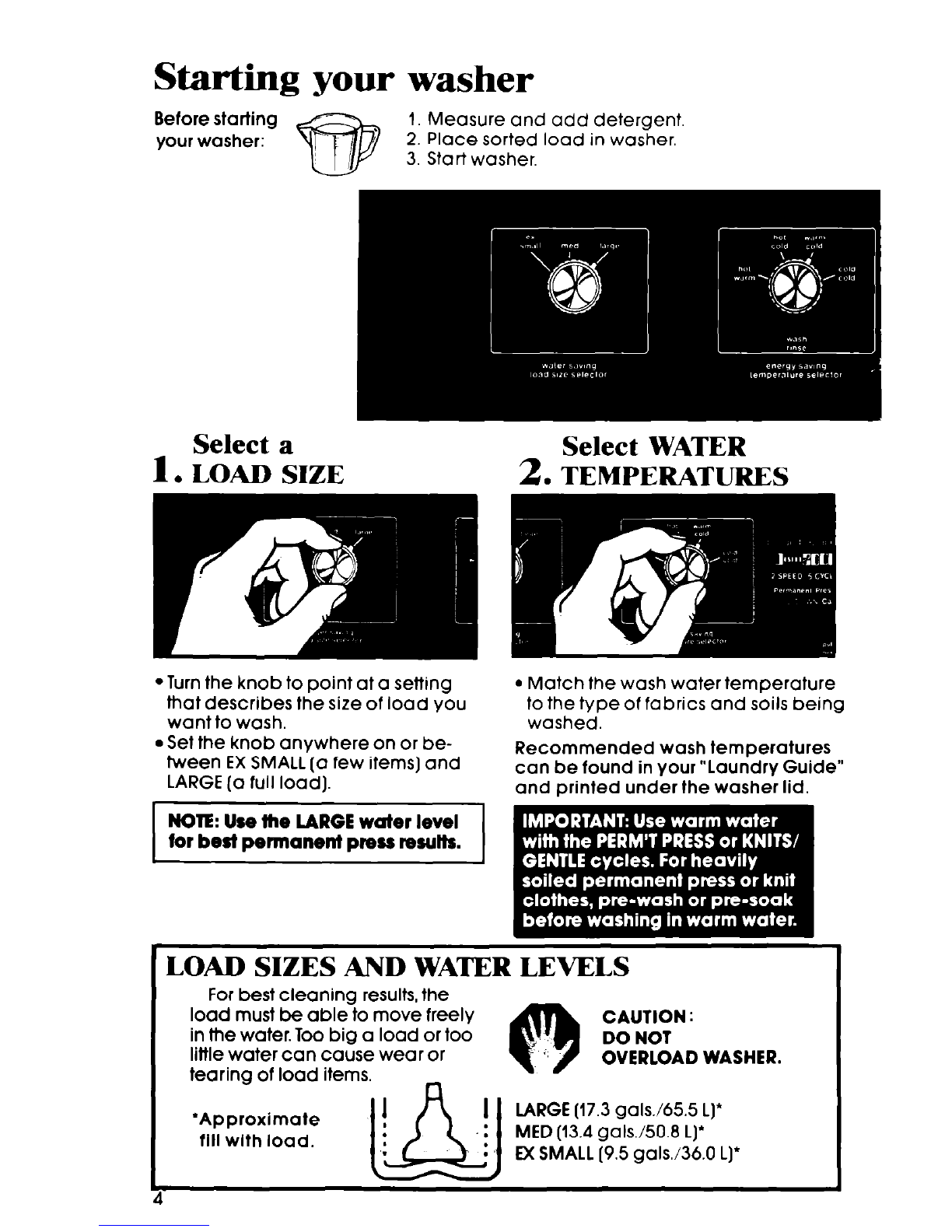

Starting your washer

1. Measure and add detergent.

2. Place sorted load in washer.

3. Start washer.

Select a

1. LOAD SIZE Select WATER

TEMPERATURES

Set the knob anywhere on or be-

tween EX SMALL (a few items) and

LARGE (a full load].

*Turn the knob to point at a setting

Match the wash water temperature

that describes the size of load you to the type of fabrics and soils being

want to wash. washed.

Recommended wash temperatures

can be found in your “Laundry Guide”

and printed under the washer lid.

NOTE: Use the LARGE water level

for best permanent press mutts.

LOAD SIZES AND WATER LEVELS

For best cleaning results, the

load must be able to move freely

in the water. Too big a load or too

little water can cause wear or

tearing of load items. cI

CAUTION :

DO NOT

OVERLOAD WASHER.

*Approximate

fill with load.

LARGE (17.3 gals./655 L)*

MED (13.4 gaW50.B L)’

EX SMALL (9.5 gals./360 L)’

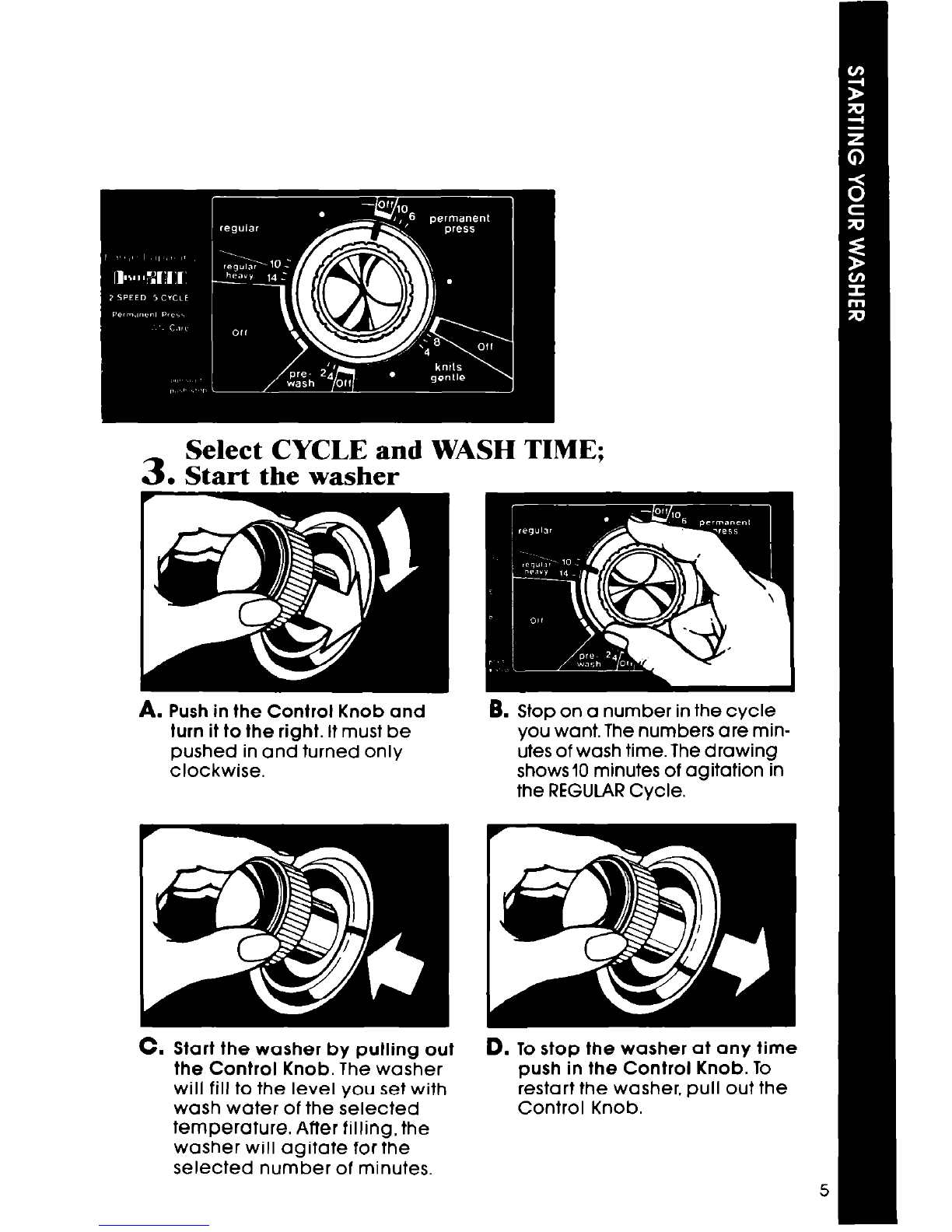

3. Start the washer

Push in the Control Knob and

turn it to the right. It must be

pushed

in and turned only

clockwise.

6. Stop on a number in the cycle

you want. The numbers are min-

utes of wash time. The drawing

shows10 minutes of agitation in

the

REGULARCycle.

Start the washer by pulling out

the Control Knob.

The washer

will fill to the level you set with

wash water of the selected

temperature. Atter filling, the

washer will agitate for the

selected number of minutes.

stop the washer at any time

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

What happens in each cycle*

Each cycle has different agitation and spin speeds designed for different

kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH

agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer

fills before agitation and timing starts. After agitation starts, the knob turns clock-

wise until it points to OFF and the cycle ends.

REGULAR HEAVY Cycle

A cycle for sturdily con-

structed fabrics that are

1 heavily soiled.

WGULAR Cycle A cycle for regular loads of

fabrics that are moderately

soiled.

PERMANENT PRESS Cycle

A special cycle with the

necessary Cool down rinse

which helps keep wnnkles

from setting into Permanent

Press and some synthetic

fabrics

REFtLL

COOL

DOWN

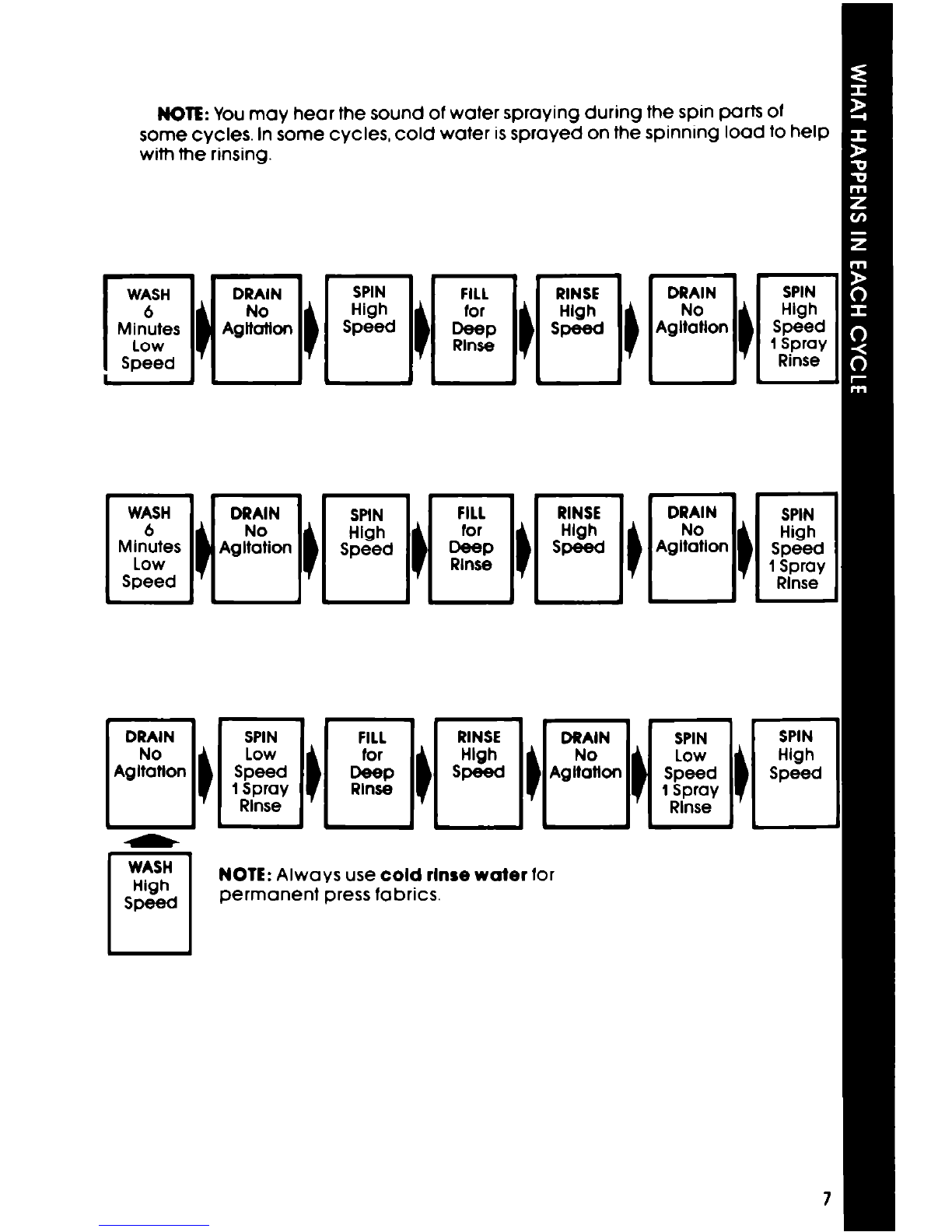

NOTE:

You may hear the sound of water spraying during the spin ports of

some CL

rcles. In some cvcles, cold water is spraved on the spinning load to help

with the’rinsing.

SPIN

High

Speed

WASH

High

Speed Nl3fE: Always use

cold rinse water

for

permanent press fabrics.

FILL

tor

DeeP

Rinse

RINSE

Hlgh

Speed

KNITS/GENTLE Cycle

PFtE-WASH Cycle

A cycle that gently washes

and spins delicate items

and washable knits.

Use for pre-washing heavily

soiled or stained loads that

need extra pretreatment

before the wash cycle. Use

recommended amount

of detergent or pre-soa k

additive.

I 1

Special care is needed when soaking or pre-washing laundry.

See your “laundry Guide” for proper use of this cycle. I

I I

Other operating instructions

For a rinse and spin

You may need an extra rinse and

spin for heavily soiled loads which

need more detergent. (Extra de-

tergent can require an extra rinse.)

Push Control Knob in.

Turn clockwise to any

on the dial.

See above drawing.

Pull Control Knob out.

The washer will fill to selected

level; agitate 2 minutes; drain

and spin.

For a drain and spin

Your washer can be set to drain

and spin out water.

Push Control Knob in.

Turn clockwise to the bar just before

OFF in any cycle. See above

drawing.

Pull Control Knob out.

The washer will drain and spin.

For agitation and spin speeds in each cycle, see pages 6-9.

For a pre-wash For best results, use warm water for

pre-washing stained laundry. Hot water

can set stains.

Use recommended amount of detergent

or pre-soa k product.

Push Control Knob in.

Turn clockwise to point to the number

in the PRE-WASHCycle.*

When the cycle is over, add detergent

for the next selected wash cycle.

The PRE-WASH Cycle should always be

followed by a Wash Cycle. Important:

See addltlonal care informatlon on

page 7 of your “Laundry Guide!’

Set the washer and start the next

selected wash cycle.

‘To start pre-wash with agitation, the

Cycle Control Knob must point to the

number in the PRE-WASHCycle.
