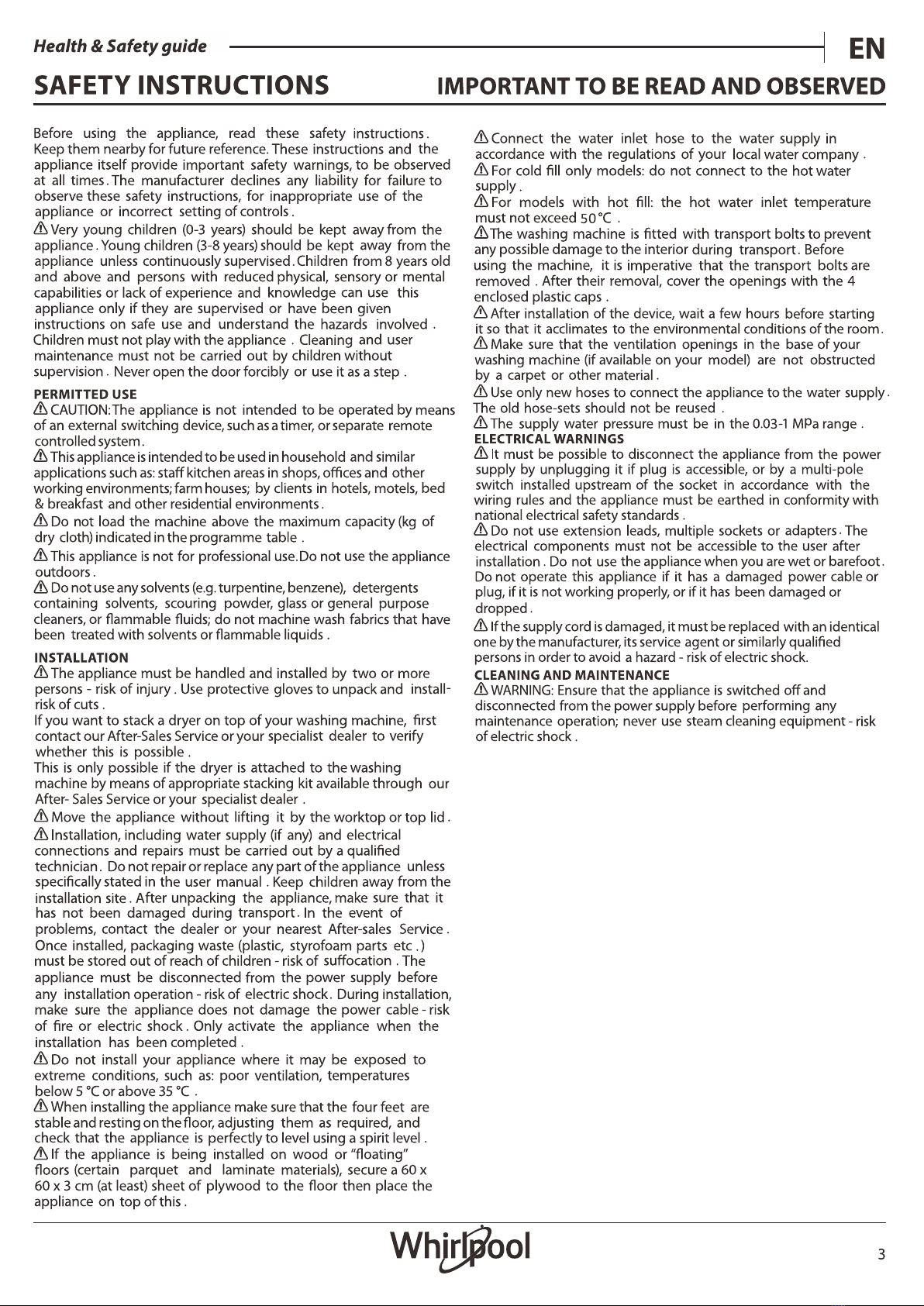

Whirlpool FWEB8002 Series Installation guide

Front Load Washer

Models:

FWEB8002XX

FWEB9002XX

FWEB9503BS

FWEB10502XX

FWEB10503BS

WFC80602RT-X

WFC90604RT-X

WFC105604RT-X

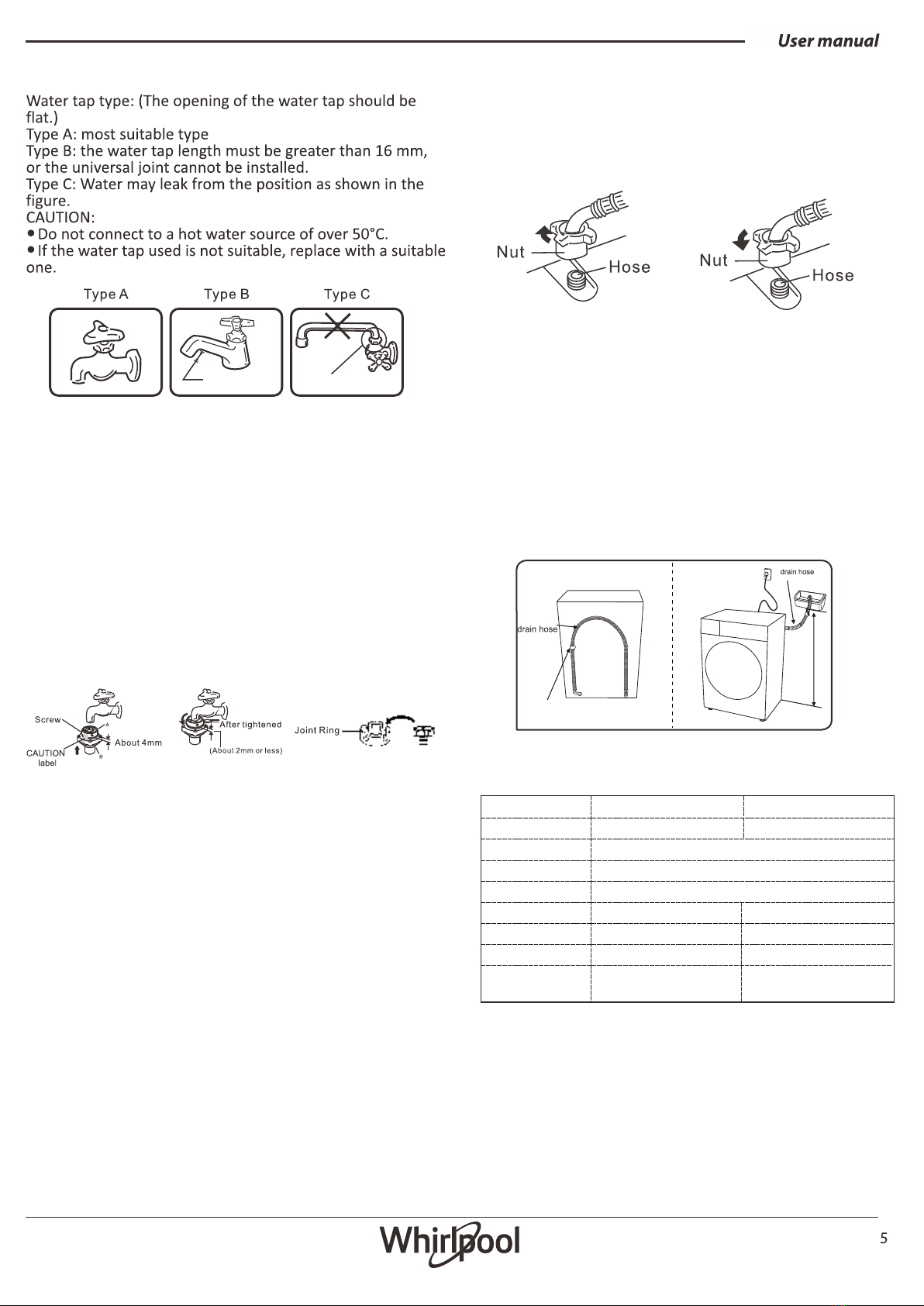

Choosing water tap

Above 16mm Water leaks here.

Connecting the inlet hose

How to attach the inlet hose

1. Loosen the four screws and slide the top of the inlet

hose joint (section A in the figure) onto the faucet. Then,

securely tighten the four screws provided with the inlet

hose joint by using a screwdriver to secure the top of the

joint to the faucet.

2. Remove the CAUTION label from the inlet hose joint.

3. Turn the male coupler on the joint (section B in the figure)

clockwise to attach it securely to the top of the joint (section

A in the figure).

CAUTION:

If outer diameter of faucet is larger than caliber of the Joint

Ring, loosen the four screws and remove the Joint Ring from

the inlet hose joint.

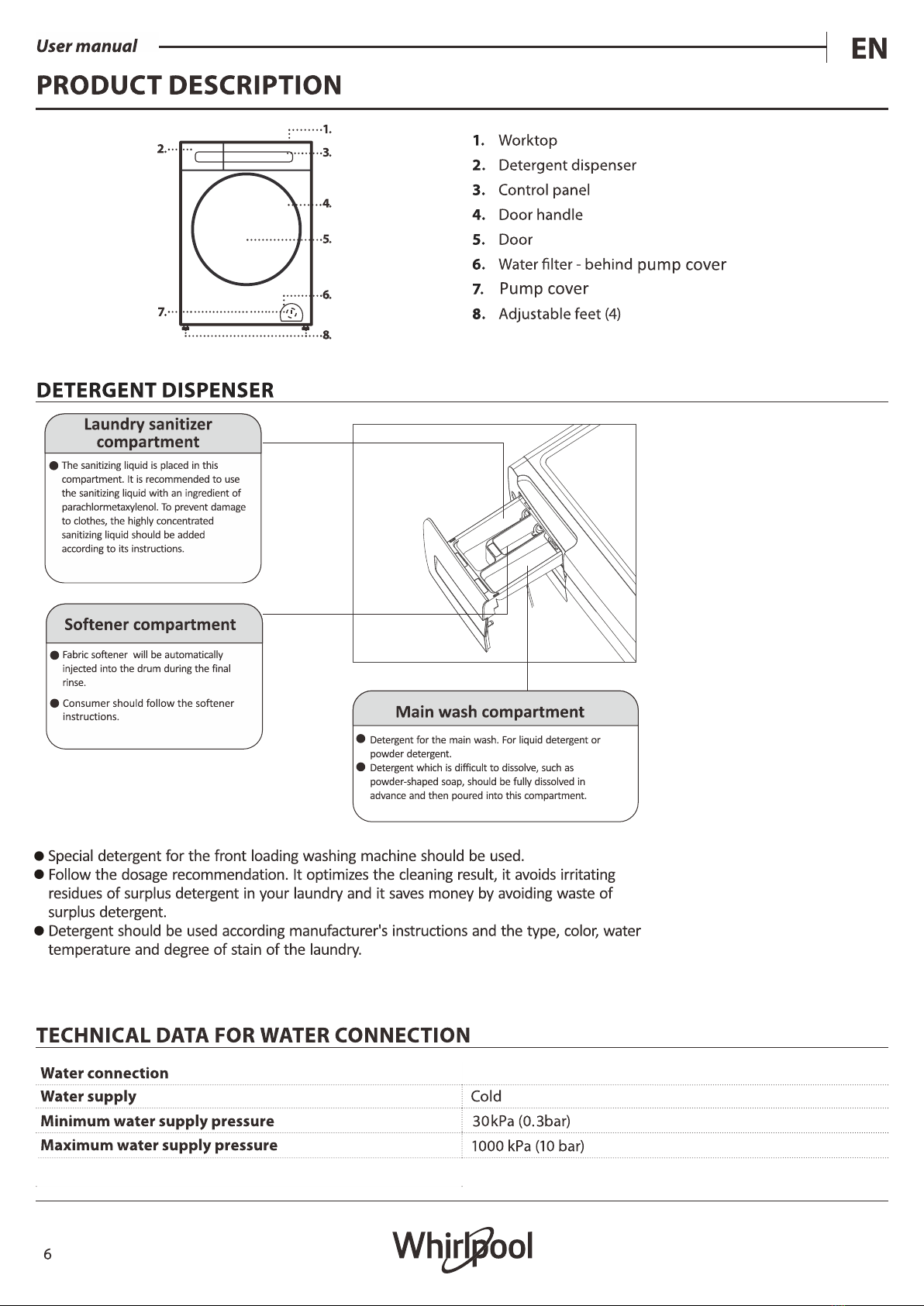

Specification Sheet

drain hose holder

Connecting Water Inlet Hose to the Washer

Turn the nut clockwise till the nut is tight while holding the

hose.

Turn the nut counterclockwise after turning the faucet off

if you want to detach the water inlet hose.

Connecting the Drain Hose

1. When the machine is not in use, put the drain hose at

the back of machine (figure 1).

2. When in operation, install the drain hose into drainage

duct (figure 2); you can also put end of drain hose into

sewer, leaving space between end of drain hose and sewer

elbow to avoid difficulty in draining water out of washing

machine.

3. Clean the filter in the pump periodically to keep the wash

machine working normally.

Note: Do not take off the drain hose to avoid drainage

problems.

650-1200mm

Note：It is recommended the use of the provided hose.

10A

0.03~1.0MPa

600x580x850(Door exclusive)

600x635x850((Door inclusive)

62dB

79dB

Washing capacity

Max current

Rated voltage

Rated power

Spinning capacity

Water pressure

Product dimension

(mm)

Washing noise

Spinning noise

600x544x850(Door exclusive)

600x599x850(Door inclusive)

0.03~1.0MPa

73dB

62dB

8.0/9.0/9.5kg

&220-240V/50Hz220V/60Hz

220-240V/1750W

10.5kg

8.0/9.0/9.5kg

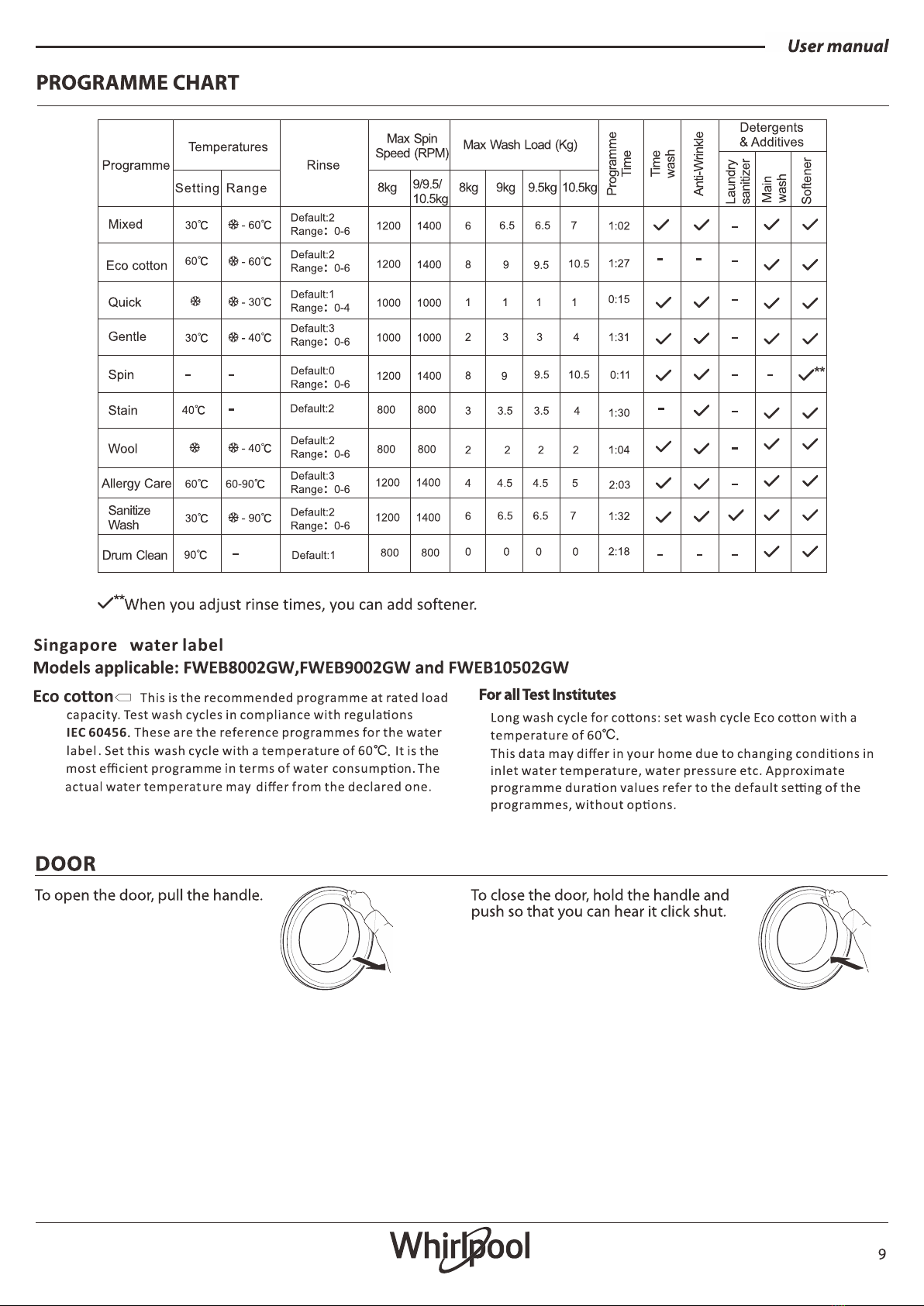

Ysame

programme as

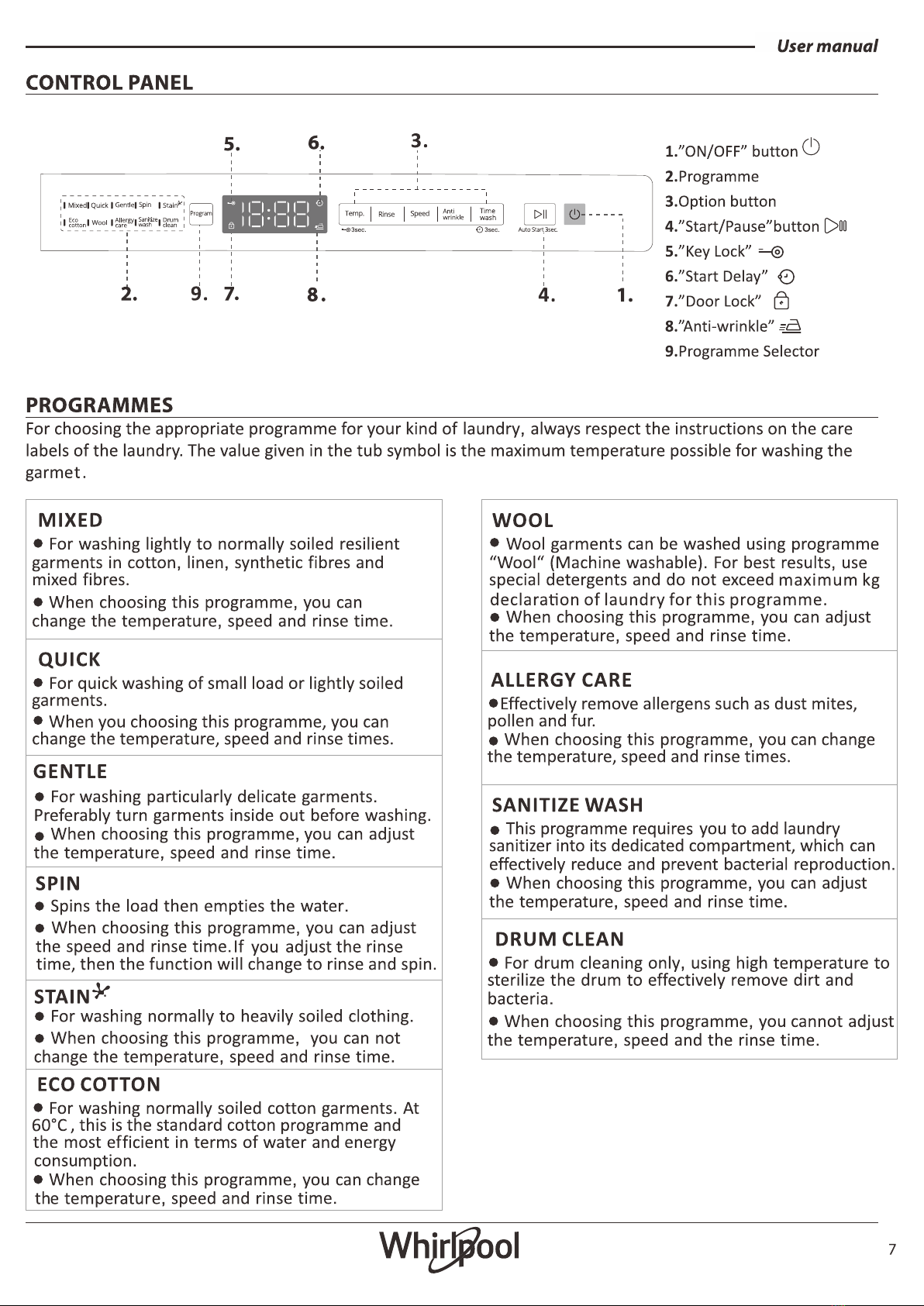

Mixed

predefined washing time

based on soiled level, from lightly soiled to heavily

soiled for everyday wash, the operation is flexible

and fast.

（）

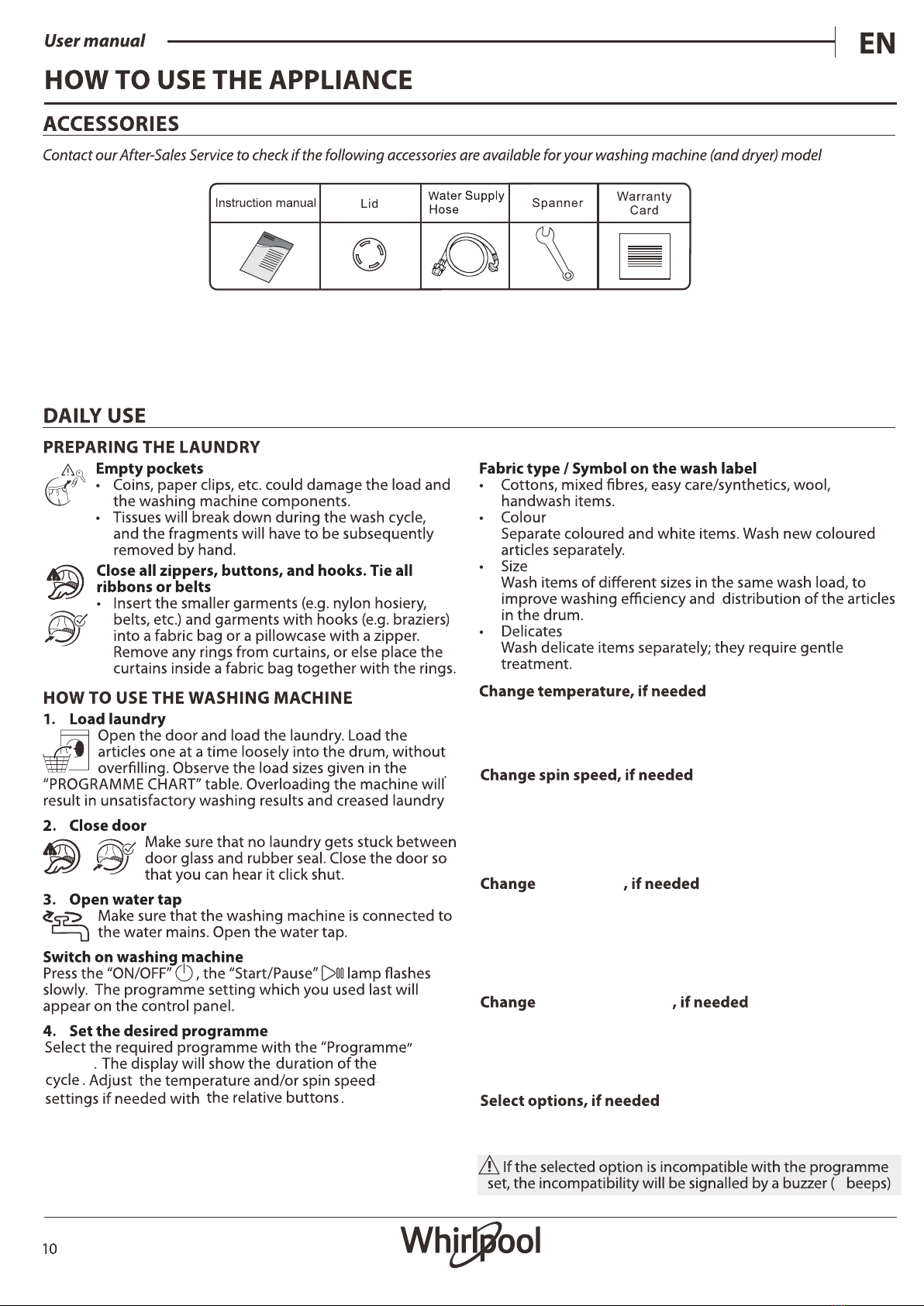

Press “Temp” button once, for the programme default

temperature to be displayed on screen. Press “Temp” again

to switch the temperature within temperature range.

Press“Speed” button once, default speed display on screen.

Continue to press “Speed” button, speed increasing to

maximum. Press “Speed” again, minimum speed display on

screen. Continue to press “Speed” button to increase

speed continuously.

rinse times

Press“Rinse” button once, default rinse time display on

screen. Continue to press “Rinse” button, rinse time

increasing to maximum. Press “Rinse” again, nothing display

on screen, to show rinse time zero. Continue to press

“Rinse” button to increase rinse time continuously.

the wash duration

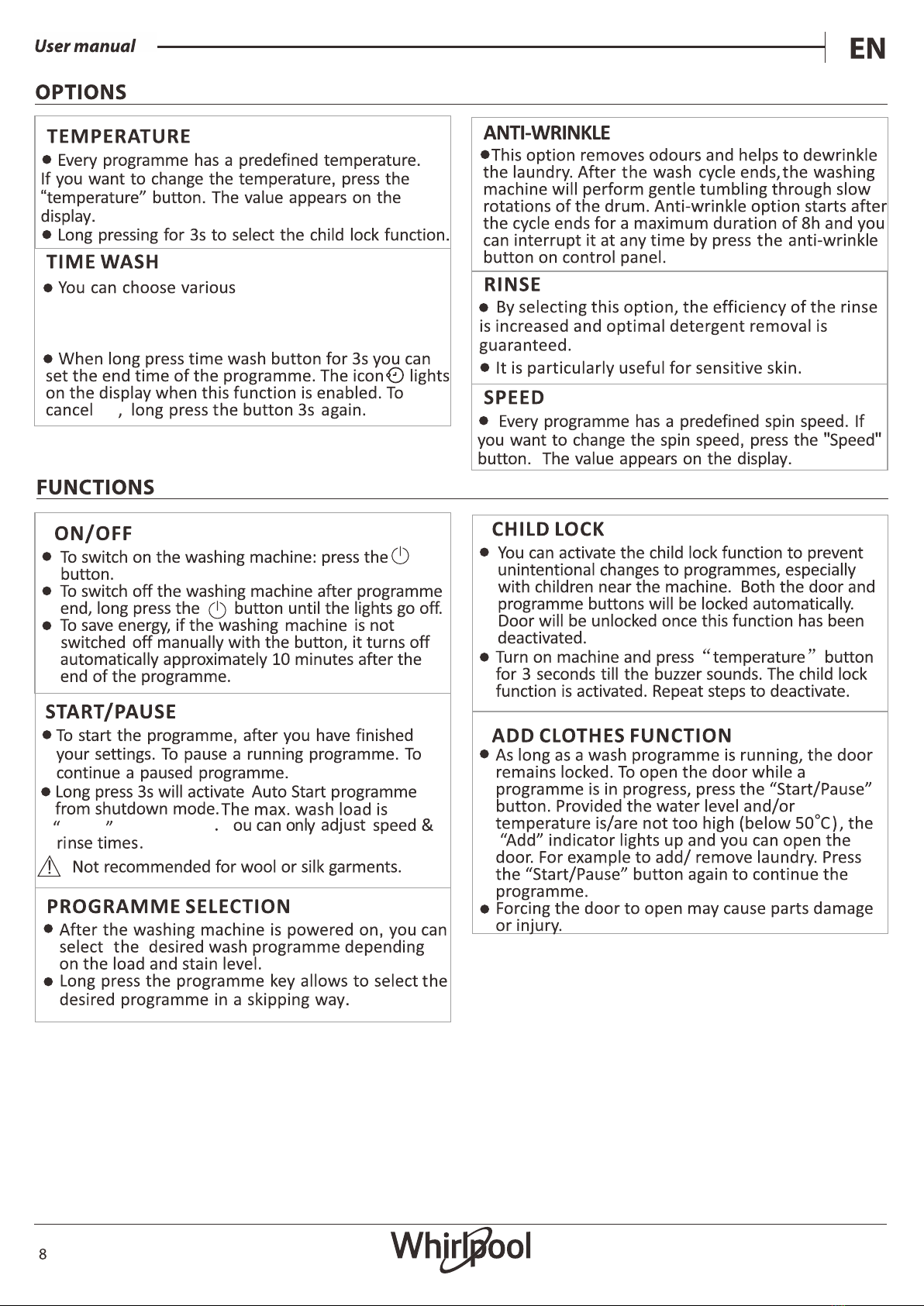

Press the button to select the option. The programme

parameter will be displayed on the screen.

button

STACKING KIT SHELF

By which your dryer can be fixed on top of your washing machine to save space and to facilitate loading and

unloading your dryer in the higher position.

Press the “Time Wash” button, for the programme default

time to be displayed on screen. Press “Time Wash” again to

switch the duration within duration range.
