Whirlpool Design 2000 LA5700XP User manual

AUTOMATIC

WASHER

Design 2000@

pW,CaPaciV

LA57OOXP

1 ‘.

- zxsb+s.PIWdrM- p

wave Ovens. Trash Compactors, Room Air Condltloners. Oehumldlflers. Automatic Washers, Clothes Dryers. Freezers. Relrlgerator-Freezer’

Parts and features

LOAD LAUNDRY

INFORMATION TEMPERATURE

SELECTOR

CYCLE MAGIC CLEAN@’

LINT FILTER

(not shown)

LIQUID BLEACH

DISPENSER

MODEL AND SERIAL

NUMBER PLATE

(not shown)

-AGITATOR

- BASKET

-TUB

Remove the Consumer

Buy Guide label. It will be

easier to remove before

the washer is used.

You should wipe out the

basket with a damp cloth

before using to remove

dust from storing or

shipping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

Model Number

1. Complete Model and Serial Num-

bers (from plate under the lid near the

hinge).

Serlol Number

2. Purchase date from sales slip.

Copy this information in these spaces. Purchose Dote

Keep this book in the Laundry Informa-

tion Center with your”Laundry Guide,”

sales slip and warranty.

Service Company 1

Phone Number

There is no warranty registration to return, Proof-of-purchase IS all

that is required for in-warranty service.

responsibilities

Read this “Use and Care Guide”

and your “Laundry Guide” care-

fully for important use and safety

information.

You are personally responsible

for making sure that your

washer...

is installed by a qualifiedinstaller.

is properly installed and

leveled on a floor that can

support the weight.*

is connected to the right kind

of outlet, electnc supply, water

supply and drain..

is properly grounded.’

is used only for jobs normally

expected of home automatic

washers.

is properly maintained.

is protected from the weather

and kept where the tempera-

ture will not fall below freezing.

is not run by children or anyone

unable to operate it properly.

‘See the “Installation Instructions”

for complete information.

Contents

Page

PARTS AND FEATURES. 2

YOUR RESPONSIBILITIES. 3

SAFETY FIRST 3

STARTING YOUR WASHER 4

WHAT HAPPENS IN EACH

CYCLE. 6

OTHER OPERATING

INSTRUCTIONS 10

For a Rinse and Spin 10

For a Drain and Spin 10

For a Soak or Pre-Wash 10

Liquid Bleach Dispenser 11

MAGIC CLEAN” Lint Filter 11

CARING FOR YOUR WASHER 12

Winterizing 13

IF YOU NEED SERVICE OR

ASSISTANCE. 14

01985 Whirlpool Corporation

-SAVE THESEINSTRUCTIONS -

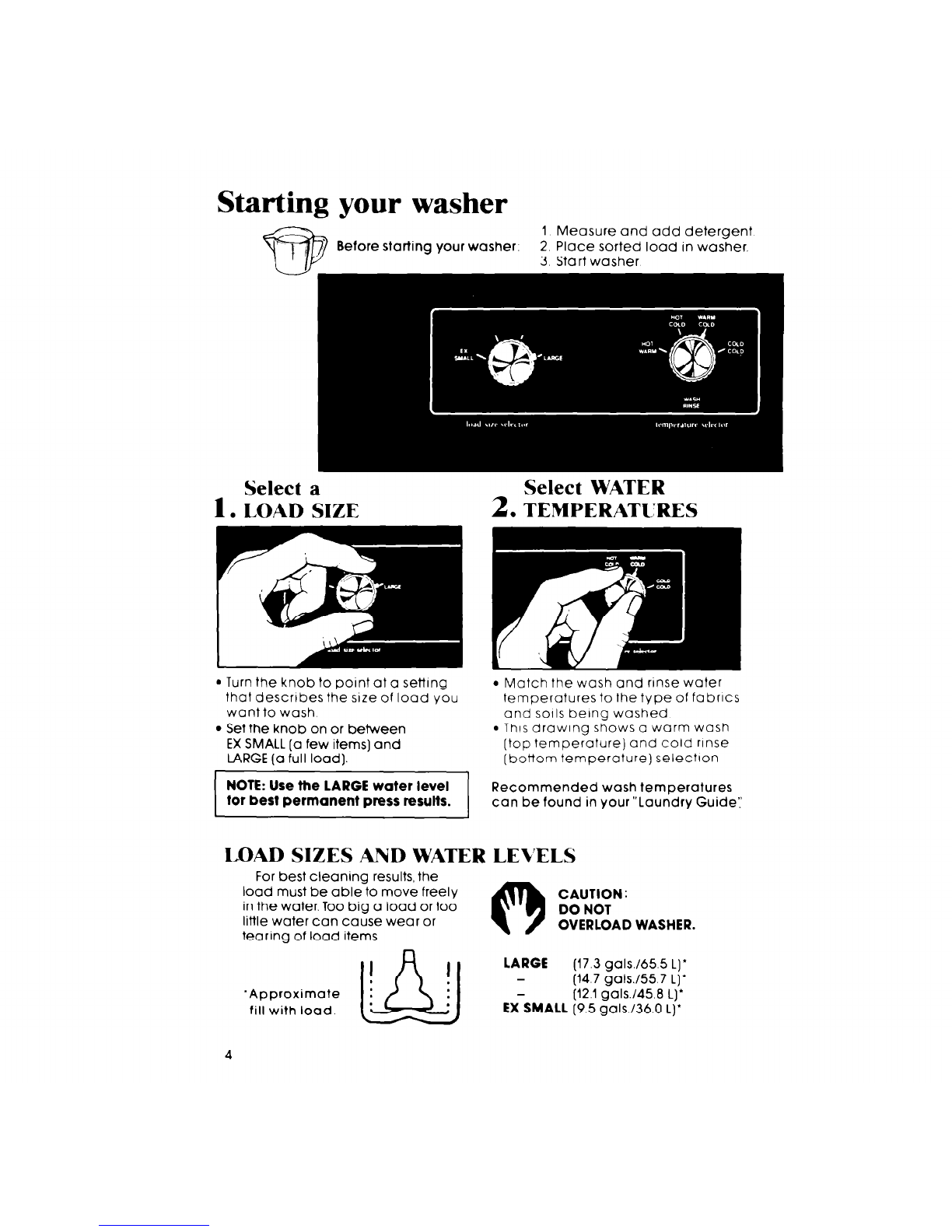

Starting

your washer

1 Measure and add detergent

Before starting your washer. 2. Place sorted load in washer.

3 Start washer

Select a

1. LOAD SIZE Select WATER

TEMPERATURES

. Turn the knob to point at a setting

that descrtbes the size of load you

want to wash

Set the knob on or between

EX SMALL [a few items] and

LARGE (a full load].

NOTE: Use the LARGE water level Recommended wash temperatures

for best permanent press results. can be found in your “Laundry Guide:’

Match the wash and rinse water

temperatures to the type of fabrics

and SOASbeing washed

This drawing shows a warm wash

(top temperature) and cold rinse

[bottom temperature) selectlon

LOAD SIZES AND WATER LEVELS

For best cleaning results, the

load must be able to move freely

CAUTION:

in the water. Too big a load or too DO NOT

little water can cause wear or OVERLOAD WASHER.

tearing of load items.

‘Approximate

fill with load.

(17.3 galsJ65.5 L)’

(14.7 galsJ55.7 L)’

(12.1galsJ45.8 L)’

EX-SMALL (9.5 gals./36.0 L)’

3. Start the washer

Push in the Control Knob and

turn it to the right. It must be

pushed in and turned only

clockwlse

Start the washer by pulling out

the Control Knob. The washer

will fill to the level you set with

wash water of the selected

temperature. Atter filling, the

washer will agitate for the

selected number of minutes

6. Stop on a number in the cycle

you want. The numbers are min-

utes of wash time. The drawing

shows10 minutes of agitation In

the REGULAR Cycle.

To stop the washer at any time

. . .. ^ . ..,

What happens in each cycle*

Each cycle has different agitation and spin speeds designed for different

kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH

agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer

fills before agitation and timing starts. After agitation starts, the knob turns clock-

wise until it points to OFF and the cycle ends.

REGULAR HEAVY Cycle

A cycle for sturdily con-

structed fabrrcs that are

heavily soiled.

REGULAR Cycle A cycle for regular loads of

fabrics that are moderately

soiled

PERMANENT PRESS Cycle

A special cycle with the

necessary cool down rinse

which helps keep wrinkles

from setting into Permanent

Press and some synthetic

fabrics.

FILL

Selected

Level

WASH

Minutes

High

Speed

WASH

Minutes

High

Speed

COOL

L-J,

DOWN

NOTE: You may hear the sound of wate ‘r spraying during

some cv cles. In some cvcles. cold water is spraved on the the spin parts of

spinning load to help

with the’rinsing.

WASH

Miktes

Low

Speed

WASH

Minutes

Low

Speed

DRAIN

Agitation

DRAIN

Agitation

SPIN

High

Speed

4 Spray

Rinses

FILL

for

Deep

Rinse

RINSE

High

Speed

IUUrl

DRAIN

Agitation

RINSE

High

Speed

DRAIN

1 Agitation

SPIN

High

Speed

4 Spray

Rinses

DRAIN

Agitatlon

1 DRAIN 1 1 SPIN

Agitation

I I’

-I,I

WASH

High

NOTE: Always use cold rinse water for

Speed permanent press fabrics.

A cycle that gently washes

and spins delicate items

and washable knits

Brief periods of agitation

and soak time help remove

heavy soils and certain

stains that need extra

pretreatment Use recom-

mended amount of

detergent or pre-soa k

additive The SOAK Cycle

should always be fol-

lowed by a Wash Cycle.

FILL WASH

rlrl

Sy$$d ) MW&S )

SOAK

Minutes

Agitation

1 WASH 1 1 DRAIN 1 1 SP

+Pre-wash setting begins here, (see Pagelo).

Special care is needed when soaking or pre-washing laundry.

See your “Laundry Guide” for proper use of this cycle.

Other operating instructions

For a rinse and spin

You may need an extra rinse and

spin for heavily soiled loads which

need more detergent (Extra de-

tergent can require an extra rinse ]

Push Control Knob in

. Turn clockwlse to any #on the dial

See

above

drawing.

Pull Control Knob out

The washer will fill to selected

level; agitate; drain

and spin.

For a drain and spin

Your washer can be set to drain

and spin out water

Push Control Knob tn

Turn clockwlse to the bar just before

OFF in any cycle See above

drawing.

Pull Control Knob out

The washer WIII drain and spin

For agitation and spin speeds in each cycle. see pages 6- 9

For a soak or pre-wash

For best results, use warm water

for soaking or pre-washing stained

laundry. Hot water can set stains.

Use recommended amount of

detergent or pre-soak product.

Push Control Knob in.

Turn clockwise to point at a number

in the SOAK Cycle...use the &minutes

mark for a pre-wash.’

Pull Control Knob out to start washer.

When the cycle is over, add de-

tergent for the next selected wash

cycle. The SOAK Cycle should

always be followed by a Wash

Cycle.

Important: See additional care

information on page 7 of your

“Laundry Guide.”

‘To start soak or pre-wash with agitation, the Cycle Control Knob

must point to a number in the SOAKCycle.
