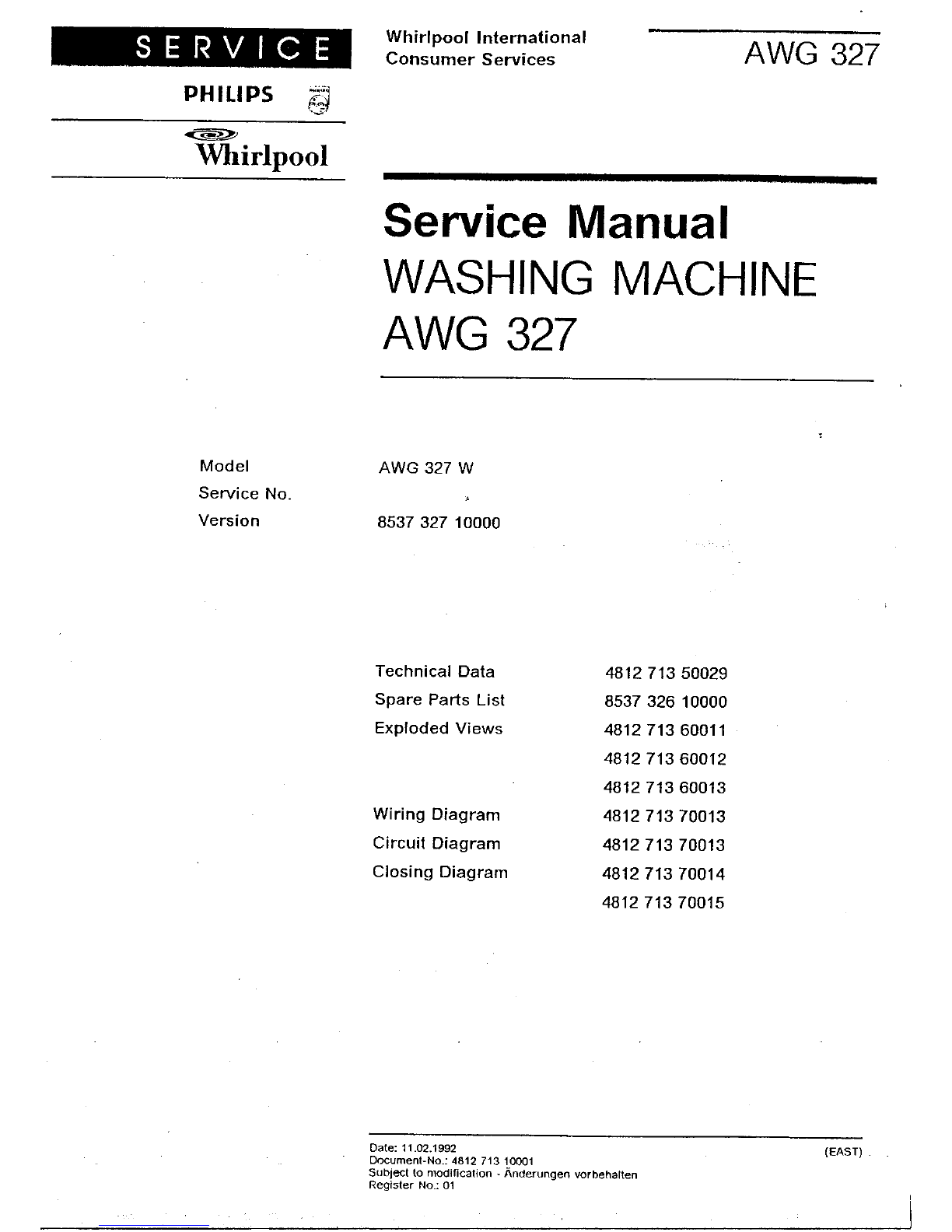

~Whirlpool ~-~Service Manual

WAS HING MACHINE

AWG 327 .

Model AWG 327 W

Service No. 0-

Version 8537 327 10000

Technical Data 4812 713 50029

Spare Parts List 8537 326 10000

Exploded Views 4812 713 60011

481271360012

481271360013

Wiring Diagram 4812 713 70013

Circuit Diagram 4812713 70013

Closing Diagram 4812713 70014

481271370015

Oate: 11.02.1992 (EAST) ,

Document-No.: 4812 713 10001

Subject to modification -Änderungen vorbehalten

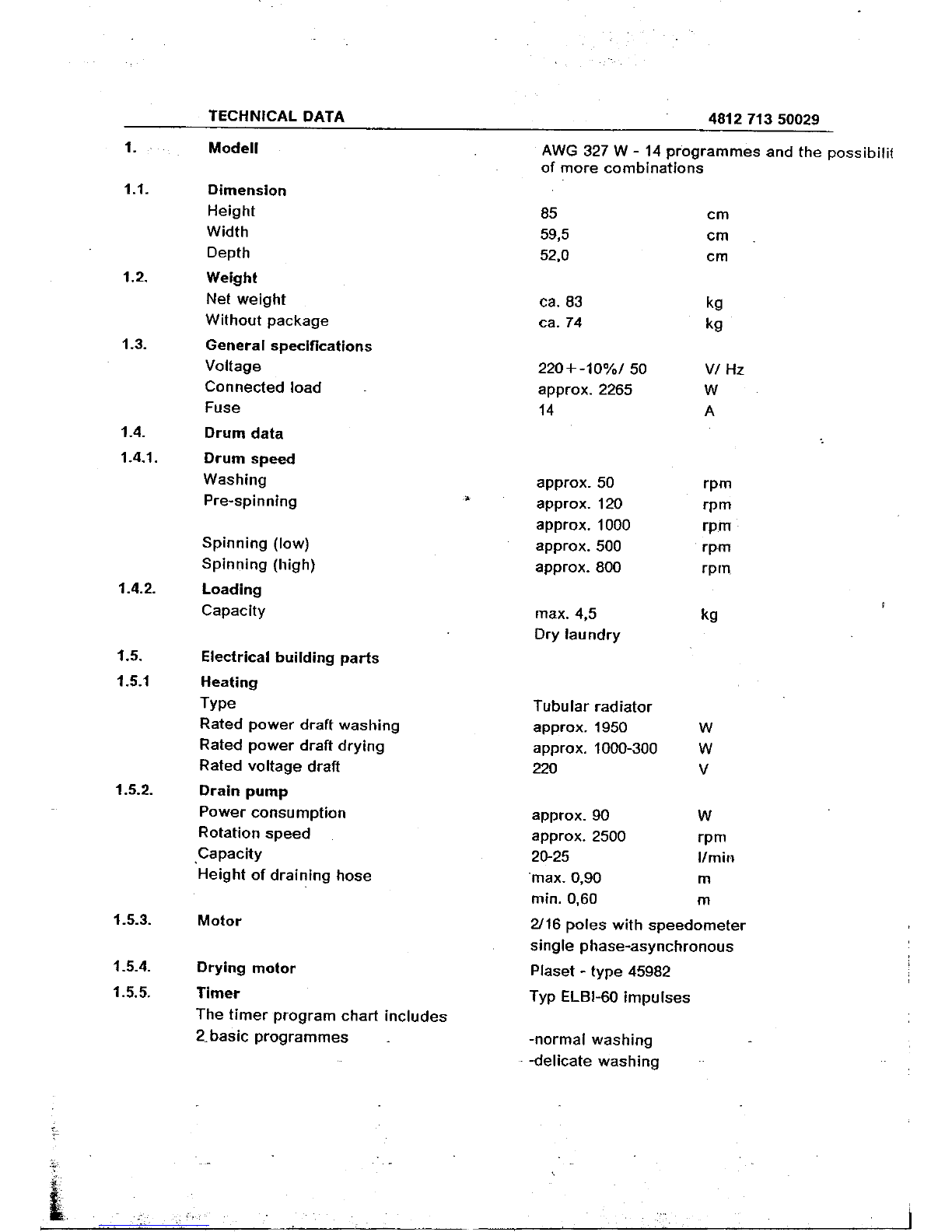

TECHNICAL DATA 481271350029

1.. " Modell AWG 327 W -14 programmes and the possibilil

of more combinations

1.1. Dimension

Height 85 cm

Width 59,5 cm

Depth 52,0 cm

1.2. Weight

Net weight ca. 83 kg

Without package ca. 74 kg

1.3. General specifications

Vortage 220+-10%/50 VI Hz

Connected load approx. 2265 W

Fuse 14 A

1.4. Drum data "'

1.4.1. Drum speed

Washing approx. 50 rpm

Pre-spinning c;.- approx. 120 rpm

approx. 1000 rpm

Spinning (Iow) approx. 500 rpm

Spinning (high) approx. 800 rpm

1.4.2. Loading I'

Capacity max. 4,5 kg

Dry laundry

1.5. Electrical building parts

1.5.1 Heating

Type Tubular radiator

Rated power draft washing approx. 1950 W

Rated power draft drying approx. 1000-300 W

Rated vortage draft 220 V

1.5.2. Drain pump

Power consumption approx.90 W

Rotation speed approx. 2500 rpm

,Capacity 20-25 I/min

Height of draining hose "max.0,90 m

min. 0,60 m

1.5.3. Motor 2/16 poles with speedometer

single phase-asynchronous

1.5.4. Drying motor Plaset -type 45982

1.5.5. Timer Typ ELBI-60 impulses

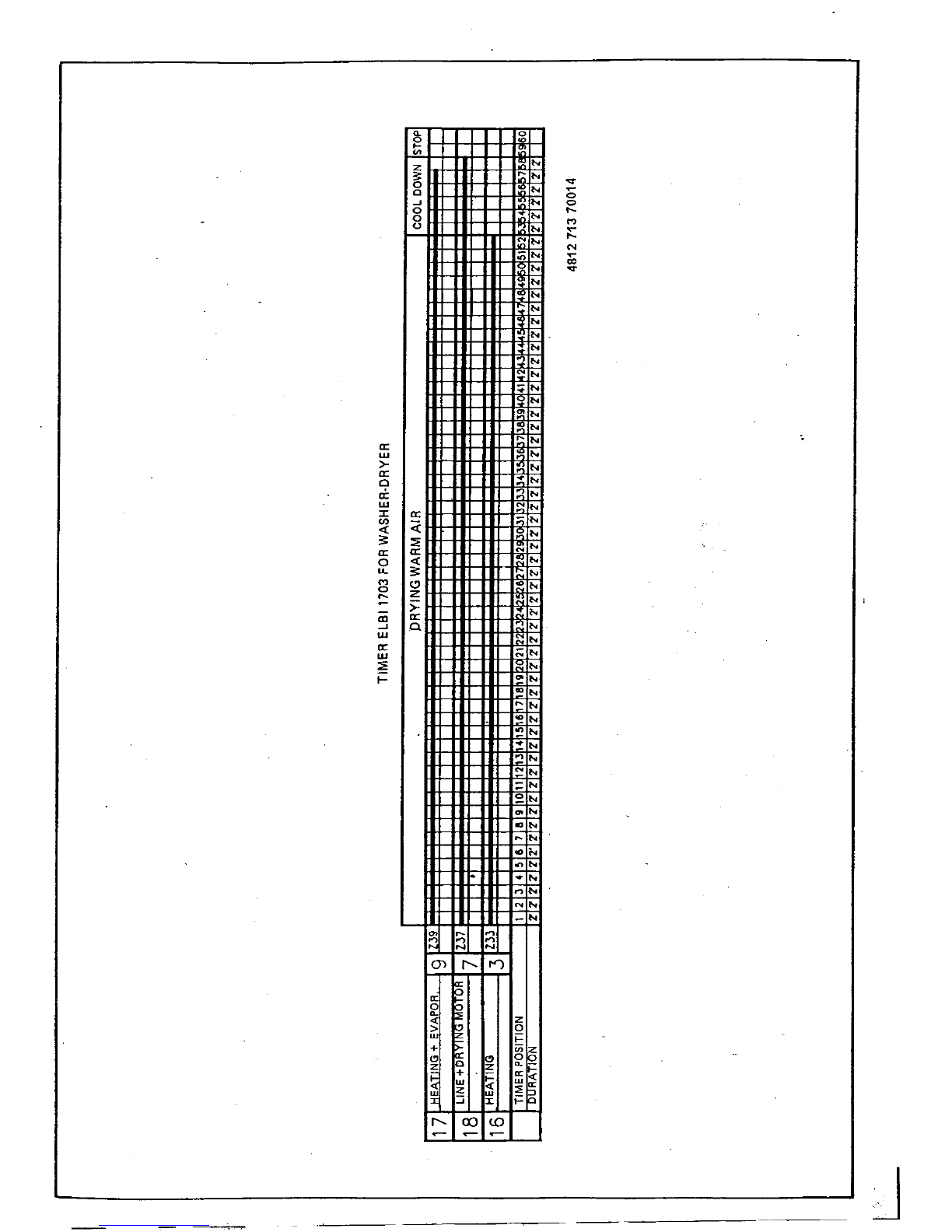

The firner program chart includes

2 basic programmes -normal washing

-delicate washing

,., ";[~r. ',.-: 'lY~ 1ra1 1_.\

,-c. ~--' ~ .~~ "'J I] ~ .l~

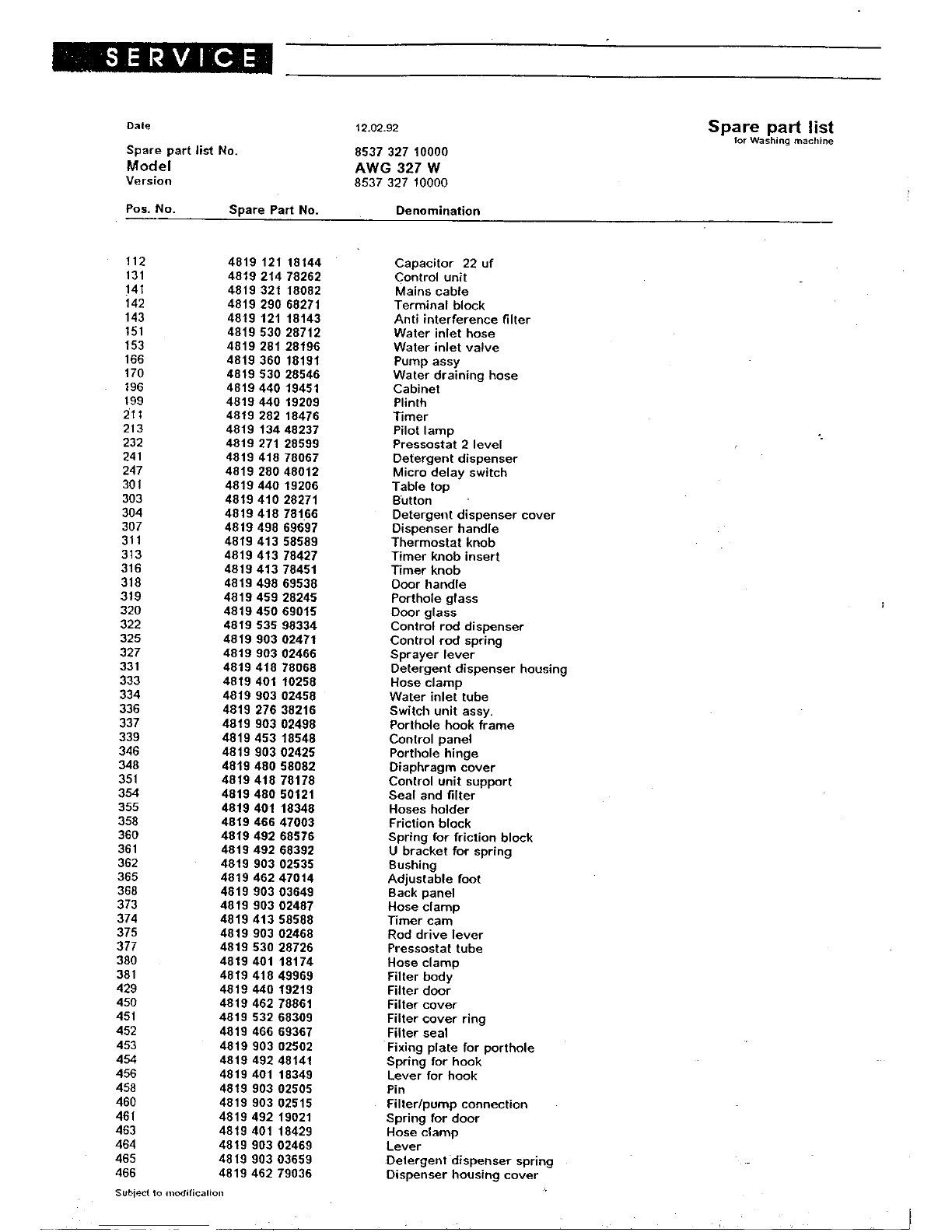

Date 12.02.92 Spare part list

tor Washing machine

Spare part list No. 8537 327 10000

Model AWG 327 W

Version 8537 327 10000 )

Pos. No. Spare Part No. Denomination ;

112 481912118144 ' Capacitor 22 uf

131 4819 21478262 Control unit

j41 481932118082 Mainscable

142 4819 290 68271 Terminal block

143 4819 121 18143 Anti interference filter

151 4819 530 28712 Water inlet hose

153 4819 281 28196 Water inlet valve

166 481936018191 Pump assy

170 4819 530 28546 Water draining hose

196 481944019451 Cabinet

199 4819440 19209 Plinth

211 4819 282 18476 Timer

213 481913448237 Pilot lamp '.

232 4819 271 28599 Pressostat 2 level

241 481941878067 Defergent dispenser

247 4819 280 48012 Micro delay switch

301 4819440 19206 Table top

303 481941028271 Button

304 481941878166 Detergent dispenser cover

307 4819 498 69697 Dispenser handle

311 481941358589 Thermostat knob

313 481941378427 Timer knob insert

316 481941378451 Timer knob

318 4819498 69538 Door handle

319 481945928245 Porthole glass I

320 4819450 69015 Door glass

322 4819 535 98334 Control rod dispenser

325 4819 903 02471 Control rod spring

327 481990302466 Sprayer lever

331 481941878068 Detergent dispenser housing

333 481940110258 Hoseclamp

334 4819 903 02458 Water inlet tube

336 4819 276 38216 Switch unit assy.

337 4819 903 02498 Porthole hook frame

339 4819453 18548 Control panel

346 481990302425 Porthole hinge

348 4819480 58082 Diaphragm cover

351 4819418 78178 Control unit support

354 4819480 50121 Seal and filter

355 481940118348 Hoses holder

358 4819 466 47003 Friction block

360 4819492 68576 Spring tor friction block

361 4819492 68392 U bracket tor spring

362 481990302535 Bushing

365 4819462 47014 Adjustable foot

368 4819 903 03649 Back panel

373 4819 903 02487 Hose clamp

374 4819413 58588 Timer cam

375 4819 903 02468 Rod drive lever

377 481953028726 Pressastat tube

380 4819401 18174 Hose clamp

381 481941849969 Filter body

429 4819440 19219 Filter door

450 4819 462 78861 Filter cover

451 4819 532 68309 Filter cover ring

452 4819 466 69367 Filter seal

453 4819 903 02502 Fixing plate for porthole

454 481949248141 Spring for hook

456 4819401 18349 Lever tor hook

458 481990302505 Pin

460 4819903 02515 Filter/pump connection

461 4819492 19021 Spring tor door

463 4819401 18429 Hose clamp

464 4819 903 02469 Lever

465 4819 903 03659 Delergentdispenser spring

466 4819462 79036 Dispenser housing cover

Subject to modification

!3C!_~

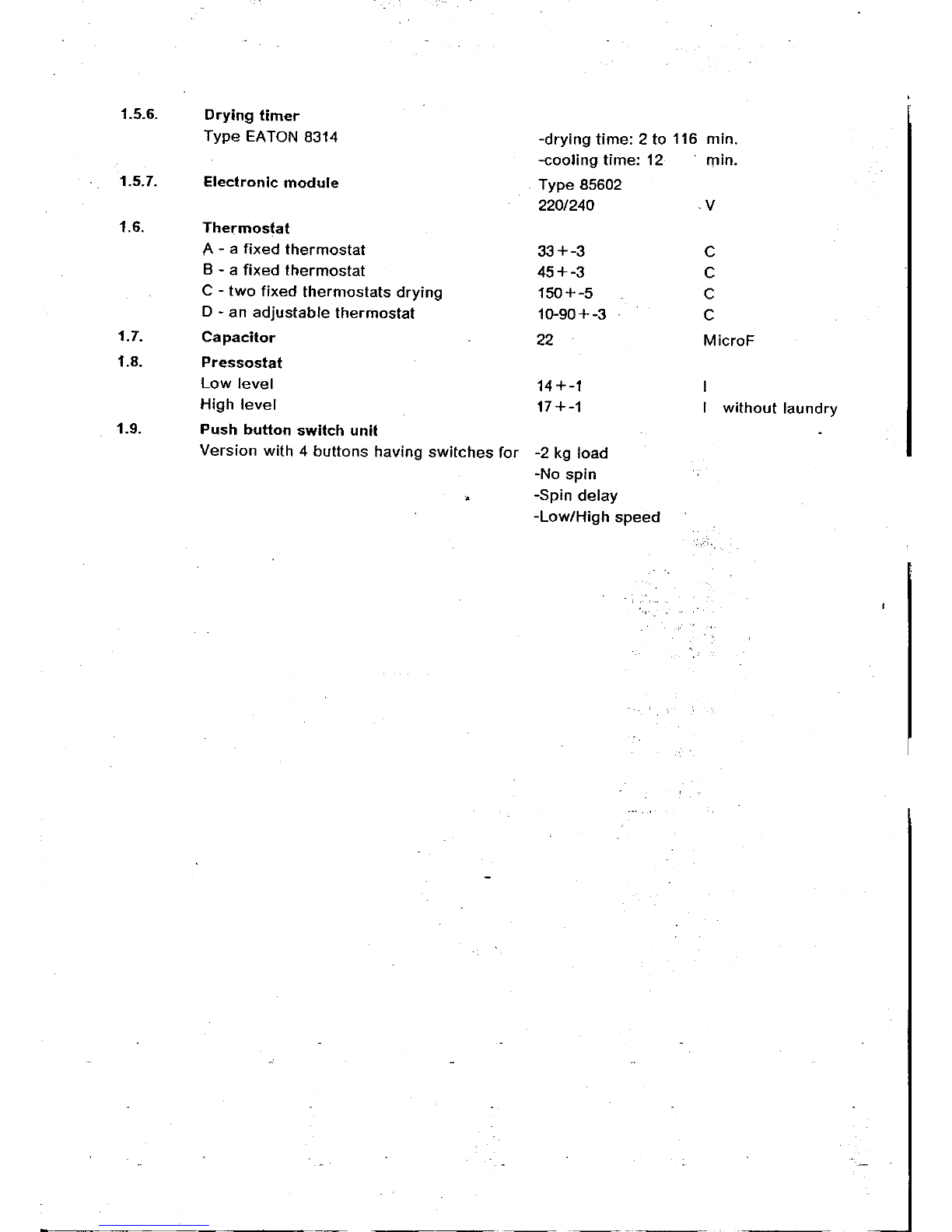

1.5.6. Drying firner

Type EATON 8314 -drying time: 2 to 116 min.

-cooling time: 12 min.

1.5.7. Electronic module Type 85602

220/240 -v

1.6. Thermostat

A -a fixed thermostat 33 + -3 C

8 -a fixed thermostat 45 + -3 C

C -two fixed thermostats drying 150+-5 C

0 -an adjustable thermostat 10-90+-3 C

1.7. Capacitor 22 MicroF

1.8. Pressostat

Lowlevel 14+-1 I

High level 17 + -1 I without laundry

1.9. Push button switch unit .

Version with 4 buttons having switches for -2 kg load

-No spin

:. -Spin delay

-Low/High speed

...,':...C"-~

c_--,-,

~ ~ ::'~ ~J.I]~..r~

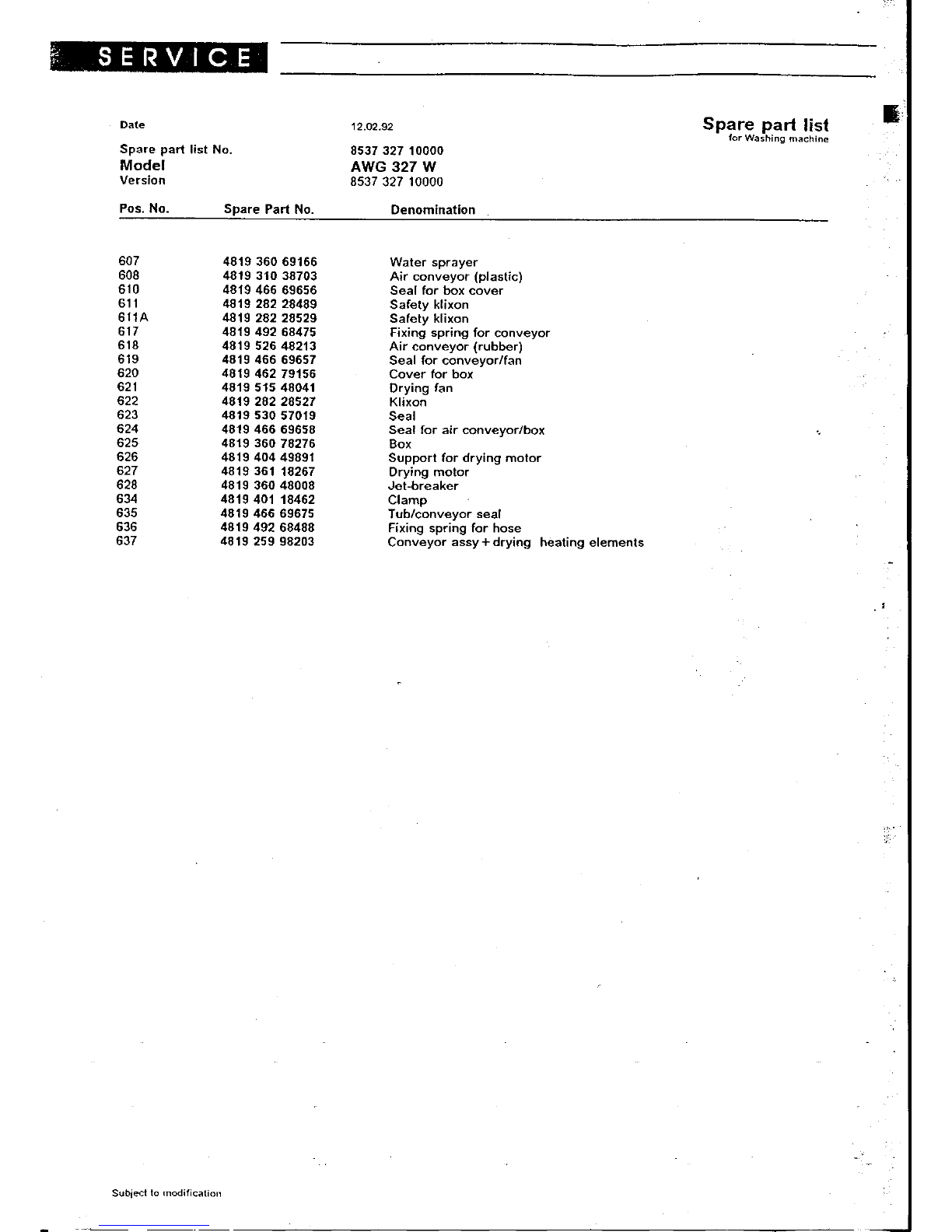

Date 12.02.92 Spare part list

tor Washing machine

Spare part list No. 8537 327 10000

Model AWG 327 W

Version 853732710000

Pos. No. Spare Part No. Denomination

607 4819 360 69166 Water sprayer

608 4819 310 38703 Air conveyor (plastic)

610 4819466 69656 Seal for box cover

611 481928228489 Safety kljxon

611A 481928228529 Safety kfixon

617 4819492 68475 Fixing spring for conveyor

618 481952648213 Air conveyor (rubber)

619 4819466 69657 Seal for conveyor/fan

620 4819462 79156 Cover for box

621 481951548041 Drying fan

622 4819 282 28527 Kllxon

623 481953057019 Seal

624 4819466 69658 Seal for air conveyor/box ".

625 481936078276 Box

626 481940449891 Support for drying motor

627 481936118267 Drying motor

628 481936048008 Jet-breaker

634 481940118462 Clamp

635 4819466 69675 Tub/conveyor seal

636 4819492 68488 Fixing spring for hose

637 4819 259 98203 Conveyor assy + drying heating elements

Subjecl 10 modificatioll-

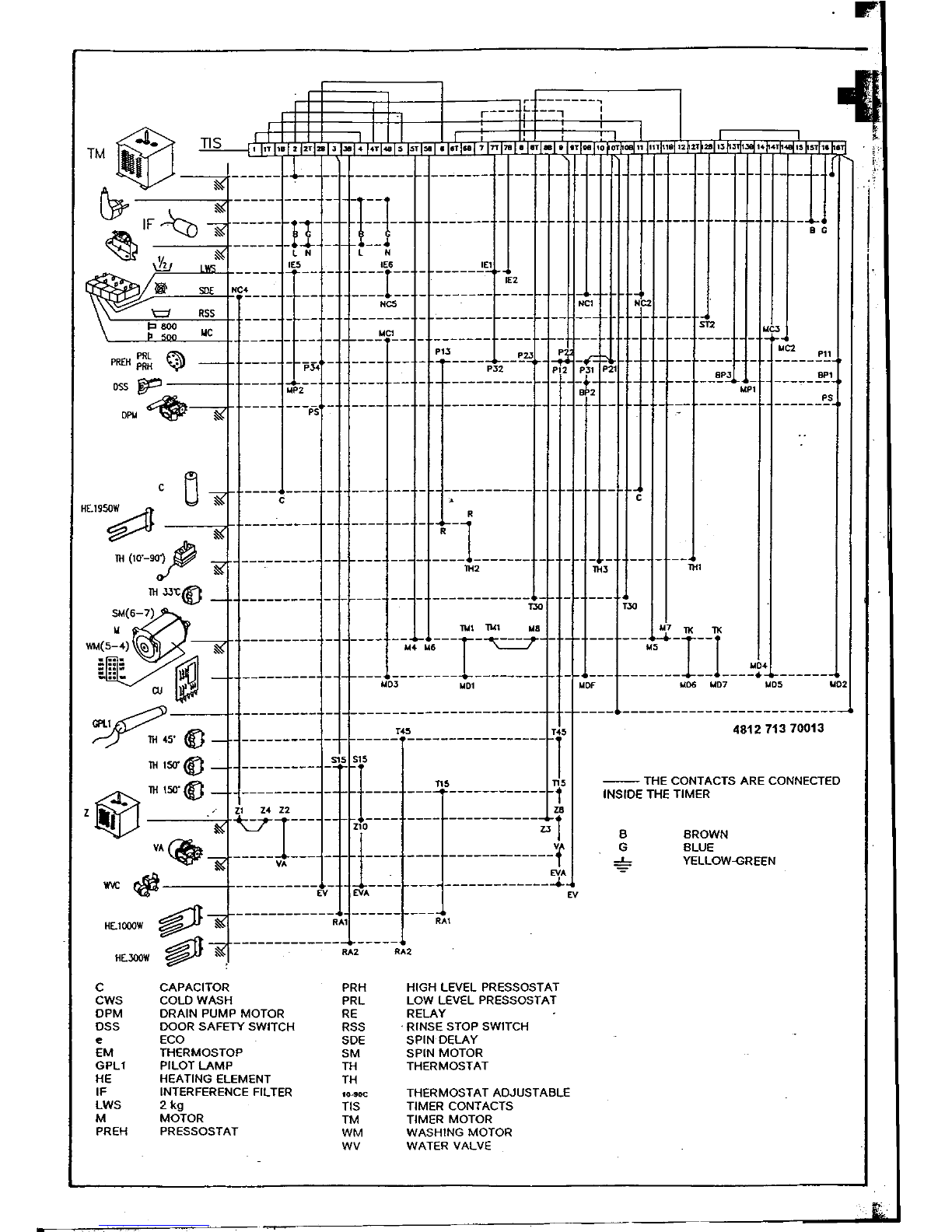

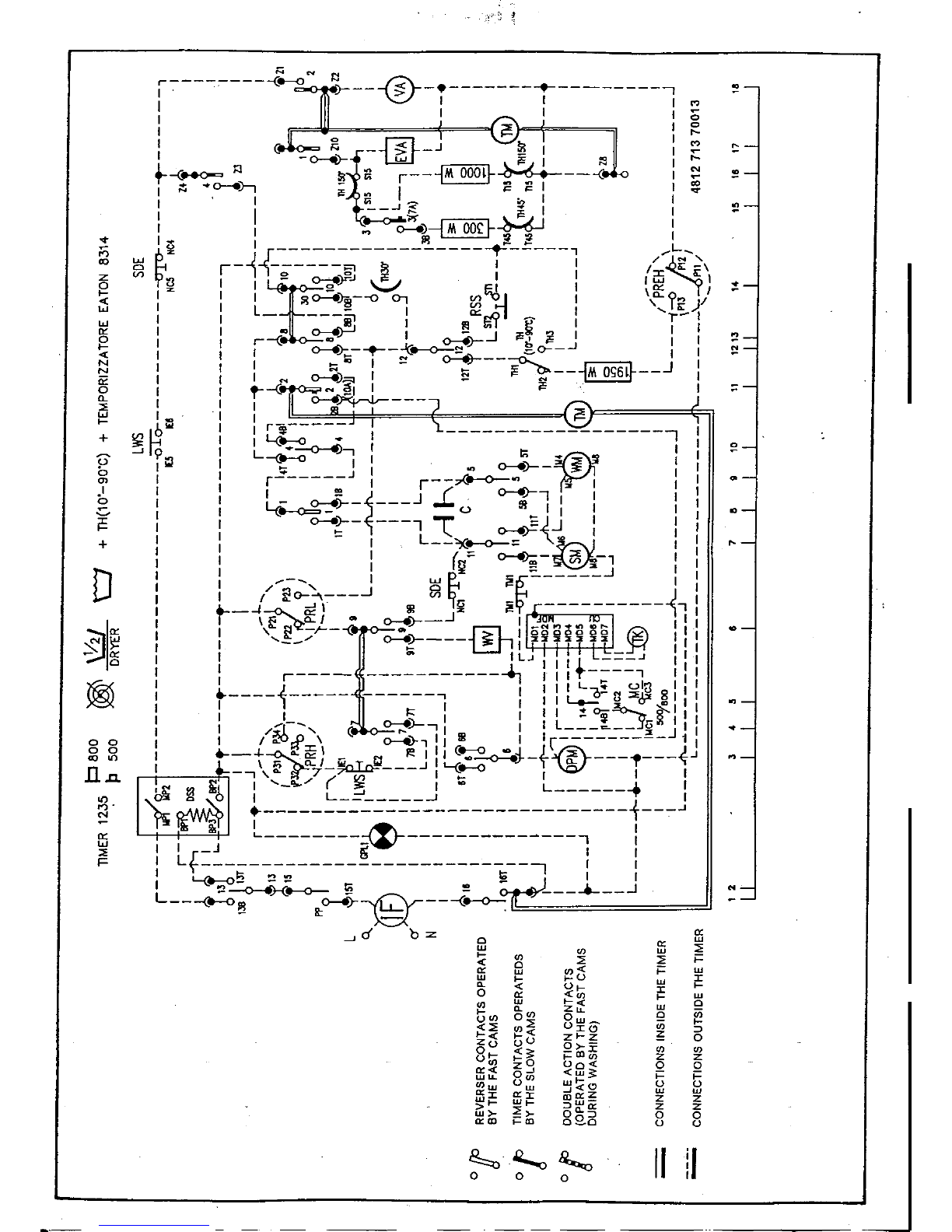

NC1 NC2

RSS

PREH~~~~

DSS~

DPU~ ~

C 0

HE.19~

1H(10'-9D")~

~ 1H2

1HJJ1:<I)

~M(6-7)M ~1 ~1W~~~;)~

:.::: cu~ MD1

G't.1,,",,~~?' I{?'p 481271370013 !

;.y 1H45'V

1H150"<I)

~ -THE CONTACTS ARE CONNECTED

~1H150"V INSIDE THE TIMER

ZI. B BROWN

VA~ G BLUE

~ ~ YELLOW-GREEN

W-'Cr.IJj -

HE.lOOOW~

HE.JODW~ ~: RA2 RA2

C CAPACITOR PRH HIGH LEVEL PRESSOSTAT

CWS COLD WASH PRL LOW LEVEL PRESSOSTAT

DPM DRAIN PUMP MOTOR RE RELAY

DSS DOOR SAFETY SWITCH RSS 'RINSE STOP SWITCH

e ECO SDE SPINDELAY

EM THERMOSTOP SM SPIN MOTOR

GPL1 PILOT LAMP TH THERMOSTAT

HE HEATING ELEMENT TH

IF INTERFERENCE FILTER tO-90C THERMOSTAT ADJUSTABLE

LWS 2 kg TIS TIMER CONTACTS

M MOTOR TM TIMER MOTOR

PREH PRESSOSTAT WM WASHING MOTOR

WV WATER VALVE

.,..'.,.. ,.i;,i,,;:~.~!..

~ I: ~~ 11[eJ-~I;.

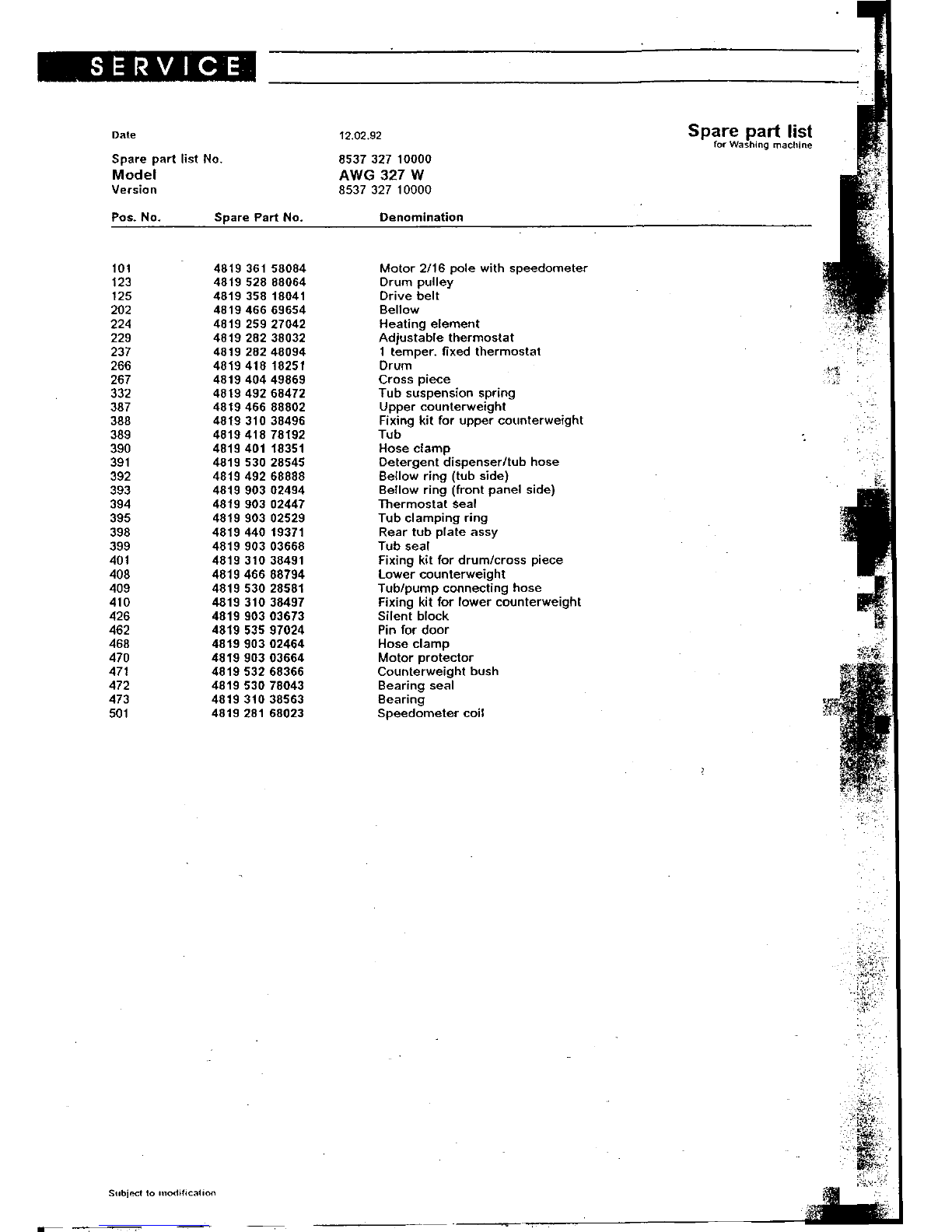

Date 12.02.92 Spare part list

rar Washing machine

Spare part list No. 8537 327 10000

Model A WG 327 W

Version 8537 327 10000 ,

..r~%~" !:

Pos. No. Sp~re Part No. Denomination ~~!:,~::

101 4819 361 58084 Motor 2/16 pole with speedometer

123 4819 528 88064 Drum pulley

125 481935818041 Drive belt

202 4819466 69654 Bellow

224 481925927042 Heating element

229 4819 282 38032 Adjustable thermostat

237 4819 28248094 1 temper. fixed thermostat

266 481941818251 Drum

267 481940449869 Cross piece

332 4819492 68472 Tub suspension spring

387 4819 466 88802 Upper counterweight

388 4819 310 38496 Fixing kit for upper counterweight

389 481941878192 Tub "-

390 481940118351 Hose clamp

391 4819 530 28545 Detergent dispenser/tub hose

392 4819492 68888 Bellow ring (tub side)

393 4819 903 02494 Bellow ring (front panel side)

394 4819 903 02447 Thermostat seal c~

395 4819 903 02529 Tub clamping ring C;~.,

398 4819440 19371 Rear tub plate assy

399 481990303668 Tub seal

401 4819310 38491 Fixing kit rar drum/cross piece

408 4819466 88794 Lower counterweight

409 481953028581 Tub/pump connecting hose

410 481931038497 Fixing kit rar lower counterweight

426 4819 903 03673 Silent block

462 481953597024 Pin for door ;,'!i!\i,";c'"

468 4819 903 2464 H I"""""~,,"cj\'"

0 ase cam p "',",,,!..., ""'"

:!'t:" ;,~:t.~'Jl?:CJ:!'.

470 4819 903 03664 Motor protector ,'c"}Je ,!.,,'!.~?""":

471 4819 532 68366 Counterweight bush

472 4819 530 78043 Bearing seal

473 4819 310 38563 Bearing c

501 4819281 68023 Speedometer coir ~

? K

Sl.bject 10 1I1001iricaliOl1

J" ,," .

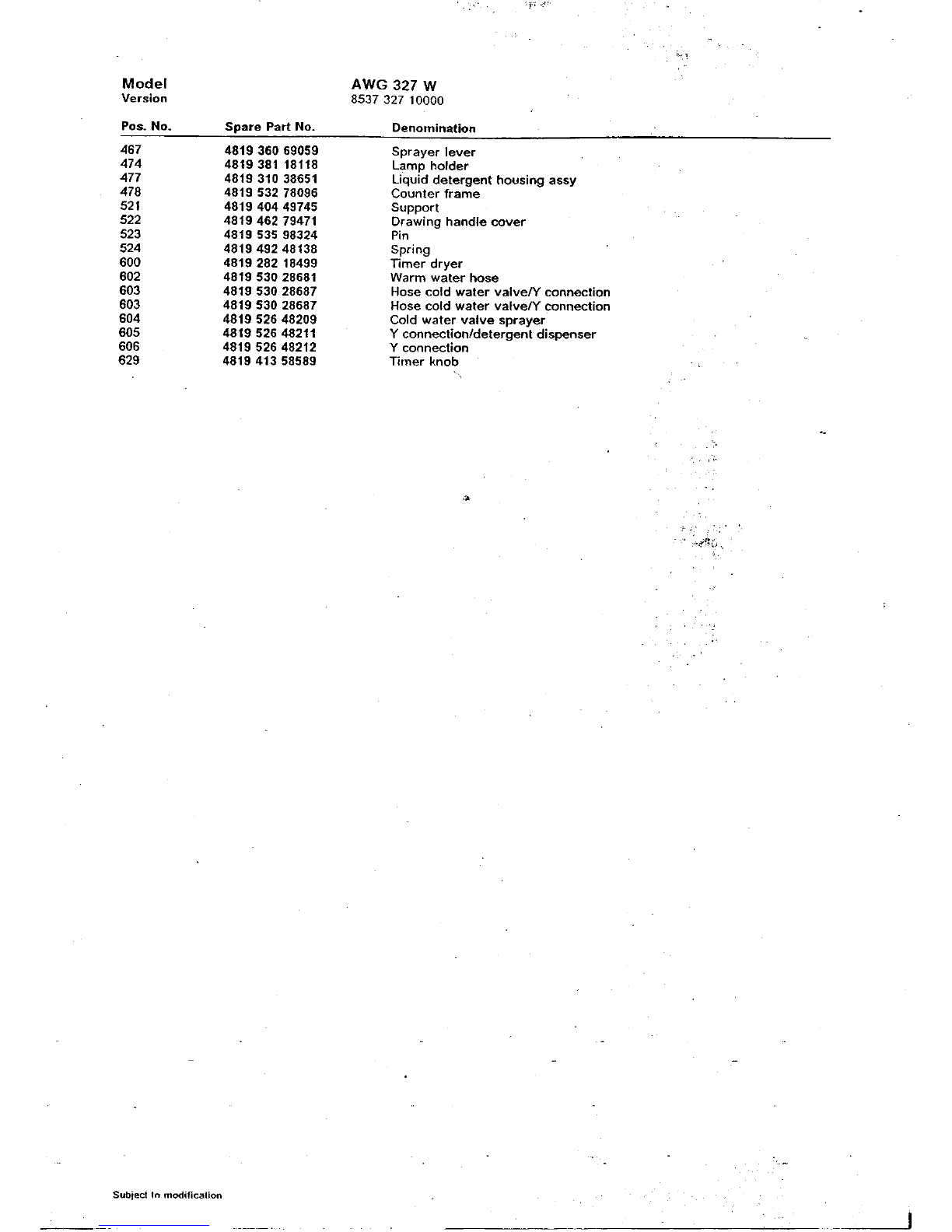

Model AWG 327 W

Version 8537 327 10000

Pos. No. Spare Part No. Denomination

467 481936069059 Sprayer1ever

474 481938118118 Lamp holder

477 4819 310 38651 Liquid detergent housing assy

478 4819 532 78096 Counter frame

521 481940449745 Support

522 481946279471 Drawing handle cover

523 4819535 98324 Pin

524 4819492 48138 Spring

600 4819 282 18499 Timer dryer

602 4819 530 28681 Warm water hose

603 4819 530 28687 Hose cold wafer valve/Y connection

603 4819530 28687 Hose cold water valve/Y connection

604 4819 52648209 Cold water valve sprayer

605 4819 526 48211 Y connection/detergent dispenser
