Whirlpool 3RLSQ8000JQ6 User manual

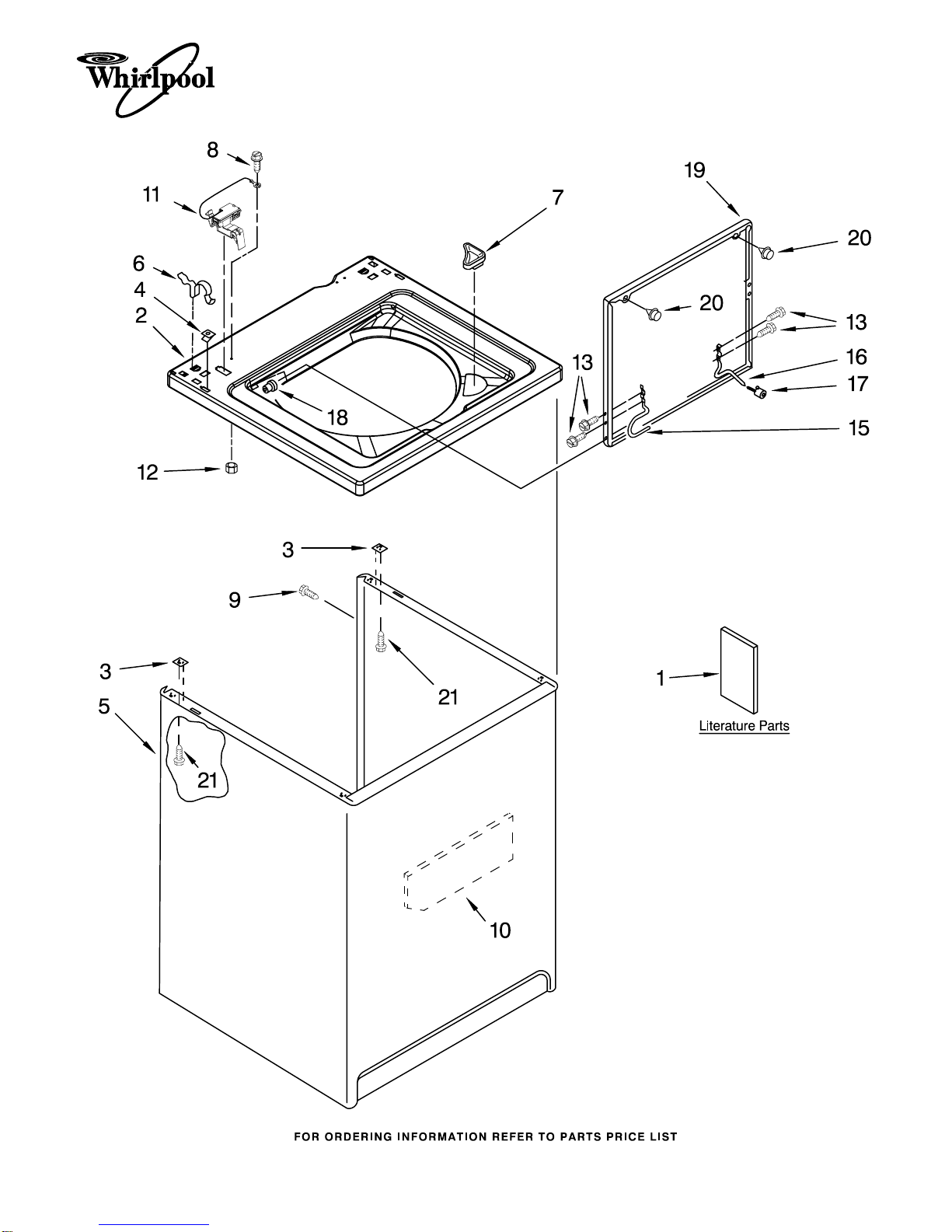

TOP AND CABINET PARTS

For Model: 3RLSQ8000JQ6

(Designer White)

3−06 Litho in U.S.A. (drd) Part No. 8181167

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Model: 3RLSQ8000JQ6

(Designer White)

8181167

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8316566 Installation

Instructions

8316482 Use & Care Guide

3954738 Wiring Diagram

8315975 Installation &

User Guide

2 8318064 Top

3 62750 Spacer, Cabinet To

Top (4)

4 357213 Nut, Push−In (2)

5 63424 Cabinet

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

7 3362952 Dispenser, Bleach

8 3351614 Screw, Ground

9 3357011 Screw, 10−16 x 1/2

10 3976348 Sound Dampener,

Cabinet

11 8318084 Switch, Lid

12 8533959 Nut, Hex

13 3351355 Screw, Lid Hinge

Mounting (4)

15 8318088 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid

Hinge (2)

19 8541743 Lid

20 9724509 Bumper, Lid (2)

21 3390631 Screw,

10−16 x 3/8 (4)

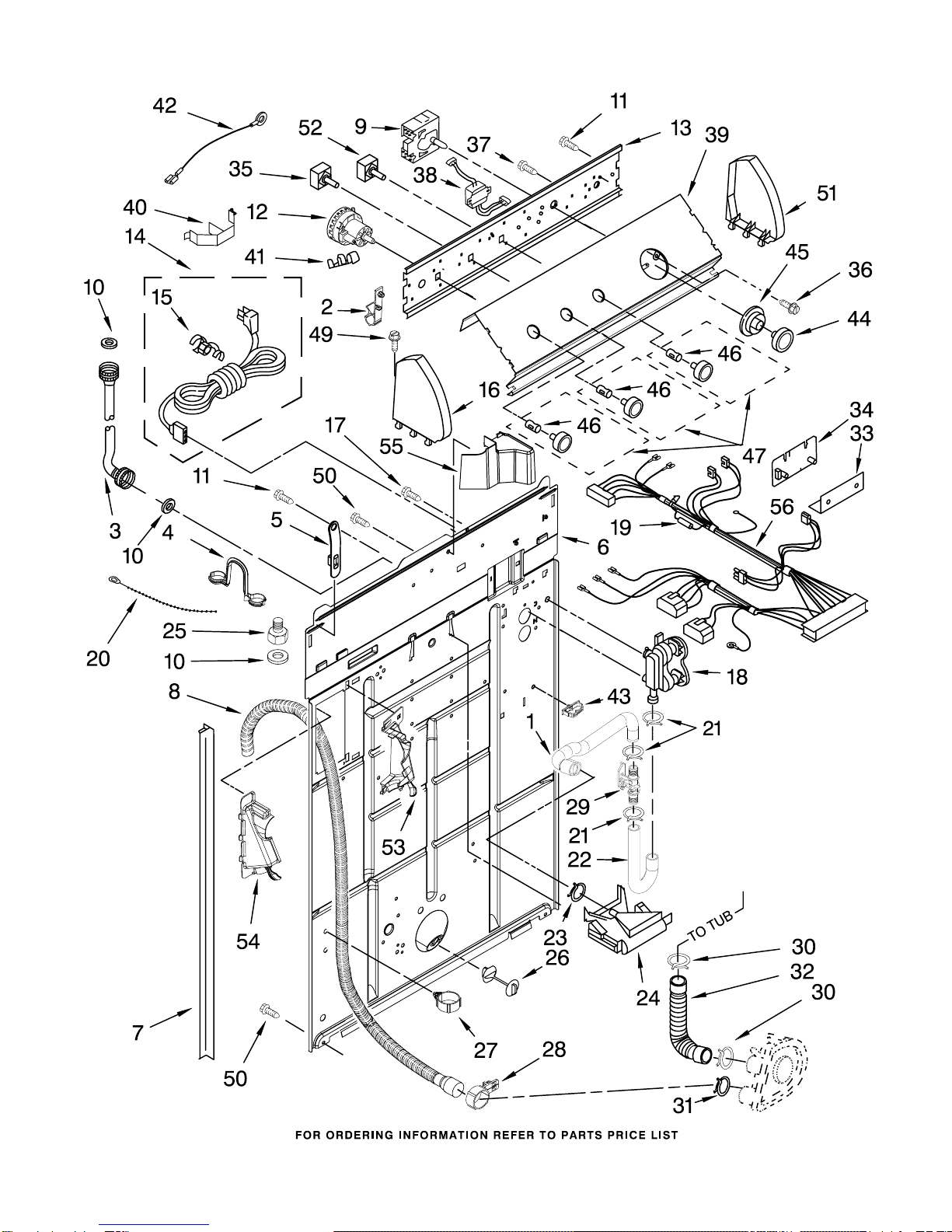

CONTROLS AND REAR PANEL PARTS

For Model: 3RLSQ8000JQ6

(Designer White)

8181167

CONTROLS AND REAR PANEL PARTS

For Model: 3RLSQ8000JQ6

(Designer White)

8181167

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349365 Hose, Sensor

(Upper)

2 8317975 Retainer, Harness

3 Hose, Water Inlet

3949382 Red

3949383 Blue

4 8577378 U−Bend,

Drain Hose

5 8568314 Strap, Console (2)

6 8318015 Panel, Rear

7 62747 Pad, Rear Panel

8 8559374 Drain Hose

Assembly (Includes

Items 27 & 28)

9 3954727 Timer, Control

(50 Hz.)

(Motor Not A

Service Part)

10 3976300 Washer, Water

Inlet Hose

(1−1/16 x 5/8)

11 90767 Screw, 8−18 x 3/8

12 3366848 Switch, Water Level

13 3948608 Bracket, Control

14 8559415 Cord, Power

15 8559337 Strain Relief,

Power Cord

16 8271369 Cap, End (L.H.)

17 3351614 Screw, Ground

18 3360397 Valve, Water

Mixing

19 3951198 Fuse

(In Harness)

20 3347868 Cable Tie

21 370451 Clamp, Hose

22 3357319 Hose, Vacuum

Break

23 371503 Clamp, Hose

24 387606 Break, Vacuum

25 3357397 Adapter, Water

Inlet Hose

26 8519200 Support, Rear

Panel

27 8541667 Clamp, Hose

28 8541668 Clamp, Hose

29 3352282 Sensor, Inline

30 3363366 Clamp, Hose

31 8317496 Clamp, Hose

32 3951449 Hose, Pump To Tub

(Includes Item 30)

33 8316039 Shield, ATC

34 3407159 Control, ATC

35 3949187 Switch, Rotary

(2nd Rinse)

36 3400818 Screw, Timer

Mounting

37 3179795 Screw, Ground

38 3407160 Transformer

39 8318786 Panel, Console

40 8055003 Clip, Harness

& Pressure Hose

41 357572 Clip, Grounding

42 3398893 Wire, Ground

43 3352944 Clip, Harness

44 3957824 Knob, Timer

45 3957849 Dial, Timer

46 8536939 Clip, Knob

47 3957799 Knob, Control

49 388326 Screw, 8−18 x 1.25

(Panel to Top)

50 62863 Screw, 10−16 x 3/8

51 8271363 Cap, End (R.H.)

52 8526791 Switch, Rotary

(Temperature)

53 8541669 Bucket, Drain Hose

(Left Half)

54 8541658 Bucket, Drain Hose

(Right Half)

55 8314879 Shield, Inlet

Valve

56 3956868 Harness, Wiring

(For Detail See

Pages 9 & 10)

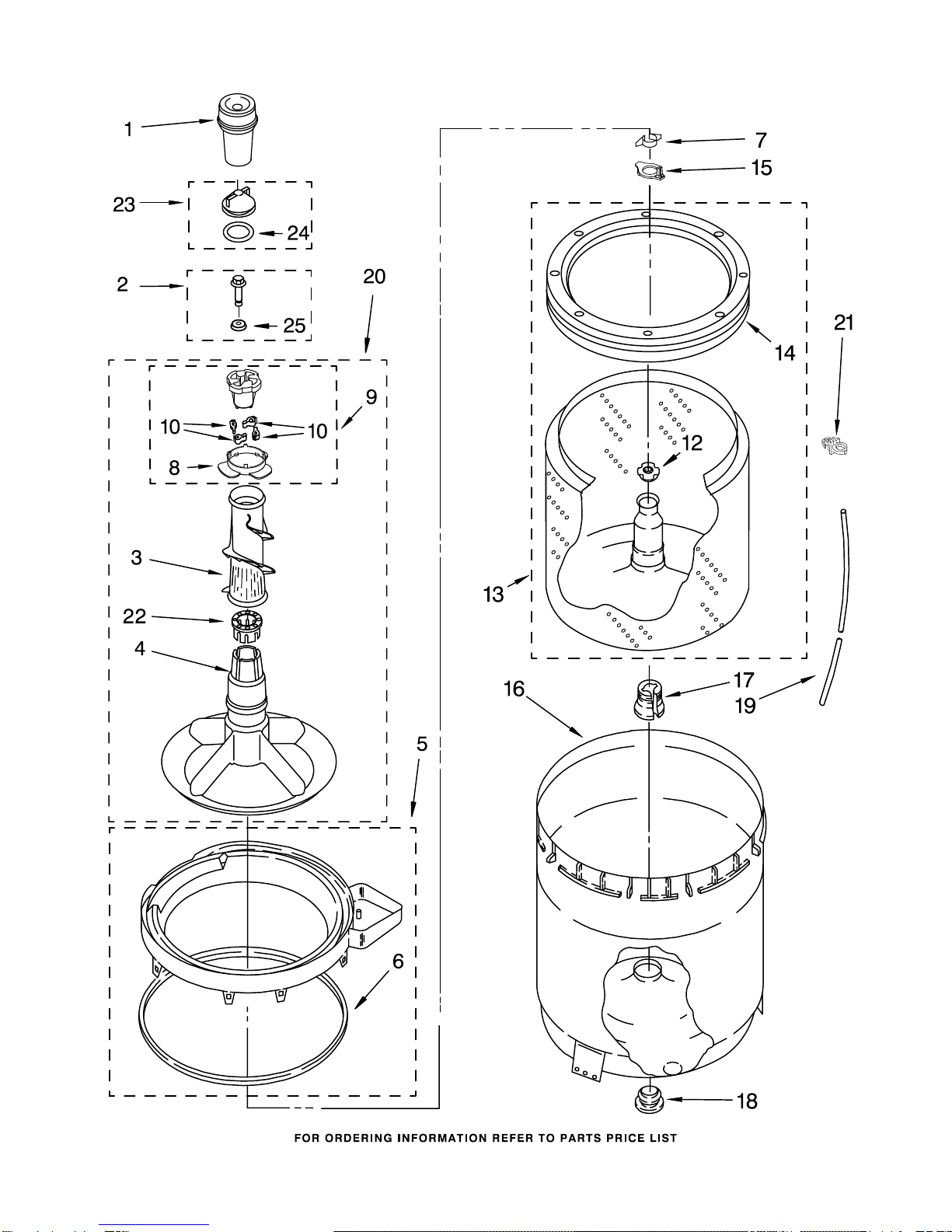

AGITATOR, BASKET AND TUB PARTS

For Model: 3RLSQ8000JQ6

(Designer White)

8181167

AGITATOR, BASKET AND TUB PARTS

For Model: 3RLSQ8000JQ6

(Designer White)

8181167

Illus. Part

No. No. DESCRIPTION

1 63580 Dispenser

2 358237 Screw & Washer

(5/16−24 x 1)

3 3363003 Clothes Mover

4 3951632 Agitator

5 8528150 Tub Ring & Gasket

6 3976308 Gasket, Tub Ring

7 3354845 Clip, Agitator

8 3952374 Bearing, Driven

Cam

9 3951682 Cam, Driven

10 3366877 Dog, Agitator

Clutch (4)

12 21366 Nut, Spanner

13 8526017 Basket & Balance

Ring

14 8519788 Balance Ring

15 8543666 Washer, Agitator

16 63849 Tub

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

20 3951744 Agitator

(Complete)

21 2219077 Clip, Pressure

Switch Hose

22 3951608 Spacer, Thrust

23 3354733 Cap, Barrier

24 3348855 Seal, Inner Cap

25 3949550 Washer

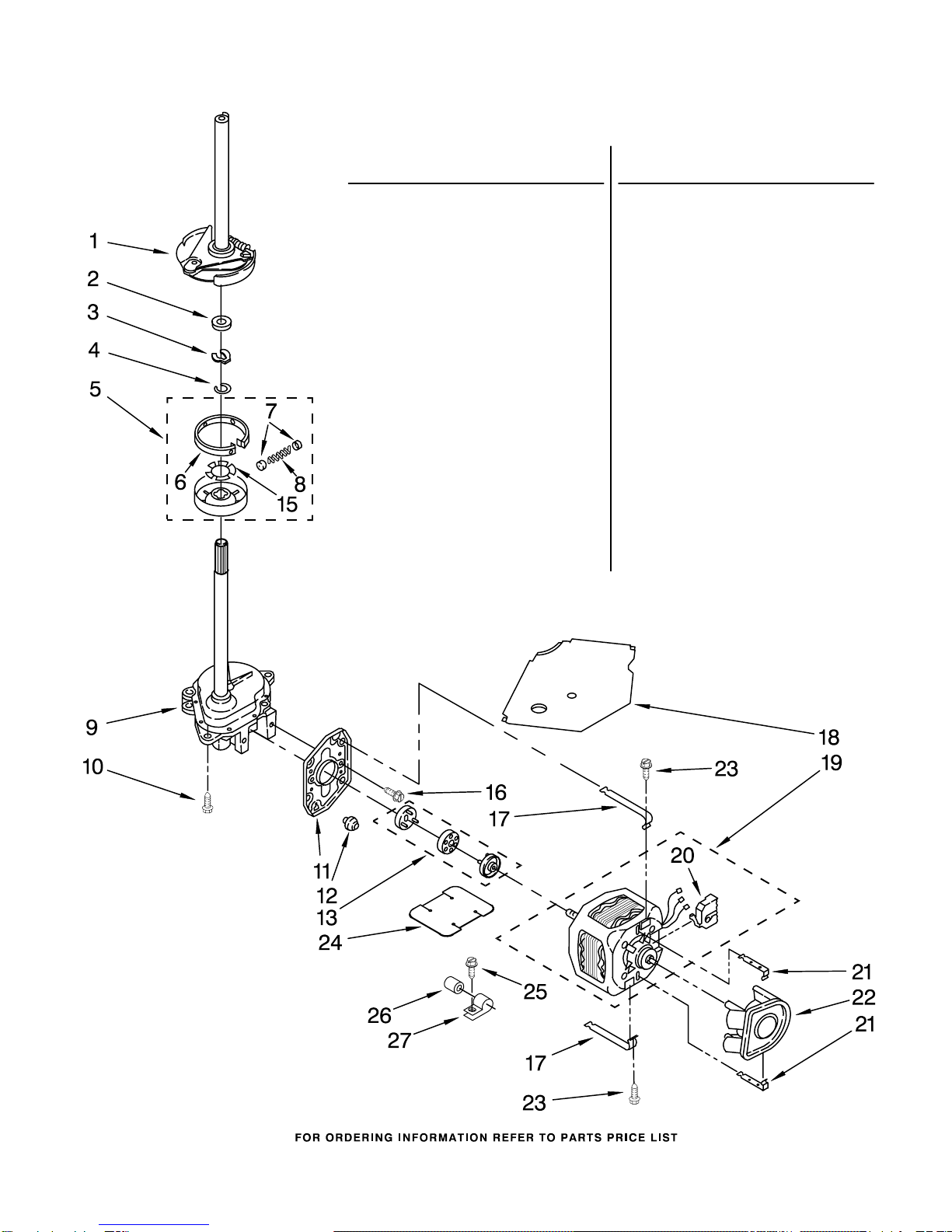

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Model: 3RLSQ8000JQ6

(Designer White)

8181167

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3951311 Clutch (Complete)

6 3951308 Band & Lining,

Clutch (Includes

Items 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch

9 3949118 Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 285753 Coupling, Motor

& Isolation

15 3355454 Clip,

Anti−Rattle

16 3400516 Screw

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 3950297 Motor, Main

Drive

20 8529896 Switch, Main

Drive Motor

21 8546127 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 8316060 Shield, Motor

25 62863 Screw,

10−16 x 5/16

26 8572719 Capacitor

27 3949496 Clamp, Capacitor

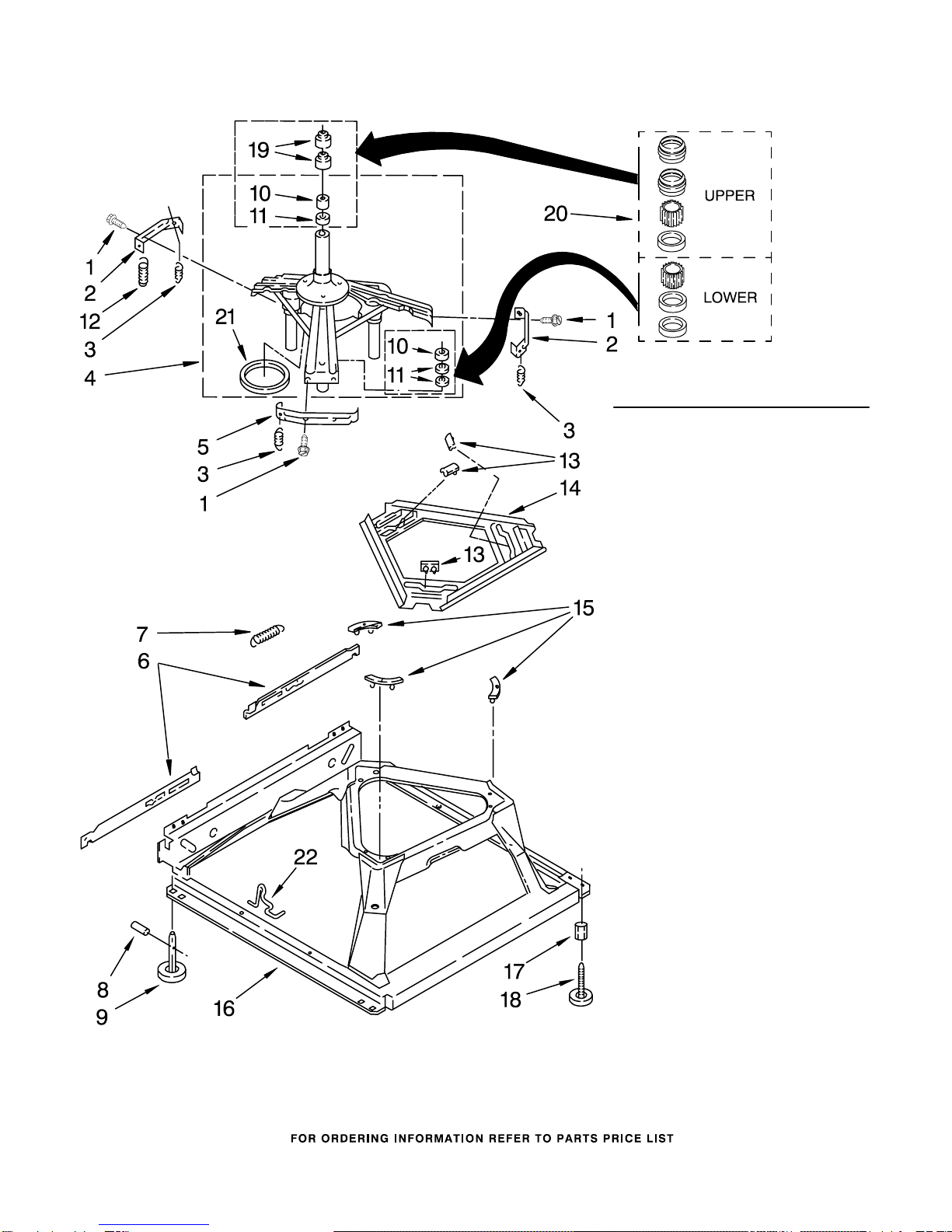

MACHINE BASE PARTS

For Model: 3RLSQ8000JQ6

(Designer White)

8181167

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 8575214 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

10 8546455 Bearing,

Centerpost (2)

11 357409 Seal, Centerpost (3)

12 388492 Spring,

Counterweight

13 62568 Pad, Plate

14 3946509 Plate, Suspension

(Includes Item 13)

15 3363660 Pad, Base

16 3946512 Base Assembly

(Includes Items 6,

7, 8, 9, 13, 14)

15 & 22)

17 3359452 Nut, Lock (2)

(3/8−16)

18 389102 Foot, Front (2)

19 356934 Seal,

Centerpost (2)

20 285203 Centerpost

Bearing Kit

(Includes Items

10, 11 & 19)

21 63134 Ring, Sound

Deadening

22 63806 Retainer,

Suspension Spring

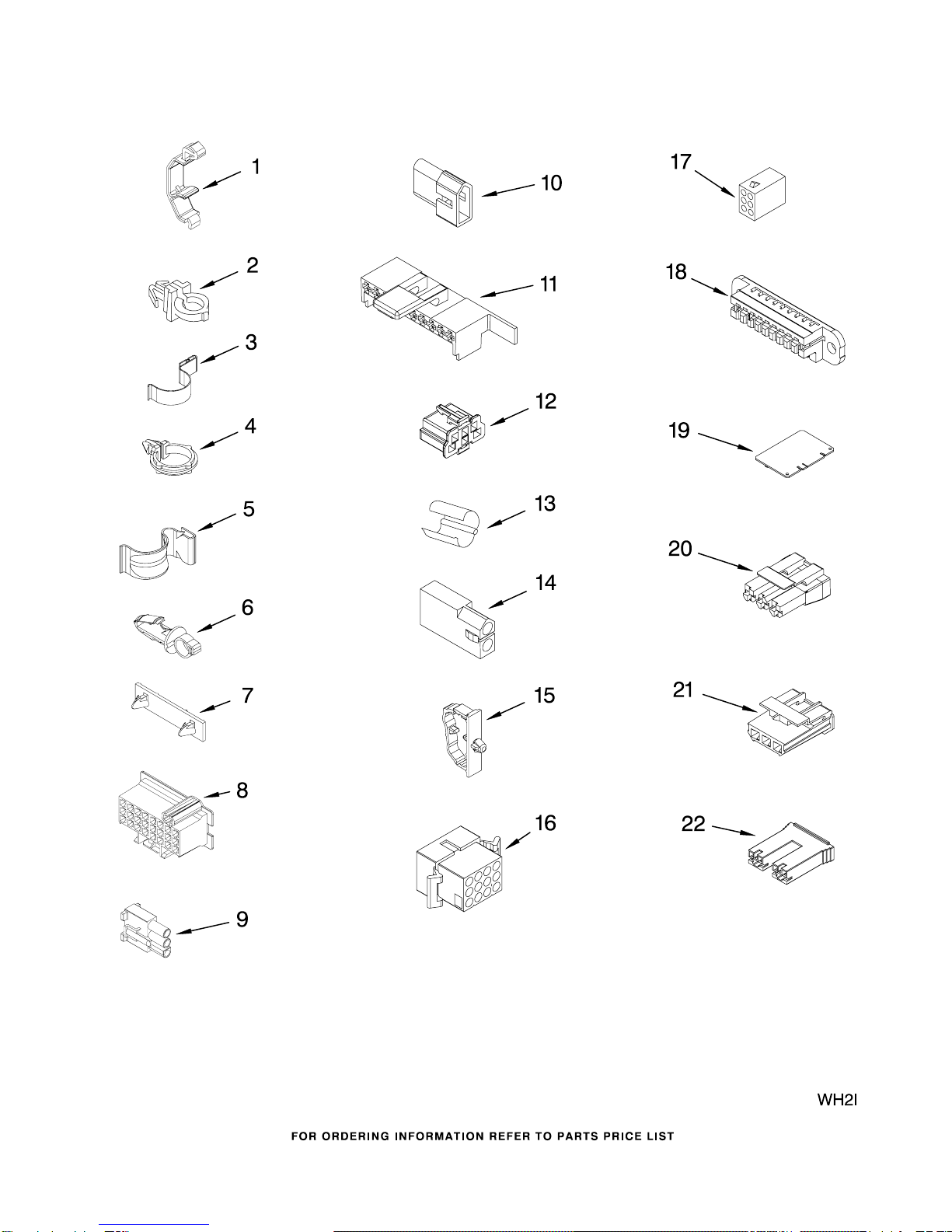

WIRING HARNESS PARTS

For Model: 3RLSQ8000JQ6

(Designer White)

8181167

WIRING HARNESS PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Clip, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 389379 Retainer,

(Suds Models)

8 Timer, Block

Disconnect

3948614 White

352089 Black

9 62889 Receptacle,

Terminal

(3−Way)

(Lid Switch)

(Use Term.94613)

Or 94614.)

10 353424 Plug, Terminal

(3−Way)

(Power Cord)

(Use Term.94613)

11 62505 Block, Disconnect

(Motor 2 Speed)

(Use Term.352088)

12 3347243 Block, Disconnect

(Use Term. 352088)

13 63523 Protector

14 717252 Connector

(2−Way)

(Use Term.94614)

15 3352944 Clip, Harness

16 3390423 Block, Disconnect

(12−Way)

(Timer)

(Use Term. 94613)

17 3347730 Receptacle

(6−Way)

(Use Term. 94613)

18 3349494 Connector, Etc

19 3407125 E.T.C. Control

20 3948617 Connector (T.P.A.)

(3−Circuit)

(Lid Switch)

21 3360056 Connector (T.P.A)

(3−Circuit)

(Pressure Switch)

22 Block, Connector

3354925 Cold Valve

3354926 Hot Valve

For Model: 3RLSQ8000JQ6

(Designer White)

8181167
