Whirlpool Thin Twin LT5000XV User manual

3kfl of

HCfW Applmces

Use&CareGuide

Washer controls -

Optional exhaust

outlet

Agitator

Model and serial

number plate

Lint screen

- Dryer drum

-Dryer controls

-Washer lid latch

Tub

Basket

Manual clean

1- I

lint filter

(inside agitator)

THINTWIN"

AUTOMATICWASHERDRYER

LT5OOOxVLT5004XV LT51OOXV

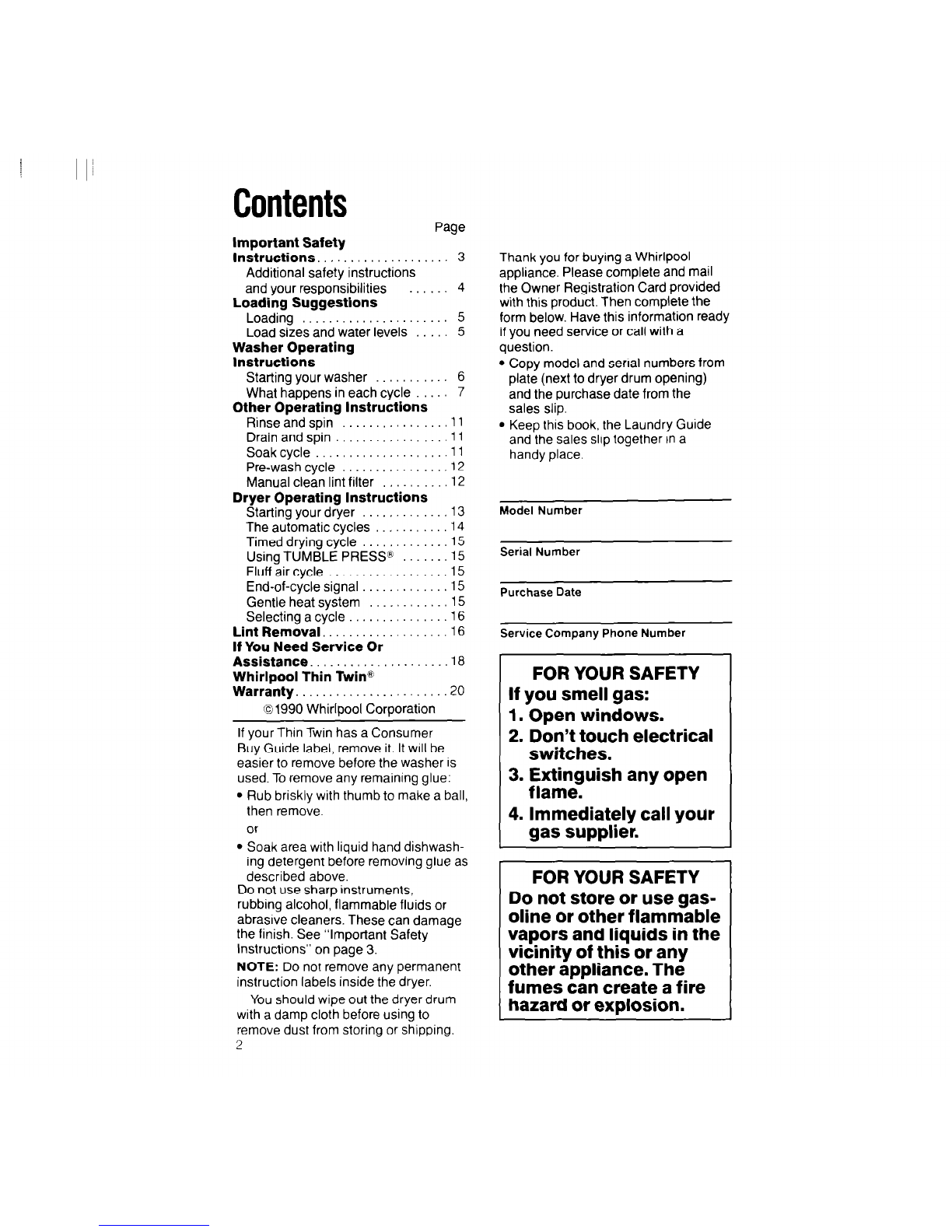

Contents

Page

Important Safety

Instructions. ................... 3

Additional safety instructions

and your responsibilities ...... 4

Loading Suggestions

Loading ...................... 5

Load sizes and water levels ..... 5

Washer Operating

Instructions

Starting your washer ........... 6

What happens in each cycle ..... 7

Other Operating Instructions

Rinse and spin

................ 11

Drainandspin ................ .ll

Soakcycle ................... .I1

Pre-wash cycle ............... .12

Manual clean lint filter .......... 12

Dryer Operating Instructions

Starting your dryer ............. 13

The automatic cycles ...........

Timed drying cycle ............. 15

Using TUMBLE PRESS@ ....... 15

Fluff aircycle .................. 15

End-of-cycle signal ............ .15

Gentle heat system ............ 15

Selecting a cycle ............... 16

Lint Removal, .................. 16

If You Need Service Or

Assistance .................... .18

Whirlpool Thin Twin@

Warranty.......................2 0

0 1990 Whirlpool Corporation

If your Thin Twin has a Consumer

Buy Guide label, remove it. It WIIIbe

easier to remove before the washer is

used. To remove any remaining glue:

Rub briskly with thumb to make a ball,

then remove.

Soak area with liquid hand dishwash-

ing detergent before removing glue as

described above.

Do not use sharp instruments,

rubbing alcohol, flammable fluids or

abrasive cleaners. These can damage

the finish. See “Important Safety

Instructions” on page 3.

NOTE: Do not remove any permanent

instruction labels inside the dryer.

You should wipe out the dryer drum

with a damp cloth before using to

remove dust from storing or shipping.

Thank you for buying a Whirlpool

appliance. Please complete and mail

the Owner Registration Card provided

with this product. Then complete the

form below. Have this information ready

if you need service or call with a

question.

Copy model and senal numbers from

plate (next to dryer drum opening)

and the purchase date from the

sales slip.

Keep thrs book, the Laundry Guide

and the sales slip together In a

handy place.

Model Number

Serial Number

Purchase Date

Service Company Phone Number

FOR YOUR SAFETY

If you smell gas:

1. Open windows.

2. Don’t touch electrical

switches.

3. ;Fteguish any open

4. Immediately call your

gas supplier.

FOR YOUR SAFETY

Do not store or use gas-

oline or other flammable

vapors and liquids in the

vicinity of this or any

other appliance. The

fumes can create a fire

hazard or explosion.

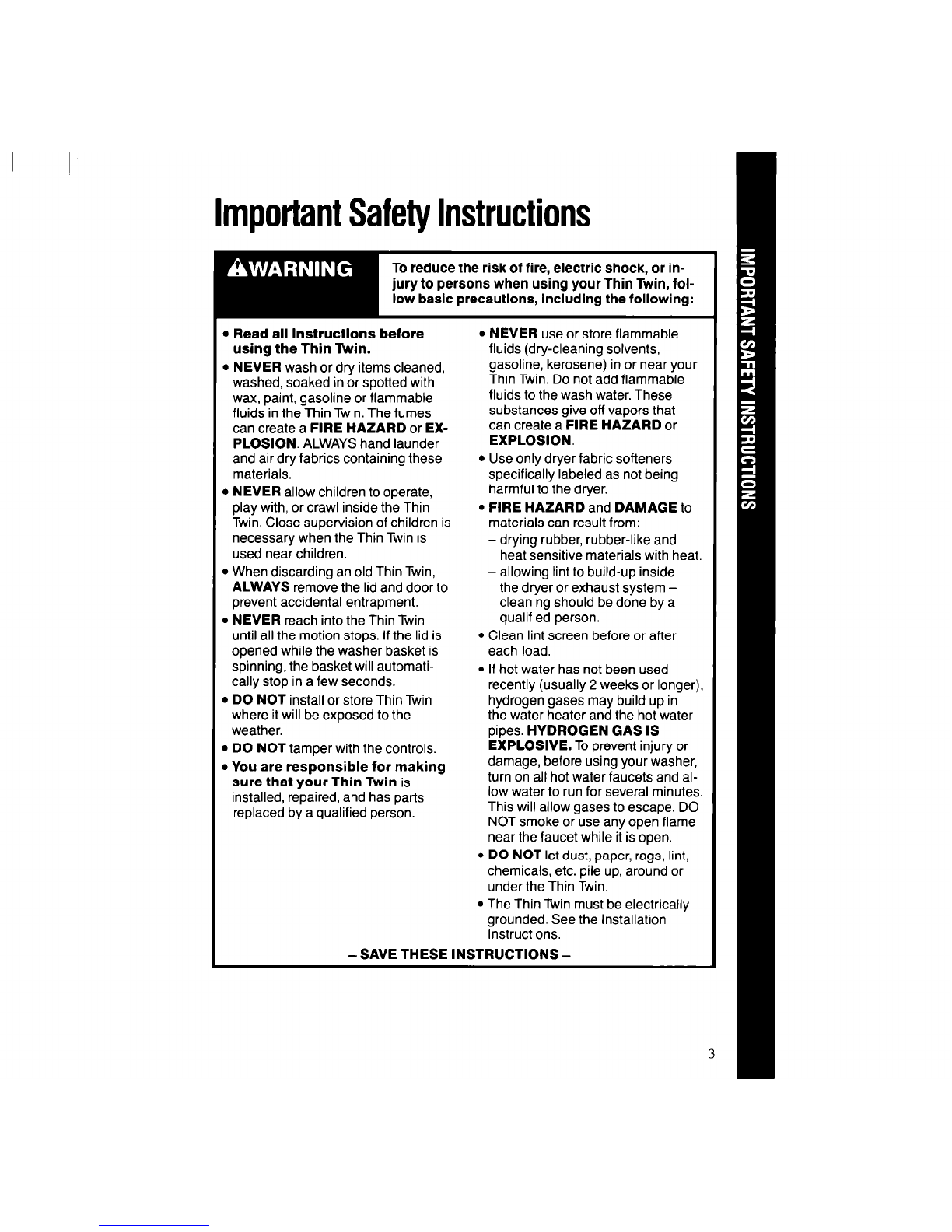

ImportantSafetyInstructions

To reduce the risk of fire, electric shock, or in-

jury to persons when using your Thin Twin, fol-

low basic precautions, including the following:

Read all instructions before

NEVER use or store flammable

using the Thin Win. fluids (dry-cleaning solvents,

NEVER wash or dry items cleaned, gasoline, kerosene) in or near your

washed, soaked in or spotted with Thin Twin. Do not add flammable

wax, paint, gasoline or flammable fluids to the wash water. These

fluids in the Thin Twin. The fumes substances give off vapors that

can create a FIRE HAZARD or EX- can create a FIRE HAZARD or

PLOSION. ALWAYS hand launder EXPLOSION.

and air dry fabrics containing these

Use only dryer fabric softeners

materials. specifically labeled as not being

NEVER allow children to operate, harmful to the dryer.

play with, or crawl inside the Thin

FIRE HAZARD and DAMAGE to

Twin. Close supervision of children is materials can result from:

necessary when the Thin Twin is - drying rubber, rubber-like and

used near children. heat sensitive materials with heat.

When discarding an old Thin Twin, - allowing lint to build-up inside

ALWAYS remove the lid and door to the dryer or exhaust system -

prevent accidental entrapment. cleaning should be done by a

NEVER reach into the Thin Twin qualified person.

until all the motion stops. If the lid is

Clean lint screen before or after

opened while the washer basket is each load.

spinning, the basket will automati-

If hot water has not been used

tally stop in a few seconds. recently (usually 2 weeks or longer),

DO NOT install or store Thin Twin hydrogen gases may build up in

where it will be exposed to the the water heater and the hot water

weather. pipes. HYDROGEN GAS IS

mDO NOT tamper with the controls. EXPLOSIVE. To prevent injury or

BYou are responsible for making damage, before using your washer,

sure that your Thin Twin is turn on all hot water faucets and al-

installed, repaired, and has parts low water to run for several minutes.

replaced by a qualified person. This will allow gases to escape. DO

NOT smoke or use any open flame

near the faucet while it is open.

DO NOT let dust, paper, rags, lint,

chemicals, etc. pile up, around or

under the Thin Twin.

The Thin Twin must be electrically

grounded. See the Installation

Instructions.

-SAVE THESE INSTRUCTIONS -

I’

Important Safety Instructions

Continued

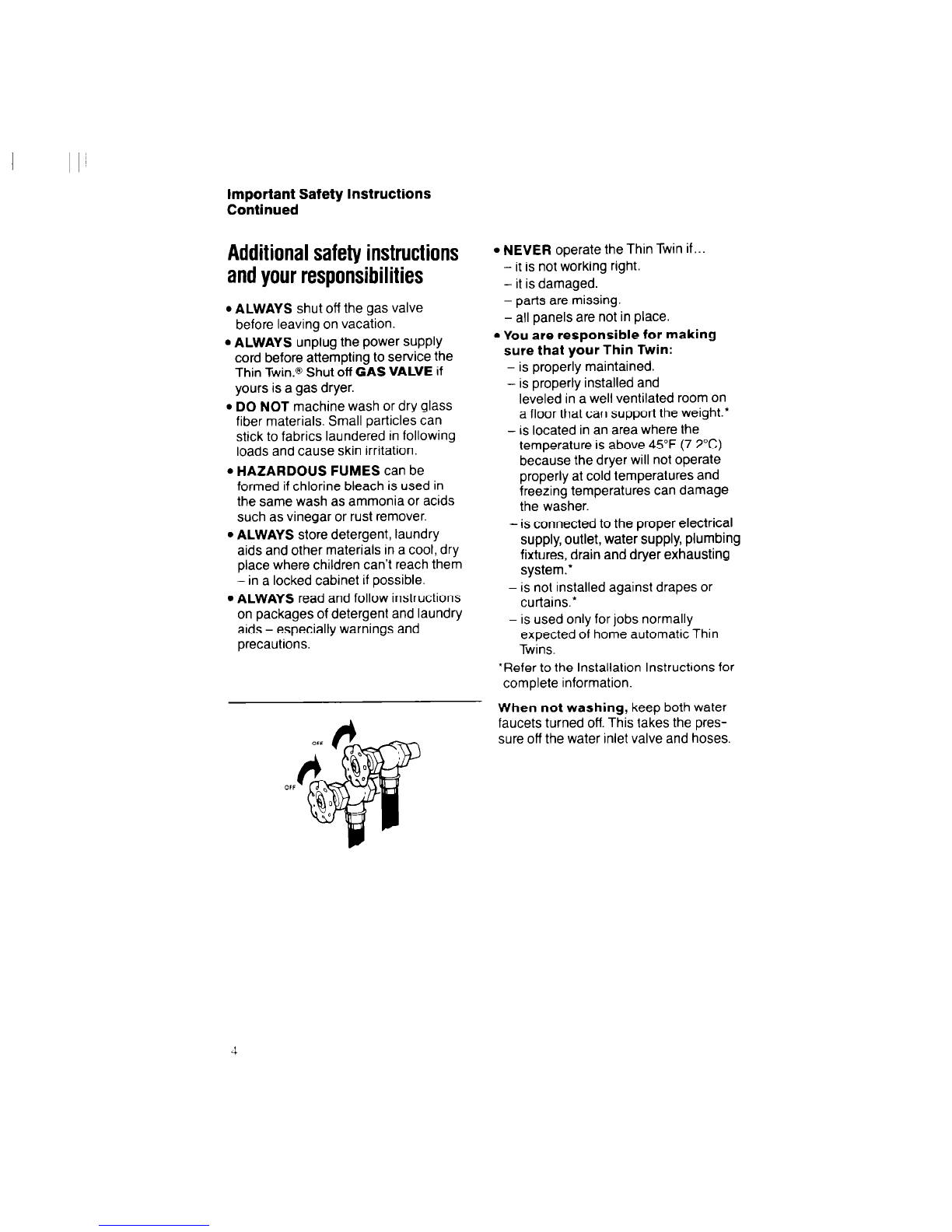

Additionalsafetyinstructions

andyourresponsibilities

ALWAYS shut off the gas valve

before leaving on vacation.

ALWAYS unplug the power supply

cord before attempting to service the

Thin Twin.@Shut off GAS VALVE if

yours is a gas dryer.

DO NOT machine wash or dry glass

fiber materials. Small particles can

stick to fabrics laundered in following

loads and cause skin irritation.

HAZARDOUS FUMES can be

formed if chlorine bleach is used in

the same wash as ammonia or acids

such as vinegar or rust remover.

ALWAYS store detergent, laundry

aids and other materials in a cool, dry

place where children can’t reach them

- in a locked cabinet if possible.

ALWAYS read and follow instructions

on packages of detergent and laundry

aids - especially warnings and

precautions.

NEVER operate the Thin Twin if..

- it is not working right.

- it is damaged.

- parts are missing.

- all panels are not in place.

You are responsible for making

sure that your Thin Twin:

- is properly maintained.

- is properly installed and

leveled in a well ventilated room on

a floor that can support the weight.’

- is located in an area where the

temperature is above 45°F (7.2%)

because the dryer will not operate

properly at cold temperatures and

freezing temperatures can damage

the washer.

- is connected to the proper electrical

supply, outlet, water supply, plumbing

fixtures, drain and dryer exhausting

system.’

- is r-101installed against drapes or

curtains.’

- is used only for jobs normally

expected of home automatic Thin

Twins.

‘Refer to the lnstallalion Instructions for

complete information.

When not washing, keep both water

faucets turned off. This takes the pres-

sure off the water inlet valve and hoses.

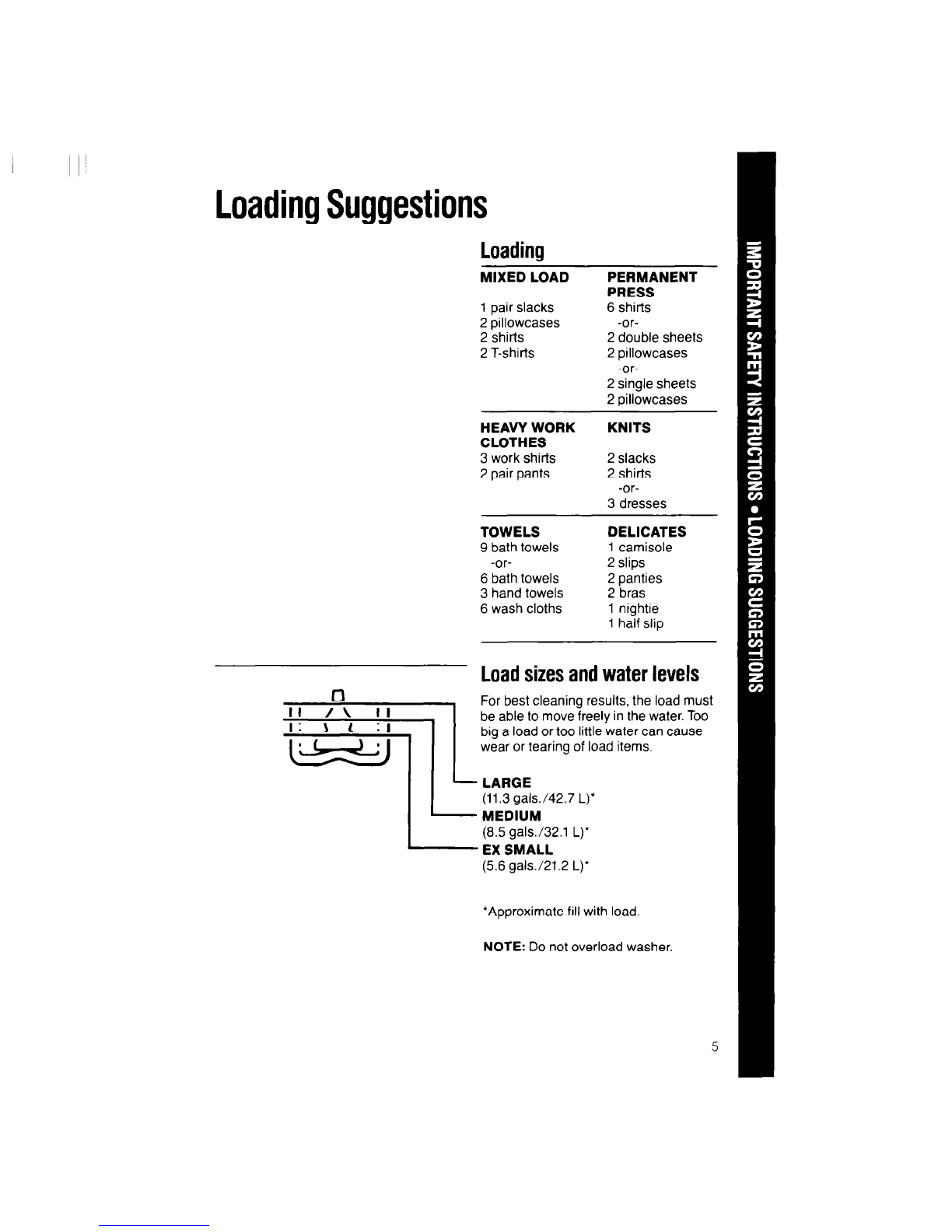

LoadingSuggestions

MIXED LOAD

1 pair slacks

2 pillowcases

2 shirts

2 T-shirts

PERMANENT

PRESS

6 shirts

-or-

2 double sheets

2 pillowcases

-or-

2 single sheets

2 pillowcases

HEAVY WORK

CLOTHES

3 work shirts

2 pair pants

KNITS

2 slacks

2 shirts

-or-

3 dresses

TOWELS

9 bath towels

-or-

6 bath towels

3 hand towels

6 wash cloths

DELICATES

1 camisole

2 slips

2 panties

2 bras

1 nightie

1 half slip

Loadsizesandwaterlevels

For best cleaning results, the load must

be able lo move freely in the water. Too

big a load or too little water can cause

wear or tearing of load items.

LARGE

(11.3 gals./42.7 L)*

MEDIUM

(8.5 gals./32.1 L)’

EX SMALL

(5.6 galsJ21.2 L)’

*Approximate fill with load.

NOTE: Do not overload washer.

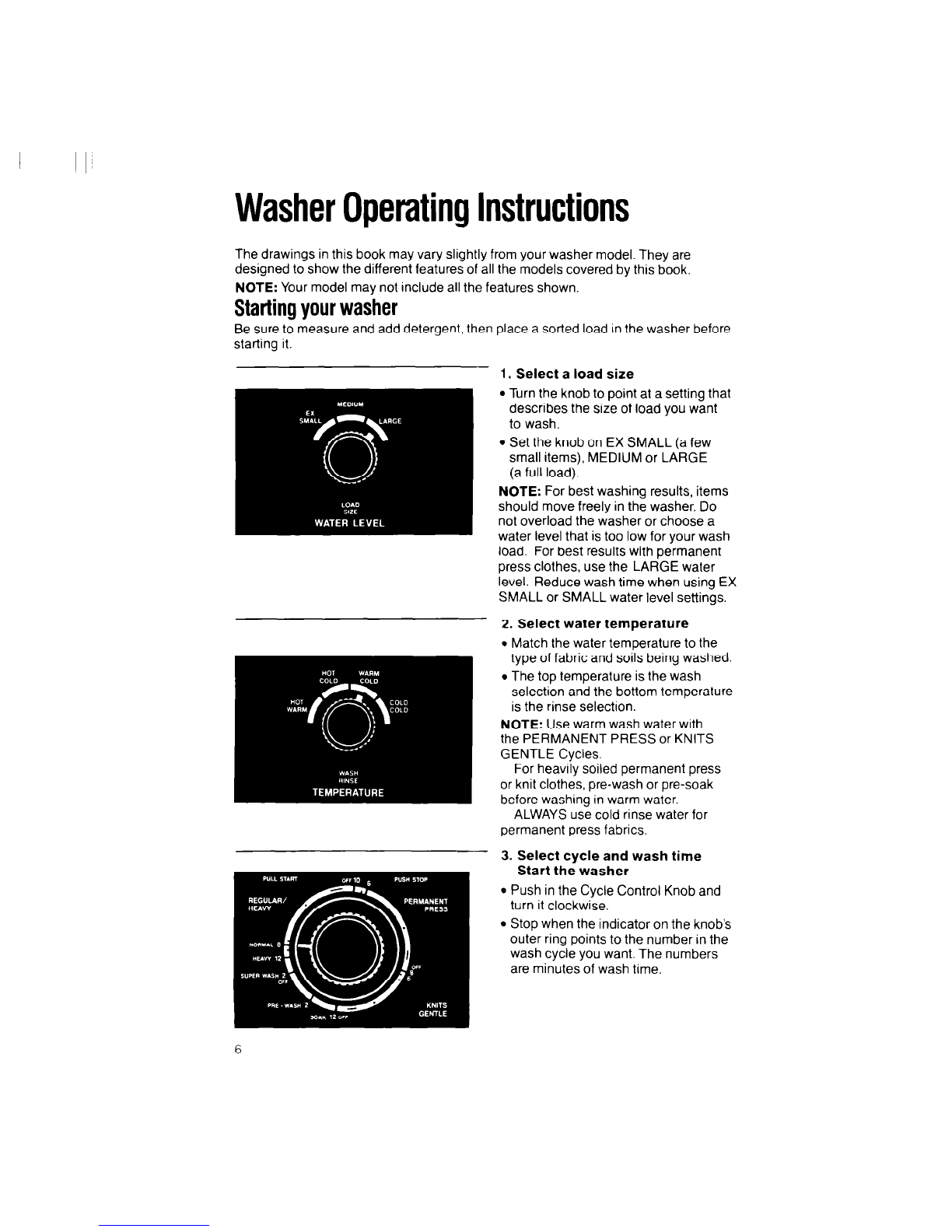

WasherOperatingInstructions

The drawings in this book may vary slightly from your washer model. They are

designed to show the different features of all the models covered by this book,

NOTE: Your model may not include all the features shown.

Startingyourwasher

Be sure to measure and add detergent, then place a sorted load in the washer before

starting it.

load. For best results with permanent

press clothes, use the LARGE water

level. Reduce wash time when using EX

SMALL or SMALL water level settings.

2. Select water temperature

Match the water temperature to the

- 3. Select cycle and wash time

Start the washer by pulling out the

Cycle Control Knob. The washer will

fill to the selected water level with the

selected wash water temperature.

After filling, the washer will agitate

for

the selected number of minutes.

To stop the washer at any time,

push in the Cycle Control Knob. To

restart the washer, pull out the

Cycle Control Knob.

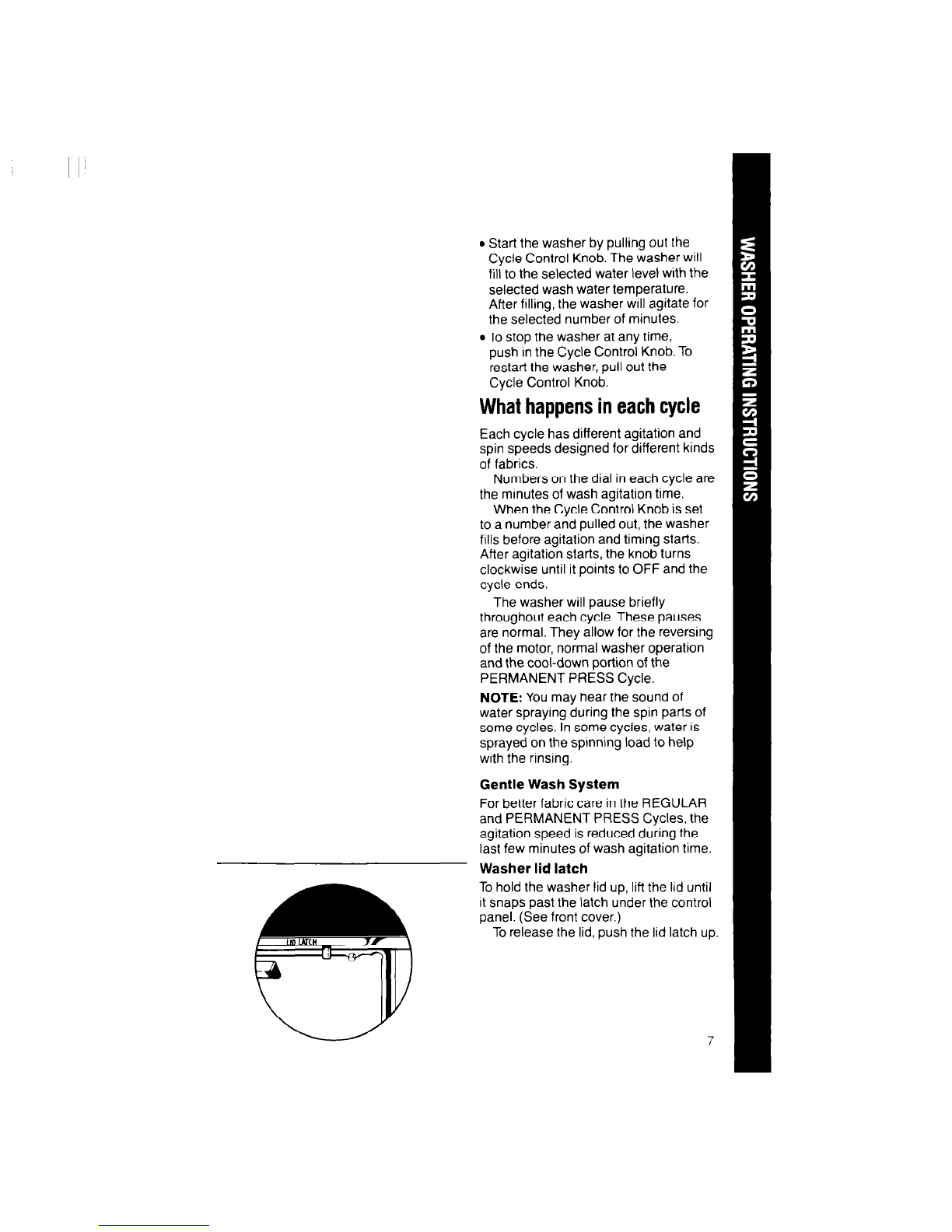

Whathappensineachcycle

Each cycle has different agitation and

spin speeds designed for different kinds

of fabrics.

Numbers on the dial in each cycle are

the minutes of wash agitation time.

When the Cycle Control Knob is set

to a number and pulled out, the washer

fills before agitation and timing starts.

After agitation starts, the knob turns

clockwise until it points to OFF and the

cycle ends.

The washer will pause briefly

throughout each cycle. These pauses

are normal. They allow for the reversing

of the motor, normal washer operation

and the cool-down portion of the

PERMANENT PRESS Cycle.

NOTE: You may hear the sound of

water spraying during the spin parts of

some cycles. In some cycles, water is

sprayed on the spinning load to help

with the rinsing.

Gentle Wash System

For better fabric care in the REGULAR

and PERMANENT PRESS Cycles, the

agitation speed is reduced during the

last few minutes of wash agitation time.

Washer lid latch

To hold the washer lid up, lift the lid until

it snaps past the latch under the control

panel. (See front cover.)

To release the lid, push the lid latch up.

Washer Operating Instructions

Continued

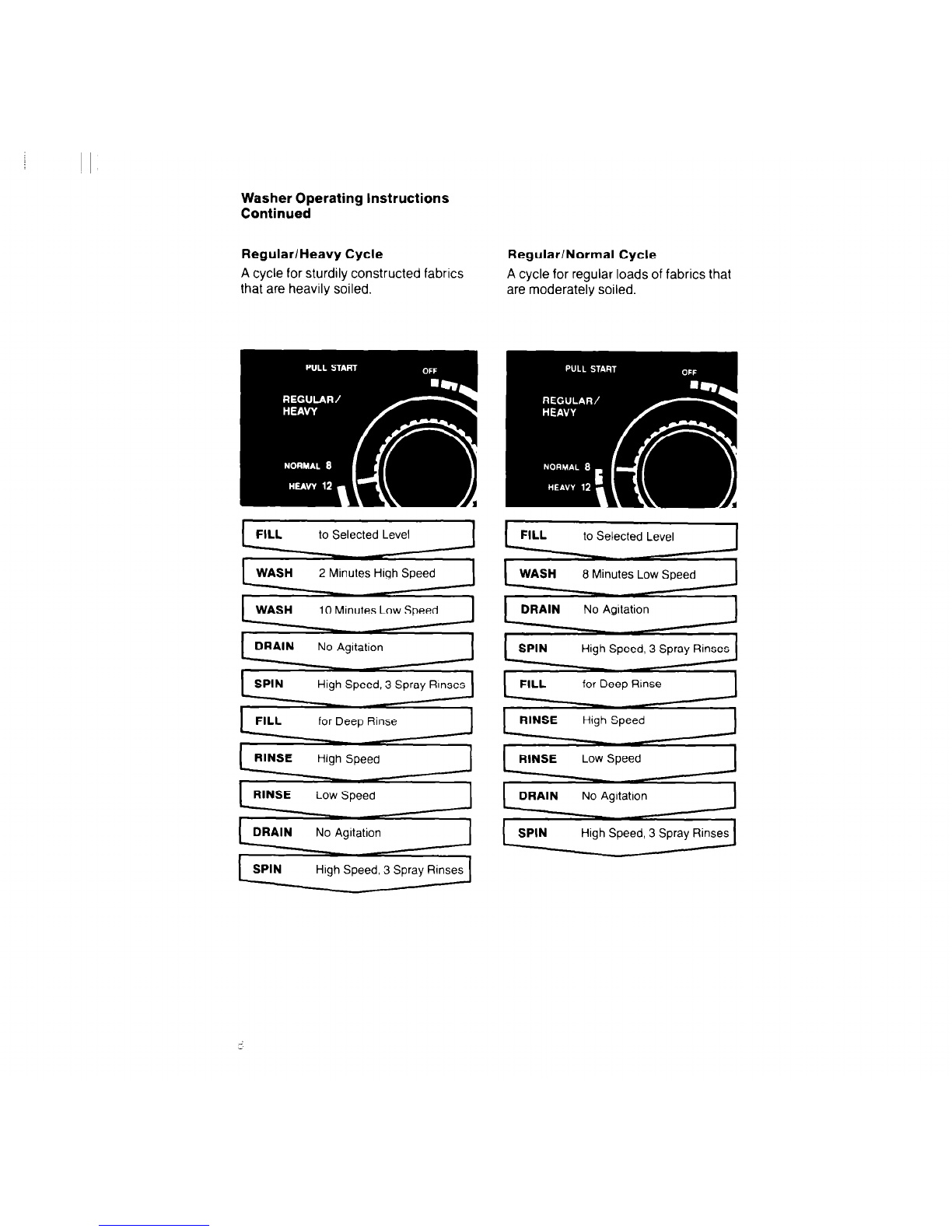

Regular/Heavy Cycle Regular/Normal Cycle

A cycle for sturdily constructed fabrics A cycle for regular loads of fabrics that

that are heavily soiled. are moderately soiled.

to Selected Level

2 Minutes High Speed

10Minutes Low Speed

High Speed, 3 Spray Rinses

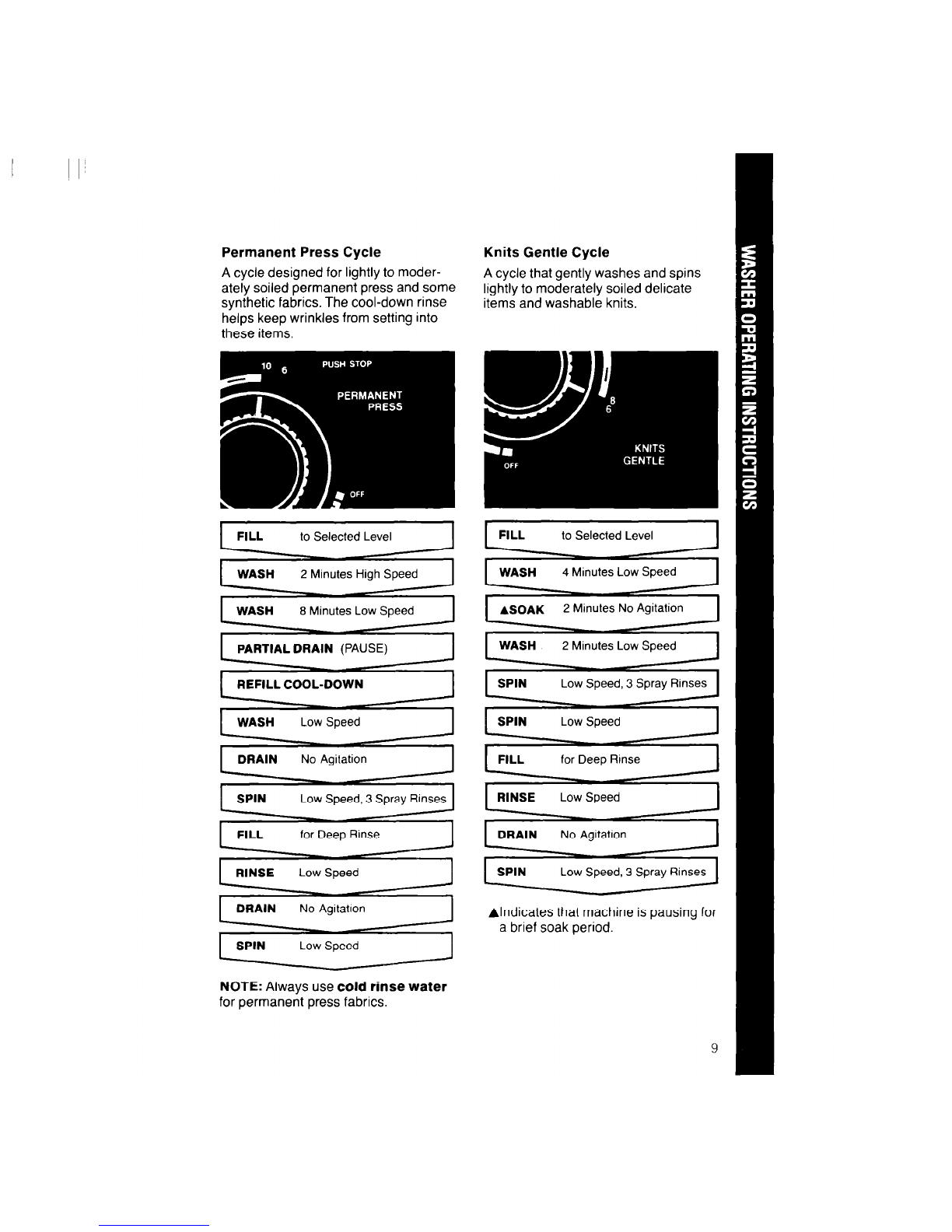

Permanent Press Cycle

A cycle designed for lightly to moder-

ately soiled permanent press and some

synthetic fabrics. The cool-down rinse

helps keep wrinkles from setting into

these items.

Knits Gentle Cycle

A cycle that gently washes and spins

lightly to moderately soiled delicate

items and washable knits.

L COOL-DOWN

NOTE: Always use cold rinse water

for permanent press fabrics.

lo Selected Level

Alndicates that machine is pausing for

a brief soak period.

Washer Operating Instructions

Continued

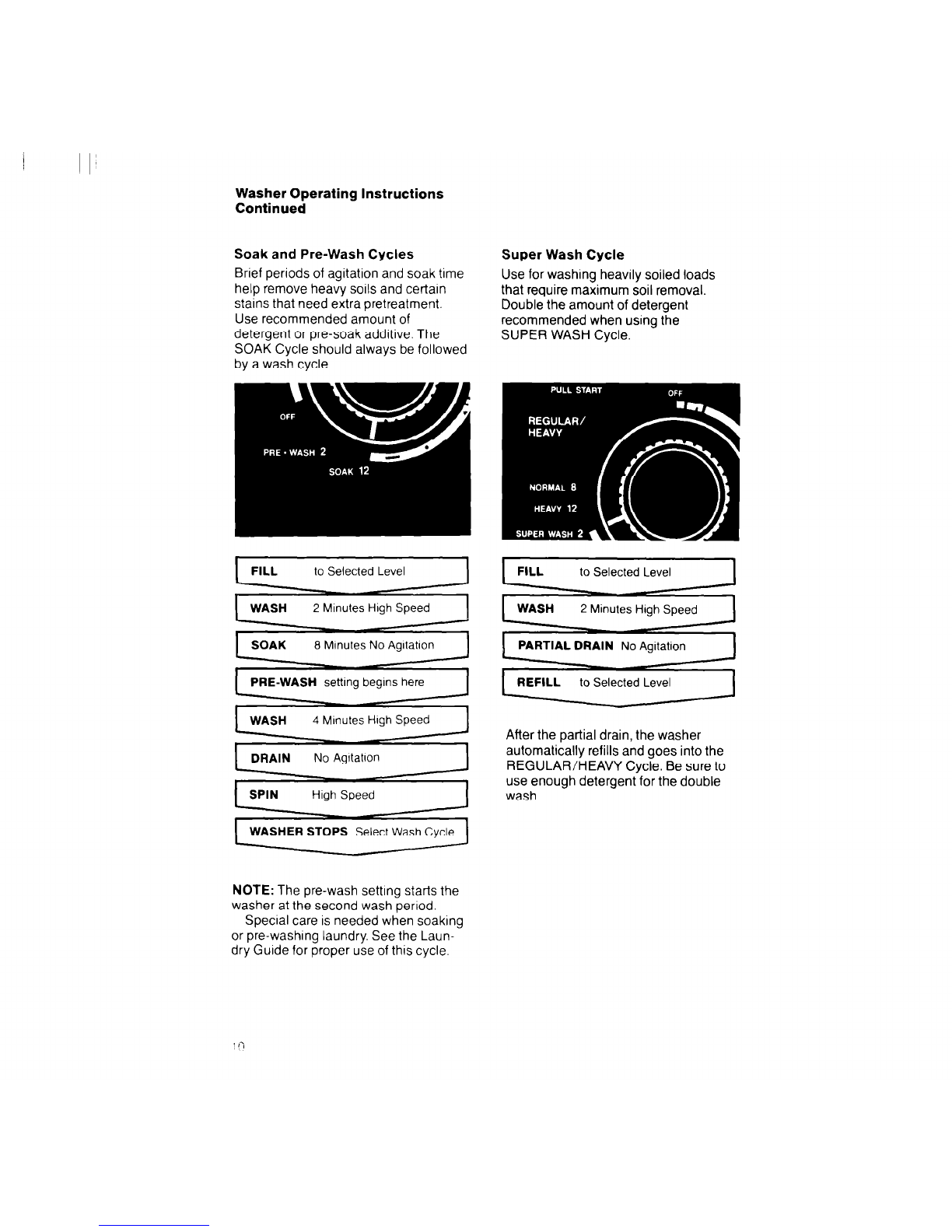

Soak and Pre-Wash Cycles

Brief periods of agitation and soak time

help remove heavy soils and certain

stains that need extra pretreatment.

Use recommended amount of

detergent or pre-soak additive. The

SOAK Cycle should always be followed

by a wash cycle.

Super Wash Cycle

Use for washing heavily soiled loads

that require maximum soil removal.

Double the amount of detergent

recommended when using the

SUPER WASH Cycle.

to Selected Level to Selected Level

to Selected Level

After the partial drain, the washer

automalically refills and goes into the

REGULAR/HEAVY Cycle. Be sure to

use enough detergent for the double

wash.

NOTE: The pre-wash settrng starts the

washer at the second wash period.

Special care is needed when soaking

or pre-washrng laundry. See the Laun-

dry Gurde for proper use of this cycle.

Other manuals for Thin Twin LT5000XV

This manual suits for next models

Table of contents

Other Whirlpool Washer Dryer manuals

Whirlpool

Whirlpool LTG5243DT5 User manual

Whirlpool

Whirlpool 3366869 Installation instructions

Whirlpool

Whirlpool Thin Twin LT7000XV User manual

Whirlpool

Whirlpool LT7004XTm User manual

Whirlpool

Whirlpool LTG5243DQ2 Use and maintenance manual

Whirlpool

Whirlpool Thin Twin LT4900XM User manual

Whirlpool

Whirlpool 3401087 User manual

Whirlpool

Whirlpool LTE5243DQ3 Use and maintenance manual

Whirlpool

Whirlpool Thin Twin LT5000XM User manual

Whirlpool

Whirlpool WET4027EW1 User manual

Whirlpool

Whirlpool WDFB8614AJW User manual

Whirlpool

Whirlpool 3LTE5243BW0 User manual

Whirlpool

Whirlpool AWI75140 User manual

Whirlpool

Whirlpool WNAR75210 Installation and operation manual

Whirlpool

Whirlpool WETLV27FW User manual

Whirlpool

Whirlpool 7MWET4027HW User manual

Whirlpool

Whirlpool YLTE5243DQB User manual

Whirlpool

Whirlpool 3397512 User manual

Whirlpool

Whirlpool 3396315 User manual

Whirlpool

Whirlpool ADVANTECH CL-8 User manual

Whirlpool

Whirlpool THIN TWIN LTE5243BW2 User manual

Whirlpool

Whirlpool FreshCare WFWDC96 User manual

Whirlpool

Whirlpool LTG5243DQ4 Use and maintenance manual

Whirlpool

Whirlpool W10196553A User manual

Popular Washer Dryer manuals by other brands

Bosch

Bosch XQG100-WDU285H00W User manual and installation instructions

montpellier

montpellier MWD7512S Installation and operating instructions

LG FHD0905 T Series owner's manual

Midea

Midea MF200D85B owner's manual

Maytag

Maytag MGT3800XW installation instructions

Siemens

Siemens WD15G440TR Instruction manual and installation instructions

Equator

Equator Clothes Processor EZ1500 owner's manual

Splendide

Splendide WDC7100XCP Specifications

John Lewis

John Lewis JLWD 1408 instruction manual

Ariston

Ariston A1200WD Instruction booklet

ATT

ATT Hammer Jet v1 operating manual

AEG

AEG LAVAMAT 63742 VI Instruction booklet

Electrolux

Electrolux EWW8024P5WB user manual

GE GTD42EASJWH owner's manual

LG F2721HVRB owner's manual

Indesit

Indesit XWDE 751480 Instructions for use

AEG

AEG LWR7195M4B user manual

Beko

Beko WMI 61241 operating instructions
