Whirlpool 3396314 Installation instructions

UseAndCare

A Note to You ......................... 2

Understanding Safety ......... M

Parts and Features of

Your Washer/Dryer.. ............... 6

Operating Your Washer .........7

Starting your washer.. ........ .7

Stoppingkestarting

your washer ........................ 8

Selecting a cycle

and

time .............................. 8

Using Rinse and Spin ........ .9

Using Drain and Spin.. ........ 9

What happens in

each cycle.. .......................

Adding liquid

chlorine bleach.. ................

Adding liquid

fabric softener ...................

Operating Your Dryer.. ......... 12

Starting your dryer ............ 12

Stopping/restarting

your dryer ..........................

Selecting a cycle

and setting ........................ 12

Laundry Tips.. ....................... 16

Caring tar Your

Washer/Dryer ........................ 25

Troubleshooting ................... 29

Requesting Assistance

or Service.. ............................ 33

Warranty ............................... 36

I-800-44-ROPER

Cd ~8 with quodona or comments.

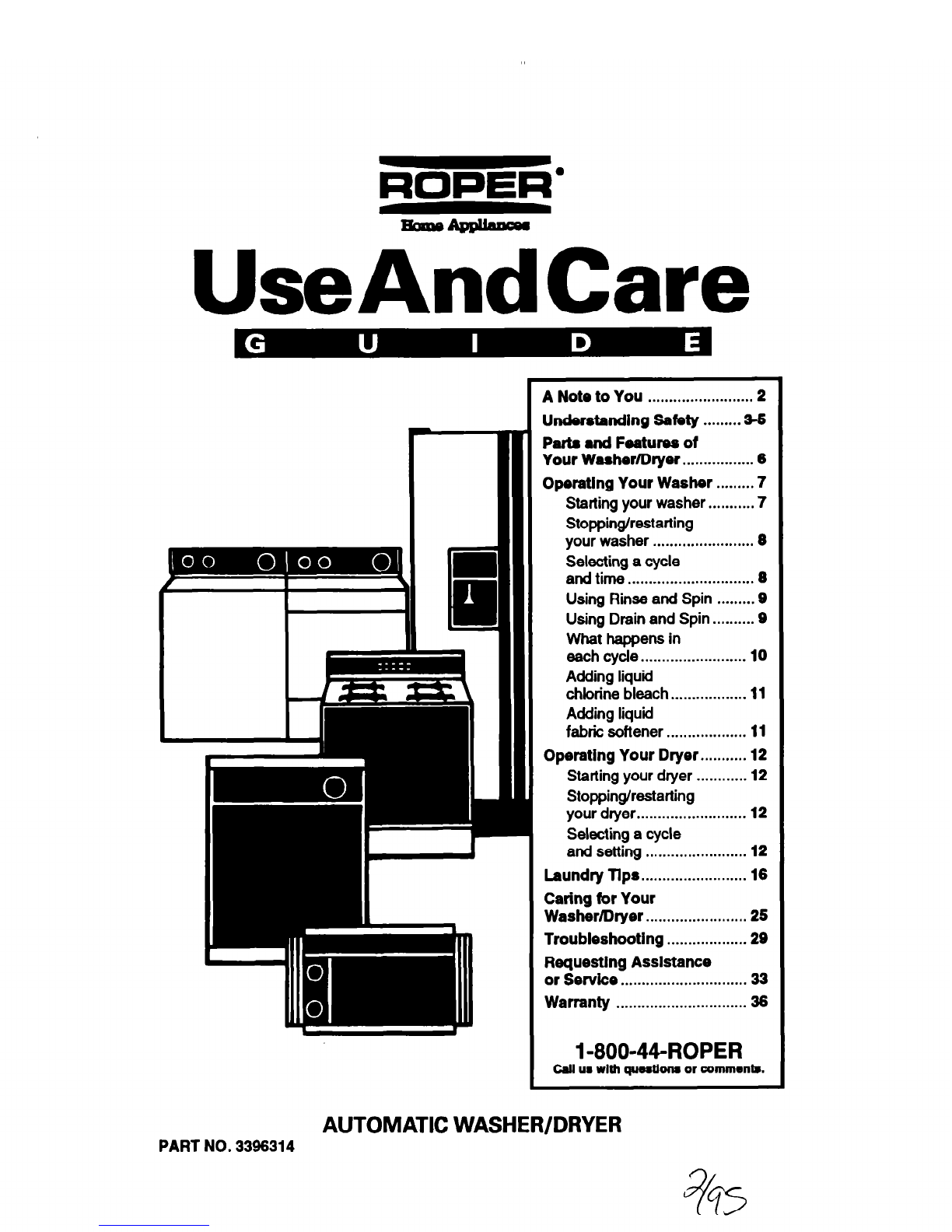

AUTOMATIC WASHER/DRYER

PART NO. 3396314

Note to You

Thank you for buying a Ropee appliance.

Roper appliances give you all the functionality of name brand appliances at a value price. To

ensure you enjoy years of trouble-free operation, we developed this Use and Care Guide. It

contains valuable information about how to operate and maintain your appliance properly and

safely. Please read it carefully. Also, please complete and mail the Ownership Registration

Card provided with your appliance. This card helps us notify you about any new information

on your appliance.

Please record your model’s information.

Whenever you call to request service on

Model Number

your appliance, you need to know your

complete model number and serial number.

Serial Number

You can find this information on the model

Purchase Date

and serial number plate (see diagram on

page 6 for location of label).

Dealer Name

Please also record the purchase date of

your appliance and your dealer’s name,

Dealer Address

address, and telephone number.

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Call our toll-free number

24 hours a day.

I-800-4477-6737 1

Understanding Safety

Your safety is important to us.

This auide contains safetv statements under

wamkg symbols. Please’pay special

attention to these symbols and follow any

instructions given. Here is a brief explana-

tion of the use of the symbol.

This symbol will help alert you to such

IMPORTANT SAFEI-Y INSTRUCTIONS

For your safety, the information in this manual

must be followed to minimize the risk of fire or

explosion, or to prevent property damage,

personal injury, or loss of life.

-Do not store or use gasoline or other flammable vapors and liquids

In the vicinity of this or any other appliance.

-WHAT TO DO IF YOU SMELL GAS:

Do not try to light any appliance.

Do not touch any electrical switch; do not use any phone in your

building.

Clear the room, building, or area of all occupants.

Immediately call your gas supplier from a neighbor’s phone.

Follow the gas supplier’s instructions.

If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer,

service agency, or the gas supplier.

continued on next page

IMPOFWANT SAFEI-Y INSTRUCTIONS

Read all instructions before using your

washer/dryer.

Do not machine wash or machine dry

items cleaned, washed, soaked in, or

spotted with wax, paint, gasoline, oil, dry

cleaning solvents, or other flammable

fluids. The fumes can create a fire

hazard or explosion. Always hand wash

and line dry items containing these

materials.

flammable fluids (dry-cleaning solvents,

kerosene, gasoline, etc.) should not be

used or stored in or near your washer/

dryer. Do not add flammable fluids to

your wash water. These substances give

off vapors that can create a fire hazard

or explosion.

Do not allow children to operate, play

with, or crawl on or inside your washer/

dryer. Supervise children closely when

your washer/dryer is used near them.

Before your washer/dryer is removed

from service or discarded, remove the lid

and door to prevent accidental entrap

ment.

@After starting a cycle, do not reach into

the basket unless the washer Cycle

Control Knob is pushed in and all motion

stops.

.Do not reach into your dryer if the drum

is moving.

Do not dry rubber, rubber-like, or heat-

sensitive materials with heat.

Do not tamper with the controls.

If your hot water has not been used

recently (usually 2 weeks or longer),

hydrogen gases may build up in your

water heater and your hot water pipes.

HYDROGEN GAS IS EXPLOSIVE. To

prevent injury or damage, before using

your washer/dryer, turn on all hot water

faucets and allow water to run for

several minutes. This will allow gases to

escape. Do not smoke or use any open

flame near your faucet while it is open.

Please ...

Have only a qualified person install,

repair, or replace parts on washer/dryer.

Install and level washer/dryer in a well-

ventilated room and on a floor that can

support the weight.*

Connect washer/dryer to the correct

3-prong outlet, electrical supply, water

supply, and drain.*

@Ground washer/dryer properly.*

Protect washer/dryer from the weather

and keep it where the temperature is

above 45°F (7°C).

Maintain washer/dryer properly.

Use only fabric softeners specifically

labeled as not being harmful to the

dryer.

Do not allow lint to build up inside the

dryer or exhaust system. Cleaning

should be done periodically by a

qualified person.

McLean lint screen before or after each

load.

Do not let dust, lint, paper, rags, chemi-

cals, etc. pile up around or under your

washer/dryer.

*See the Installation Instructions.

- SAVE THESE INSTRUCTIONS -

Understanding your responsibilities

. Unplug the power supply cord or turn off

Never operate your washer/dryer if:

electrical power before attempting to

service your washer/dryer. Shut off gas - it is not working right (i.e. noisy, too hot).

valve if you have a gas washer/dryer. - it is damaged.

Do not wash or dry items that are soiled - parts are missing.

with vegetable or cooking oil. These - ail panels are not in place.

items may contain some oil after laun-

dering. Due to the remaining oil, the -the lint screen is loose, damaged, or

fabric may smoke or catch fire by itself. missing.

*Store flammable solvents or fluids away

Be sure that your washer/dryer:

from your washer/dryer. - is properiy connected to fuel and ex-

Dry cleaning solvents or fluids should haust systems (gas dryers must be

never be put directly into your washer/ vented outdoors).’

dryer. - is not installed against draperies or

“Store detergent, laundry aids, and other curtains, or on carpet.’

materials in a cool, dry place where - is used only for jobs normally expected

children cannot reach them (in a locked of a home washer/dryer.

cabinet if possible). - is not used by anyone unable to operate

Read and follow instructions on pack- it ProPeW.

ages of detergent and laundry aids,

especially warnings and precautions.

@Do not use chlorine bleach and ammo-

nia or acids (such as vinegar or rust

remover) in the same wash. Hazardous

fumes can form.

*Unplug power supply cord before

attempting to service your washer/dryer.

*Do not machine wash or dry fiberglass

materials. Small particles can stick to

the fabrics in following loads and cause

skin irritation. *See the Installation instructions.

- SAVE THESE INSTRUCTIONS -

Parts and Features of Your

Washer/Dryer

The parts and features of your washer/dryer are illustrated on this page. Become familiar with

all parts and features before using your washer/dryer. Page references are included next to

some features. Refer to those pages for more information about the features.

Washer controls

(PP. 7-W

Optional

exhaust

(pp. 2526)

Lld

Inrtructlons

Tub

Other features not shown:

Automatic

dryness control

End-ofcycb sign4

Manual cleen lint filter (Inside agitator)

End-of-Cycle signal

The dryer sounds a signal to let you know

when the cycle is finished. The signal is

helpful when you are drying permanent press,

synthetics, and other items that should be

removed from the dryer as soon as it stops.

The signal cannot be adjusted or turned off.

Operating Your Washer

To obtain the best washing results, you must operate your washer properly. This section

gives you this important information. Page references are included for more information.

Starting your washer

1. Add measured detergent to the

washer. Then place a sorted load of

clothes in the washer.

Sort and load clothes as described on

pages 16 and 17.

If desired, you may also add color-safe

all-fabric bleach.

Close the washer lid.

Select a load size.

Turn the Load Size Selector to the setting

that corresponds with the size of the wash

load

and

the type of fabric being washed.

To change the load size setting, move

the Selector to RESET, and then to the

desired new setting.

See pages

and 17 for loading tips.

Select a wash-rinse temperature with

the Water Temperature Selector. Match

the water temperature with the type of

fabrk and soils being washed. See

page 18 for water temperature guidelines.

Four wash-rinse temperatures are

available: hot-cold, warm-warm,

warm-cold, and cold-cold.

Push in and turn the Cycle Control

Knob clockwise. Stop when the indica-

tor on the outer ring points to the

number in the wash cycle you want.

The numbers are minutes of wash time.

The cycles are described on pages 8-10.

Pull out Cycle Control Knob to start

washer.

(OPTIONAL STEP) If desired, add

llquld chlorine bleach AFTER washer

starts agitating. See page

11.

(OPTIONAL STEP) If desired, add

measured and diluted fabric softener

to the final rinse cycle. See

page 11.

Stopping/restarting your washer

If necessary, you can stop your washer

during a cycle to add more clothes.

To stop the washer at any time, push in

the Cycle Control Knob.

To restart the washer, close the lid (if

necessary) and pull out the Cycle

Control Knob.

Selecting a cycle and time

Use the information in this section to help

you make the best cycle selections for your

wash loads. Each cycle is designed for

different types of fabrics and soil levels.

The washer pauses briefly throughout

each cycle. These pauses are normal for

washer operation.

Refer to page 10 to help you understand

what happens during a wash cycle.

Regular cycle

The Regular cycle features the Gentle Wash

system and high spin speeds to shorten

drying time.

Use HEAVY, 12 minutes of wash time, to

clean sturdily-constructed cotton and linen

fabrii that are heavily soiled.

Use NORMAL, 8 minutes of wash time, to

clean cotton and linen fabrics that are

lightly to moderately soiled.

Permanent Press cycle

The Permanent Press cycle features the

Gentle Wash system, a cool-down rinse,

and low spin speeds to reduce wrinkling.

Use 10 minutes of wash time to clean

permanent press and some synthetic

fabrics that are moderately soiled.

Use 6 minutes of wash time to clean

permanent press and some synthetics that

are lightly soiled.

Delicates cycle

The Delicates cycle features a reduced

agitation speed for gentle soil removal. Low

spin speeds reduce wrinkling.

Use 8 minutes of wash time to clean

delicate items and washable knits that are

moderately soiled.

The washer pauses for 2 minutes during

the Delicates cycle.

Soak cycle

The Soak cycle features brief periods of

agitation and soak time to help remove

heavy soils and stains that need pretreat-

ment.

Use warm water when soaking laundry.

(Hot water can set stains.) See pages 20-

22 for stain removal information.

Use the amount of detergent or presoak

additive recommended by manufacturer.

After the 1P-minute Soak cycle ends, add

detergent and set a new wash cycle.

Pre Wash

Pre Wash features a brief period of high

speed agitation to help remove heavy soils

and stains that need pretreatment.

Use warm water for prewashing stained

laundry. (Hot water can set stains.) See

pages 20-22 for stain removal information.

After Pre Wash ends, add detergent and

set a new wash cycle.

Super Wash cycle

The Super Wash cycle automatically pre-

washes the laundry and advances into the

Regular wash cycle. (The washer does not

need to be reset after the Super Wash

cycle.) Use this 1Gminute cycle when

washing heavily soiled loads that need

maximum soil removal.

For proper cleaning, use double the

amount of detergent recommended for a

wash cycle.

NOTE:

The washer pauses between the

Super Wash cycle and the HEAVY part of

the Regular wash cycle. This is normal.

Using Rinse and Spin

When using extra detergent for heavily

soiled clothes, or washing special-care

items, you may want an extra rinse and spin.

Push in Cyck Control Knob and turn

clockwise to RINSE, as illustrated.

2. Pull out Cycle Control Knob. The washer

fills to selected load size, agitates, drains,

and spins.

Using Drain and Spin

A drain and spin may help shorten drying

times for some heavy fabrics or special-care

items by removing excess water.

Push in Cycle Control Knob and turn

clockwise to SPIN, as illustrated.

2. Pull out Cycle Control Knob. The washer

drains and then spins.

What happens in each cycle

When the Cycle Control Knob is set to a

number and pulled out, the washer fills (to

the selected load size) before agitation and

timing start. The washer begins agitating

immediately after filling; agitation can occur

with the washer lid up or down. After agita-

tion starts, the Cycle Control Knob turns

clockwise until it points to OFF and the

cycle ends.

The washer pauses briefly throughout

each cycle. These

pauses are normal for

washer operation.

NOTE:

A Gentle Wash system helps protect

your fabrics by reducing wash agitation

speed during the last few minutes of wash

agitation in the Regular and Permanent

Press cycles.

WASH

4 Fill

kid

Wash’

‘Agitatfon speed is reduced in the lest few

minutes of most cycles. This provides

better fabric care.

Drain (or partial drain*)

No agitation

‘The Permanent Press cyde pattially

drains, fills, agitates brief&, and drains.

l&J

Spin

RINSE

Fill

Rinse

Spin-Spray rinse

l&J

Spin

Table of contents

Other Whirlpool Washer Dryer manuals

Whirlpool

Whirlpool CGT9000GQ User manual

Whirlpool

Whirlpool Combination WASHER / DRYER User manual

Whirlpool

Whirlpool LTG5243DT5 User manual

Whirlpool

Whirlpool 8577199 User manual

Whirlpool

Whirlpool WET4027EW1 User manual

Whirlpool

Whirlpool YLTE6234DQ0 User manual

Whirlpool

Whirlpool Thin Twin LT5004XS User manual

Whirlpool

Whirlpool WWDE 7512 User manual

Whirlpool

Whirlpool WWEB850 Series Installation guide

Whirlpool

Whirlpool FWDD117168W Installation and operation manual

Whirlpool

Whirlpool 3366869 Installation instructions

Whirlpool

Whirlpool LTE5243DQ - Stack Washer Electric Dryer User manual

Whirlpool

Whirlpool THIN TWIN LTE5243D Manual

Whirlpool

Whirlpool W10150624A User manual

Whirlpool

Whirlpool YLTE5243DQ6 User manual

Whirlpool

Whirlpool WWDC9614 Installation and operation manual

Whirlpool

Whirlpool 3406876 User manual

Whirlpool

Whirlpool BWPR75210 User manual

Whirlpool

Whirlpool YLTE5243DQA Installation instructions

Whirlpool

Whirlpool W10376238C - SP User manual

Whirlpool

Whirlpool FWDG96148SBS ZA Installation and operation manual

Whirlpool

Whirlpool 27' User manual

Whirlpool

Whirlpool Thin Twin Four-Wire 240 Volt User manual

Whirlpool

Whirlpool RAB3132D Installation instructions

Popular Washer Dryer manuals by other brands

Bosch

Bosch XQG100-WDU285H00W User manual and installation instructions

montpellier

montpellier MWD7512S Installation and operating instructions

LG FHD0905 T Series owner's manual

Midea

Midea MF200D85B owner's manual

Maytag

Maytag MGT3800XW installation instructions

Siemens

Siemens WD15G440TR Instruction manual and installation instructions

Equator

Equator Clothes Processor EZ1500 owner's manual

Splendide

Splendide WDC7100XCP Specifications

John Lewis

John Lewis JLWD 1408 instruction manual

Ariston

Ariston A1200WD Instruction booklet

ATT

ATT Hammer Jet v1 operating manual

AEG

AEG LAVAMAT 63742 VI Instruction booklet

Electrolux

Electrolux EWW8024P5WB user manual

GE GTD42EASJWH owner's manual

LG F2721HVRB owner's manual

Indesit

Indesit XWDE 751480 Instructions for use

AEG

AEG LWR7195M4B user manual

Beko

Beko WMI 61241 operating instructions
