Whirlpool RH2330XJB0 User manual

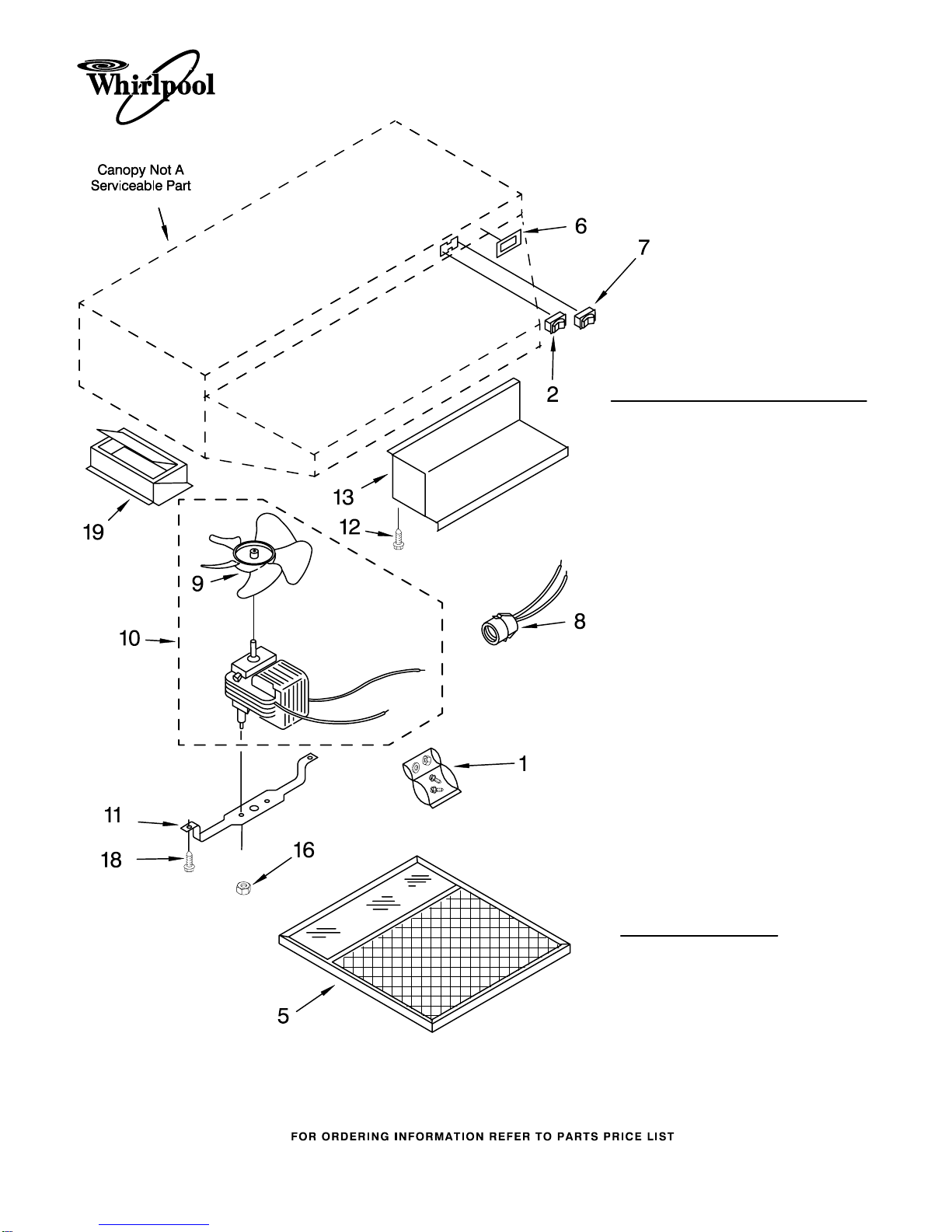

RANGE HOOD PARTS

1

30" RANGE HOOD

(Vented)

(Use with Gas or Electric Range)

Illus. Part

No. No. DESCRIPTION

For Model: RH2330XJQ0, RH2330XJZ0, RH2330XJB0, RH2330XJT0

(Designer White) (Almond) (Black) (Biscuit)

11−00 Litho in U.S.A. (rmb) Part No. 8189633

1 883191 Installation

Hardware

2 Switch, Light

883261 White Model

883203 Black Model

883335 Almond Model

8189515 Biscuit Model

5 883103 Filter, With Lens

6 Nameplate

8189511 White Model

8189512 Almond Model

8189513 Black Model

8189514 Biscuit Model

7 Switch, Fan

883262 White Model

883202 Black Model

883334 Almond Model

8189516 Biscuit Model

8 883094 Light Socket

9 830428 Blade, Fan

10 830757 Motor, 2−Speed

11 883126 Bracket, Motor

12 830465 Screw, 8 x 1/4

13 Cover, wiring

883095 White

883096 Almond

883169 Black

16 883353 Nut, 6−32 (2)

18 883354 Screw,

8−32 x 1/4 (2)

19 830753 Damper

LITERATURE PARTS

LIT830735

Order Blank,

Filter

LIT8284637

Installation

& Operating

Instructions

LIT883345

Wiring Diagram
