Whirlpool GZ7930XHS0 User manual

VENTILATION PARTS

For Models: GZ7930XHS0 And GZ7936XHS0

30" AND 36"

RETRACTABLE DOWN DRAFT

VENT SYSTEM

(INTERNAL VENTING)

8-99 Litho In U.S.A. (rmb) Part No. 4360380

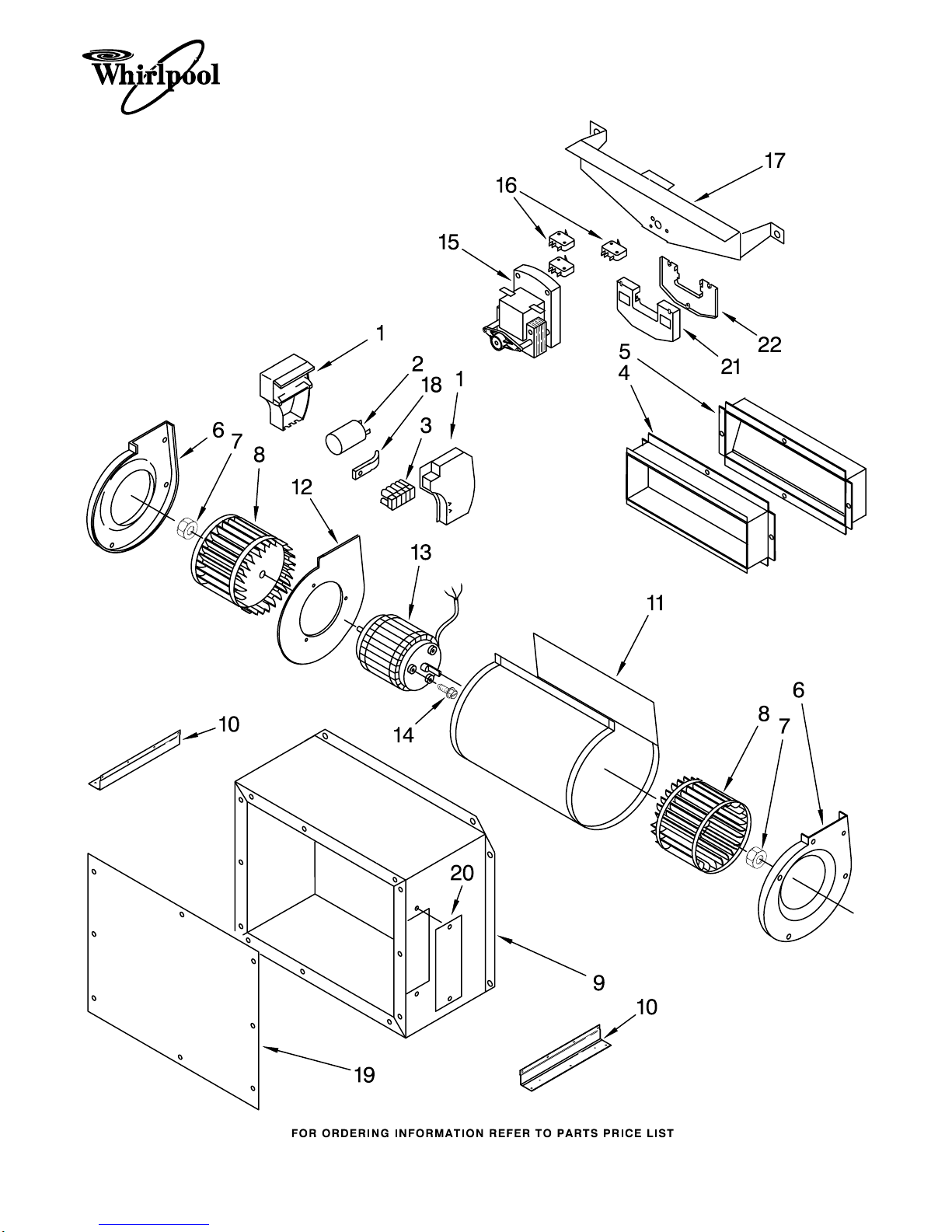

VENTILATION PARTS

For Models: GZ7930XHS0 And GZ7936XHS0

4360380

Illus. Part

No. No. DESCRIPTION

1 Cover, Capacitor

4360060 L.H.

4360056 R.H.

2 4360175 Capacitor

3 4360176 Terminal

4 4360177 Guide, Exhaust

5 4360178 Damper

6 Cover, Blower

4360179 R.H.

4360188 L.H.

7 4360180 Nut

8 Blower Wheel

4360181 R.H.

4360187 L.H.

9 4360182 Box, Blower

10 4360183 Support, Blower (2)

11 4360184 Housing, Blower

12 4360185 Plate, Motor

13 4360212 Motor

14 4360114 Screw

15 4360154 Motor, Gear

16 4360362 Micro Switch (3)

17 4360155 Bracket,

Motor Gear

18 4360059 Bracket, Capacitor

19 4360189 Cover, Blower Box

20 4360190 Cover, Exhaust Outlet

21 4360229 Box, Microswitch

22 4360230 Cover, Box

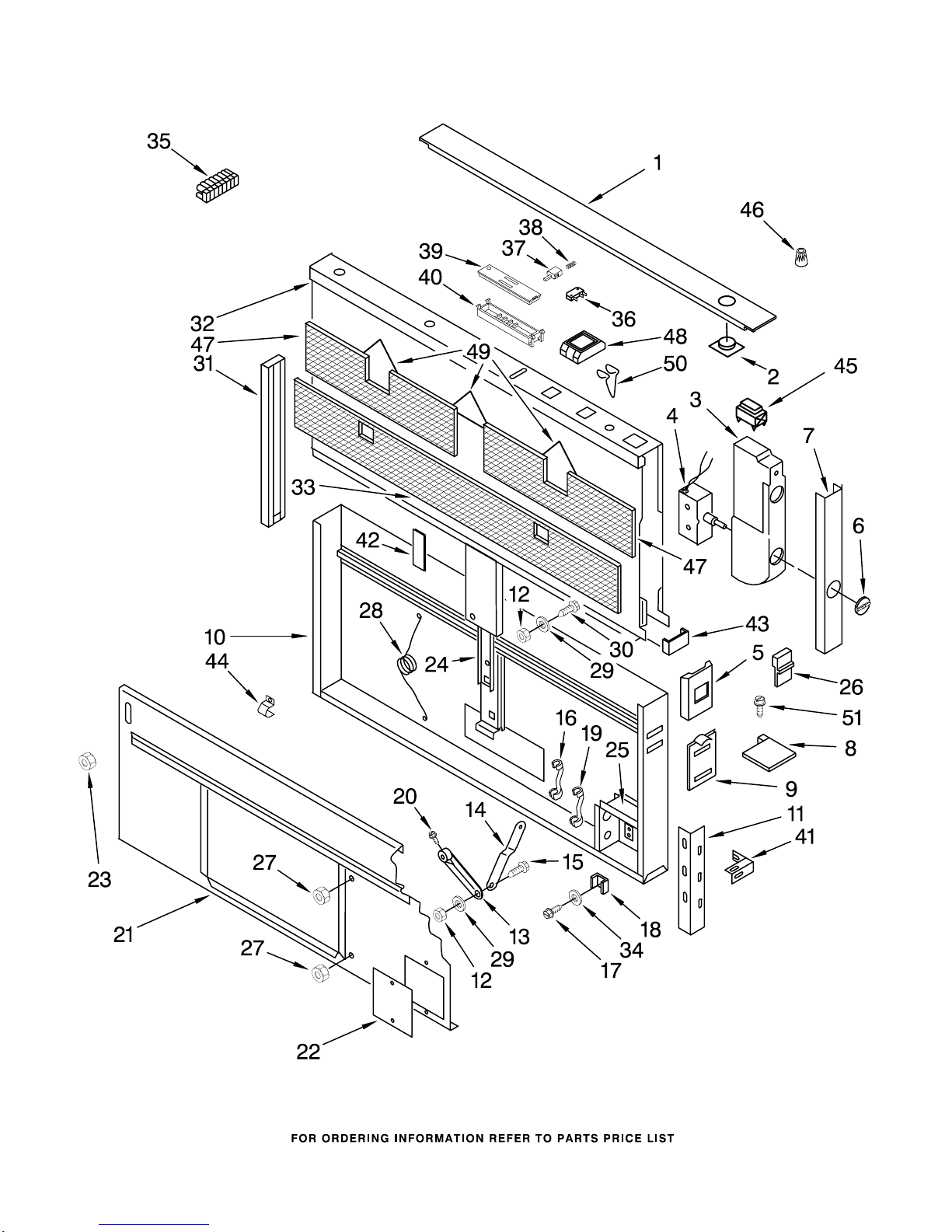

HOUSING AND CONTROL PARTS

For Models: GZ7930XHS0 And GZ7936XHS0

4360380

HOUSING AND CONTROL PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: GZ7930XHS0 And GZ7936XHS0

4360380

1 Cover,

Controls (Top)

4360383 GZ7930XHS0

4360384 GZ7936XHS0

2 4360216 Button, Push

3 4360134 Housing, Switch

4 4360135 Switch, Fan

5 Bracket, Support

4360136 Left Hand

4360387 Right Hand

6 4360217 Knob

7 4360218 Panel, Control

8 End Cap

4360381 Left

4360382 Right

9 4360140 Plate, Support

(Upper) (2)

10 Housing,

Non-Serviceable

11 Bracket, Support

4360141 Lower R.H.

4360170 Lower L.H.

12 4360142 Nut

13 4360143 Arm, Gear Motor

14 4360144 Arm, Cavity

15 4360145 Bolt

16 4360062 Strain Relief

17 4360006 Screw

18 4360146 Grounding, Guide

19 4360147 Strain Relief

20 4360148 Screw, Set

21 Cover, Housing

Non-Serviceable

22 4360149 Cover, Wiring Box

23 4360150 Nut In Guide (2)

24 Guide, Housing

Non-Serviceable

25 4360152 Box, Wiring

26 4360153 Clamp

27 4360156 Nut (2)

28 4360157 Spring

29 4360158 Washer

30 4360159 Bolt

31 4360221 Trim, L.H.

32 Filter Frame

Grease

Non-Serviceable

33 Filter, Grease

4360220 GZ7930XHS0

4360225 GZ7936XHS0

34 4360005 Washer

35 4360165 Terminal

36 4360361 Micro Switch (2)

37 4360166 Actuator,

Micro Switch (2)

38 4360167 Spring (2)

39 4360168 Cover, Switch

40 4360169 Housing, Switch

41 Support

4360171 L.H.

4360172 R.H.

42 4360173 Guide,

Housing (Back)

43 4360174 Spacer, Cavity (2)

44 4360044 Clamp, Cable

45 4360210 Switch

46 4360211 Nut, Wire

47 Filter, Metal

Grease (2)

4360222 GZ7930XHS0

4360226 GZ7936XHS0

48 4360385 Connector (3)

49 4360224 Clamp, Filter (3)

50 4360272 Spring (3)

51 4360386 Screw, Endcap

Following Parts Not Illustrated

and Optional Parts Not Included

4360228 Installation Kit

LITERATURE PARTS

LIT4360363

Installation

Instructions/

Use And Care Guide

OPTIONAL PARTS NOT INCLUDED

883240 Trim Kit-White

(GZ7930XHS0)

883239 Trim Kit-Black

(GZ7930XHS0)

883242 Trim Kit-White

(GZ7936XHS0)

883241 Trim Kit-Black

(GZ7936XHS0)

814380 Kit, Motor Mount
