Whirlpool AKR 675 User manual

SERVICE Whirlpool Europe

Customer Services AKR 675/WH

This documentation is only intended for qualiﬁed technicians who are aware of the respec-

tive safety regulations.

Date: 16.07.1996 Subject to modiﬁcation

Document-No.: 4812 716 10889

Model AKR 675/WH

Version 8578 675 53000 Page

Technical data 2

Spare part list 3

Exploded view 4

Wiring diagram 5

Circuit diagram 6

Service Manual

Cooker hood

AKR 675/WH

SERVICE

16.07.1996 / Page 2 Whirlpool Europe

Doc. No: 4812 716 10889 Customer Service

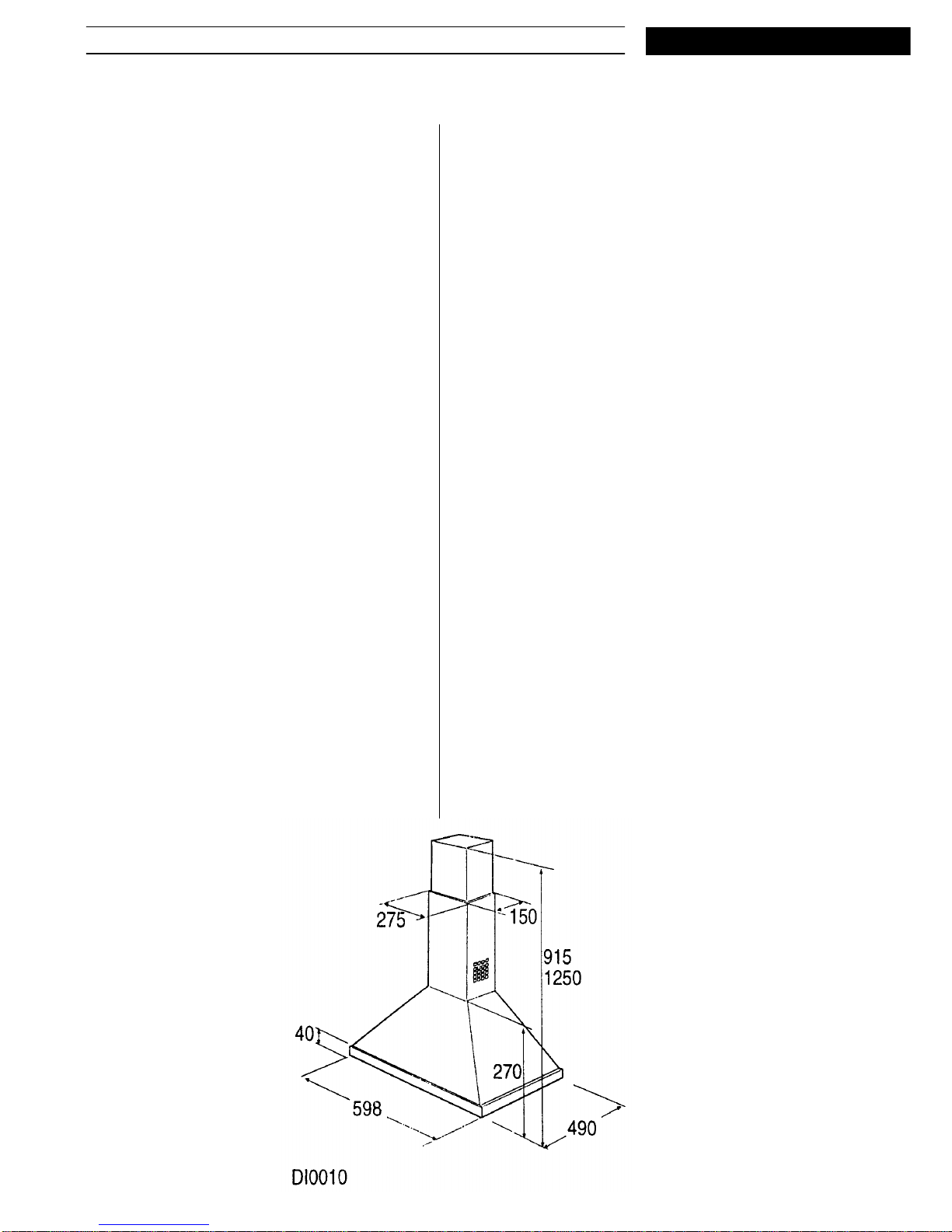

Technical data

Electricity

Voltage 230 V

Frequency 50 Hz

Power

Total 200 W

Fan motor 186 W

Illumination 14 W

Nominal air ﬂow

Speed 1

External exhaustion 194 m3/h

Recirculation 155 m3/h

Speed 2

External exhaustion 312 m3/h

Recirculation 256 m3/h

Speed 3

External exhaustion 417 m3/h

Recirculation 340 m3/h

Intensive Speed

External exhaustion 510 m3/h

Recirculation 420 m3/h

Noise level

Speed 1

External exhaustion 50 dB (A)

Recirculation 51 dB (A)

Speed 2

External exhaustion 61 dB (A)

Recirculation 62 dB (A)

Speed 3

External exhaustion 68 dB (A)

Recirculation 69 dB (A)

Intensive Speed

External exhaustion 71 dB (A)

Recirculation 73 dB (A)

Distance from cooking area

Electric 650 mm

Gas 750 mm

Air exhaust

Flange 120 mm

SERVICE Whirlpool Europe 16.07.1996 / Page 3

Customer Service Doc. No: 4812 716 10889

Spare part list

Model AKR 675/WH

Service No. 857867553000

Version 857867553000

Pos. No. 12NC Code Description from to

001 0 4819 310 88666 Chimney

001 1 4819 310 88667 Chimney

004 0 4812 440 68011 Frame

010 0 4819 459 48423 Frame

025 0 4819 404 78752 Holder

071 0 4819 442 68531 Vapour catcher

251 0 4819 442 28299 Cover frame

251 1 4819 401 18449 Knob

301 0 4819 452 99601 Control panel

301 1 4819 404 79218 Support

332 0 4819 276 18142 Knob,slide

333 0 4819 276 18141 Knob,slide motor

354 1 4819 381 18121 Lens

401 0 4819 361 18352 Motor

420 0 4812 121 18096 Capacitor

422 0 4819 219 88006 Electron.ignit.

493 0 4819 418 79419 Elect.parts box

493 2 4819 462 79917 Cover,conn.bloc

614 0 4819 219 88005 Starter

614 1 4819 255 18161 Holder,lamp

620 0 4819 214 78499 Board,printed

623 0 4819 271 38095 Microswitch

623 1 4819 535 98336 Lever

651 0 4819 134 28032 Lamp,neon

652 0 4819 255 18159 Holder,lamp

652 1 4812 440 68009 Reﬂector F.FLUOR.LAMP

652 1 4819 404 79219 Holder

727 0 4819 515 28263 Fan wheel

727 1 4819 515 28262 Fan wheel

741 0 4819 442 68529 Conveyor

741 1 4819 458 58701 Grid

741 2 4819 458 58699 Grid

741 3 4819 526 48462 Coupling piece

743 0 4819 480 48298 Filter

762 0 4819 480 48156 Filter,grease

762 1 4819 492 68617 Holder

765 0 4819 480 48151 Carbon ﬁlter

902 0 4819 401 18448 Hook

902 1 4819 404 78947 Bracket

945 0 4819 466 88855 Bearing

945 1 4819 418 79421 Support

962 0 4819 462 79918 Cover,conn.bloc

962 1 4819 462 58266 Guard

963 0 4819 462 79631 Cap

SERVICE

16.07.1996 / Page 4 Whirlpool Europe

Doc. No: 4812 716 10889 Customer Service

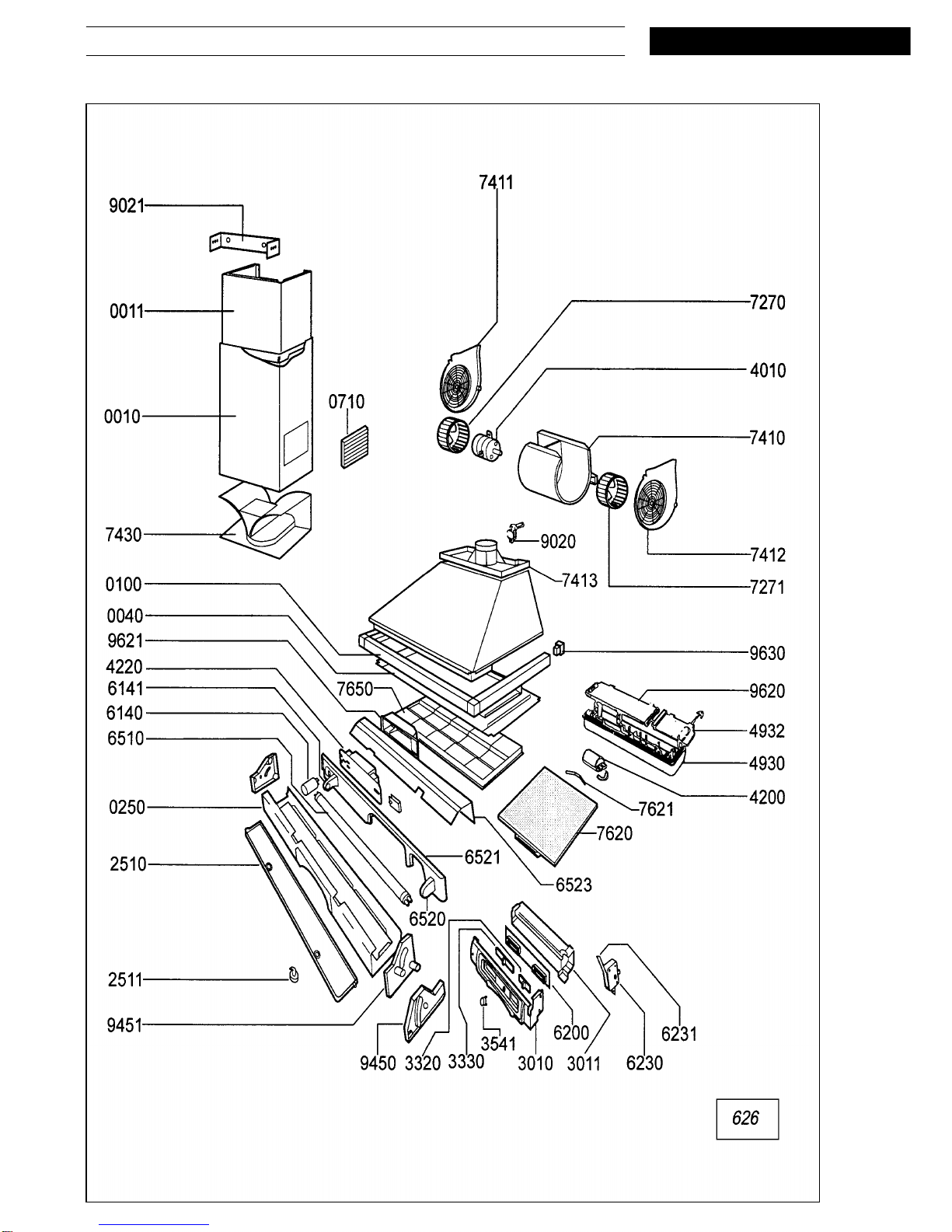

Exploded view

SERVICE Whirlpool Europe 16.07.1996 / Page 5

Customer Service Doc. No: 4812 716 10889

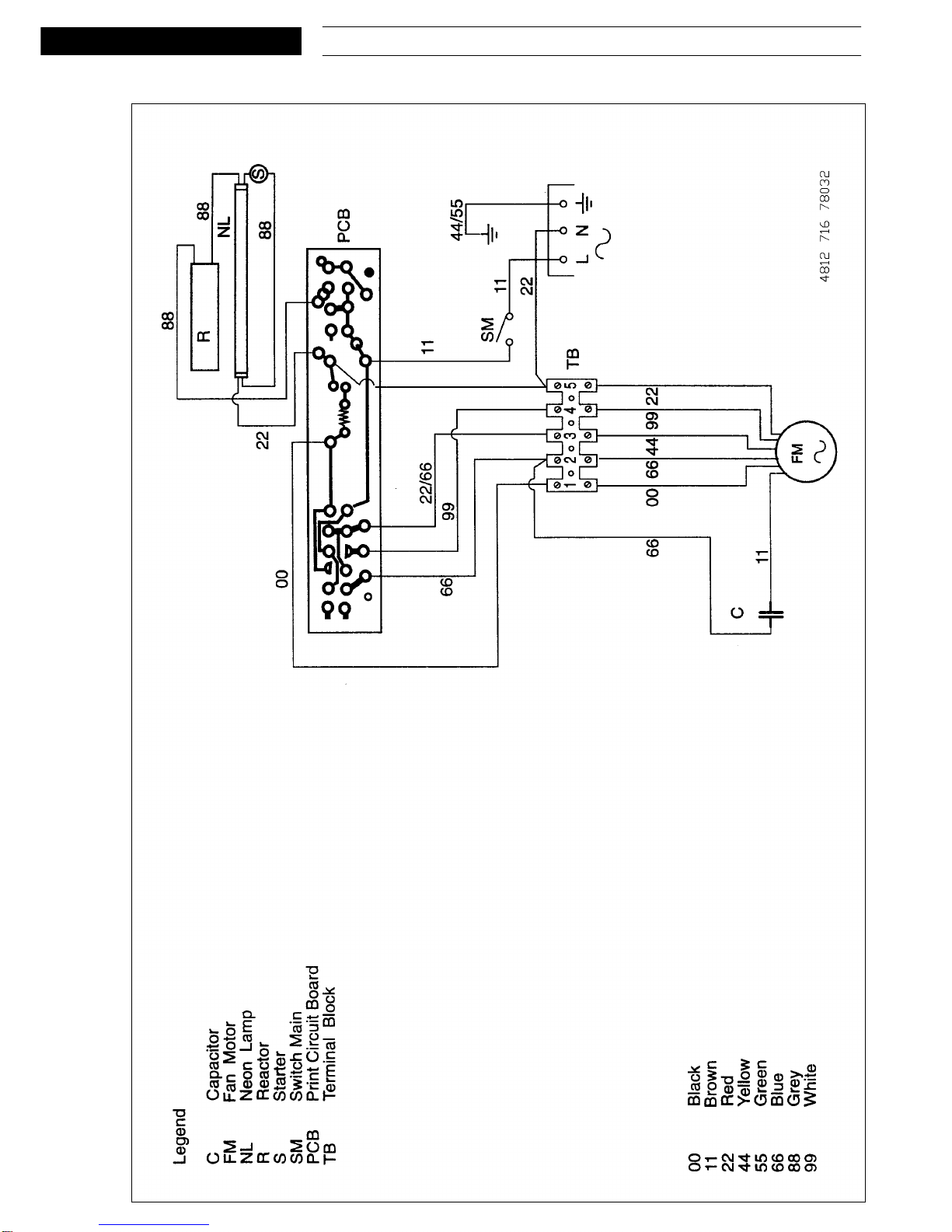

Wiring diagram

SERVICE

16.07.1996 / Page 6 Whirlpool Europe

Doc. No: 4812 716 10889 Customer Service

Circuit diagram
