Whirlpool AKR1912/IXS User manual

INSTRUCTION MANUAL

T- Box Hood

AKR1912/IXS

WHIRLPOOL

Dear Customer,

If you follow the recommendations contained in this Instruction Manual, our

appliance will give you constant high performance and will remain efficient

for many years to come.

CONTENTS

RECOMMENDATIONS AND SUGGESTIONS

CHARACTERISTICS

INSTALLATION & USE

MAINTENANCE

Product Specification & Technical Parameters

Model

AKR1912/IXV

Rated Voltage

220-240V

Rated Power Frequency

50Hz

Light Power

2x20W

Motor Power

320W

Total Power

360W

Maximum suction

1000m3/hr

Diameter of Exhaust Pipe

150mm

Product Dimension (mm) AKR1912/IXV

L 900 x W 480 x H 530-1005

Net Weight AKR1912/IXV

19.5kg

Gross Weight AKR1912/IXV

24kg

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

* The manufacturer will not be held liable for any damages resulting

from incorrect or improper installation.

* Please read this instruction manual before installing and using this

cooker hood. Properly keep this instruction manual in a safe place for

future reference.

* This cooker hood designed to be used in the Ducted Mode or inner

recirculation mode. You can find the charcoal filter in the carton box.

* Only a qualified and trained service technician can undertake the

work of installation and servicing.

* Check that the mains voltage corresponds to the one indicated on

the rating plate fixed inside the hood.

* Check that the domestic power supply guarantees adequate

earthing.

* Do not connect the hood to exhaust ducts carrying combustion

fumes (boilers, fireplaces, etc.)

* If the hood is used in conjunction with non-electrical appliances (e.

g. gas burning appliances), a sufficient degree of ventilation must be

guaranteed in the room in order to prevent the backflow of exhaust

gas. The kitchen must have an opening directly with the open air in

order to guarantee the entry of clean air.

* The minimum distance is 750mm from the cooker hood to a gas

hob, and is 650mm to an electric hob. If the installation instructions

for gas/electric hobs specify a greater distance the same must be

taken into account.

NOTICE: Considering excessive weight, two or more people are

required to install or move this appliance. Failure to do so can cause

physical injuries and damage to the product.

USE

* The cooker hood has been designed only for domestic use to

eliminate kitchen fumes.

* Never use the hood for purposes other than what it has been

designed for.

* Never leave high naked flames under the hood when it is in

operation.

* Adjust the flame intensity to direct it onto the bottom of the pan

only make sure that it does not engulf the pan sides.

* Deep fat fryer must be continuously monitored during use:

overheated oil can burst into flame.

* The hood should not be used by children or person not instructed

on its correct usage.

MAINTENANCE

* Proper maintenance of the Range Hood will assure proper

performance of the unit.

* Disconnect the hood from the main supply before carrying out any

maintenance work.

* Clean and/or replace grease filters after specified period of time.

* Clean the hood using a damp cloth and a neutral liquid detergent.

* DISPOSAL: Do not dispose this product as unsorted municipal

waste. Collection of such waste separately for special treatment is

necessary.

WARNING!!

In certain circumstances electrical appliances may be a danger

hazard.

* Do not check the status of the filters while the cooker hood is

operating.

* Do not touch the light bulbs during/ immediately after appliance

use.

* Do not disconnect the appliance with wet hands.

* Avoid naked flame, as it may damage the filters and a fire hazard.

* Constantly check a frying food to avoid that the overheated oil may

become a fire hazard.

* Disconnect the electrical plug prior to any maintenance.

* Children don’t recognize the risks of electrical appliances.

Therefore use or keep the appliance only under supervision of adults

and out of the reach from children.

* Don’t use this product outdoor.

* This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a

person responsible for their safety. Children should be supervised to

ensure that they do not play with the appliance.

* There shall be adequate ventilation of the room when the range

hood is used at the same time as appliances burning gas or other

fuels.

* There is a fire risk if cleaning is not carried out in accordance with

instructions.

* Do not leave bare flames under the range hood.

* The discharge air must not be discharged into a flue which is used

for exhausting fumes from appliances burning gas or other fuels.

CHARACTERISTICS

DIMENSIONS

COMPONENTS

Ref

Qty

Components

2/3pcs

Grease filter

1pcs

Charcoal filter

1pcs

Hood body

2pcs

steel bolt

3pcs

Cross self-drill bolt

1pcs

Exhaust

1pcs

Exterior chimney

1pcs

Inner chimney

2pcs

Cross discal thread bolt

1pcs

Fixing frame

2pcs

Cross discal bolt-big head

2pcs

Flat rubber band

2pcs

Plastic distensible sleeve

Ref

Qty

Documentations

1pc

Instruction Manual

INSTALLATION & USE

Note 1: Carefully remove the protective film from chimney and front panel

prior to final installation.

Note 2: At least two people will be required to mount the hood.

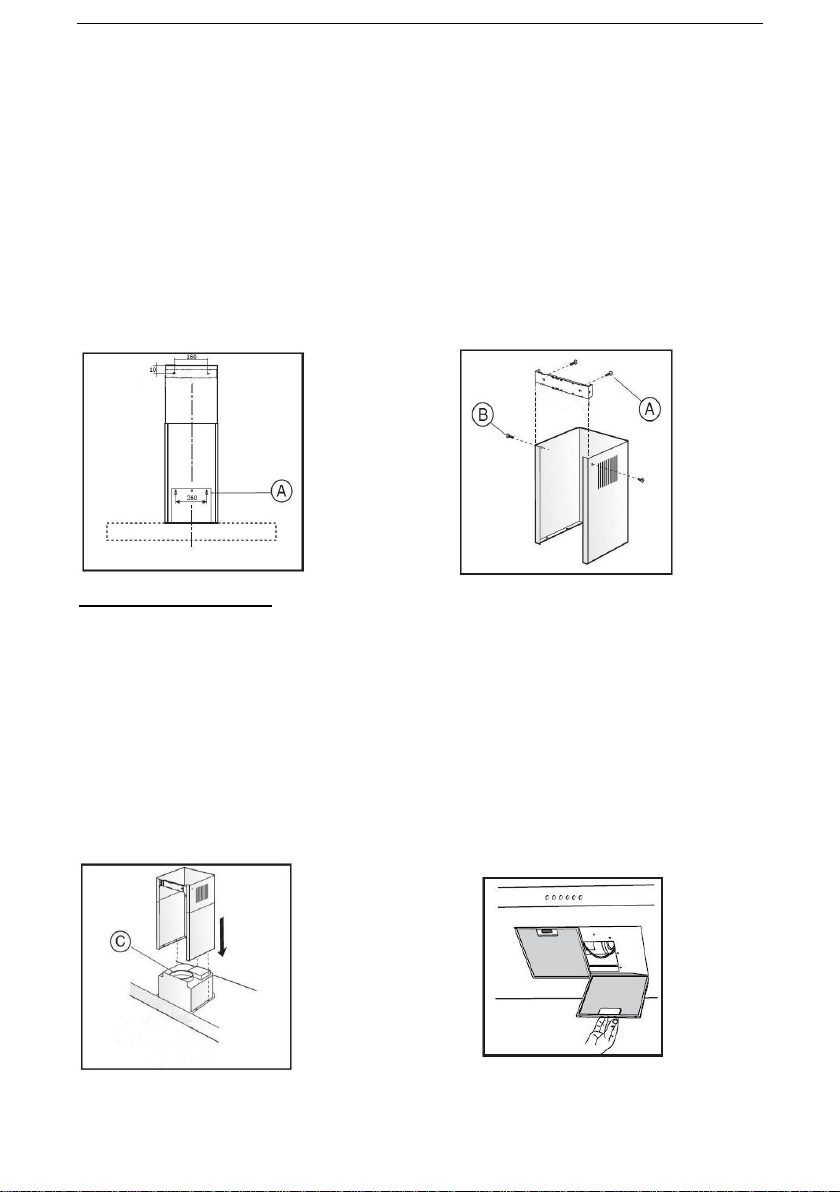

FIXING TO THE WALL

Fig.1

1. Drill the holes according to the distances indicated (Fig.2).

2. Fix the appliance to the wall and align it in horizontal position to

the wall units.

3. When the appliance has been adjusted, fix the hood using the

screws A. For the various installations use screws and screw anchors

suited to the type of wall (e.g. reinforced concrete, plasterboard,

etc.). If the screws and screw anchors are provided with the product,

kindly check the screws are suitable for the type of wall in which the

hood is to be fixed.

Fig.2 Fig.3

Fixing Chimney

1. Arrange the electrical power supply within the dimensions of the

chimney. If your appliance is to be installed in the ducting version or

in the version with external motor, prepare the air exhaust opening.

2. Adjust the width of the support bracket of the exterior chimney

(Fig.3). Then fix it to the ceiling using the screws A (Fig.2) make sure

that it is in line with your hood and respecting the distance from the

ceiling indicated in Fig.2. Connect the flange C to the air exhaust hole

using a connection pipe (Fig.4).

Fig.5

Fig.4

DUCT FIXING

Caution: To reduce the risk of fire, recommend use aluminium ductwork.

1. Attach an adequate length of φ150mm round duct into the recessed

area of the air outlet adapter.

2. The duct has to be secured using two screws from two sides of the air

outlet adapter. Make sure the duct is fixed well on.

DESCRIPTION/CONNECTIONS

Ducted mode air exhaust system

The hood draws the cooking fumes saturated with fumes and odor through

the grease filters and expels it to the outside through an outlet pipe.

Caution: To reduce the risk of fire, use metal

ductwork only.

1. Decide where the ductwork will run

between the hood and the outside.

2. A straight, short duct run will allow the

hood to perform most efficiently.

3. Long duct runs, elbows, and transitions

will reduce the performance of the hood.

Use as few of them as possible. Larger

ducting may be required for best

performance with longer duct runs.

4. Attach an adequate length of φ160mm round duct to the air outlet

adapter. Let the exhaust run for a minimum of 1 meter in Straight line in

between bends / elbows for better efficiency.

5. The air must not be discharge into a flue that is used for exhausting

fumes from appliances burning gas or other fuels" "Regulations

concerning the discharge of air have to be fulfilled.

6. Install a roof/wall cap. Connect round metal ductwork to cap and

work back towards hood location. Use duct tape to seal the joints

between ductwork sections.

Electrical Connection

* Electrical wiring must be done by a qualified person(s) in accordance with

all applicable codes and standards. Turn off electrical power at service

entrance before wiring.

* If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified persons in order to avoid a hazard.

* Do not use the plug and an extension cord other than the ones initially

supplied with the hood.

* The earthing of this hood is compulsory. Do not remove ground prong of

the plug.

OPERATION OF CONTROLS

FUNCTION KEYS:

A= Timer (automatic shut off)

B= Turn on at Speed 1 / adjust / switch off

C= digital display screen (showing timer and speed)

D= Turn on at Speed 3 / adjust / switch off
