Whirlpool ET18NKXDG01 User manual

CABINET PARTS

For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01

(White) (Almond) (Gold)

1−95 Litho In U.S.A. (sak) Part No. 4379678

REFRIGERATOR

CABINET PARTS

For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01

(White) (Almond) (Gold)

4379678

Illus. Part

No. No. DESCRIPTION

1 Cabinet (Not A

Serviceable Part)

2 2157591 Hinge (Top)

3 2166108 Roller−Front (2)

4 489426 Screw

5 489385 Clamp, Tube

(Water Supply Line)

6 489457 Screw

12 549193 Clamp−Cord

13 937360 Cord−Service

15 489423 Screw

16 2163758 Hinge, Center

17 2163757 Shim, Hinge

Center

18 489413 Screw

20 2179829 Hinge Butt

23 2172745 Shim, Bottom

Hinge

24 Fitting, Water Tube

(NOT SERVICED)

27 Hole Plug (6)

2151652 White

2151653 Almond

2151654 Gold

31 2166251 Cover, Valve

35 Corner Filler (2)

2163733 White

2166187 Almond

2166188 Gold

36 Grille

2163889 White

2166133 Almond

2166134 Black

38 487576 Washer

39 1123517 Shim

40 Cover−Hinge

2160403 White

2160404 Almond

2160405 Gold

41 Rail, Center

(NOT SERVICED)

42 Corner Filler,

Grille

2166156 White

2166204 Almond

2166205 Black

43 2166160 Pin, Hinge

44 2179786 Cover, Unit

DOOR PARTS

For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01

(White) (Almond) (Gold)

4379678

DOOR PARTS

For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01

(White) (Almond) (Gold)

4379678

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

Panel

2171269 White

2171270 Almond

2175871 Gold

2 End Cap

9791773 White

9791774 Almond

1101632 Chrome

3 Hole Plug (2)

534927 White

989197 Almond

989879 Gold

4 End Cap, Handle (2)

9791771 White

9791772 Almond

2148503 Chrome

5 Handle Center

2148035 White

2148036 Almond

1106189 Cherry Hill

6 489006 Screw

7 943188 Spacer

8 487909 Screw

9 Door Gasket,

Magnetic

2159057 Mist Beige

10 991259 Tape

12 Cover, Screw

9791769 White

9791770 Almond

981182 Chrome

13 Nameplate

2162781 White Model

2162782 Almond Model

2152334 Gold Model

16 2171040 Trim, Door Shelf

17 489028 Screw

18 2171142 Trim, Door

19 Freezer Door

Panel

2159270 White

2159271 Almond

2175872 Gold

20 Hole Plug

1122653 White

1122654 Almond

1122694 Gold

23 Door Gasket,

Magnetic

2159327 Mist Beige

25 2171140 Trim, Door Shelf

26 2159367 Bracket, Door Stop

27 488921 Screw

28 Hole Plug

844478 White

989196 Almond

989893 Gold

29 2156007 Plug−Trim (4)

30 2156006 Plug−Trim (4)

31 2170950 Compartment Door

33 Handle, F.C.

2171043 White

2171044 Almond

2175873 Cherry Hill

36 Bracket, Door Stop

2159368 White And

Almond Models

2159364 Gold Model

37 2171144 Trim−Door (2)

38 943187 Shim

39 Handle End

9791776 White

9791777 Almond

943184 Chrome

41 2156003 Endcap (4)

42 2171141 Trim, Door

LINER PARTS

For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01

(White) (Almond) (Gold)

4379678

LINER PARTS

For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01

(White) (Almond) (Gold)

4379678

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 531933 Grommet (2)

3 2166181 Gasket, Evaporator

Cover (Side)

4 2176340 Timer, Defrost

5 549512 Thermostat Tube

Barrier

6 941839 Hole Plug

7 2172542 Wire Assy.

Control Box

8 2162085 Socket, Light (2)

9 2172570 Damper, Air

10 2176298 Fan Motor

11 2163777 Fan Blade

12 2179790 Control Box

13 2176345 Thermostat Assembly

(Includes Items

5, 18, & 36)

14 489438 Screw

15 489412 Screw

16 2163818 Cover−Evaporator

17 946059 Light Bulb (2)

18 2163802 Weight, Thermal

19 1108112 Rocker Arm

Switch

20 2163809 Post, Damper

21 2176281 Cover, Air

Diffuser

22 2176296 Knob, Thermostat

23 2172575 Air Tower

24 2176280 Air Diffuser,

Bottom

25 2172679 Freezer Floor

26 2172563 Air Diffuser, Top

27 944759 Cover, Hole

28 1103725 Hole Plug

29 2163827 Bracket,

Fan Motor

30 2166178 Gasket, Evaporator

Cover (Top)

31 2174629 Air Return & Foil

Assembly

32 487996 Cap

33 2174610 Wire Assembly,

Freezer Compartment

34 2176297 Knob, Damper

35 2163810 Bracket,

Damper Knob

36 2172532 Seal, Rear

Thermostat

37 2172594 Gasket, Air

Diffuser

38 2176341 Clip, Defrost Timer

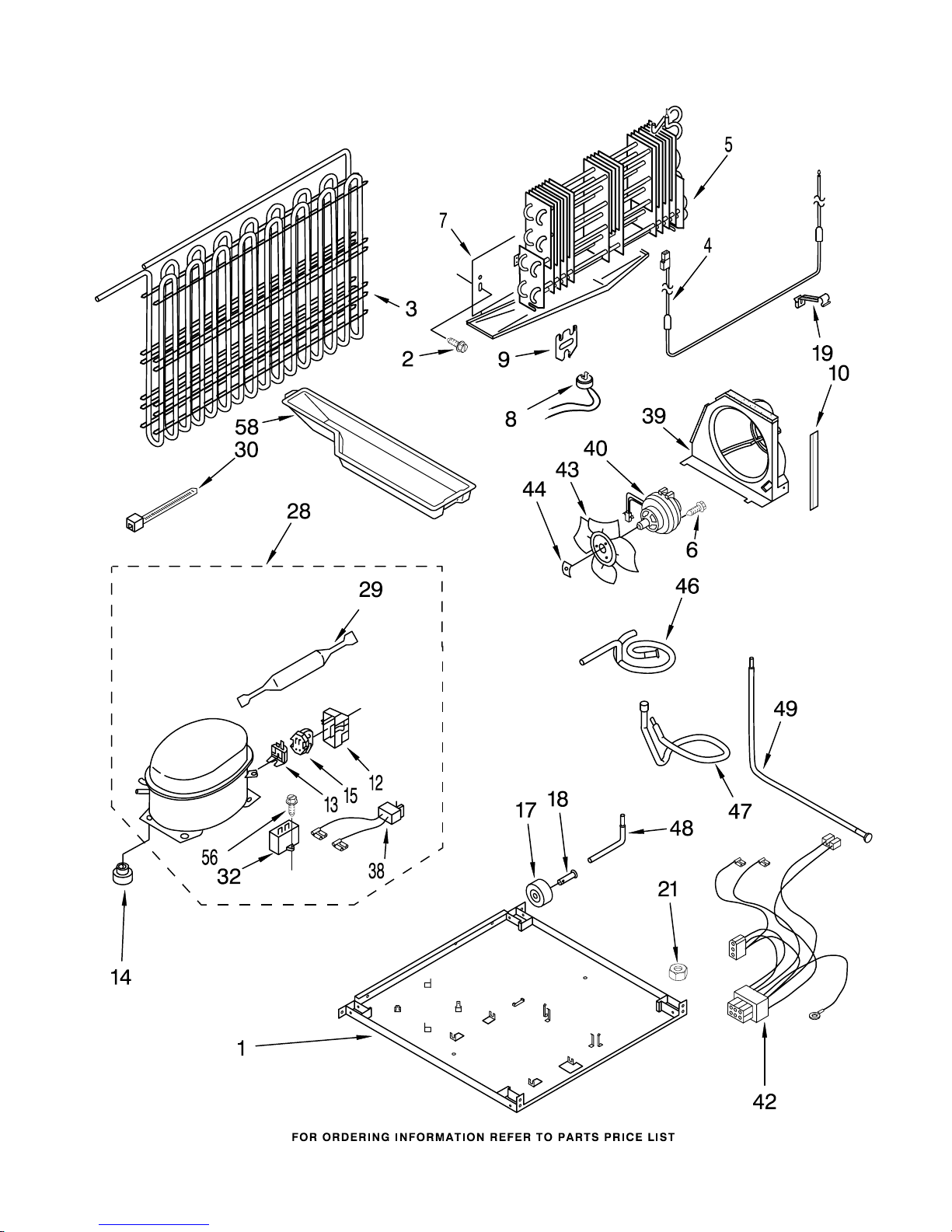

UNIT PARTS

For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01

(White) (Almond) (Gold)

4379678

UNIT PARTS

For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01

(White) (Almond) (Gold)

4379678

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2174620 Plate, Unit

Mounting

2 489242 Screw

3 2172670 Condenser

4 2176300 Heater, Defrost

5 2176337 Evaporator Assy.

6 489414 Screw

7 2172619 Drain Pan

8 2172694 Defrost Bi−Metal

9 2176301 Bracket, Heater

10 2163780 Extension, Air

Baffle

12 2162358 Cover

13 2154759 Overload

(Includes Relay)

14 Grommet (4)

2174621 Production

1100826 Service

15 Relay

(See Overload)

17 2163782 Roller (2)

18 981126 Rivet

19 2166244 Clip, Heater

21 Nut

(Not Serviced)

28 2169441 Compressor

(Includes Items

12, 13, 15, 29,

32, 38 & 56)

(Also Order

482801

Installation Kit

& 876765

Tube Kit)

29 2164409 Drier

30 2155774 Clamp

32 2169137 Capacitor

(Service Only)

38 1127675 Wire Assembly

39 2172697 Air Baffle

40 2166191 Motor, Condenser

42 2176279 Wire Assy. Unit

43 851732 Fan Blade

44 486692 Nut

46 2172660 Tube, Discharge

47 2172662 Tube, Suction

48 2154109 Tube, Process

49 2174670 Tube, Condenser

To Heat Loop

56 487240 Screw

58 2163795 Evap. Tray

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

482278 Start Kit

REFRIGERANT CHARGE

4.0 Ozs.

(R134A)

SHELF PARTS

For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01

(White) (Almond) (Gold)

4379678

Illus. Part

No. No. DESCRIPTION

1 841180 Ice Tray (2)

2 2166147 Shelf (2)

3 2174664 Cover, Crisper

4 2170954 Crisper Pan

6 2172541 Support, Crisper

Cover

7 2163835 Track, Crisper

8 2176275 Shelf

9 2170955 Crisper Pan

10 2166149 Insert

14 2170956 Meat Pan

15 2163848 Cover, Meat Pan

LITERATURE AND OPTIONAL PARTS

For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01

(White) (Almond) (Gold)

4379678

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

Miscellaneous

978941 Insulation,

Fiberglass

(63−1/2" x 35−1/2"

x 2−5/8")

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4" x 108")

876305 Kit, Insulation

(14 Pcs.

3" x 24" x 48")

876370 Kit, Insulation

(2 Pcs.

3" x 24 " x 48")

876029 Kit, Foam Slab

(30" x 32−1/2" x

1−1/2")

505587 Sealer, Mastic

(1 Qt.)

511873 Touch−Up, White

Porcelain (2 Oz.)

542638 Grease, Silicone

(1/2 Oz.)

542639 Cement,

Alumilastic

(1−1/4 Oz.)

606755 Bag, Insulation

(36−5/8" x 46")

799833 Kit, Evaporator

Repair

(Aluminum Epoxy)

799832 Kit, Porcelain

Repair (White)

503695 Cork Sealer

(1/4 Pound)

2172516 Door Reversal

Instructions

Customer Touch−Up Material

350942 Primer, White

(13 Oz. Spray Can)

350939 Enamel, Black

(13 Oz. Spray Can)

350930 Enamel, White

(13 Oz. Spray Can)

350956 Enamel, Almond

(13 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

72107 Brush Touch−Up Kit

(Almond)

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

978883 Enamel, Almond

(1 Qt. Uncut)

833938 Kit, Terminal

Connector

Caution: The Spray Paint Is Not

To Be Used Where The Paint

May Make Contact With The

Door Gaskets

LITERATURE PARTS

LIT2172667 Service &

Wiring Sheet

LIT2172665 Energy Label

LIT2175930 Use & Care Guide

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677969 Do−It−Yourself

Manual Ref./Fzr.

LIT677971 Do−It−Yourself

Manual, Icemaker

FIELD INSTALLABLE

ICE MAKER

ECKMF94

TORX SCREW WRENCH

1117510 Torx Key
