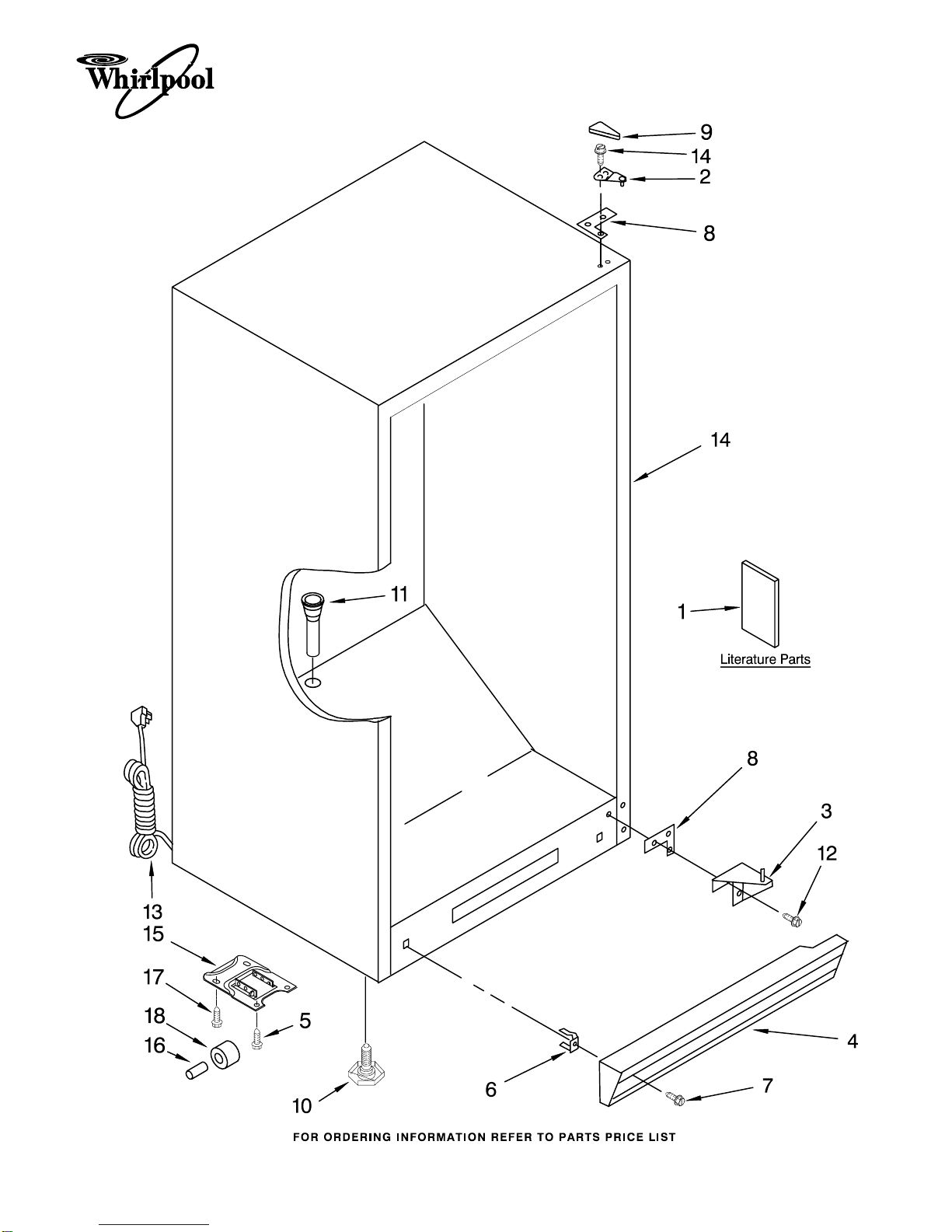

CABINET PARTS
1
For Models: EL8ATRRRQ05, EL8ATRRRS05
(White) (Stainless Steel)
4−08 Litho in U.S.A. (wam)(bay) Part No. W10204911 Rev. A
REFRIGERATOR
CABINET PARTS
2
For Models: EL8ATRRRQ05, EL8ATRRRS05
(White) (Stainless Steel)
W10204911
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8210433 Owners Manual
8210378 Energy Guide/Tag
2 Top Hinge
8210222 White
8210251 Black
3 Bottom Hinge
8210223 White
8210235 Black
4 Grille
(Includes 6 & 7)
8210290 White
8210294 Black
5 4357277 Screw
6 4356803 Clip, Grille
7 4357243 Screw
8210262 Black
8 4390489 Shim, Hinge
9 Cover, Hinge
4357279 White
4390763 Black
10
W10177675
Leg, Leveler
11
W10164544
Grommet, Drain
12 4356830 Screw
13 8210302 Power Cord
14 Cabinet (Not A
Serviceable Part)
15 8210265 Bracket, Roller
16 8210211 Axle
17 8210266 Screw
18 8210210 Roller, Front
LINER PARTS
3
For Models: EL8ATRRRQ05, EL8ATRRRS05
(White) (Stainless Steel)
W10204911
LINER PARTS
4
For Models: EL8ATRRRQ05, EL8ATRRRS05
(White) (Stainless Steel)
W10204911
Illus. Part
No. No. DESCRIPTION
1 8210342 Pan, Crisper
2 4390770 Shelf, Crisper
(Upper)
3 4390772 Shelf, Crisper
(Lower)
4 4390773 Channel,
Crisper Cover
5 4390766 Thermostat
6 4357292 Knob, Thermostat
7 4357124 Timer, Defrost
8 8210350 Lamp, Socket
9 4390465 Bulb
10 4390743 Light Shield
11 4357041 Plate,
Thermostat
12 4357042 Screw
13 4390513 Light, Switch
14 4357295 Vent Plug
15 4390768 Shelf, Middle
16 4390767 Shelf, Top
17 8210236 Pan, Crisper
(Upper)
18 4356849 Screw
19
W10135693
Bracket, Light
20 4390773 Support,
Crisper Cover
21 4390775 Egg Bin
DOOR PARTS
5
For Models: EL8ATRRRQ05, EL8ATRRRS05
(White) (Stainless Steel)
W10204911
DOOR PARTS
6
For Models: EL8ATRRRQ05, EL8ATRRRS05
(White) (Stainless Steel)
W10204911
Illus. Part
No. No. DESCRIPTION
1 Exterior Door
(Includes
Interior liner)
8210359 White
8210414 Stainless Steel
2 Stop, Door
8210401 White
8210402 Black
3 Gasket
8210338 White
8210343 Black
4
W10179592
Bin, Door
5 8210379 Rail, Door
(Lower)
6 8210381 Housing, Dairy
Compartment
7 Stop, Door
(Bottom)
8210400 Natural
8 489491 Screw
9 2255121 Nameplate
10 Handle
2313345W White
2313345B Black
11 4357067 Vent Plug
12 8210382 Door,
Compartment
13 2255411 Clip, Handle
UNIT PARTS
7
For Models: EL8ATRRRQ05, EL8ATRRRS05
(White) (Stainless Steel)
W10204911
UNIT PARTS
8
For Models: EL8ATRRRQ05, EL8ATRRRS05
(White) (Stainless Steel)
W10204911
Illus. Part
No. No. DESCRIPTION
1 4390662 Cover, Evaporator
2 4390782 Evaporator
3 4357004 Fan Motor
4 4356920 Fan Blade
5 4356923 Heater Defrost
6 4357123 Plate, Evaporator
Mount
7 4390932 Drain Pan
8 Gasket, Cover
Evaporator
4390663 Right
4390664 Left
9 4390783 Bi−Metal Defrost
10 8210239 Capacitor
11 4357129 Bracket, Motor
12 4356943 Screw, Motor
13 4357110 Screw
14 8210240 Compressor
(Includes Items
15,16,17 & 19)
15 4356738 Relay
16 4357299 Drier
17 8210242 Cover
18 8210261 Foam Block
19 8210241 Overload
20 4356846 Sleeve
21 4356335 Grommet,
Compressor
22 4356847 Washer
23 8210220 Screw, Compressor
24
W10204910
Condenser
25 4357245 Heat, Exchanger
26 Compressor Pan
4390753 White
8210202 Black
27 4356952 Thermostat, Clip
28 4390821 Screw
29 4356970 Screw
30 4357277 Screw
31 8210301 Harness, Unit
32 4390754 Roller
33 8210211 Axle
34 4356924 Shield, Heater
35 4357020 Grommet
36 4357128 Shield, Motor
REFRIGERANT CHARGE
4.107 oz.
(R−134A)
OPTIONAL PARTS (NOT INCLUDED)
9
For Models: EL8ATRRRQ05, EL8ATRRRS05
(White) (Stainless Steel)
W10204911
Illus. Part
No. No. DESCRIPTION
Customer Touch−Up Material
350930 Enamel, White
(13 Oz. Spray Can)
72017 Brush Touch−Up Kit
(White)
Important: The spray paint is
not to be used where the paint
may make contact with the door
gaskets.
Refinishing Material
799344 Enamel, White
(1 Qt. Uncut)
Miscellaneous
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4 x 108")
978941 Insulation
Fiberglass
(63−1/2" x 35−1/2
x 2−5/8")
505587 Sealer Mastic
(1 Qt.)
503695 Cork Sealer
(1/4 Pound)
