Whirlpool ER2MHKXPL00 User manual

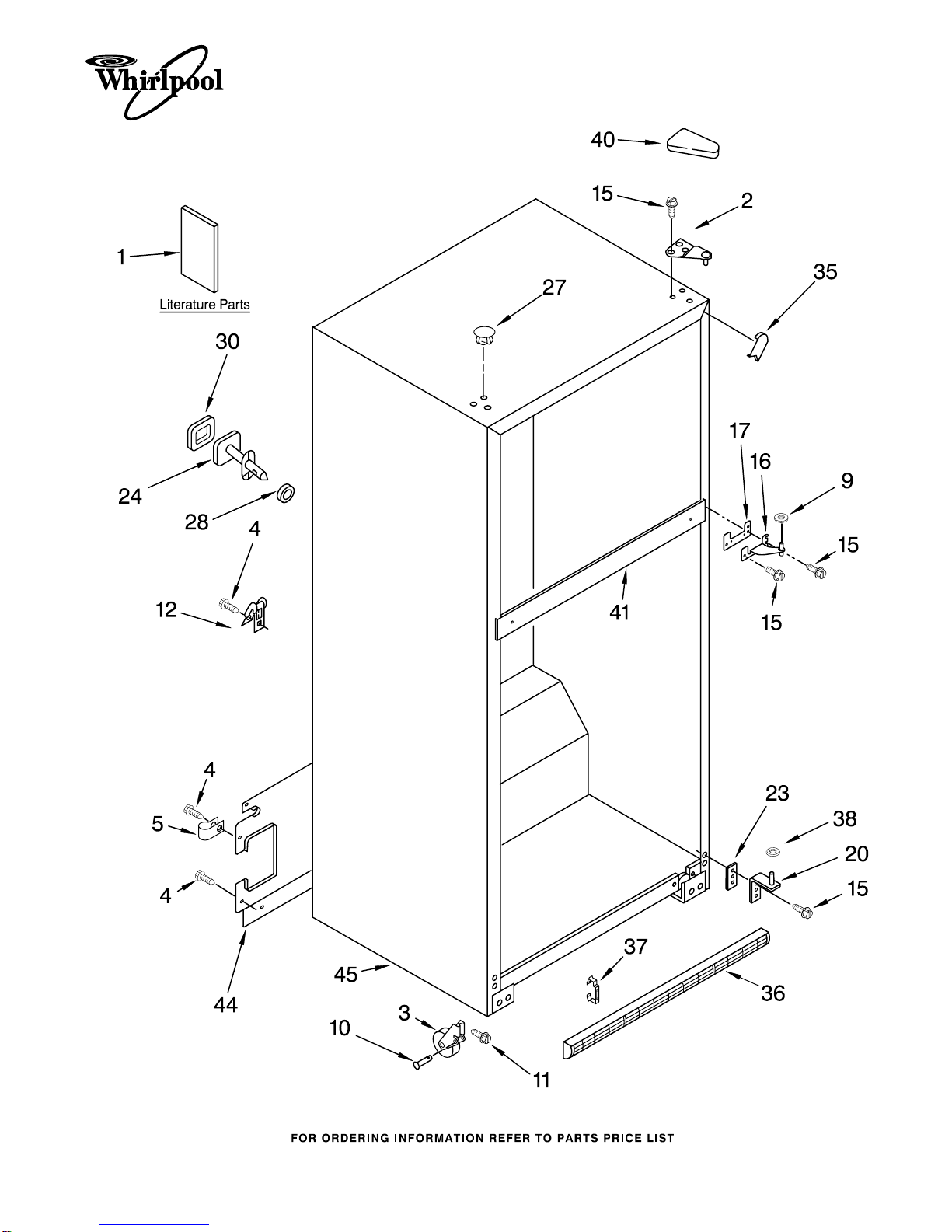

CABINET PARTS

For Models: ER2MHKXPL00

(Stainless−VCM)

4−04 Litho In U.S.A. (ebk) Part No. 8199011

REFRIGERATOR

CABINET PARTS

For Models: ER2MHKXPL00

(Stainless−VCM)

8199011

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2225759 Service &

Wiring Sheet

2302166 Energy Label

2302037 Use & Care Guide

2225413 Customer

Instructions

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677969 Do−It−Yourself

Manual, Ref./Fzr.

2 2189410 Hinge (Top)

3 2166108 Roller, Front (2)

4 489464 Screw, 8−18 x 1/2

5 489385 Clamp, Tube

(Water Supply Line)

9 489341 Washer

10 2179826 Rivet

11 3400504 Screw

12 549193 Clamp, Cord

15 489497 Screw

16 2183972 Hinge, Center

17 2183854 Shim, Hinge

Center

20 2189194 Hinge Butt

23 2172743 Shim, Bottom

Hinge

24 Fitting, Water Tube

(Not Serviced)

27 Hole Plug (6)

2183998 Black

28 Seal, Front

(Not Serviced)

30 Seal, Rear

(Not Serviced)

35 Corner Filler (2)

2201017 Black

36 Grille

2254315 Black

37 2189356 Clip, Grille

38 487576 Washer

40 Cover, Hinge

2213363 Black

41 Rail, Center

(Not Serviced)

44 2253196 Cover, Unit

45 Cabinet (Not a

Serviceable Part)

DOOR PARTS

For Models: ER2MHKXPL00

(Stainless−VCM)

8199011

DOOR PARTS

For Models: ER2MHKXPL00

(Stainless−VCM)

8199011

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #9 & #22)

2218505 Stainless−VCM

2 2195388 Tray, Door

3 2204840 Hole Plug, Endcap

5 Endcap Handle (RC)

2221644 Black

6 489276 Screw

9 2202882 Door Gasket,

Magnetic

11 2210566 Housing

Compartment

13 2262218 Nameplate

16 2159306 Trim, Door Shelf

19 Freezer Door

(Includes #22 & #23)

2218508 Stainless−VCM

22 2183003 Thimble

23 2214969 Door Gasket,

Magnetic

25 2204813 Bin, Door Shelf

26 2189202 Bracket, Door

Stop (2)

28 Hole Plug

2212651 Black

29 2177340 Plug, Trim

30 2156006 Plug, Trim

31 2218109 Compartment Door

33 Endcap Handle (FC)

2225108 Black

37 2195947 Trim, Door (2)

41 2195916 Endcap, Trim (4)

42 2195948 Trim, Door

LINER PARTS

For Models: ER2MHKXPL00

(Stainless−VCM)

8199011

LINER PARTS

For Models: ER2MHKXPL00

(Stainless−VCM)

8199011

Illus. Part

No. No. DESCRIPTION

1 Liner (Not a

Serviceable Part)

2 2197380 Grommet (2)

3 2254360 Gasket, Evaporator

Cover (2)

4 2188376 Defrost Timer

5 2204640 Thermostat, Tube

Barrier

6 941839 Hole Plug

7 2221668 Wire Assembly

Control Box

8 2162085 Socket, Light (2)

9 98129 Screw (2)

10 2214986 Fan Motor

11 2163777 Fan Blade

12 2218381 Control Box

13 2225460 Thermostat Assy.

(Includes Item 5)

14 489478 Screw

16 2254263 Cover, Evaporator

17 2160708 Light Bulb

18 2214976 Bracket

Evap. Fan, Rear

19 1118894 Switch, Rocker Arm

21 2176281 Cover, Air

Diffuser

22 2202885 Knob, Thermostat

23 2254354 Air Tower

24 2189452 Air Diffuser,

Bottom

26 2204690 Air Diffuser, Top

27 2205003 Cover, Hole

28 2171931 Valve−Tube, Body

29 2218696 Bracket,

Fan Motor

30 2214979 Bracket

Evap. Fan, Front

31 2204639 Shield, Heat

32 487996 Cap

33 2187690 Wire Assembly

Freezer Compartment

34 2221677 Defrost, BI−Metal

35 940014 Hole Plug,

Control Box

UNIT PARTS

For Models: ER2MHKXPL00

(Stainless−VCM)

8199011

UNIT PARTS

For Models: ER2MHKXPL00

(Stainless−VCM)

8199011

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2225596 Plate, Unit

Mounting

3 2214960 Condenser

4 2166124 Heater, Defrost

5 2254249 Evaporator Assy.

6 8281197 Screw

7 2254295 Drain Pan

9 2176301 Bracket, Heater

10 2163780 Extension, Air

Baffle

11 2255113 Strap

12 4387731 Cover

(Service Only)

13 4390624 Overload

(Service Only)

14 Grommet (4)

1100826 Production

4387558 Service

15 2225785 Start−Device

Combination

(Start Relay and

Overload for

Production

Compressor Only)

16 489478 Screw

17 2150304 Roller (2)

18 2221797 Rivet

19 2182338 Clip, Heater

20 489373 Screw

21 Nut

(Not Serviced)

22 2183454 Relay

(Service Only)

23 2201185 Support Block

24 3400518 Screw

28 2225833 Compressor

(Includes Items

12,13,14,22,

29 & 32)

29 Drier

2199167 Production

4387019 Service

30 2155774 Clamp

32 Capacitor

2169373 Production

1118576 Service

37 489494 Screw

39 2198921 Air Baffle

40 2188729 Motor, Condenser

41 2301979 Plate

42 2187382 Wire Assy, Unit

43 2225834 Fan Blade

46 2225564 Tube, Discharge

47 2225565 Tube, Suction

48 2154109 Tube, Process

56 488500 Screw

58 2225517 Tray, Evaporator

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

4.00 Ozs.

(R134A)

SHELF PARTS

For Models: ER2MHKXPL00

(Stainless−VCM)

8199011

Illus. Part

No. No. DESCRIPTION

1 2210522 Shelf, Ladder (2)

2 2202821 Shelf, Ladder

Center

3 2200988 Glass, Full Shelf

4 2163762 Cup, Shelf Mtg.

5 489478 Screw

6 2188687 Trim Shelf, Rear

7 2201102E Shelf,

Cantilever

8 2188685 Trim, Shelf Front

9 2210526 Crisper Cover

10 2188691 Trim Shelf, Front

11 2210573 Insert, Crisper

Cover

12 2201106 Pan Shelf,

Cantilever

14 2200987 Glass, Shelf

15 2163832 Crisper Support

16 2201104E Shelf, Full

Cantilever

17 2189454 Shelf, Freezer

18 2188689 Trim, Shelf Rear

19 2188711 Trim Shelf, Side

20 2218132K Pan, Meat

24 2218141 Crisper Pan

(Includes 25 & 26)

25 2212446 Body, Humidity

Control

26 2176222 Slide, Humidity

Control

OPTIONAL PARTS

For Models: ER2MHKXPL00

(Stainless−VCM)

8199011

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

978941 Insulation,

Fiberglass

(63−1/2" x 35−1/2"

x 2−5/8")

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4" x 108")

876305 Kit, Insulation

(14 Pcs.

3" x 24" x 48")

876370 Kit, Insulation

(2 Pcs.

3" x 24 " x 48")

876029 Kit, Foam Slab

(30" x 32−1/2" x

1−1/2")

505587 Sealer, Mastic

(1 Qt.)

511873 Touch−Up, White

Porcelain (2 Oz.)

542638 Grease, Silicone

(1/2 Oz.)

542639 Cement,

Alumilastic

(1−1/4 Oz.)

606755 Bag, Insulation

(36−5/8" x 46")

799833 Kit, Evaporator

Repair

(Aluminum Epoxy)

799832 Kit, Porcelain

Repair (White)

503695 Cork Sealer

(1/4 Pound)

Customer Touch−Up Material

350942 Primer, White

(12 Oz. Spray Can)

350939 Enamel, Black

(12 Oz. Spray Can)

350930 Enamel, White

(12 Oz. Spray Can)

4392901 Enamel, Biscuit

(12 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

4392899 Brush Touch−Up Kit

(Biscuit)

Refinishing Material

799340 Enamel, Black

(1 Qt. Uncut)

799344 Enamel, White

(1 Qt. Uncut)

4392900 Enamel, Biscuit

(1 Qt. Uncut)

833938 Kit, Terminal

Connector

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

FIELD INSTALLABLE

ICE MAKER

2155469 ECKMF94

TORX SCREW WRENCH

1117510 Torx Key
