Whirlpool ED5FVGXSS01 User manual

CABINET PARTS

For Model: ED5FVGXSS01

(Stainless Steel)

05−07 Litho In U.S.A. (rrm) Part No. W10141116 Rev.A

REFRIGERATOR

CABINET PARTS

For Model: ED5FVGXSS01

(Stainless Steel)

W10141116

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2318594 Use & Care Guide

2255373 Service & Wiring

Sheet

2318639 Energy Guide

628370 Modular Icemaker

Service Sheet

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Roller (Rear) (2)

5 489427 Screw

6 2155013 Clip, Grille

7 489478 Screw

8 2156056 Shim

9 2203771 Hinge Top RC

10 8281227 Screw

11 8281149 Screw

12 Hinge Cover FC

2203407B Black

13 2304322 Hinge Bottom

14 Filler, Wrapper

2304848 Black

15 Grille

2260500B Black

16 489497 Screw

17 489464 Screw

18 2304888 Drain Fitting

19 2304937 Extension Tube

21 2188735 Cover, Unit

22 Hinge Cover RC

2203408B Black

23 549193 Clamp, Service

Cord

24 489084 Screw

25 2155311 Door Closer,

Lower Cam (2)

26 489483 Screw

27 Cabinet (Not a

Serviceable Part)

28 2203770 Hinge Top, FC

29 2260519 Block, Housing

Support

30 2260507 Housing, Water

Filter

31 4396841 Water Filter

32 489500 Screw

33 Cap, Water

Filter

2260502B Black

34 3400113 Screw

35 2304708 Tube, Filter

Outlet

36 2319867 Tube, Filter

Inlet

37 Button, Water

Filter

2260503B Black

REFRIGERATOR LINER PARTS

For Model: ED5FVGXSS01

(Stainless Steel)

W10141116

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2194744 Escutcheon, Meat

Pan Control

3 2182757 Slide, Meat

Pan Control

4 2257741 Louver

5 2311637 Wire Harness,

Dual Crisper

6 489290 Screw (2)

7 2256035 Bracket,

Dual Crisper

Light

8 2319866 Shelf Ladder

9 489478 Screw

10 2152019 Air Diffuser

Cover

11 2256085 Bracket Retainer

12 2209753 Air Diffuser

Assembly

13 2150331 Cover, Conduit

W10004810

Screw

15 2162085 Socket

16 2256100 Reservoir

17 527949 Light Bulb

18 2209769 Light Lens

19 2172840 Strap

20 488280 Screw (2)

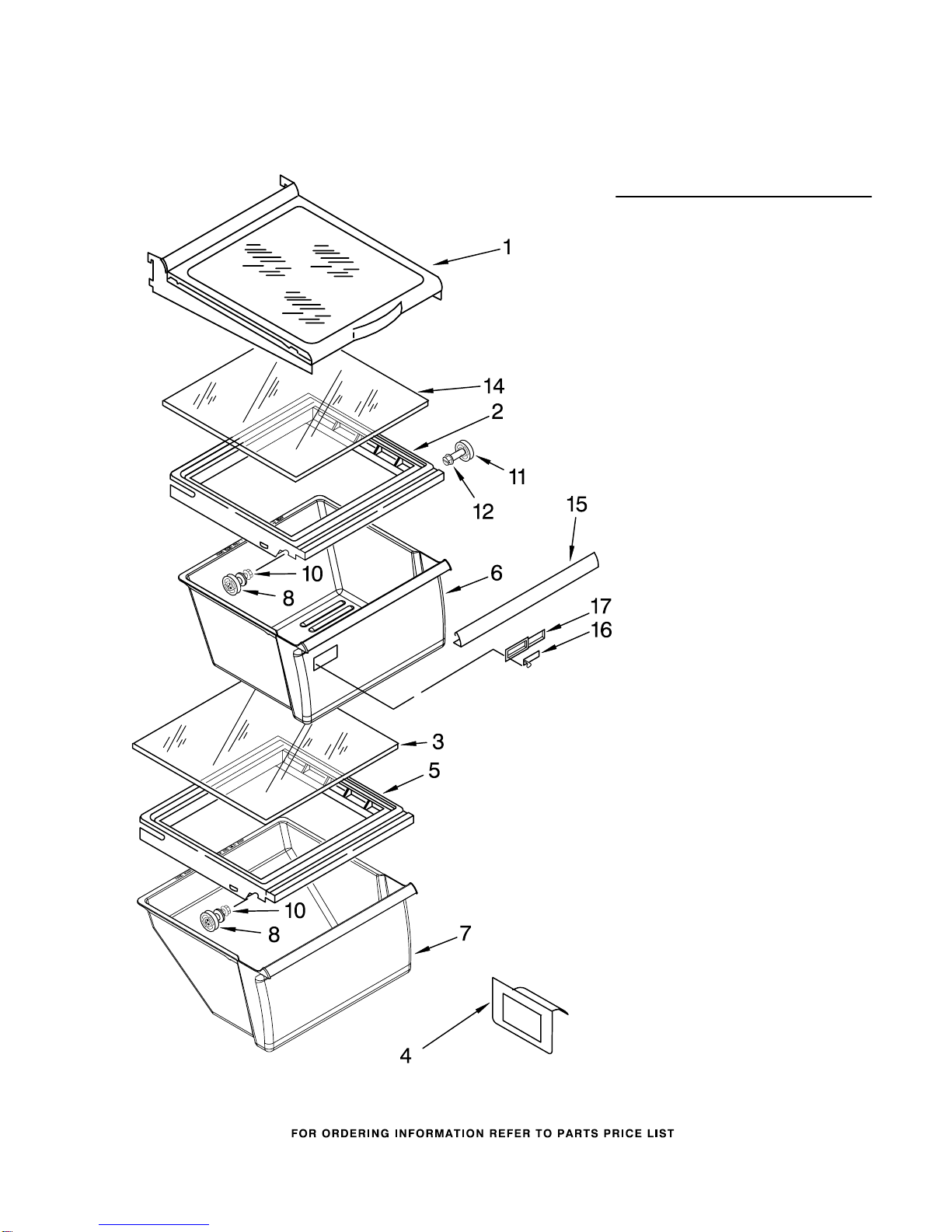

REFRIGERATOR SHELF PARTS

For Model: ED5FVGXSS01

(Stainless Steel)

W10141116

Illus. Part

No. No. DESCRIPTION

1 2188695 Shelf Assembly,

Spillguard (3)

2 2209698 Cover, Crisper

3 2179259 Glass, Cover

4 2179350 Deflector

5 2311726 Cover, Meat Pan

6 2188652 Crisper Pan

7 2188654 Meat Pan

8 2196485 Stud Assembly

10 3400894 Screw

11 2196483 Stud Assembly

12 8281158 Screw

14 2174150 Glass, Cover

15 2255593 Trim, Handle

16 2179342 Slide, Humidity

Control

17 2179343 Body, Humidity

Control

FREEZER LINER PARTS

For Model: ED5FVGXSS01

(Stainless Steel)

W10141116

FREEZER LINER PARTS

For Model: ED5FVGXSS01

(Stainless Steel)

W10141116

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

3 2171713K Door, Ice

Compartment

4 2254617K Shelf, Upper

5 2254616K Shelf (2)

6 842534 Clip, Air Duct (2)

7 2196206 Support, Stud (4)

9 3400893 Screw

10 2176134 Grommet

11 2182971 Freezer Bin

12 Slide, Basket

2261449 Right Side

2261448 Left Side

W10004810

Screw

14 1115373 Switch, Rocker Arm

15 8281158 Screw

16 2196483 Stud Assembly

17 3400893 Screw

18 2171714K Shelf, Top

Compartment

19 2171705 Lens, Light

20 527949 Light Bulb

21 2162085 Light Socket

22 2196207 Stud, Rear

23 Slide, Container

1119237 Left Side

1119293 Right Side

24 489100 Screw

MOTOR AND ICE CONTAINER PARTS

For Model: ED5FVGXSS01

(Stainless Steel)

W10141116

MOTOR AND ICE CONTAINER PARTS

For Model: ED5FVGXSS01

(Stainless Steel)

W10141116

Illus. Part

No. No. DESCRIPTION

1 2254587 Bracket, Motor

2 2188385 Motor, Dispenser

3 2152713 Soleniod Assembly

4 2149100 Guide, Soleniod

6 1115374 Clip, Wiring

7 2206501 Wiring Assembly,

Ice Dispenser

8 489399 Screw

9 2205716 Coupling, Motor

10 489478 Screw

11 2162085 Socket, Light

14 2196091 Ice Container

18 1119005 Spacer, Step (3)

19 1119007 Spacer, Flat (2)

20 2257022 Blade, Rotary

21 2257023 Blade, Rotary

22 2257024 Blade, Rotary

23 489235 Washer, Plain

24 1119009 Blade, Fixed (2)

25 2157405 Block, Blade

26 489229 Roll Pin

27 2196295 Auger

28 2305377 Drum

30 2171682 Floating Baffle

31 1119018 Nut, Bearing

32 2155231 Control Arm

33 1119020 Spring, Return

34 1119021 Retainer Clip, Rod

35 488886 Screw

37 2180348 Housing, Crusher

38 1119017 Deflector, Ice

39 489234 Washer, Plain

40 489236 Retainer Ring

41 2204321 Front Cover,

Ice Container

42 527949 Light Bulb

43 2171706 Light Lens,

Dispenser

100 2209780 Ice Container

Assembly

REFRIGERATOR DOOR PARTS

For Model: ED5FVGXSS01

(Stainless Steel)

W10141116

REFRIGERATOR DOOR PARTS

For Model: ED5FVGXSS01

(Stainless Steel)

W10141116

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes Item 6)

2206825S Stainless Steel

2 2256101 Door, Compartment

3 489491 Screw

4 2203828K Door Bin (3)

5 Extension, Handle

2193353B Black

6 Door Gasket,

Magnetic (Repair)

2221313 Black

7 Handle, Center

2186649B Black

8 2182178 Door Closer,

Upper Cam

9 489420 Screw

10 Bracket, Door Stop

2206629B Black

11 2255121 Nameplate

12 2308050 Thimble, Top

13 2156022 Trivet

14 3400012 Screw
