Whirlpool RS696PXGB0 User manual

COOKTOP PARTS

For Models: RS696PXGB0, RS696PXGQ0

(BLACK) (DESIGNER WHITE)

30" ELECTRIC

DROP−IN RANGE

SELF CLEANING

OVEN

12−98 Litho in U.S.A. (RS) Part No. 885457

COOKTOP PARTS

For Models: RS696PXGB0, RS696PXGQ0

(BLACK) (DESIGNER WHITE)

885457

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Trim Ring, Cooktop

4449978 Black

4449979 White

4168863 Screw (10)

2 Cooktop, Glass

3191188 Black

3191189 White

3 3191310 Bracket, Switch

Mounting

4 Element, Surface

3191984 1200W RF−LR

3191982 1800W RR

3191983 2500W LF

16 Limiter, Temperature

3191990 Use W/3191984

Element

3191988 Use W/3191982

Element

3191991 Use W/3191983

Element

17 3192452 Frame, Cooktop (2)

21 3191952 Lamp, Indicator

3191953 Bumper, Rubber

9750835 Bumper, Door

5 3191791 Spring, Locator

246119 Screw (8)

7 Switch, Infinite

3191049 1200W RR−LR

(Silver Shaft)

3191050 1800W RR

(Yellow Shaft)

4454541 2500W LF

(Red Shaft)

311865 Screw

8 3183956 Seal, Switch Cover

10 Knob, Control (4)

3196231 Black

3196232 White

14 3182435 Seal, Switch (4)

15 3191515 Bracket, Support

Element

OVEN PARTS

For Models: RS696PXGB0, RS696PXGQ0

(BLACK) (DESIGNER WHITE)

885457

OVEN PARTS

For Models: RS696PXGB0, RS696PXGQ0

(BLACK) (DESIGNER WHITE)

885457

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Trim, Side

(Right Hand)

4450844 Black Model

4449747 Screw

4450845 White Model

4449041 Screw

(Left Hand)

4450847 Black Model

4449747 Screw

4450848 White Model

4449041 Screw

4 4448520 Bumper, Door

7 4452237 Top Chassis

4449809 Screw

9 4452158 Tube, Vent

4449154 Screw

10 4452165 Lens, Light

11 4452368 Oven Light Assy

12 4452166 Bulb, Light

14 4451740 Frame, Front

4449040 Screw

4450118 Nut

15 4449372 Gasket, Door

19 4451478 Support, Insulation

4449809 Screw

21 Rail, Side

4450579 Right Side

4450580 Left Side

4448444 Grommet

4449154 Screw

22 4451424 Latch Assy

23 4451663 Solenoid

24 4451422 Micro Switch N.C.

4449809 Screw

25 4454691 Side, Chassis

(R.H. & L.H.)

4449809 Screw

26 4452234 Back, Chassis

4449809 Screw

27 Liner, Oven

(Not serviceable)

28 4451426 Micro Switch

29 4451665 Sensor

4449154 Screw

30 4451537 Spring, Latch

37 4451442 Thermostat (TOD)

(Temp.) SPST

43 4451398 Base, Chassis

49 4448933 Retainer, Gasket

4449154 Screw

50 4451747 Cover, Back

4449809 Screw

53 4449845 Support, Bracket

4449809 Screw

55 Trim, Bottom

4448477 Black Model

4448478 White Model

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449316 Insulation, Wrap

4450365 Insulation, Back

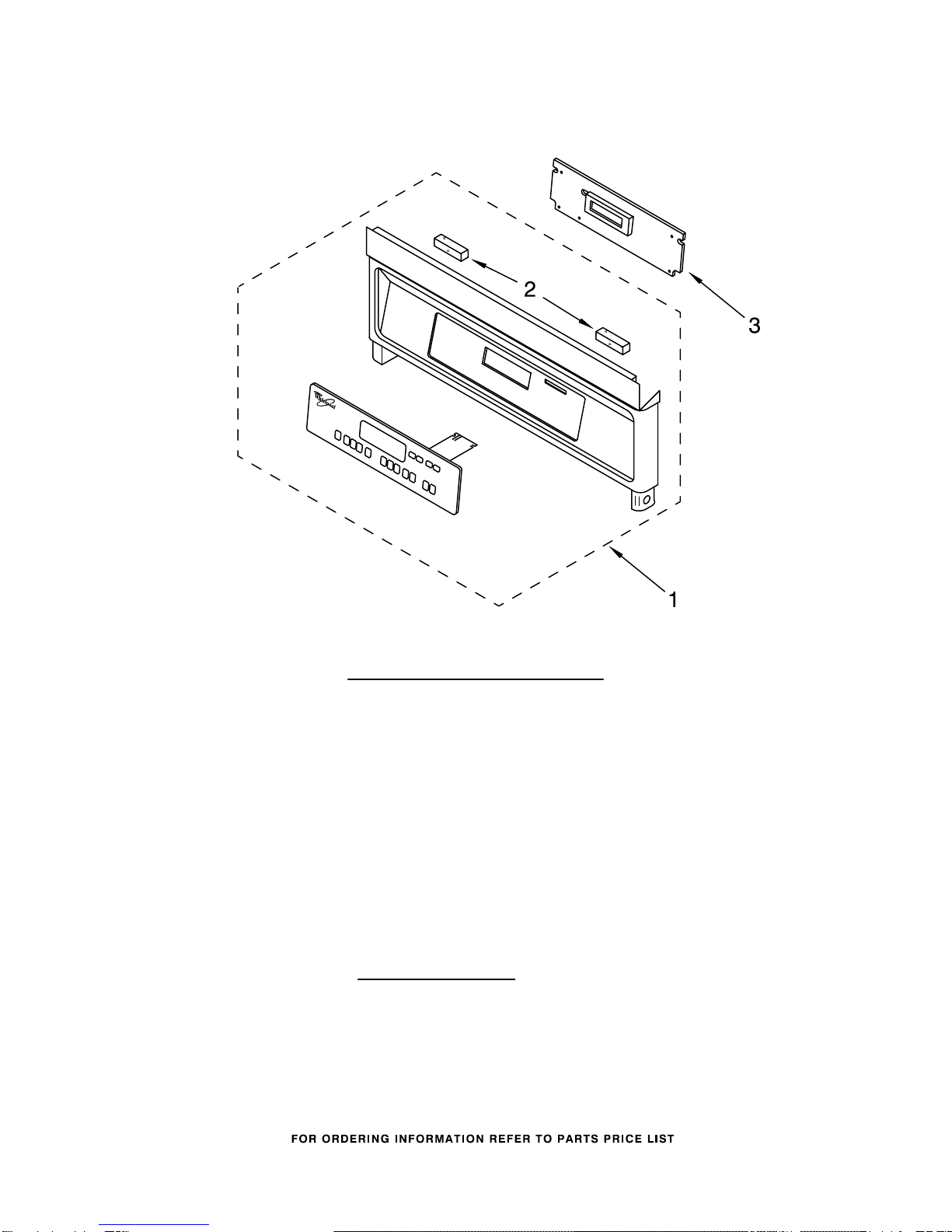

CONTROL PANEL PARTS

For Models: RS696PXGB0, RS696PXGQ0

(BLACK) (DESIGNER WHITE)

885457

Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Control Panel Assy.

W/Membrane Switch

4451231 Black Model

4451232 White Model

4449745 Screw

4159465 Screw

2 4451034 Gasket,

Control Panel

3 4452240 Microcomputer

4449745 Screw

3149333 Screw

LITERATURE PARTS

LIT3191800

Installation

Instructions

LIT3191537

Use & Care Guide

(Oven)

LIT3192239

Tech Sheet (Oven)

LIT3191638

Safer Cooking Tips

OVEN DOOR PARTS

For Models: RS696PXGB0, RS696PXGQ0

(BLACK) (DESIGNER WHITE)

885457

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 4451719 Door Liner

2 4454947 Hinge, Door

4449743 Screw

3 4449259 Glass, Inner

4 4451722 Insulation, Door

7 4449263 Glass, Inner

9 4451668 Retainer, Glass

4449809 Screw

13 Door Handle

4448854 Black Model

4448855 White Model

14 4450813 Bracket, Handle

4451040 Screw

15 Assy, Door Glass

4452065 Black Model

4452066 White Model

19 4450362 Shield, Heat

4449809 Screw

20 4451671 Retainer, Glass

4449809 Screw

21 4451674 Seal, Door Top

23 Retainer, Clip

4450863 Black Model

4450864 White Model

4449743 Screw

TOP VENTING PARTS

For Models: RS696PXGB0, RS696PXGQ0

(BLACK) (DESIGNER WHITE)

885457

Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 4451759 Vent, Exhaust

4449040 Screw

2 4451438 Elbow, Vent−Top

3 6610168 Blower

4 4451758 Block, Foam

5 4451752 Elbow, Vent−Bottom

11 4449868 Block, Terminal

3196181 Screw

13 4448549 Vent,

(Control Panel)

4450038 Screw

14 Side, Control Compt.

4451535 Right

4451536 Left

4449809 Screw

15 4452244 Back, Control

4449809 Screw

20 3191842 Cover, Rear

21 4451407 Plate, Support

INTERNAL OVEN PARTS

For Models: RS696PXGB0, RS696PXGQ0

(BLACK) (DESIGNER WHITE)

885457

Illus. Part

No. No. DESCRIPTION

2 4452154 Element, Broil

4449154 Screw

3 3147563 Grill, Broiler

4 3147845 Pan, Broiler

6 4448717 Rack, Oven

7 4452153 Element, Bake

4449154 Screw

OPTIONAL PARTS

For Models: RS696PXGB0, RS696PXGQ0

(BLACK) (DESIGNER WHITE)

885457

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

4454918 Harness, Wire

(Main)

3191956 Harness, Wire

(Infinite Switch)

3192168 Harness, Wire

(Burners)

313438 Clip, Harness

3179589 Wire, Tie

4451163 Conduit

4448664 Clamp

4449809 Screw

112432 Nut

4450800 Screw, Ground

4451761 Support, Wiring

4454842 Tie, Cable

4452222 Spacer, Harness

Miscellaneous

814381 Pin Hinge Kit

4448950 Screw, Install (4)
