Whirlpool RF262LXS User manual

COOKTOP PARTS

3−06 Litho in U.S.A. (jac) Part No. 8188346

30" ELECTRIC FREESTANDING

SELF CLEAN RANGE

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature

9762996 Instructions

Installations

Template, Anti−Tip

9757142 English/Spanish

9757143 English/French

9763001 Owners Manual

9762972 Tech Sheet

9762761 Safer Cooking Tips

2 3149191 Spring, Locator

3 3196170 Screw

4 Cooktop

9763324 White

9763325 Biscuit

9763326 Black

7 Element, Surface

8523692 2500 W − LF/RF

8523698 1200 W − LR/RR

8 3196169 Screw

9 8272791 Bracket, Element

For Models: RF262LXSW0, RF262LXSQ0, RF262LXST0, RF262LXSB0

(White) (Designer White)(Designer Biscuit) (Black)

CONTROL PANEL PARTS

28188346

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap

W10009040

White Left Hand

W10009050

White Right Hand

W10009060

Biscuit Left Hand

W10009070

Biscuit Right Hand

W10009080

Black Left Hand

W10009090

Black Right Hand

2 9757609 Nameplate

3 Panel, Control

9762018 White

9762028 Biscuit

9762029 Black

4 Switch, Infinite

3148954 LF/RF (Orange)

3148951 LR/RR (Silver)

5 Light, Indicator

8523265 Surface Unit (2)

6 3196068 Lens, Light (3)

7 Knob, Infinite (4)

9761962 White

9761963 Biscuit

9761964 Black

8 8523280 Shield, Heat

9 Screw

3196166 White

8281194 Biscuit

3196168 Black

10 8272473 Cover, Upper

11 8273564 Clip

12 Control, Range

9762202 White

9762204 Biscuit

9762203 Black

13 3196178 Screw

15 9762095 Brkt−Mntg, Console

16 3400882 Screw

For Models: RF262LXSW0, RF262LXSQ0, RF262LXST0, RF262LXSB0

(White) (Designer White)(Designer Biscuit) (Black)

CHASSIS PARTS

8188346

For Models: RF262LXSW0, RF262LXSQ0, RF262LXST0, RF262LXSB0

(White) (Designer White)(Designer Biscuit) (Black)

CHASSIS PARTS

48188346

Illus. Part

No. No. DESCRIPTION

1 9760407 Brkt − Mounting

2 8273905 Support, Corner LR

3 Panel, Side (2)

8053830 White

8272519 Biscuit

8053832 Black

W10010350

Seal, Oven Flange

5 8522416 Seal, Oven Door

6 9757340 Element, Broil

7 9758541 Element, Bake

8 9761301 Screen−Catalyst

9 9757239 Rod − Dr Switch

10 9759785 Glide, Drawer Frnt

11 3196037 Foot, Front (2)

12 Frame, Front

(Not Serviced)

13 8054068 Tray, Insulation

14 3196576 Clip, Panel (6)

15 9760314 Rail, Base (2)

16 9761935 Foot, Rear (2)

17 3196548 Thermal, Fuse

18 3196172 Screw

19 3186116 Support, Oven (2)

20 3186034 Bracket, Service

21 9761958 Block, Terminal

22 8274034 Back, Main

23 9757262 Switch, Door

24 3196701 Light Socket Assy

25 311255 Bulb, Oven Light

26 9758701 Spacer − Door

27 8273902 Sensor, Oven

28 3196169 Screw

29 3196179 Screw

30 3196178 Screw

31 3400016 Screw

32 9758283 Cover, Box

33 9757241 Latch Asy, Rear

W10031780

Screw

35 3196566 Screw

36 3196961 Rod, Latch

37 3196174 Screw

38 9758238 Retainer, Insul(2)

39 3196560 Screw (2)

40 9761300 Flue

41 9761013 Latch, Door

42 3195736 Support, Front (2)

43 3195987 Support, Corner RR

44 112432 Nut

45 9761490 Insulation, Foil

46 3195813 Clip, Mounting

INSULATION

8272616 Insulation, Wrap

8272612 Insulation, Back

8272613 Insulation, Vent

For Models: RF262LXSW0, RF262LXSQ0, RF262LXST0, RF262LXSB0

(White) (Designer White)(Designer Biscuit) (Black)

DRAWER & BROILER PARTS

8188346

Illus. Part

No. No. DESCRIPTION

1 3195710 Rack, Oven (2)

4 9761030 Drawer, Storage

5 9758200 Bracket, Drawer(2)

6 Rivet, Push (2)

3196813 Black

3196814 White

3196815 Almond

7 Panel, Drawer Frnt

8053341 Black

8053339 White

8272501 Biscuit

9 8053334 Glide, Drawer (2)

10 3196168 Screw

For Models: RF262LXSW0, RF262LXSQ0, RF262LXST0, RF262LXSB0

(White) (Designer White)(Designer Biscuit) (Black)

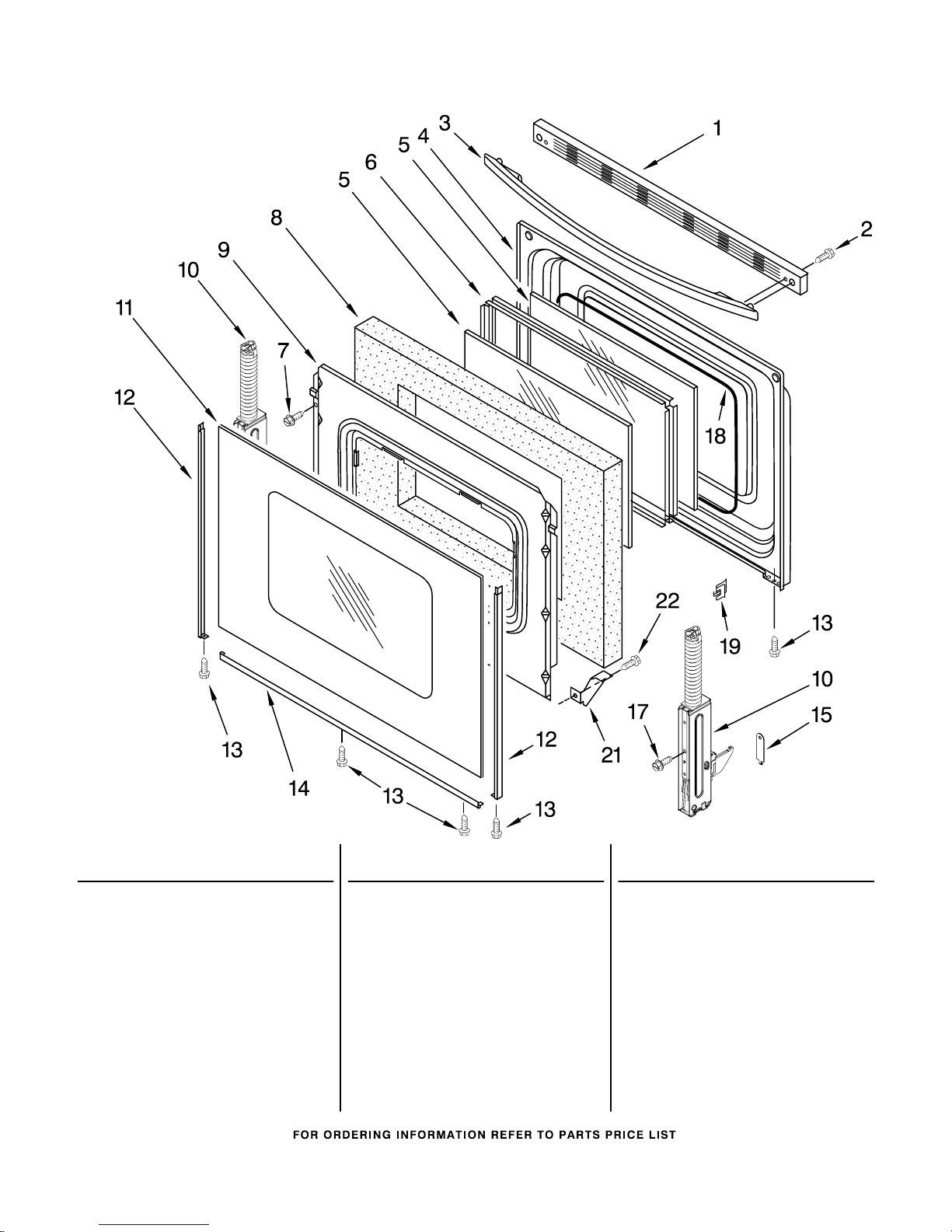

DOOR PARTS

68188346

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Top

9762391 Black

9761975 White

9761976 Biscuit

2 3196164 Screw

3 Handle, Door

9761983 Black

9761982 White

9761984 Biscuit

4 9761344 Liner, Door

5 9758162 Glass, Inner (2)

6 3186289 Frame, Glass

W10031790

Screw

8 8272618 Insulation, Door

9 9761357 Retainer, Insul.

10 9761493 Hinge, Door

11 Glass, Outer Door

9762480 Black

9762479 White

9762481 Biscuit

12 Trim, Door Side

8523171 Black L.H.

8523165 Black R.H.

8523172 White L.H.

8523166 White R.H.

8523173 Biscuit L.H.

8523167 Biscuit R.H.

13 3196160 Screw

14 Trim, Lower Door

8523177 Black

8523175 White

8523178 Biscuit

15 9761517 Clip, Door Mntg(2)

W10031780

Screw

18 8522414 Seal, Window

19 3196025 Clip, Glass (6)

21 3196794 Bracket, Window(2)

22 3196165 Screw

For Models: RF262LXSW0, RF262LXSQ0, RF262LXST0, RF262LXSB0

(White) (Designer White)(Designer Biscuit) (Black)

OPTIONAL PARTS (NOT INCLUDED)

8188346

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350956 Almond

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3191048 Cleaner, Glass

4396923 Pan, Broiler

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

9762959 Harness, Wire

(Cooktop Left)

9762958 Harness, Wire

(Cooktop Right)

9762428 Harness, Wire

(Sensor/Dr Switch)

8523279 Wire, Ground

3196154 Screw

9762953 Harness, Wire

(Main)

313660 Clip, Wire Ground

3196173 Screw

8524132 Shield, Wiring

3196174 Screw

(Grnd Wire / Back)

For Models: RF262LXSW0, RF262LXSQ0, RF262LXST0, RF262LXSB0

(White) (Designer White)(Designer Biscuit) (Black)
