Whirlpool GBD277PDT User manual
OVEN PARTS
1
For Models:GBD277PDB8, GBD277PDQ8, GBD277PDS8, GBD277PDT8
(Black) (Designer White)(Black Stainless)(Biscuit)
4−06 Litho in U.S.A. (cre) Part No. 8185950
27" BUILT−IN ELECTRIC
DOUBLE OVEN
CONVECTION − UPPER OVEN
SELF−CLEAN (GOLD LINE)
OVEN PARTS
2
For Models:GBD277PDB8, GBD277PDQ8, GBD277PDS8, GBD277PDT8
(Black) (Designer White)(Black Stainless)(Biscuit)
8185950
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 Literature Parts
LIT4455992
Installation
Instructions
LIT8300609
Use & Care Guide
LIT4451887
Tech Sheet (Oven)
LIT3191638
Safer Cooking Tips
OVEN PARTS
2 Trim, Side
4450850 RH Black
4450851 RH White
4452122 RH Biscuit
4450853 LH Black
4450854 LH White
4452123 LH Biscuit
Screw
3400832 Black Model
4449041 White Model
694091 Biscuit Model
3 Receiver, Hinge
4455605 Left Hand
4455606 Right Hand
4 4448520 Bumper, Door
6 4452200 Divider, Vent
4449809 Screw
7 4455864 Top Chassis
4449809 Screw
9 4452158 Tube, Vent
3196176 Screw
10 4452165 Lens, Light
11 4452368 Light Assy, Rear
12 4452166 Bulb, Light
14 4455611 Frame, Front
4449040 Screw
4450118 Nut
15 4455381 Gasket, Door
19 4451477 Support, Insulation
4449809 Screw
20 4451605 Cap, Spacer
21 Rail, Side
4450581 Right
4450582 Left
4448444 Grommet
4449154 Screw
24 4451896 Latch Assy
4449809 Screw
25 4455641 Side, Chassis
(R.H. & L.H.)
4449809 Screw
26 4452233 Back, Chassis
4449809 Screw
27 Liner, Oven
(Not serviceable)
28 4452224 Solenoid
29 4455636 Sensor
4449154 Screw
30 4452312 Switch, Micro N.C.
31 4451426 Switch, Micro
32 4451537 Spring, Latch
34 4452266 Vent, Center
3400832 Screw
37 Safety (TOD) Swtch
Thermostat (temp)
4452223 Upper Oven
4451442 Lower Oven
4449809 Screw
43 4455529 Base, Chassis
4449809 Screw
49 4448933 Retainer, Gasket
4449154 Screw
50 4451747 Cover, Back
4449809 Screw
51 Trim, Bottom
4448475 Black Model
4448476 White Model
4452414 Biscuit Model
3400832 Screw
53 4449845 Support, Bracket
4449809 Screw
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449315 Insulation, Wrap
4450364 Insulation, Back
CONTROL PANEL PARTS
3
For Models:GBD277PDB8, GBD277PDQ8, GBD277PDS8, GBD277PDT8
(Black) (Designer White)(Black Stainless)(Biscuit)
8185950
Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 Control Panel Assy.
W/Membrane, Switch
8300433 Black Model
8300434 White Model
8300443 Biscuit Model
3192690 Insulator,
Membrane Switch
8281179 Screw
2 4451033 Gasket,
Control Panel
3 4452890 Microcomputer
4449745 Screw
3400832 Screw
OVEN DOOR PARTS
4
For Models:GBD277PDB8, GBD277PDQ8, GBD277PDS8, GBD277PDT8
(Black) (Designer White)(Black Stainless)(Biscuit)
8185950
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 4455617 Door Liner
3 4449253 Glass, Inner
4 4451721 Insulation, Door
5 4450813 Bracket, Handle
4451040 Screw
3400832 Screw
7 4449257 Glass, Inner
12 Door Glass, Assy
4452062 Black Model
4452063 White Model
8300904 Biscuit Model
4452478 Black, Stainless
Model
13 Door Handle
4448405 Black Model
4448406 White Model
8300255 Biscuit Model
14 4451668 Retainer, Glass
4449809 Screw
19 4450361 Shield, Heat
4449809 Screw
20 8300777 Retainer, Glass
4449809 Screw
21 8300819 Seal, Door Top
23 Retainer, Clip
4450863 Black Model
4450864 White Model
4452119 Biscuit Model
3400832 Screw
24 Hinge, Door
White, Black &
Biscuit Models
8300569 Right Hand
8300570 Left Hand
Black Stainless
Model
8300571 Right Hand
8300572 Left Hand
4449743 Screw
25 4455256 Glass, Inner
5

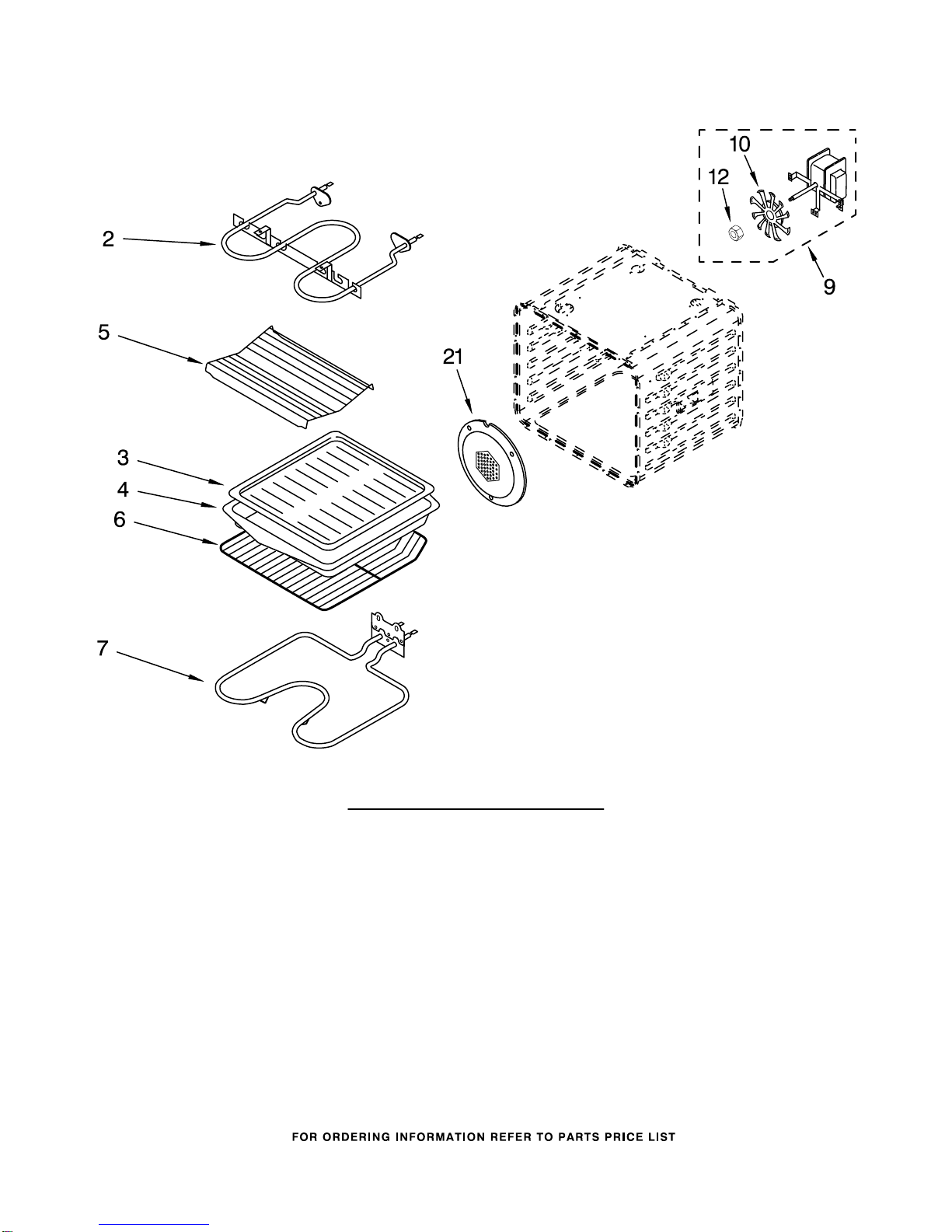

INTERNAL OVEN PARTS
For Models:GBD277PDB8, GBD277PDQ8, GBD277PDS8, GBD277PDT8
(Black) (Designer White)(Black Stainless)(Biscuit)
8185950
Illus. Part
No. No. DESCRIPTION
2 4452154 Element, Broil
4449154 Screw
3 3147563 Grill, Broiler
4 3147845 Pan, Broiler
5 3181534 Rack, Roasting
6 4448715 Rack, Oven
7 4452153 Element, Bake
9 4451583 Motor, Convection
4449154 Screw
10 4452226 Blade, Fan
12 4452227 Nut
21 4448988 Cover, Fan
4449154 Screw

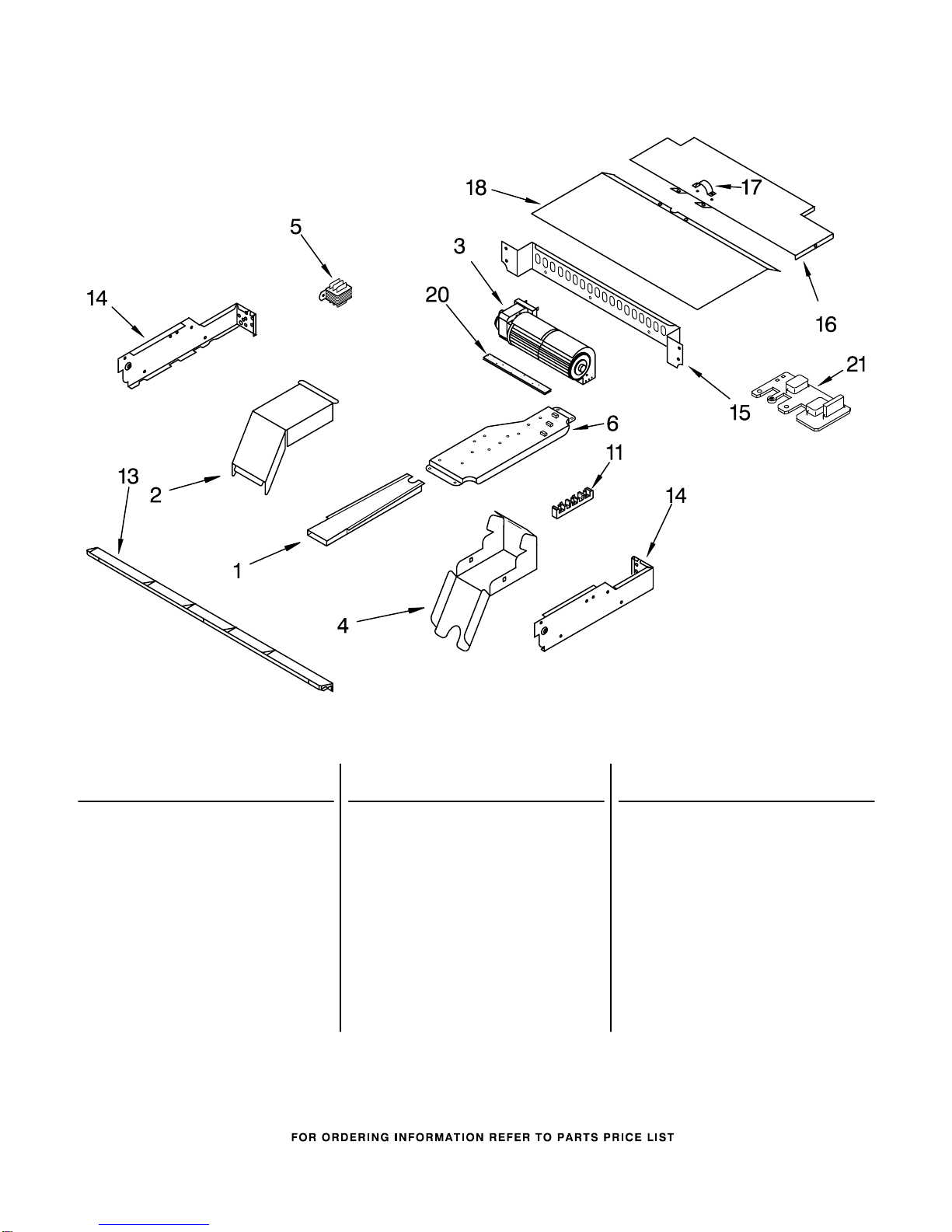

TOP VENTING PARTS
6
For Models:GBD277PDB8, GBD277PDQ8, GBD277PDS8, GBD277PDT8
(Black) (Designer White)(Black Stainless)(Biscuit)
8185950
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 4451759 Vent, Exhaust
2 4455178 Elbow, Vent−Top
3 Blower
6610168 45MM Lower Oven
8300788 60MM Upper Oven
4449809 Screw
4 4455177 Elbow, Vent−Bottom
5 8300642 Transformer,
Control
6 4451789 Plate, Mounting
11 4449868 Block, Terminal
3400080 Screw
13 4448548 Vent,
(Control Panel)
4450038 Screw
14 Side, Control Top
4451597 Right
4451598 Left
4449809 Screw
4449154 Screw
15 4452244 Back, Control
4449809 Screw
16 4450550 Cover, Top Rear
4449809 Screw
17 4448664 Clamp
4449809 Screw
18 4450553 Cover, Top Front
4449809 Screw
20 4451758 Seal, Foam
21 4451985 Suppressor
4452260 Spacer, Foam
OPTIONAL PARTS
7
For Models:GBD277PDB8, GBD277PDQ8, GBD277PDS8, GBD277PDT8
(Black) (Designer White)(Black Stainless)(Biscuit)
8185950
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242829 Wire (12 Ga.
150 c Red)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242826 Wire (14 Ga.
150 c White)
242827 Wire (14 Ga.
150 c Yellow)
242832 Wire (14 Ga.
200 c Yellow)
WIRING HARNESS PARTS
4451926 Harness, Wire
(Latch)
4450953 Conduit, Double
4448664 Clamp
4449809 Screw
112432 Nut
4450800 Screw, Ground
4455737 Harness, Wire
(Main)
4452222 Spacer, Harness
4454835 Tie, Cable
4451761 Support, Wiring
4454842 Tie, Cable
Miscellaneous
814381 Pin Hinge Kit
4448950 Screw, Install (4)
