Whirlpool EV181NZRQ00 User manual

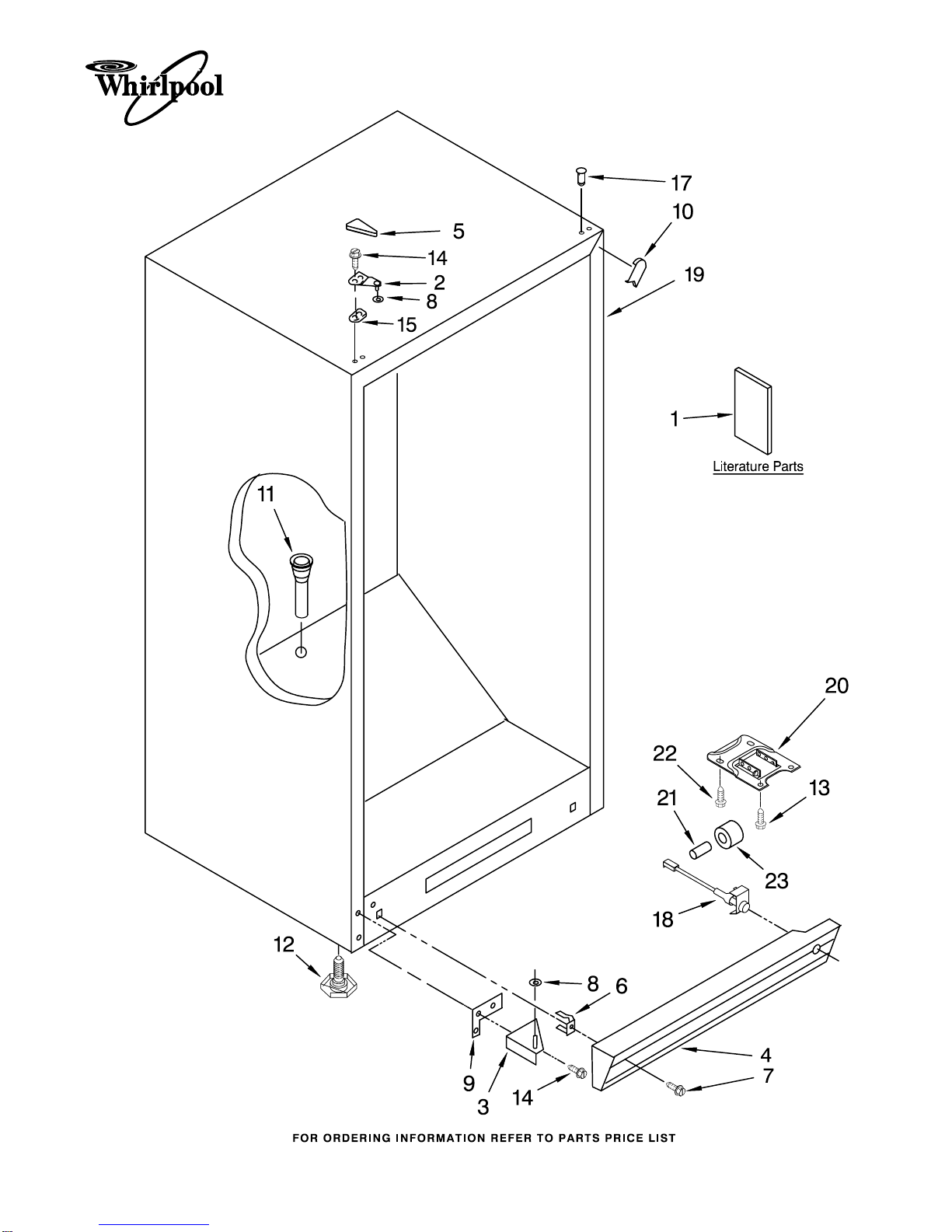

CABINET PARTS

For Model: EV181NZRQ00

(White)

8−07 Litho In U.S.A. (tpm) Part No. 8214785

VERTICAL FREEZER

CABINET PARTS

For Model: EV181NZRQ00

(White)

8214785

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8210432 Owners Manual

8210345 Energy Guide/Tag

2 Top Hinge

4390885 White

3 Bottom Hinge

8210223 White

4 Grille

8210290 White

(Includes 6 & 7)

5 Hinge Cover

4357279 White

6 4356803 Clip, Grille

7 4357243 Screw

8 4390520 Washer

9 4390489 Shim Bottom

10 Filler, Corner

8210227 White

11 4357268 Grommet, Drain

12 4390866 Leg, Leveller

13 4357277 Screw

14 4356830 Screw

15 4390489 Shim, Hinge

17 4390596 Plug, Hole

18 4390905 Light, Power

Indicator

19 Cabinet (Not A

Serviceable Part)

20 8210265 Bracket, Roller

21 8210211 Axle

22 8210266 Screw

23 8210210 Roller, Front

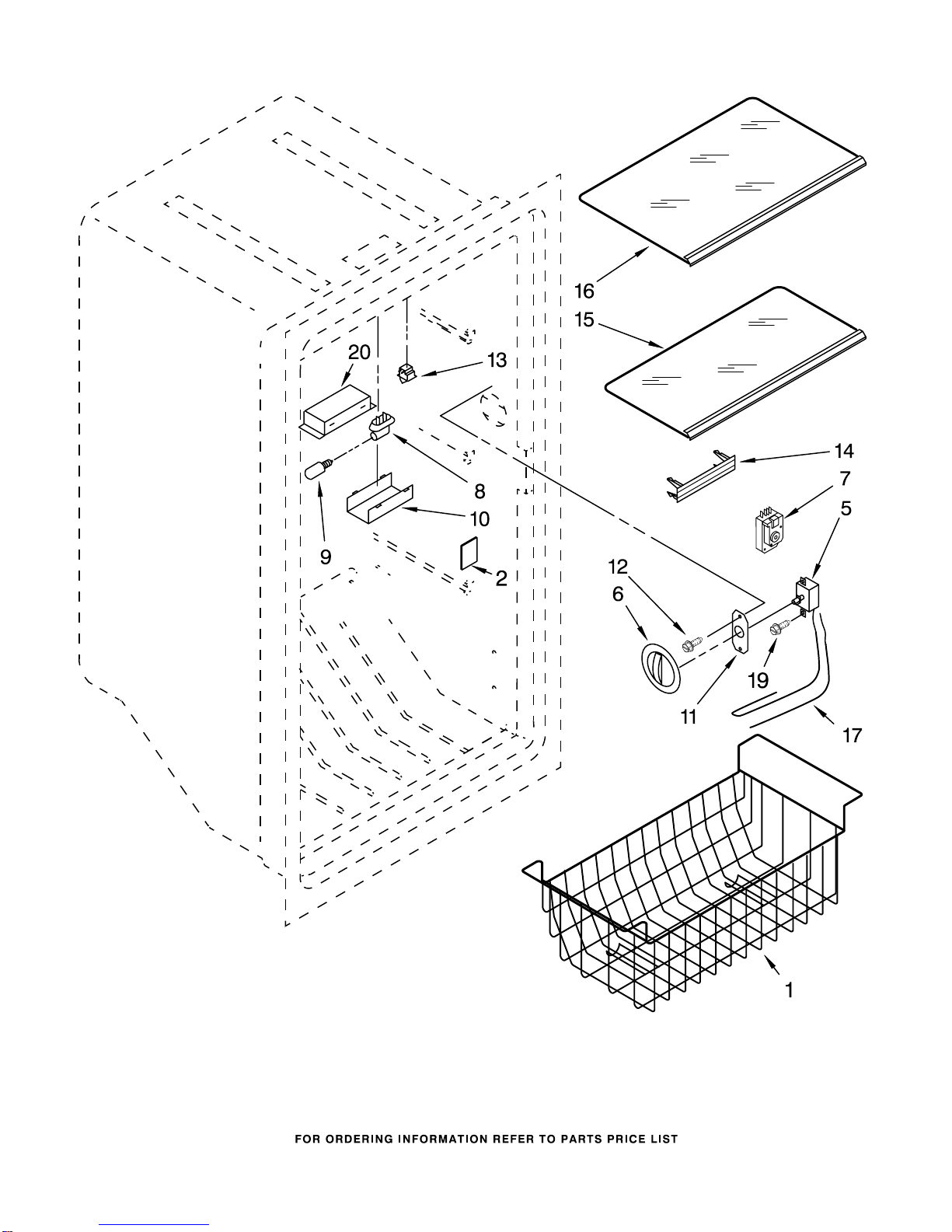

LINER PARTS

For Model: EV181NZRQ00

(White)

8214785

LINER PARTS

For Model: EV181NZRQ00

(White)

8214785

Illus. Part

No. No. DESCRIPTION

1 4390621 Basket

2 4390649 Cover,

Icemaker Hole

5 8210311 Thermostat

6 4390619 Knob, Thermostat

7 4357124 Timer, Defrost

8 4390644 Lamp, Socket

9 4390465 Bulb

10 4390743 Light Shield

11 4357041 Thermostat,

Plate

12 4357043 Screw

13 4390513 Light, Switch

14 4357295 Vent Plug

15 4390817 Shelf, Middle (2)

16 4390816 Shelf, Top (2)

17 4356800 Tubing, Thermostat

19 4357043 Screw

20 4390744 Bracket, Light

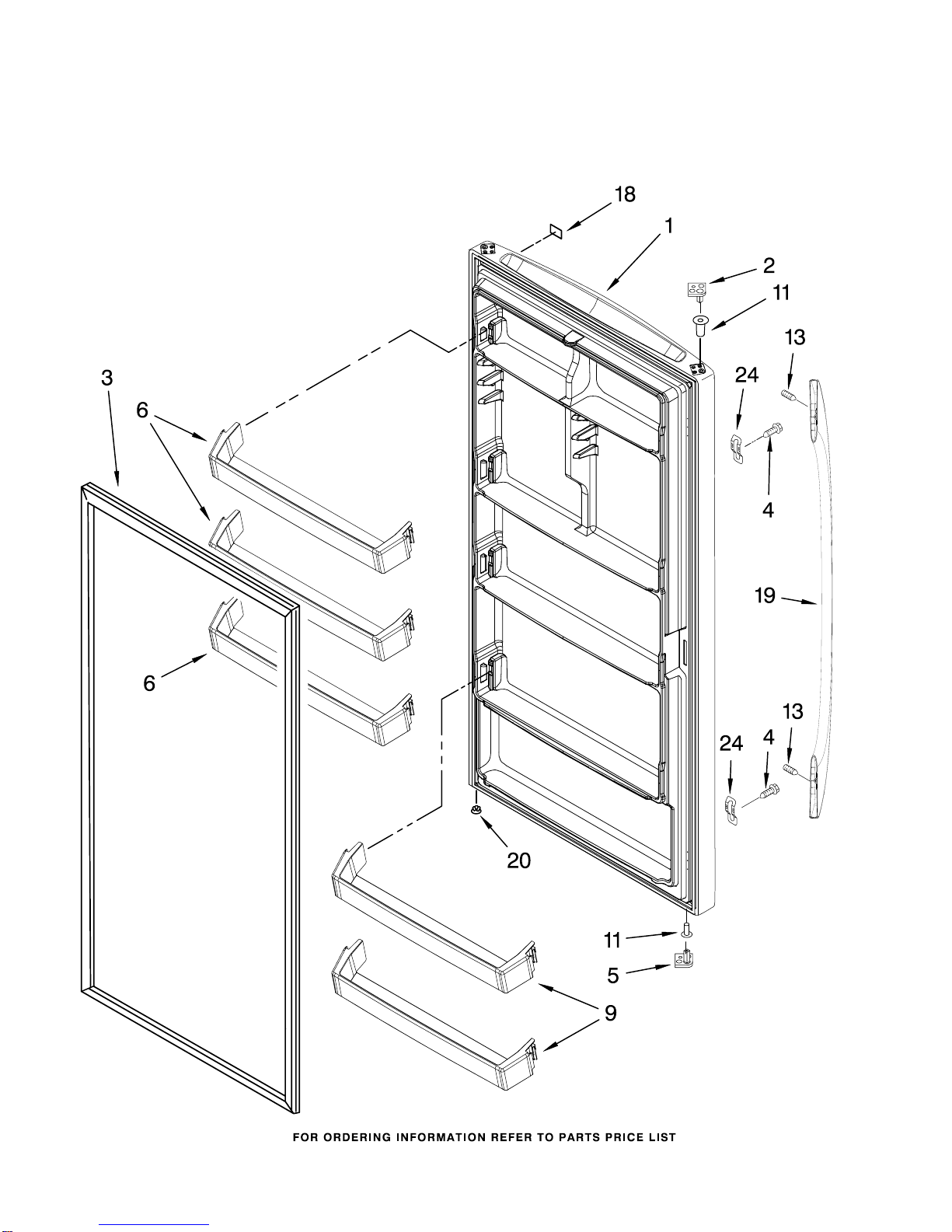

DOOR PARTS

8214785

For Model: EV181NZRQ00

(White)

DOOR PARTS

For Model: EV181NZRQ00

(White)

8214785

Illus. Part

No. No. DESCRIPTION

1 Exterior Door

Assembly

(Includes

Interior Panel)

8210359 White

2 8210401 Stop, Door

(Upper)

3 Gasket

8210339 White

4 489491 Screw

5 8210400 Stop, Door

(Lower)

6 8210385 Rail, Door

(Upper)

9 8210379 Rail, Door

(Lower)

11 4390731 Bushing

(Top & Bottom)

13 8533920 Screw

18 Nameplate

4390656 White

19 Handle

2313345W White

20 4357067 Vent Plug

24 2255411 Clip, Handle

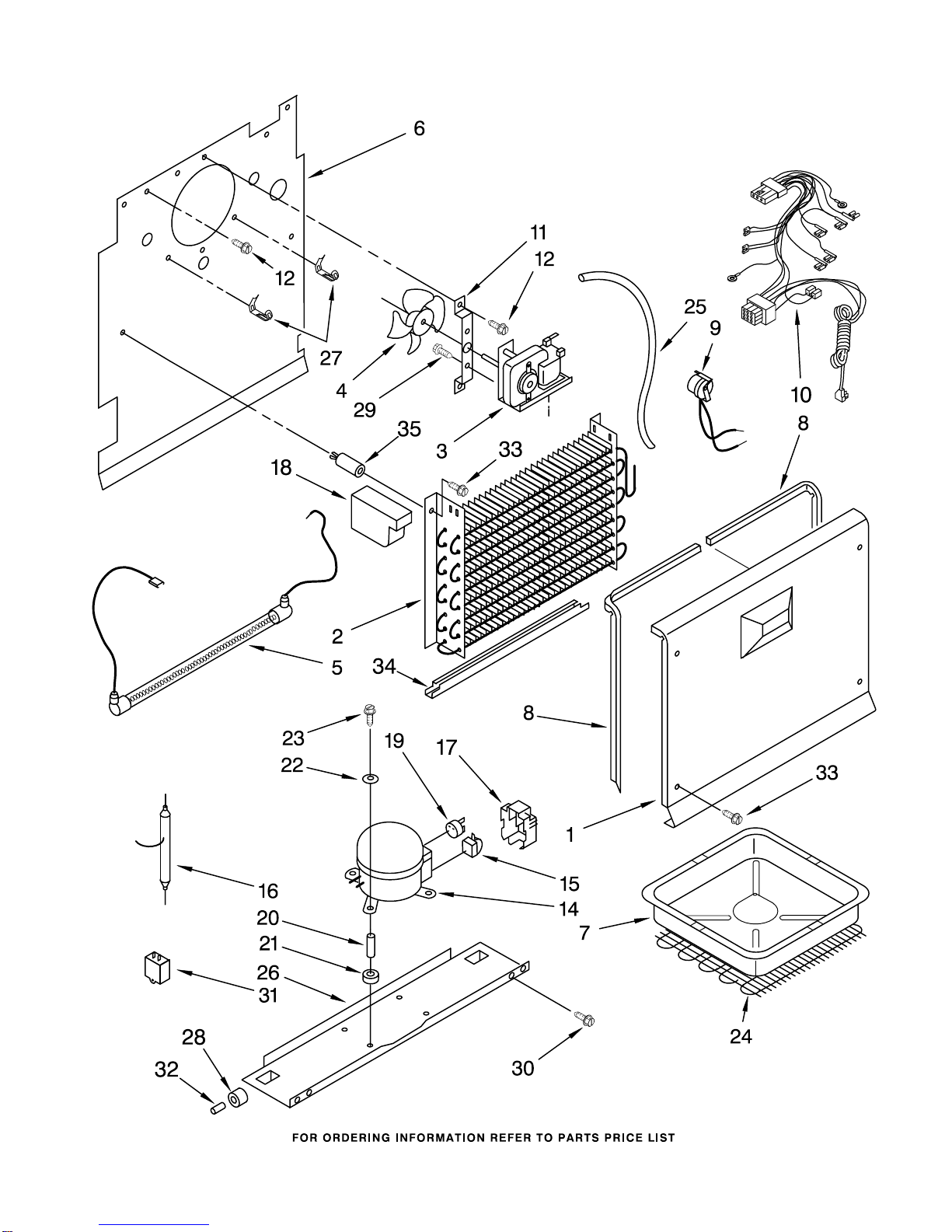

UNIT PARTS

For Model: EV181NZRQ00

(White)

8214785

UNIT PARTS

For Model: EV181NZRQ00

(White)

8214785

Illus. Part

No. No. DESCRIPTION

1 4390662 Cover, Evaporator

2 4357244 Evaporator

3 4357004 Motor, Fan

4 4356920 Blade, Fan

5 4356923 Heater, Defrost

6 4357123 Plate, Evaporator

Mount

7 4390932 Drain Pan

8 Gasket, Cover

Evaporator

4390663 Right

4390664 Left

9 8210253 Bi−Metal Defrost

10 8210386 Harness, Wiring

(With Power Cord)

11 4357129 Bracket, Motor

12 4356943 Screw, Motor

14 4356775 Compressor

(Includes Items

15,17,19, & 21)

15 4356738 Relay

16 4357299 Drier

17 4356777 Cover

18 8210261 Block, Foam

19 4356776 Overload

20 4356846 Sleeve

21 4356335 Compressor,

Grommet

22 4356847 Washer

23 8210220 Screw, Compressor

24 8210243 Condenser

25 4357263 Heat, Exchanger

26 8210202 Pan, Compressor

27 4356952 Clip, Thermostat

28 4390754 Roller

29 4356970 Screw

30 4357277 Screw

31 4390674 Capacitor

32 4390755 Axle

33 4390821 Screw

34 4356924 Shield, Heater

35 4357020 Grommet

REFRIGERANT CHARGE

5.8 oz.

(R−134A)

OPTIONAL PARTS (NOT INCLUDED)

For Model: EV181NZRQ00

(White)

8214785

Illus. Part

No. No. DESCRIPTION

Customer Touch−Up Material

350930 Enamel, White

(13 Oz. Spray Can)

350939 Enamel, Black

(13 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

Miscellaneous

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4 x 108")

978941 Insulation

Fiberglass

(63−1/2" x 35−1/2

x 2−5/8")

505587 Sealer Mastic

(1 Qt.)

503695 Cork Sealer

(1/4 Pound)

FIELD INSTALLABLE

ICE MAKER

2155469 ECKMF94
