CABINET PARTS

For Model: EH101FXRQ00

(White)

10−06 Litho In U.S.A. (tpm) Part No. 8214755

CHEST FREEZER

CABINET PARTS

For Model: EH101FXRQ00

(White)

8214755

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8210314 Energy Guide

8210431 Owner’s Manual

2 4356752 Hinge Assembly

3 4356463 Spacer, Hinge

4 4356321 Plastic, Grommet

5 8210312 Basket (2)

6 8210276 Thermostat

7 4356769 Knob, Thermostat

8 8210234 Control Box

9 4356743 External, Wiring

Harness

10 4356643 Plastic, Clip (2)

11 4356633 Breaker Strip

13 4356622 Access Panel

14 4356583 Screw

15 4356491 Screw

16 4356731 Divider

(Optional)

17 4356456 Drain Plug

19 4356481 Drain Adaptor

21 Cabinet (Not A

Serviceable Part)

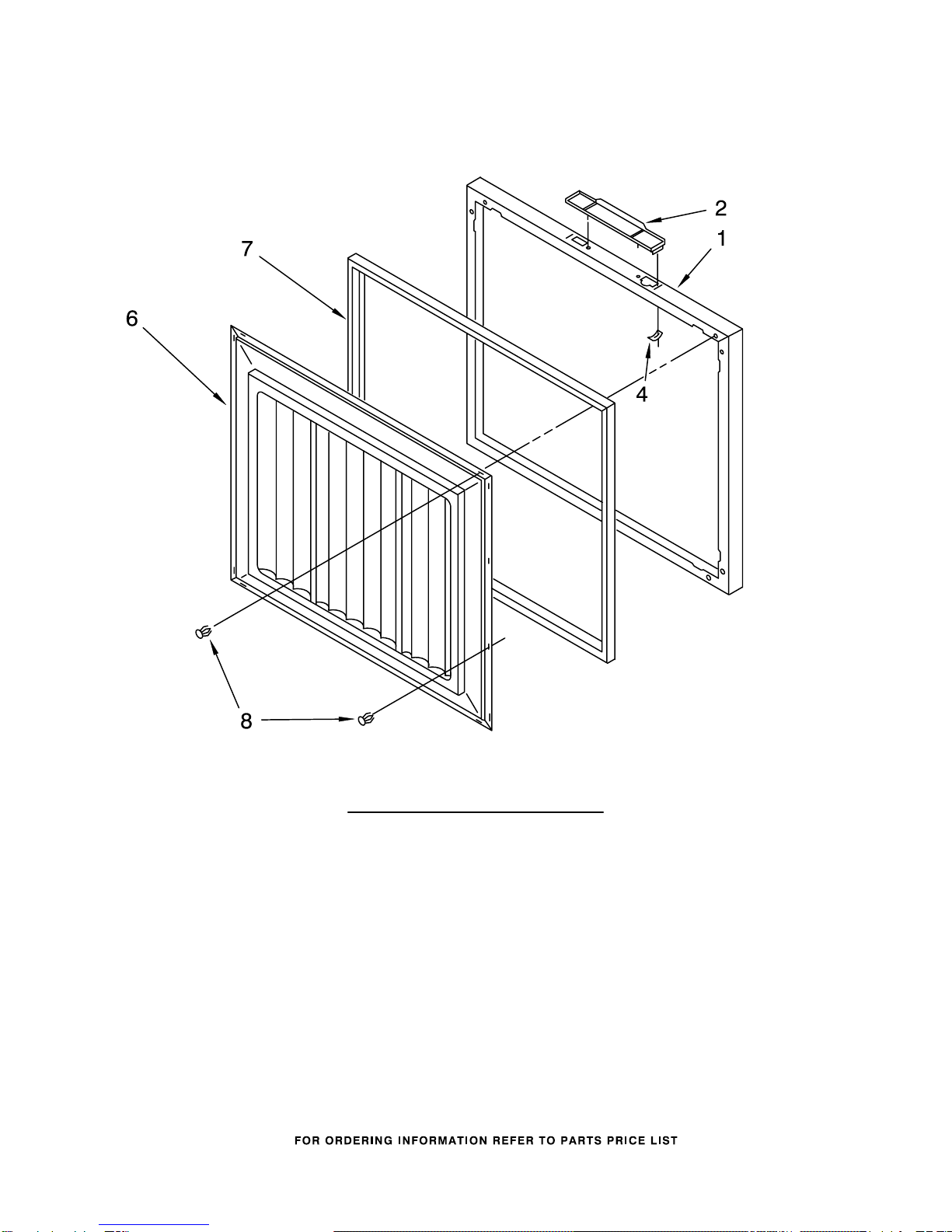

DOOR PARTS

For Model: EH101FXRQ00

(White)

8214755

Illus. Part

No. No. DESCRIPTION

1 4390900 Exterior Door

Panel (Includes

Insulation)

2 4356685 Handle

4 4356306 Clip, Handle

Oblong

6 4356531 Interior Door

Panel

7 4356651 Gasket

8 4356703 Plastic,

Mounting Clip

UNIT PARTS

For Model: EH101FXRQ00

(White)

8214755

Illus. Part

No. No. DESCRIPTION

1 4356783 Compressor

(Includes Items

2,3,4,5,8,9 & 10)

2 8210313 Relay

3 4357299 Drier

4 4356335 Grommet, Mounting

Compressor

5 4356336 Clip, Hitch

6 4356590 Compressor, Base

8 4356599 Cover

9 8210309 Capacitor

10 4356785 Overload

11 4356720 Brace

REFRIGERANT CHARGE

4.5 oz.

(R−134A)

OPTIONAL PARTS (NOT INCLUDED)

For Model: EH101FXRQ00

(White)

8214755

Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

Customer Touch−Up Material

350930 Enamel, White

(13 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

799344 Enamel, White

(1 Qt. Uncut)

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

4356703 Clip, Gasket

(Kit Of 60)
