Whirlpool EH151FXRQ00 User manual

CABINET PARTS

For Model: EH151FXRQ00

(White)

1−07 Litho in U.S.A. (tpm) Part No. 8214757

CHEST FREEZER

CABINET PARTS

For Model: EH151FXRQ00

(White)

8214757

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8210431 Owners Manual

8210232 Energy Guide

2 4356723 Hinge, Assembly

3 4356463 Spacer, Hinge

4 4356321 Plastic, Grommet

5 Basket

8210317 Upper (2)

8210318 Lower (2)

6 8210320 Thermostat

7 4356769 Knob, Thermostat

8 8210319 Control Box

9 8210325 Harness, Wiring

10 4356643 Clip

12 4356456 Plug, Drain

14 4356622 Access Panel

15 4356583 Screw

16 4356491 Screw

17 4356637 Front, Breaker

Strip

18 4356636 Rear, Breaker

Strip

19 4356635 End, Breaker

Strip (2)

20 4356477 Divider

(Optional)

21 4356481 Drain, Adapter

23 Cabinet (Not A

Serviceable Part)

24 8210321 Alarm (Buzzer)

25 8210323 Switch, Alarm

27 8210324 Wire, Lead

DOOR PARTS

For Model: EH151FXRQ00

(White)

8214757

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4390902 Exterior Door

Panel (Includes

Insulation)

2 4356759 Lock

(Includes Items

2, 3, 4, 7 & 13)

3 4356608 Hook Bolt,

Lock

4 4356304 Key

5 4356648 Handle

6 4356306 Clip, Oblong

7 4356609 Screw

8 8210230 Interior Door

Panel

9 4390670 Nameplate

10 4356453 Light, Indicator

11 4356311 Bulb, Light

12 4356874 Socket, Light

13 4356693 Gasket

14 4356703 Gasket, Clip

15 4356704 Shield, Heat

16 4356500 Reflector, Light

18 4356493 Clip, Spring

19 4356796 Switch, Light

20 8210316 Harness, Wiring

(Lid)

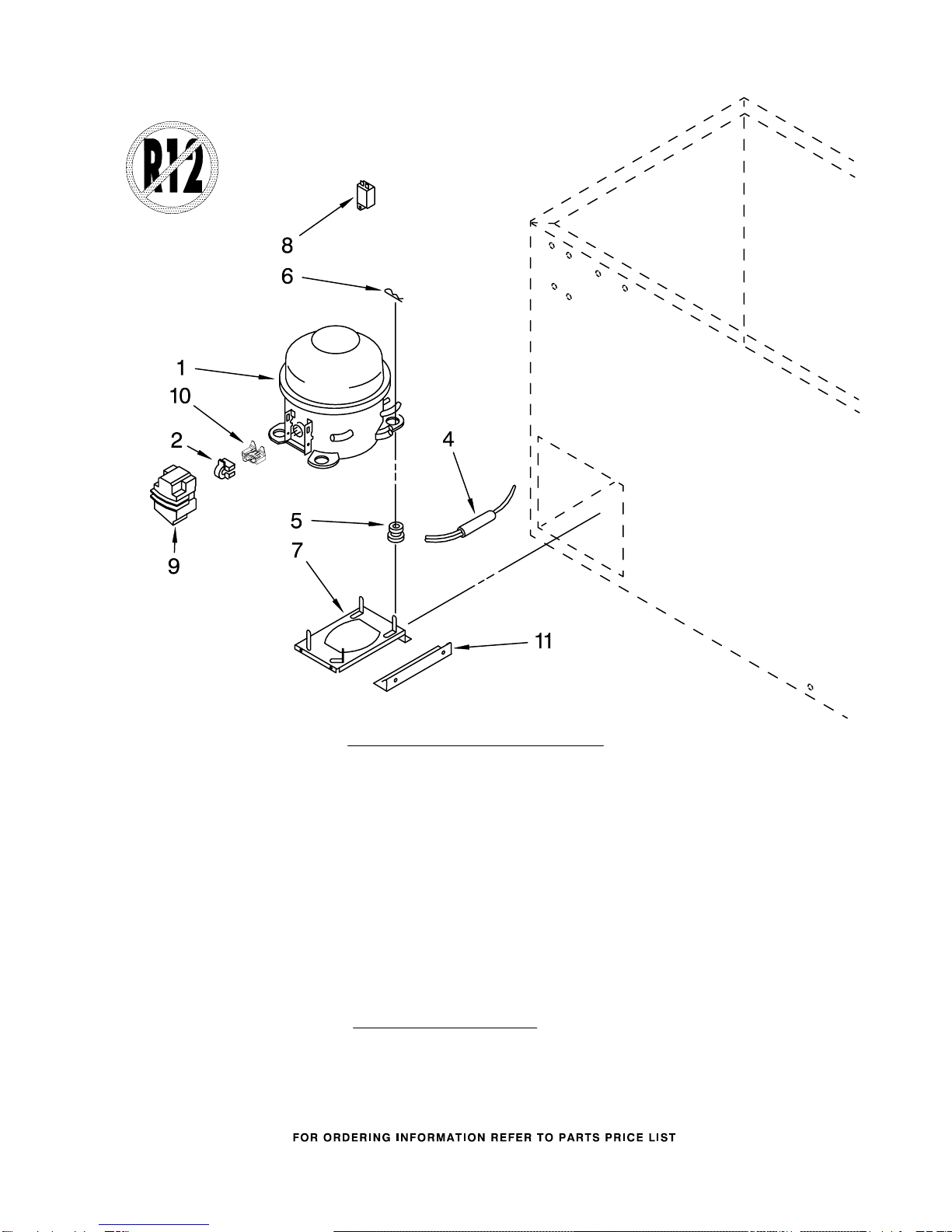

UNIT PARTS

For Model: EH151FXRQ00

(White)

8214757

Illus. Part

No. No. DESCRIPTION

1 4356760 Compressor

(Includes Items

2, 3, 4, 5, 6 & 9)

2 4356738 Relay

4 4357299 Drier

5 4356335 Compressor,

Mounting Grommet

6 4356336 Compressor,

Hitch Pin

7 4356590 Compressor Base

8 8210309 Capacitor

9 4356777 Cover

11 4356720 Brace

10 4390624 Overload

REFRIGERANT CHARGE

4.8 oz.

(R−134A)

OPTIONAL PARTS (NOT INCLUDED)

For Model: EH151FXRQ00

(White)

Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

4356489 Clip, Gasket

(Kit Of 60)

Customer Touch−Up Material

350930 Enamel, White

(13 Oz. Spray Can)

72107 Brush Touch−Up Kit

(White)

799344 Enamel, White

(1 Qt. Uncut)

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

8214757
