CABINET PARTS

For Model: EV161NZRQ04

(White)

2−08 Litho in U.S.A. (rrm) Part No. W10189620 Rev.A

VERTICAL FREEZER

CABINET PARTS

For Model: EV161NZRQ04

(White)

W10189620

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8210432 Owners Manual

8210429 Energy Label/Tag

2 4390520 Washer, Door

Spacer

3 4356803 Clip, Grille

4 8210293 Grille

5 4357243 Screw

6 4390489 Shim, Hinge

7 4390905 Power Light

Assembly

8 4357279 Cover, Hinge

9 4390489 Shim, Bottom

10 8210222 Hinge, Top

11 8210238 Hinge, Bottom

13 4390866 Leg, Leveler

14 4356830 Screw

W10164544

Grommet, Drain

16 8210375 Cord, Power

17 Cabinet (Not A

Serviceable Part)

18 4356643 Clamp, Tube

19 4356583 Screw

LINER PARTS

For Model: EV161NZRQ04

(White)

W10189620

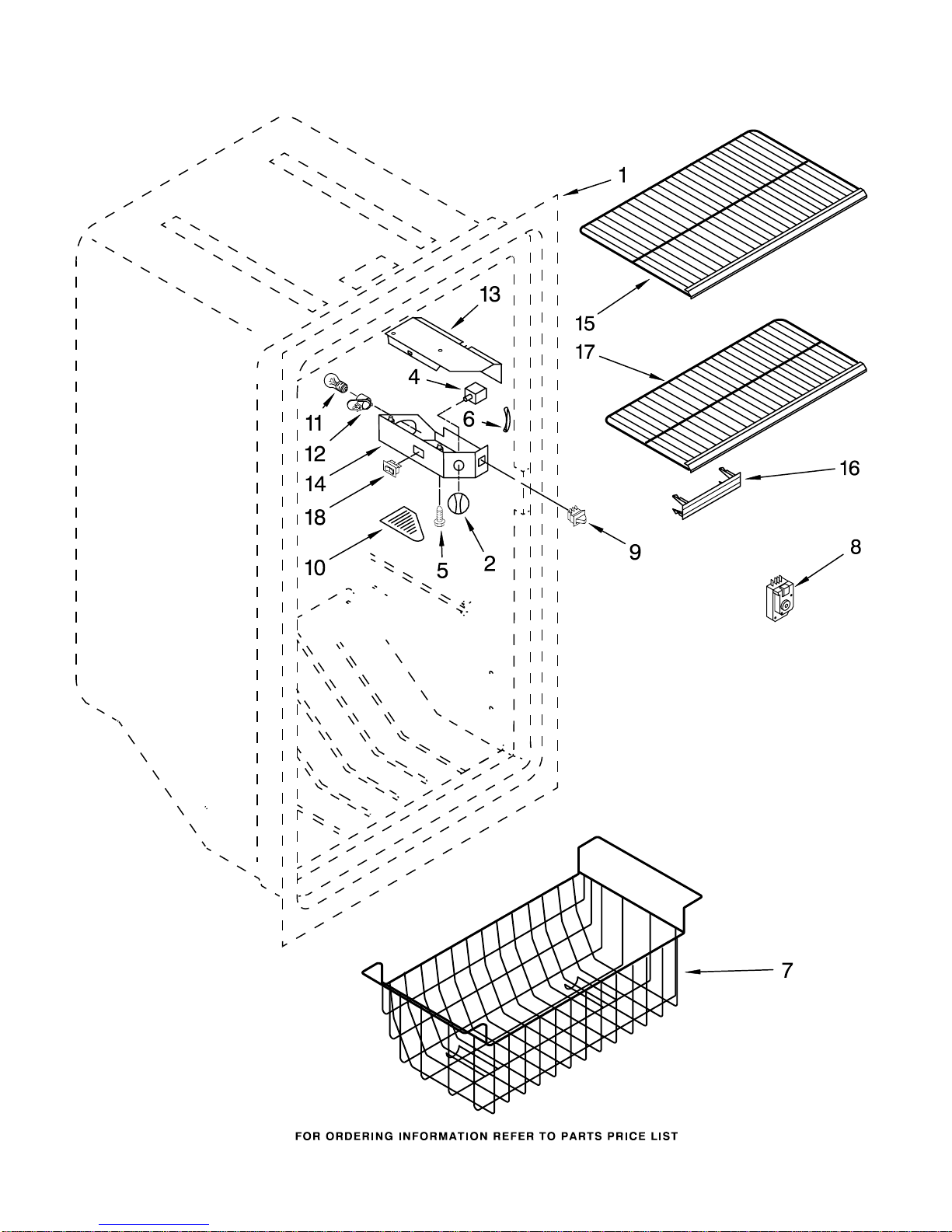

LINER PARTS

For Model: EV161NZRQ04

(White)

W10189620

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 8210348 Knob, Control

4 8210344 Thermostat

5 4357042 Screw

6 4356800 Tubing,

Thermostat

7 4390621 Basket, Wire

8 4357124 Timer, Defrost

9 4390513 Switch, Light

10 8210349 Lens, Light

11 4390465 Bulb, Light

12 8210350 Socket, Light

13 8210351 Shield, Light

14 8210377 Box, Control

15 8210346 Shelf, Upper Wire

16 4357295 Vent Plug (4)

17 8210347 Shelf, Lower Wire

18 8210370 Switch, Alarm

(Illuminated)

UNIT PARTS

For Model: EV161NZRQ04

(White)

W10189620

UNIT PARTS

For Model: EV161NZRQ04

(White)

W10189620

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10189623

Cover, Evaporator

2 4357244 Evaporator

3 4390914 Motor, Fan

4 4390912 Blade, Fan

5 4390913 Heater, Defrost

W10164624

Shield, Heater

W10164623

Pan, Drain

8 Gasket, Cover

Evaporator

4390663 Right

4390664 Left

9 8210253 Bi−Metal Defrost

10 4390708 Box, Control

11 4357129 Bracket, Motor

12 4356943 Screw, Motor

13 4357110 Screw (4)

14 68001209 Compressor

(Includes Items

15,16,17,19 & 21)

15 4356738 Relay

16 4357299 Drier

17 4356777 Cover

18 8210426 Harness, Fan

19 4390896 Overload

20 4356846 Sleeve

21 4356335 Compressor,

Grommet

22 4356847 Washer

23 8210220 Bolt, Compressor

24 4390709 Alarm (Buzzer)

25 4357263 Exchanger, Heat

26 4357257 Pan, Compressor

27 4356952 Clip, Thermostat

28 8210248 Condenser

29 4356970 Screw

30 4357277 Screw

31 8210224 Capacitor

32 4357020 Grommet

33 4357123 Plate, Evaporator

Mount

34 8210261 Block, Foam

35 4357110 Screw

REFRIGERANT CHARGE

6.2 oz.

(R−134A)

DOOR PARTS

For Model: EV161NZRQ04

(White)

W10189620

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4390731 Bushing, Hinge

2 8210385 Rail, Door (5)

3 8210401 Stop, Door

(Upper)

4 4357067 Vent Plug

5 8210340 Gasket, Door

6 8210357 Door Assembly

(Includes Interior

Door Panel)

7 2255121 Nameplate

8 2255411 Clip

9 489491 Screw

10 8533920 Screw

11 2313345W Handle

12 8210400 Stop, Door

(Lower)

OPTIONAL PARTS (NOT INCLUDED)

For Model: EV161NZRQ04

(White)

W10189620

Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

Customer Touch−Up Material

350930 Enamel, White

(13 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

Miscellaneous

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4 x 108")

978941 Insulation

Fiberglass

(63−1/2" x 35−1/2

x 2−5/8")

505587 Sealer Mastic

(1 Qt.)

503695 Cork Sealer

(1/4 Pound)
