Whirlpool GU2300XTS User manual
DOOR AND PANEL PARTS
1
For Models: GU2300XTSB0, GU2300XTSQ0, GU2300XTST0, GU2300XTSS0
(Black) (White) (Biscuit) (Stainless)
2−07 Litho in U.S.A. (ebk) Part No. W10128193 Rev. A
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8575348 Instructions,
Installation
W10102750
Energy Guide
W10073760
Guide, Use & Care
W10082651
Tech Sheet
2 Arm, Hinge
8534858 Left
8534857 Right
3 8268983 Stiffener,
Door
4 Panel Front
(Includes #7)
W10073200
Black
W10073210
White
W10073220
Biscuit
8269845 Stainless
5 Access Panel
8573255 Black
8573256 White
8573257 Biscuit
6 8268580 Insulation, Door
7 8269016 Clip, Ground
8 Toe Panel
(Includes Clip)
8573286 Black
8573287 White
8573288 Biscuit
9 8269740 Clip, Grounding
12 Screw
302868 Black
3400836 White
3400865 Biscuit
13 343641 Screw
15 489470 Screw

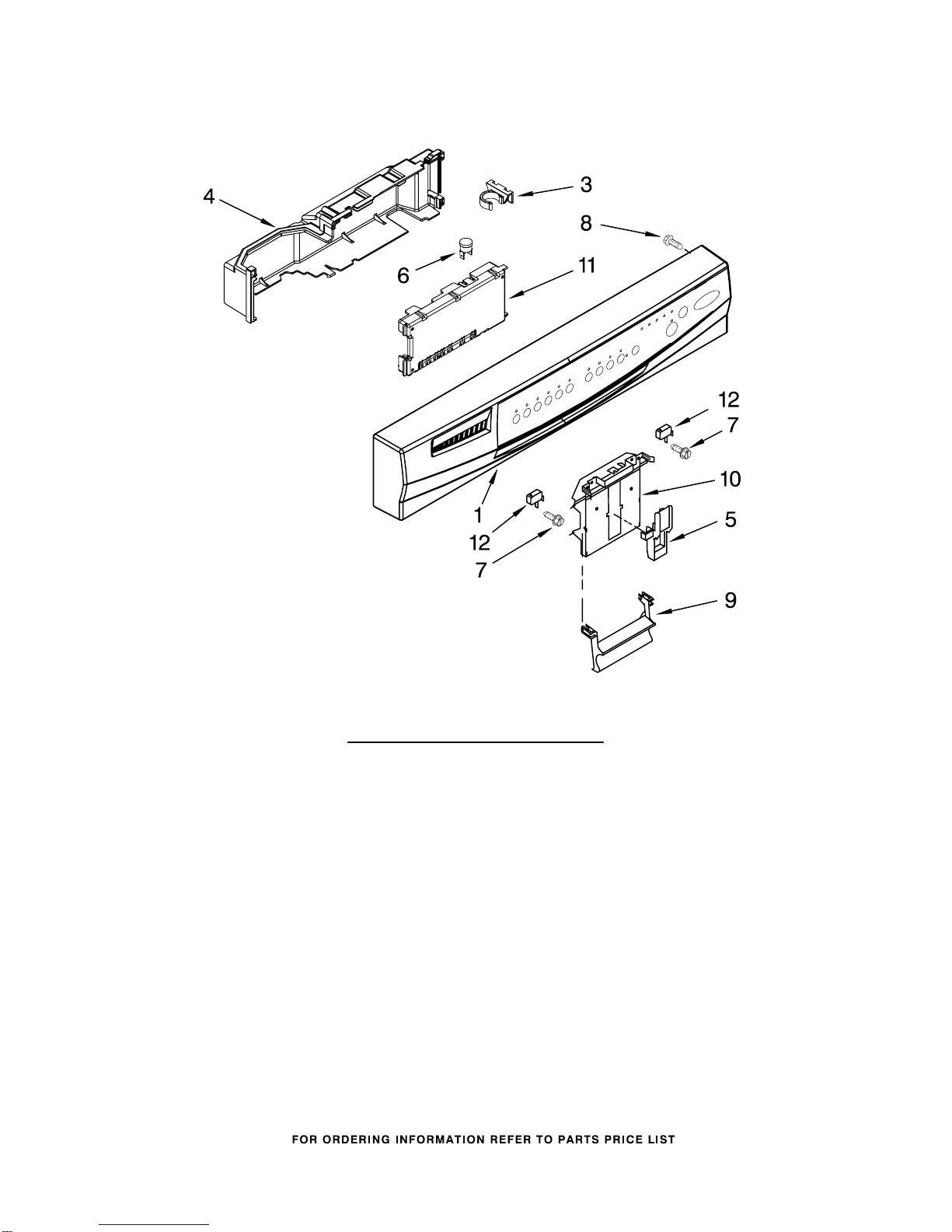

CONTROL PANEL PARTS
2
For Models: GU2300XTSB0, GU2300XTSQ0, GU2300XTST0, GU2300XTSS0
(Black) (White) (Biscuit) (Stainless)
W10128193
Illus. Part
No. No. DESCRIPTION
1 Console Asm.
(Includes Active
Overlay & Insert)
W10102775
Black
W10102776
White
W10102777
Biscuit
3 8546546 Clip, BI−Metal
4
W10056090
Cover Control
Shield Assembly
5 8524471 Actuator, Latch
6 661663 BI−Metal
7 3400412 Screw
8 3369051 Screw (6)
9 Handle, Latch
8534984 Black
8534985 White
8534986 Biscuit
10 8524476 Bolt, Latch
11 8575276 Control,
Electronic
12 8269209 Switch, Door
DOOR AND LATCH PARTS
3
For Models: GU2300XTSB0, GU2300XTSQ0, GU2300XTST0, GU2300XTSS0
(Black) (White) (Biscuit) (Stainless)
W10128193
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
3 8575895 Inner Door
(Also Order
Item 6)
5 8542603 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7 8575892 Deflector, Vent
(Also Order
Item 6)
8 8565815 Dispenser,
Assembly
9 8269258 Seal, Front
12
W10082586
Wiring Harness
Main
13 8281154 Screw
14 8269296 Seal,
Console/door
15 8535637 Bracket, Dispenser
16 8531865 Shield, Dispenser
17 8558307 Cap, Rinse Aid
4
LOWER WASHARM PARTS
For Models: GU2300XTSB0, GU2300XTSQ0, GU2300XTST0, GU2300XTSS0
(Black) (White) (Biscuit) (Stainless)
W10128193
Illus. Part
No. No. DESCRIPTION
1 8268333 Wash Arm Assembly
2 8268343 Cap, Internal
Rear Feed
(Also Order
Item 3)
3 8268340 Seal, Sprayarm
4 8268342 Hub, Lower
Sprayarm
(Also Order
Item 3)
HEATER PARTS
5
For Models: GU2300XTSB0, GU2300XTSQ0, GU2300XTST0, GU2300XTSS0
(Black) (White) (Biscuit) (Stainless)
W10128193
Illus. Part
No. No. DESCRIPTION
1 8563007 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 8269262 Bracket,
Heater Support
NOTE:
If heater element is
removed, it must be replaced.
FILL AND OVERFILL PARTS
6
For Models: GU2300XTSB0, GU2300XTSQ0, GU2300XTST0, GU2300XTSS0
(Black) (White) (Biscuit) (Stainless)
W10128193
Illus. Part
No. No. DESCRIPTION
1 8268892 Lever, Overflow
Switch
2 8531412 Hose, Inlet
3 8531325 Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5 8531327 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7 8563405 Fill Valve
Assembly
8 304392 Screw
9 8268909 Switch, Overfill
Control
10 8545881 Standpipe,
Overfill
11 304231 Screw
12 8268895 Float & Retainer
Assembly
TUB AND FRAME PARTS
7
For Models: GU2300XTSB0, GU2300XTSQ0, GU2300XTST0, GU2300XTSS0
(Black) (White) (Biscuit) (Stainless)
W10128193
TUB AND FRAME PARTS
8
For Models: GU2300XTSB0, GU2300XTSQ0, GU2300XTST0, GU2300XTSS0
(Black) (White) (Biscuit) (Stainless)
W10128193
Illus. Part
No. No. DESCRIPTION
1 8575978 Tub Assembly
2 8573061 Strain Relief
3 8268888 Door Seal
5 8531022 Drain Loop
With Check Valve
8 8533836 Screw (8)
10 3367670 Screw
11 8269145 Bracket,
Undercounter
15 8269831 Wheel Leg
16 8524584 Leveler, Leg
18 8524473 Spring, Door
Balance
19 8575897 Wheel & Mount
Assembly
20 3400892 Screw
21 8268991 Cover, Terminal
Box
23 8268961 Pad, Friction
26 304231 Screw
27 8269016 Clip, Grounding
28 8573240 Shield, Sound
Tub
29 3378595 Bracket,
Thermostat
30 661566 Thermostat
31 8580309 Strike, Plate
33 8268990 Bushing, Door
Spring
34 3378128 Washer
35 3400014 Screw
36 8575616 Actuator Assembly
37 8559844 Motor Wax
38 356138 Clamp, Hose (1)
39 8269297 Miscellaneous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
PUMP AND MOTOR PARTS
9
For Models: GU2300XTSB0, GU2300XTSQ0, GU2300XTST0, GU2300XTSS0
(Black) (White) (Biscuit) (Stainless)
W10128193
PUMP AND MOTOR PARTS
10
For Models: GU2300XTSB0, GU2300XTSQ0, GU2300XTST0, GU2300XTSS0
(Black) (White) (Biscuit) (Stainless)
W10128193
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8572618 Sump With Seal
5 8268375 Check Valve, Sump
6 8268383 Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
10 8534942 Motor Assembly
11 3400217 Screw
12 8268391 Screen, Separation
14 8572615 Sump & Motor
Assembly
15 8269524 Tab, Sump
16 8533949 Nut
17 661662 Pump, Drain
18 8531019 Volute, Back
(Also Order
Items 23 & 30)
19 8269144 Hose, Drain
20 8534941 Motor
21 8268397 Seal, Volute
22 8531017 Impeller Kit
(Also Order
Item 30)
23 8268403 Face Seal Assembly
(Also Order
Item 30)
24 356138 Clamp, Hose
25
W10082647
Optical Water
Indicator
26 8269507 Capacitor
27 8534946 Shield,
Capacitor
30 8531018 Washer
