Whirlpool DU900PCDB0 User manual

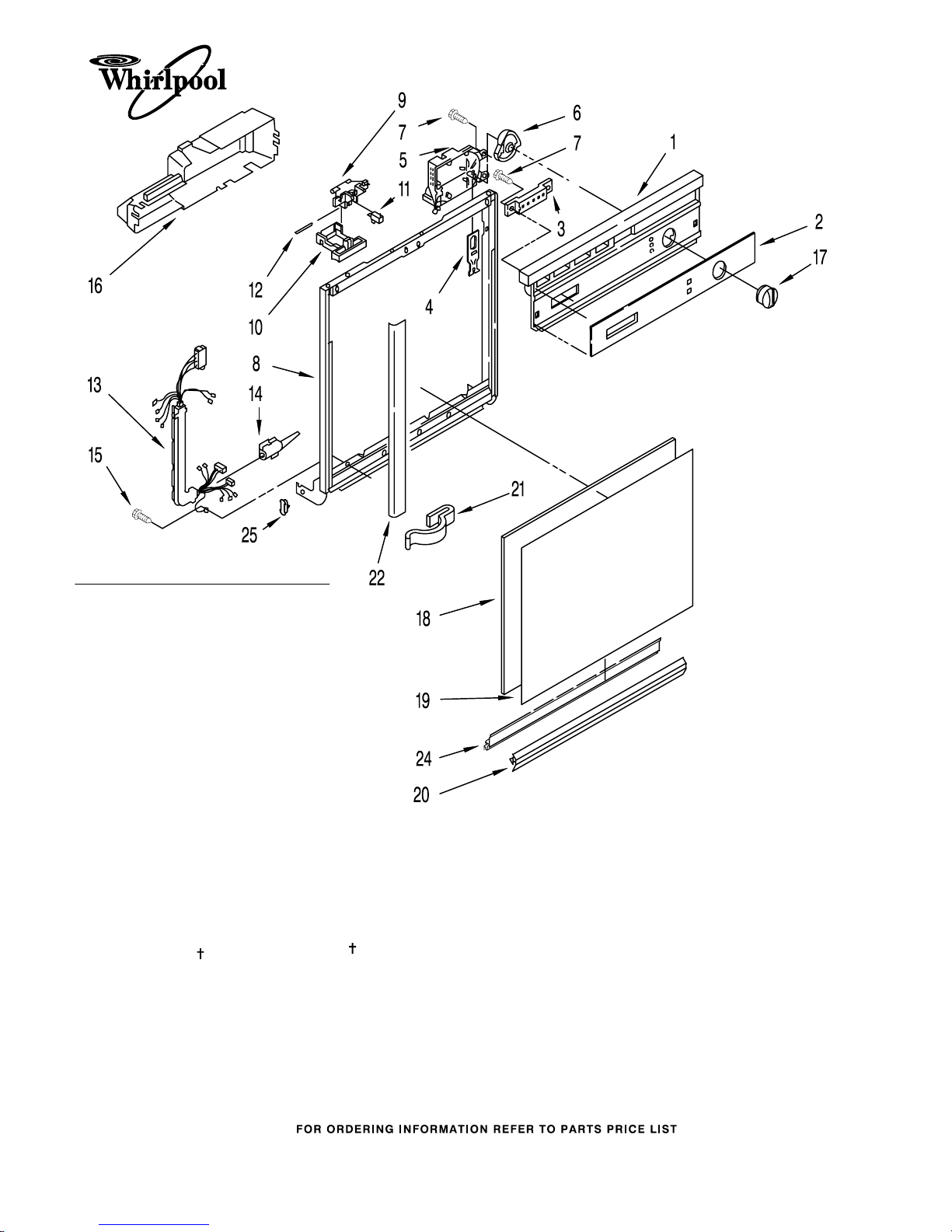

FRAME AND CONSOLE PARTS

For Model: DU900PCDB0

Almond/Black

2−95 Litho In U.S.A. (rle) Part No. 870268

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 3375273 Console

(Includes Item 2)

2 3376024 Insert, Console

3 3376027 Switch

4 3369529 Follower, Cam

5 3373626 Timer

6 3369415 Cam

7 304231 Screw,

8 3374711 Door Frame

(Includes Item 24)

9 3368953 Bolt, Latch

10 3369457 Lever, Latch

11 3369325 Switch, (2)

12 3368955 Pin, Switch (2)

13 3373621 Harness and

Protector

14 3376405 Elbow, Harness

15 3400803 Screw

16 3369192 Cover Timer

17 3375348 Knob, Timer

18 3368979 Spacer,

Corrugated

19 Panel, Front

3369516 (Almond/Black)

20 3374010 Retainer, Panel

21 98997 Clip, Harness

22 3376186 Trim (2)

24 3374716 Channel, Retainer

(Also Order Item

#20)

25 3373234 Bearing,

Spring (2)

Refer To Dishwasher Replacement

Panel Parts List No. 675345.

INNER DOOR PARTS

For Model: DU900PCDB0

Almond/Black

870268

Illus. Part

No. No. DESCRIPTION

1 3371481 Inner Door

(Also Order Latch

Door Kit 676413)

2 3376066 Latch, Detergent

Dispenser

3 3369061 Snap, Detergent

Dispenser

4 3369055 Actuator Assembly

5 3368967 Wet Agent,

Dispenser

6 3369000 Draw Bar (Upper

Dispenser)

7 3369602 Draw Bar (Lower

Dispenser)

8 3368999 Spring (Draw

Bar)

9 3376404 Lid Assembly

10 300106 Spring, Lid

11 3372028 Pin (Lid Hinge)

(Also Order

Item #10)

12 3371710 Screen, Vent

13 3369512 Wet−Agent Cap

Assembly

14 3369155 Seal (Wet−Cap)

15 3369051 Screw

16 3371569 Cover, Drip

TUB ASSEMBLY PARTS

For Model: DU900PCDB0

Almond/Black

870268

TUB ASSEMBLY PARTS

For Model: DU900PCDB0

Almond/Black

870268

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3375130 Tub Assembly

2 3369078 Tub, Wheel

Assembly (8)

3 3368932 Runner (2)

4 3374849 Leveler (2)

5 3370389 Screw, Shoulder

6 302819 Wheel (2)

7 343641 Screw,

8 3372030 Plate, Latch

9 3372029 Screw

10 3368994 Gasket

11 3372412 Retainer, Access

Panel

12 3369052 Deflector (2)

13 3375558 Heater

14 717273 Washer, Rubber (2)

15 3369073 Nut (2)

(Heater Terminal)

16 3374621 Water Valve

17 304392 Screw

18 3369777 Thermostat,

Hi−Limit

19 3373359 Thermostat

20 301958 Clamp

21 3376149 Shield, Thermostat

22 3370555 Bracket,

Thermostat

23 3370225 Screw

24 3369447 Relay

25 304231 Screw

28 3374343 Spring, Door (2)

29 3369048 Housing, Float

Switch

30 3369067 Switch, Float

31 3369049 Cover, Switch

Housing

32 3376397 Float & Washer

Assembly

34 3368942 Toe Panel

35 3369193 Panel, Access

36 302868 Screw

37 3369414 Hose, Inlet

39 3368987 Support, Heater

40 3374765 Sound Shield

41 3370292 Terminal Box

42 300068 Cover Assembly,

Terminal Box

43 Access Panel

3369527 (Almond/Black)

44 3369526 Spacer, Corrugated

45 3369531 Extension

46 3376187 Trim, Side (2)

48 304666 Retainer, Push (2)

49 3370307 Strain Relief

50 3371579 Nut

51 3371578 Screw

52 3369138 Screw

53 3368992 Clip, Grounding

Refer To Dishwasher

Replacement

Panel Parts List No. 675345.

Pump Centering Tool Required

For Pump Re−Assembling

Order Item 31.

Note: The Pump Gasket

Must Be Replaced Anytime

The Pump Assembly Is

Removed And Reinstalled

In The Dishwasher.

PUMP AND MOTOR PARTS

For Model: DU900PCDB0

Almond/Black

870268

PUMP AND MOTOR PARTS

For Model: DU900PCDB0

Almond/Black

870268

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9740982 Plate, Perforated

(Includes Item 5)

(Also Order

Item 30)

See Note A.

2 3367173 Base, Inlet

(Includes Items

1 & 5)

(Also Order

Item 30)

See Note A.

3 9741232 Screw

4 302710 Seal, Inlet Base

5 302709 Ball, Check

6 95080 "O" Ring

7 302721 Cover, Valve

8 302738 Valve Stem Kit

(Includes Items

12, 13 & 22)

See Note A.

9 303883 Separator Assembly

(Includes Items

12, 13 & 22)

See Note A.

10 9741258 Screw

11 303510 Impeller, Wash

(Includes Items

12 & 13)

12 3371152 Screw & Seal

13 302711 Seal, Pump Outlet

14 3369478 Outlet, Pump

(Includes Item 13)

15 3369482 Check Valve

(Includes Item 6)

16 717000 Gasket, Pump

17 3375493 Pump & Motor

Assembly

(Includes Item 16)

18 302707 Bushing, Grind

19 302718 Chopper Kit

(Also Order

Item 30)

See Note A.

20 302705 Sleeve, Drain

Impeller

21 9741321 Screw

22 302704 Seal, Drain Cover

23 302723 Cover, Drain

(Also Order

Item 30)

See Note A.

24 303539 Impeller,

Drain Kit

(Also Order

Item 30)

See Note A.

25 3367204 Base, Pump

(Includes Item 24)

(Also Order

Item 30)

See Note A.

26 3367197 Support, Pump

Mounting (4)

27 3368270 Slinger

(See Note A.)

28 3374753 Motor

(Includes Item 27)

(Also Order

Item 30)

See Note A.

29 3369331 Screw

30 675505 Pump Seal Kit

(Includes Items

4, 12, 13 & 22)

31 303918 Tool, Pump

Centering

32 356138 Clamp, Hose

33 3368781 Hose, Drain

34 3371748 Cap, Drain

35 3374757 Shaft, Absorber

36 3374756 Weight, Absorber

NOTE A:

Pump Centering Tool Required

For Pump Re−Assembling

Order Item 31.

DISHRACK PARTS

For Model: DU900PCDB0

Almond/Black

870268

DISHRACK PARTS

For Model: DU900PCDB0

Almond/Black

870268

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3368290 Support, Arm

2 303722 Clip

3 3368300 Spray Arm, Upper

(Includes Item #8)

4 3368006 Bumper (2)

5 300848 Tower, Pressure

6 3369509 Wheel & Transport

Assembly (4)

7 3370490 Dishrack, Lower

(Includes Items 4 & 6)

8 3374702 Support Lock,

Spray Arm

9 3369488 Silverware

Basket Assembly

10 3369485 Cover, Basket

11 300845 End Cap

(Front or Rear)

12 3369071 Track

13 3374701 Stop, Track (2)

17 3371581 Wheel & Axle

Assembly (4)

18 3371663 Dishrack,

Upper

19 717528 Trim, Basket

20 300086 Handle, Basket

22 3369347 Sprayarm, Lower

23 3367910 Cap, Nozzle

24 719576 Bearing, Nozzle

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

72032 Black

PAINT, PRESSURIZED SPRAY

(13 oz.)

350956 Almond

285006 Superior Black

350941 Primer (White)

PAINT, TOUCH−UP (1 qt.)

978883 Almond (Uncut)

799340 Black (Uncut)

DISHRACK REPAIR

675576 Vinyl Touch−Up

(Blue)

675677 Tine Tip Repair

Kit (Blue−−

Enough For Two

Complete

Dishracks)

676453 Vinyl Touch−Up

(White)

675679 Tine Tip Repair

Kit (White−−

Enough For Two

Complete

Dishracks)

676455 Vinyl Touch−Up

(Grey)

676458 Tine Tip Repair

Kit (Grey−−

Enough For Two

Complete

Dishracks)

ACCESSORY PARTS

4317925 White

4317926 Avocado

4317927 Gold

4317929 Almond

4317930 Toast

4317931 Platinum

4318050 Heavy Duty

LITERATURE PARTS

LIT3369679 Instructions,

Installation

LIT3367007 Instructions,

Installation

(Supplement)

(Locating Your

Water Supply)

LIT3373484 Energy Guide

LIT3373751 Guide, Use & Care

LIT3373631 Wiring Diagram

LIT0677967 Do−It Yourself,

Manual
