Whirlpool DU8500XX-1 User manual

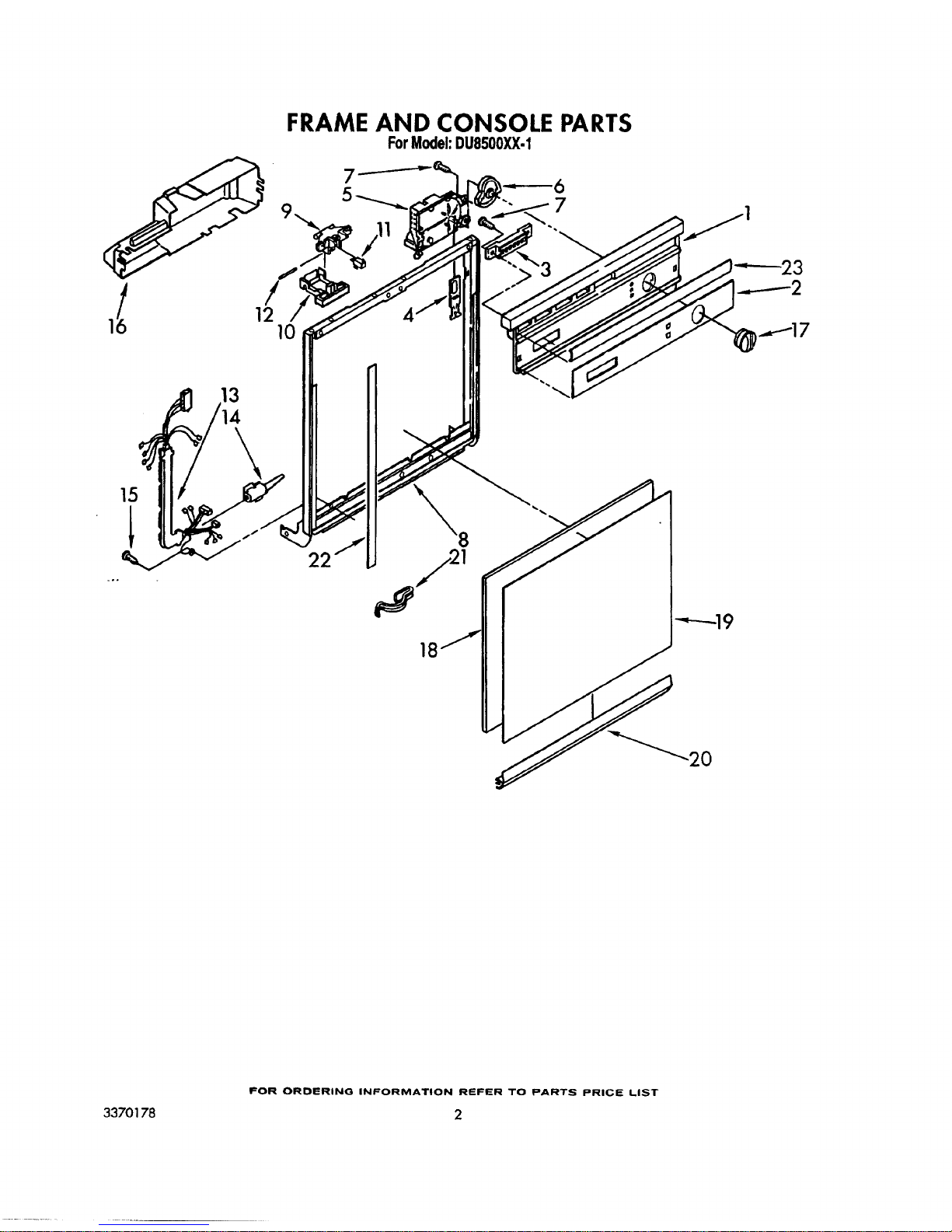

1 3370310 Console (Includes Item 2)

2 3370309 Insert, Console

3 3369565 Switch

4 3368997 Follower, Cam

5 3370249 Timer

6 3369415 Cam

7 304231 Screw, 8-18 x 1/2 (5)

8 3368900 Door Frame

9 3368953 Bolt, Latch

10 3368954 Lever, Latch

11 3369325 Switch, (2)

12 3368955 Pin, Switch (2)

13 3370252 Harness and Protector (Includes Item 14)

14 3368977 Elbow, Harness

15 9412221 Screw, 8-32 x 1/4

16 3369192 Cover Timer

17 3368998 Knob, Timer

18 3368979 Spacer, Corrugated

19 3369516 +Panel, Front (Almond/Black)

20 3370441 Retainer, Panel

21 98997 Clip, Harness

22 3369586 Trim (2)

23 3369598 Trim, Console

+Panel Parts List No. 675345.

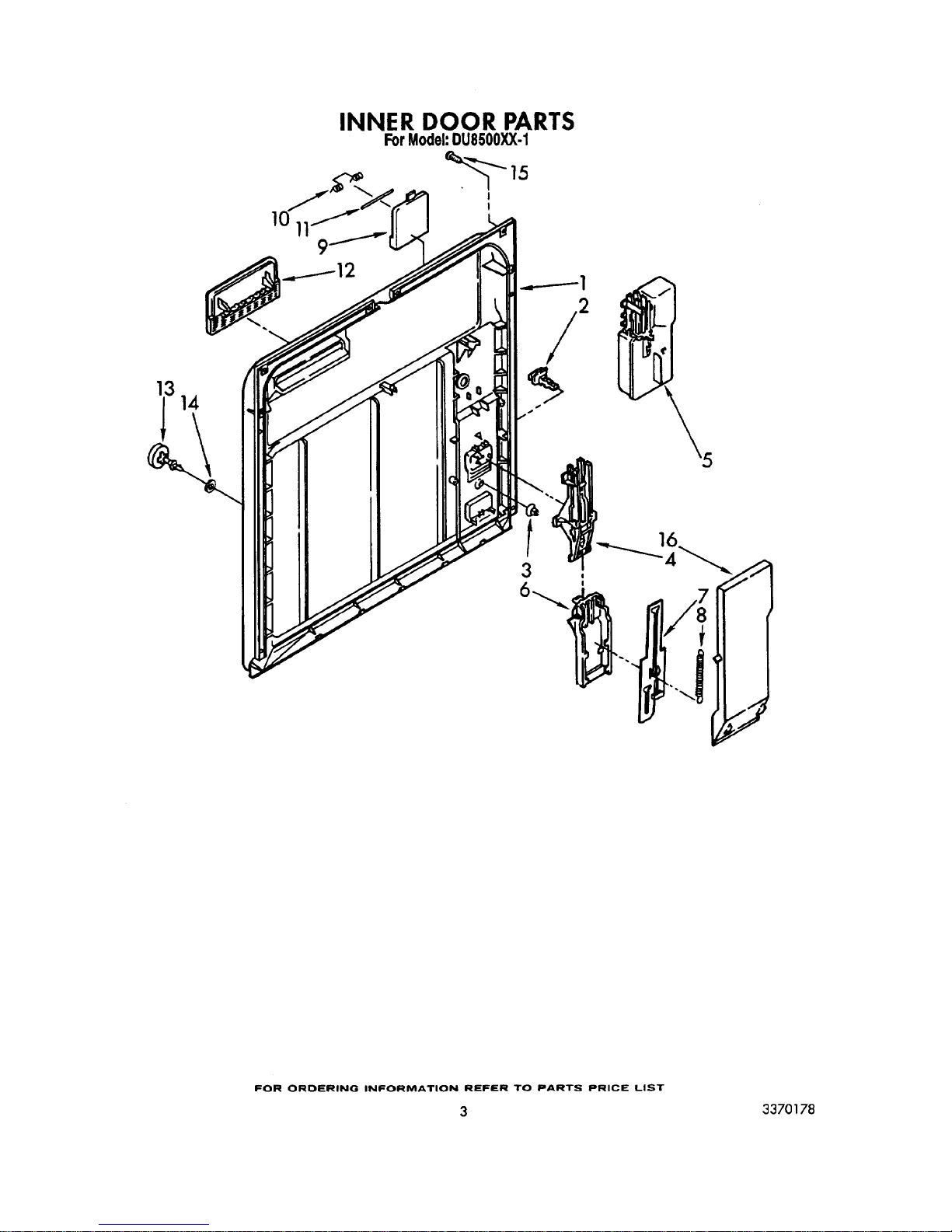

1 3371480 Inner Door (Also Order Latch Door Kit 676413)

2 3369060 Latch, Detergent Dispenser

3 3369061 Snap, Detergent Dispenser

4 3369055 Actuator Assembly

5 3368967 Wet Agent, Dispenser

6 3369000 Draw Bar (Upper Dispenser)

7 3369602 Draw Bar (Lower Dispenser)

8 3368999 Spring (Draw Bar)

9 3368981 Lid Assembly

10 300106 Spring, Lid

11 300115 Pin (Lid Hinge)

12 3369603 Screen, Vent

13 3369512 Wet-Agent Cap Assembly

14 3369155 Seal (Wet-Cap)

15 3369051 Screw (8)

16 3371569 Cover, Drip

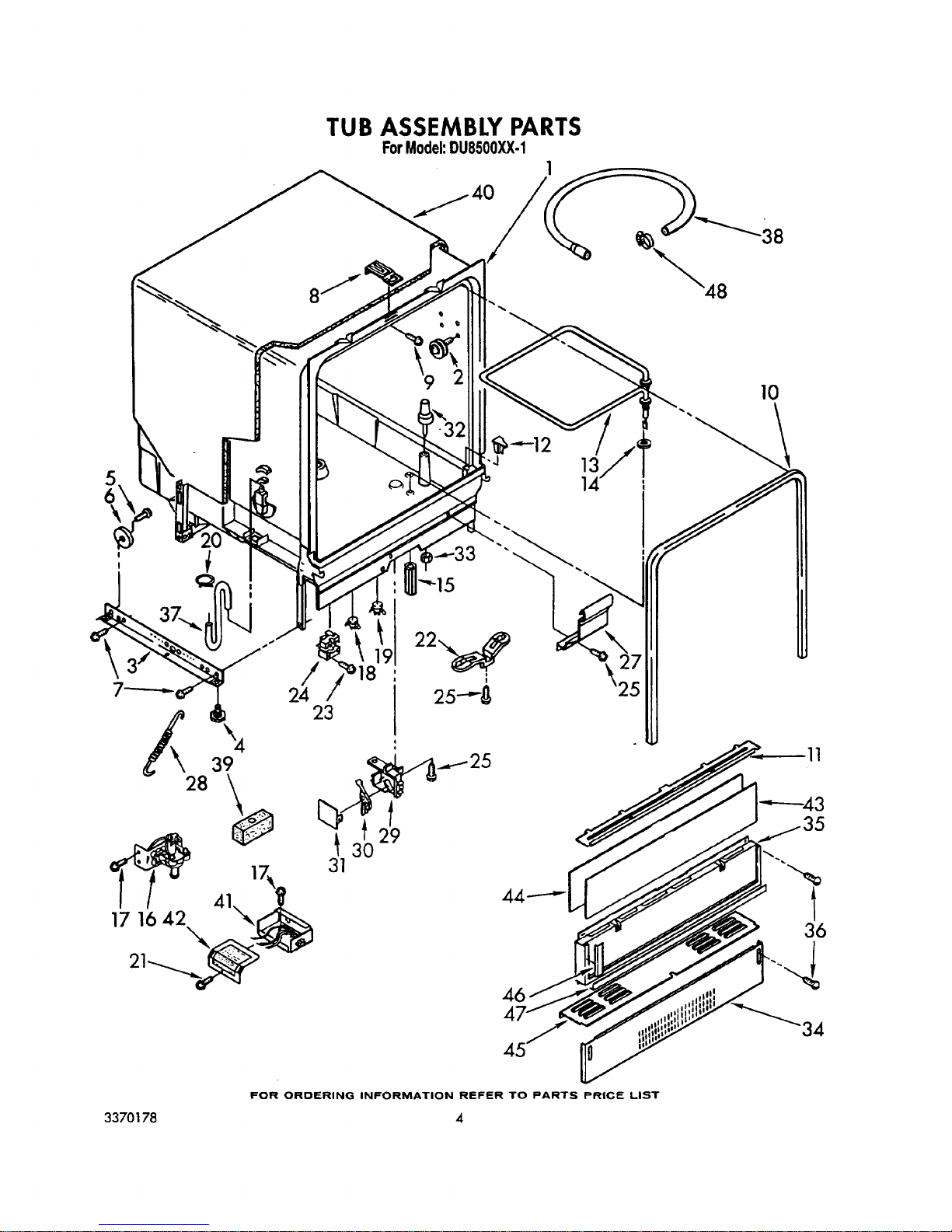

1 Tub Assembly (Not Serviceable)

2 3369078 Tub, Wheel Assembly (8)

3 3368932 Runner (2)

4 302849 Leveler (2)

5 3370389 Screw, Shoulder (2)

6 302819 Wheel (2)

7 343641 Screw, 10-16 x 1/2 (4)

8 3368965 Plate, Latch

9 3368919 Screw, 8-32

10 3368994 Gasket

11 3369511 Retainer, Access Panel

12 3369052 Deflector (2)

13 3369416 Heater

14 717273 Washer, Rubber (2)

15 3369073 Nut (2) (Heater Terminal)

16 3369868 Water Valve

17 304392 Screw, 8-18 x 1/2

18 3369777 Thermostat, Hi-Limit

19 3370782 Thermostat

20 301958 Clamp

21 359625 Screw

22 3370555 Bracket, Thermostat

23 3370225 Screw

24 3369447 Relay

25 304231 Screw, 8-18 x 1/2

27 3368983 Shield, Harness

28 3370939 Spring & Bearing Assembly (2)

29 3369048 Housing, Float Switch

30 3369067 Switch, Float

31 3369049 Cover, Switch Housing

32 3371282 Float

33 717488 Nut

34 3369831 Toe Panel

35 3369193 Panel, Access

36 302868 Screw, 8-18 x 1/2 (4)

37 3369414 Hose, Inlet

38 304626 Drain Hose

39 3369317 Diverter

40 3369329 Sound Shield

41 3369332 Terminal Block & Plug Assembly

42 3369357 Cover Assembly, Terminal Box

43 +Access Panel

3369527 (Almond/Black)

44 3369526 Spacer, Corrugated

45 3369531 Extension

46 3369587 Trim, Side (2)

47 3369588 Trim, Bottom

48 3367052 Hose Clamp

+Replacement Panel Parts List No. 675345.

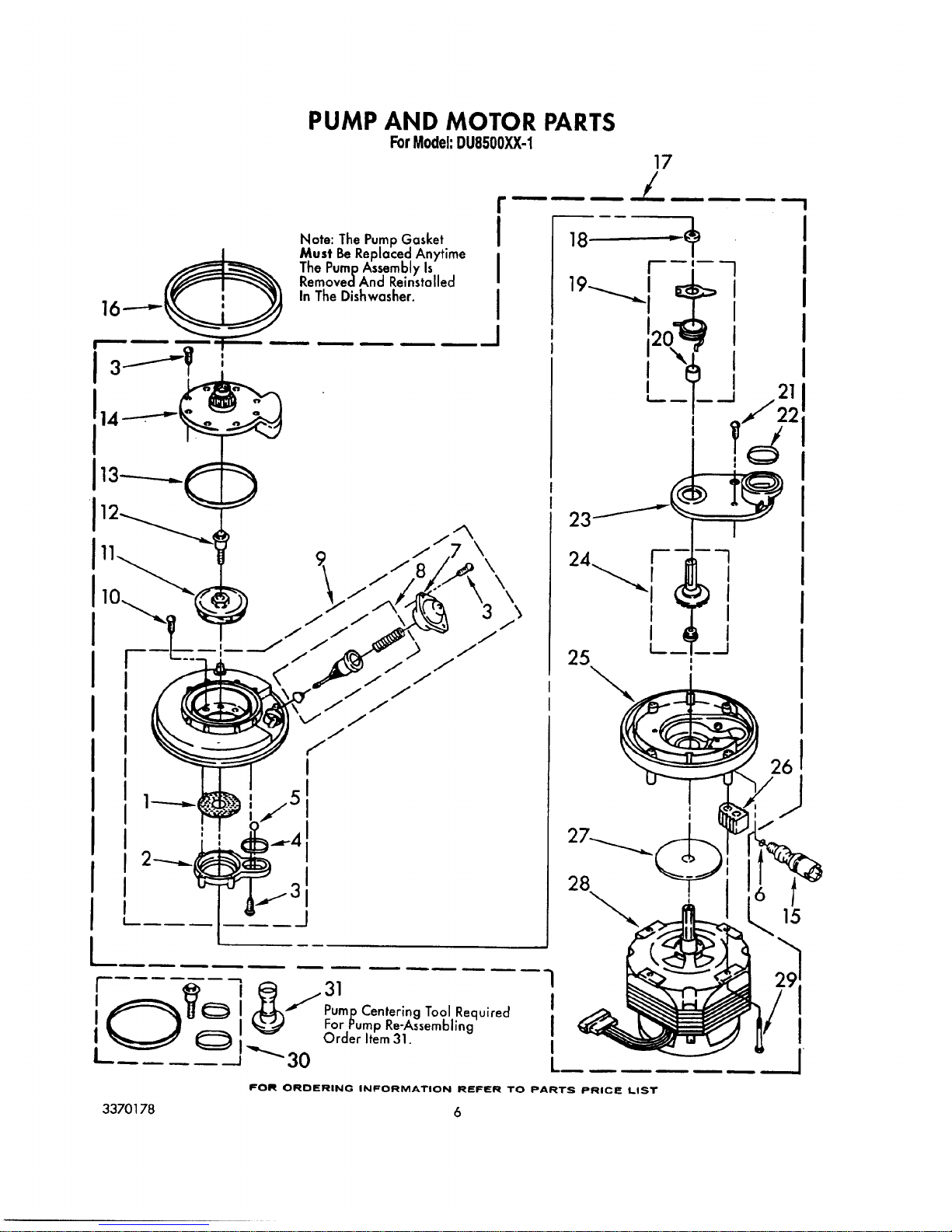

1 302720 Plate, Perforated (Includes Item 5) (Also Order Item 30) See

Note A.

2 3367173 Base, Inlet (Includes Items1&5)(Also Order Item 30) See

Note A.

3 303573 Screw, 8-18 x 5/8

4 302710 Seal, Inlet Base

5 302709 Ball, Check

6 95080 "O" Ring

7 302721 Cover, Valve

8 302738 Valve Stem Kit (Includes Items 12, 13 & 22) See Note A.

9 303883 Separator Assembly (Includes Items 12, 13 & 22) See Note A.

10 302717 Screw, 8-18 x 1-5/8 (4)

11 303510 Impeller, Wash (Includes Items 12 & 13)

12 3371152 Screw & Seal, 10-32 x 3/4

13 302711 Seal, Pump Outlet

14 3369478 Outlet, Pump (Includes Item 13)

15 3369482 Check Valve (Includes Item 6)

16 717000 Gasket, Pump

17 3369475 Pump & Motor Assembly (Includes Item 16)

18 302707 Bushing, Grind

19 302718 Chopper Kit (Also Order Item 30) See Note A.

20 302705 Sleeve, Drain Impeller

21 718258 Screw, 8-18 x 5/8

22 302704 Seal, Drain Cover

23 302723 Cover, Drain (Also Order Item 30) See Note A.

24 303539 Impeller, Drain Kit (Also Order Item 30) See Note A.

25 3367204 Base, Pump (Includes Item 24) (Also Order Item 30) See Note A.

26 3367197 Support, Pump Mounting (4)

27 3368270 Slinger (See Note A.)

28 3369472 Motor (Includes Item 27) (Also Order Item 30)

29 3369331 Screw (4)

30 675505 Pump Seal Kit (Includes Items 4, 12, 13 & 22)

31 303918 Tool, Pump Centering

NOTE A: For Pump Re-Assembling-Order Item 31. The Pump Gasket Must Be Replaced

Anytime The Pump Assembly Is Removed And Reinstalled In The Dishwasher.
