Whirlpool DU7503XL-0 User manual

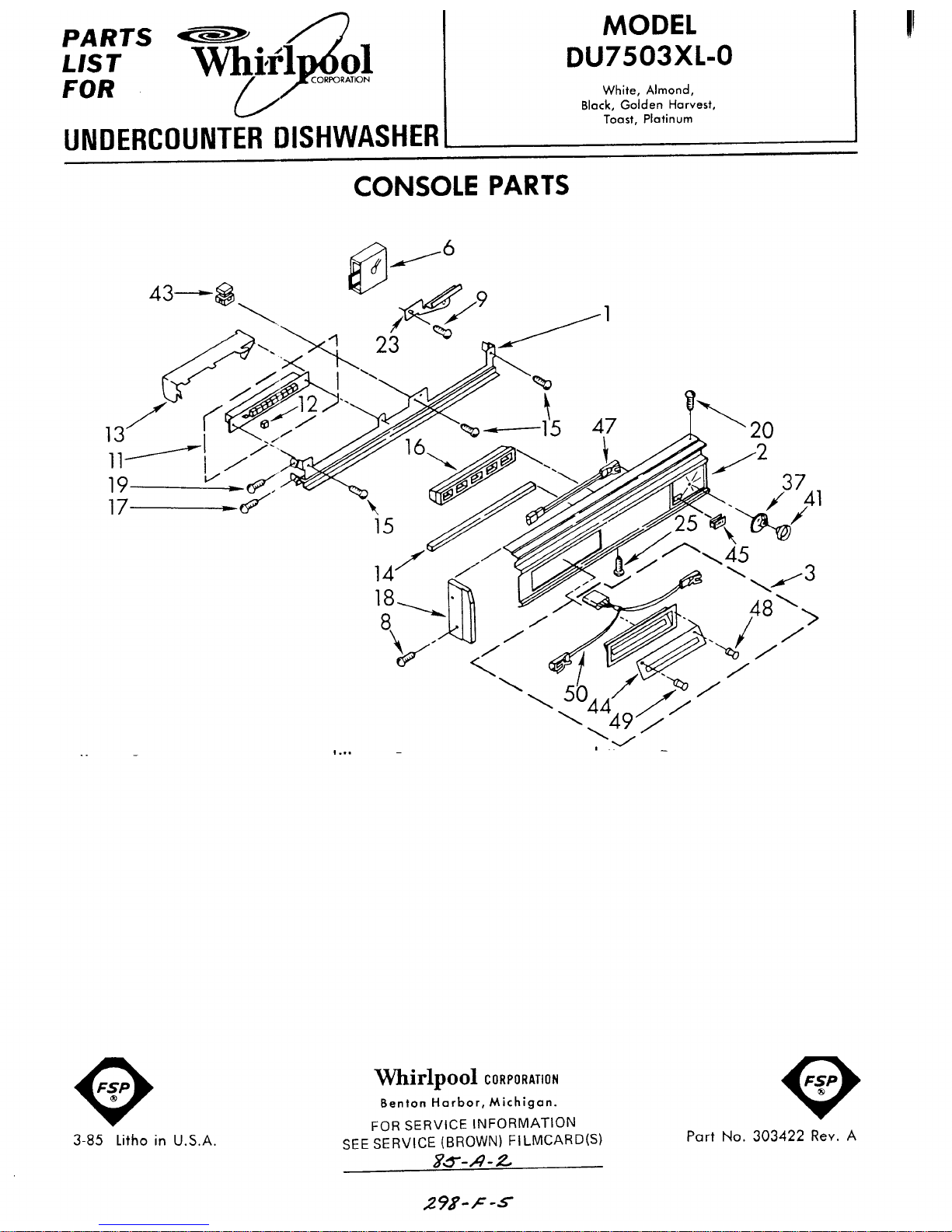

1 300750 Bracket, Console

2 303435 Panel, Escutcheon

3 303465 Bezel Assembly, Pushbutton

6 303426 Timer, Disconnect

8 162402 Screw, 8-15 x 3/4 (4)

9 96435 Screw (2)

11 303429 Switch, Pushbutton

12 301978 Button (9)

13 303129 Barrier, Pushbutton

14 719860 Baffle

15 98209 Screw (6)

16 301878 Grille, Vent

17 688983 Screw, 8-18 x 5/8 (2)

18 303005 Cap, End R.H.

303006 Cap, End L.H.

19 300128 Screw, 8-18 x 1/2 (2)

20 688983 Screw, 8-18 x 5/8 (2)

23 303136 Bracket, Timer Mounting

25 301502 Screw, 6-20 x 1/2

37 302067 Dial, Indicator

41 302180 Knob, Timer

43 Relay

300516 Alternate

301620 Alternate

301536 Alternate

44 303428 Escutcheon, Pushbutton Switch

45 302227 Lens, Amber

47 302184 Indicator Light & Connector

48 302840 Lens, Red

49 302841 Lens, Green

50 303132 Light & Connector Assembly

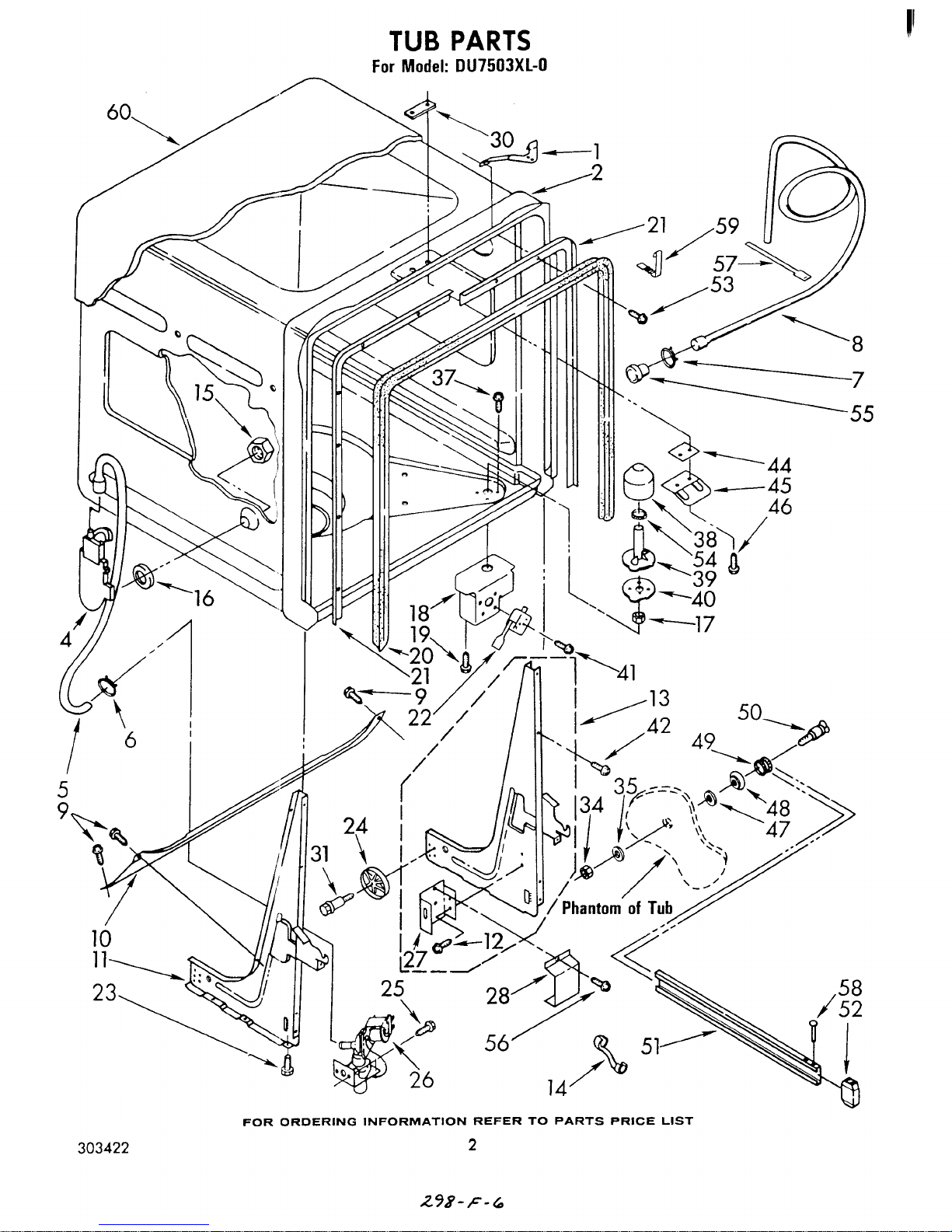

1 300796 Bracket, Mounting (2)

2 303110 Tub Assembly

4 300974 Inlet, Water

5 301054 Hose, Inlet

6 301958 Clamp

7 356138 Clamp

8 719954 Hose, Drain

9 302868 Screw, 8A x 3/8 Hex Head Tapping (4)

10 303111 Brace

11 302822 Leg & Hinge Assembly, L.H.

12 718178 Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)

13 302823 Leg & Hinge Assembly, R.H.

14 717563 Relief, Strain

15 713799 Nut, 7/8-16 Polypropylene (1)

16 713878 Gasket

17 717488 Nut, 1/8 Self-Threading (1)

18 719342 Bracket, Overflow

19 718250 Screw, 8 x 1/2 Hi-Lo Blunt Point (3)

20 Gasket

302090 Alternate

302091 Alternate

21 302093 Retainer, R.S.

302094 Retainer, L.S.

22 301671 Switch, Pressure

301672 Switch, Pressure (Alternate)

23 302849 Leveling Leg

24 302819 Wheel, Leg

25 90767 Screw, 8A x 3/8 Hex Head Tapping (2)

26 300453 Valve, Water Inlet

27 300067 Box, Terminal

28 300068 Cover, Terminal Box

30 303080 Nut, Twin Spring

31 302818 Screw, Shoulder

34 718829 Locknut, 10-32 (8)

35 717624 Washer (8)

37 717236 Screw, 8-18 x 1/2 Pan Head, Tapping (1)

38 718035 Float

39 719967 Standpipe, Overflow

40 719966 Gasket, Overflow

41 98086 Screw, 4-40 x 3/4 Hex Head Slotted Thread Cutting (1)

42 90767 Screw, 8A x 3/8 Hex-Head Tapping Ground (2)

44 712302 Shim

45 300233 Strike

46 9416643 Screw, 10-12 x 1/2 (2)

47 718750 Washer (8)

48 718817 Washer, Cup (8)

49 300844 Wheel Assembly (8)

50 712499 Screw, Shoulder (8)

51 303297 Track (2)

52 303299 End Cap, Track (4)

53 719266 Screw, 8-18 x 5/8 Indented Hex-Head (10)

54 301662 Gasket (2)

55 301656 Insert, Cup-Hose

56 90767 Screw, 8A x 3/8 Hex-Head Tapping (1)

57 596490 Clip, Strap

58 303298 Pin, Track (4)

59 301663 Clip, Gasket

60 302804 Shield, Sound

LITERATURE PARTS

LIT303311 Instructions, Installation

LIT303548 Tag, Energy Fact

LIT303814 Guide, Use & Care

LIT303422 List, Parts

OPTIONAL PARTS NOT INCLUDED

PAINT,TOUCH UP (1/2 oz.)

72017 White

72107 Almond

72110 Golden Harvest

72112 Toast

72113 Platinum

PAINT, PRESSURIZED SPRAY (13 OZ.)

350930 White

350956 Almond

261890 Golden Harvest

285006 Superior Black

285365 Toast

285366 Platinum

206922 Primer (White)

350941 Leveler (Thinner)

PAINT, BULK (1 QT.)

799344 White (Uncut)

799340 Black (Uncut)

261891 Golden Harvest (Uncut)

285367 Toast (Uncut)

285368 Platinum (Uncut)

TUB LINER REPAIR

799640 Kit, Epoxy Patch (White)

DISHRACK REPAIR

675476 vinyl touch-up (Blue)

675506 Tine Tip Repair Kit (Blue--Enough For Two Complete Dishracks)

DO-IT-YOURSELF REPAIR MANUALS

LITERATURE PARTS

LIT677813 Automatic Washer (Belt Drive)

LIT677818 Dryer

LIT677821 Compactor

LIT677967 Dishwasher

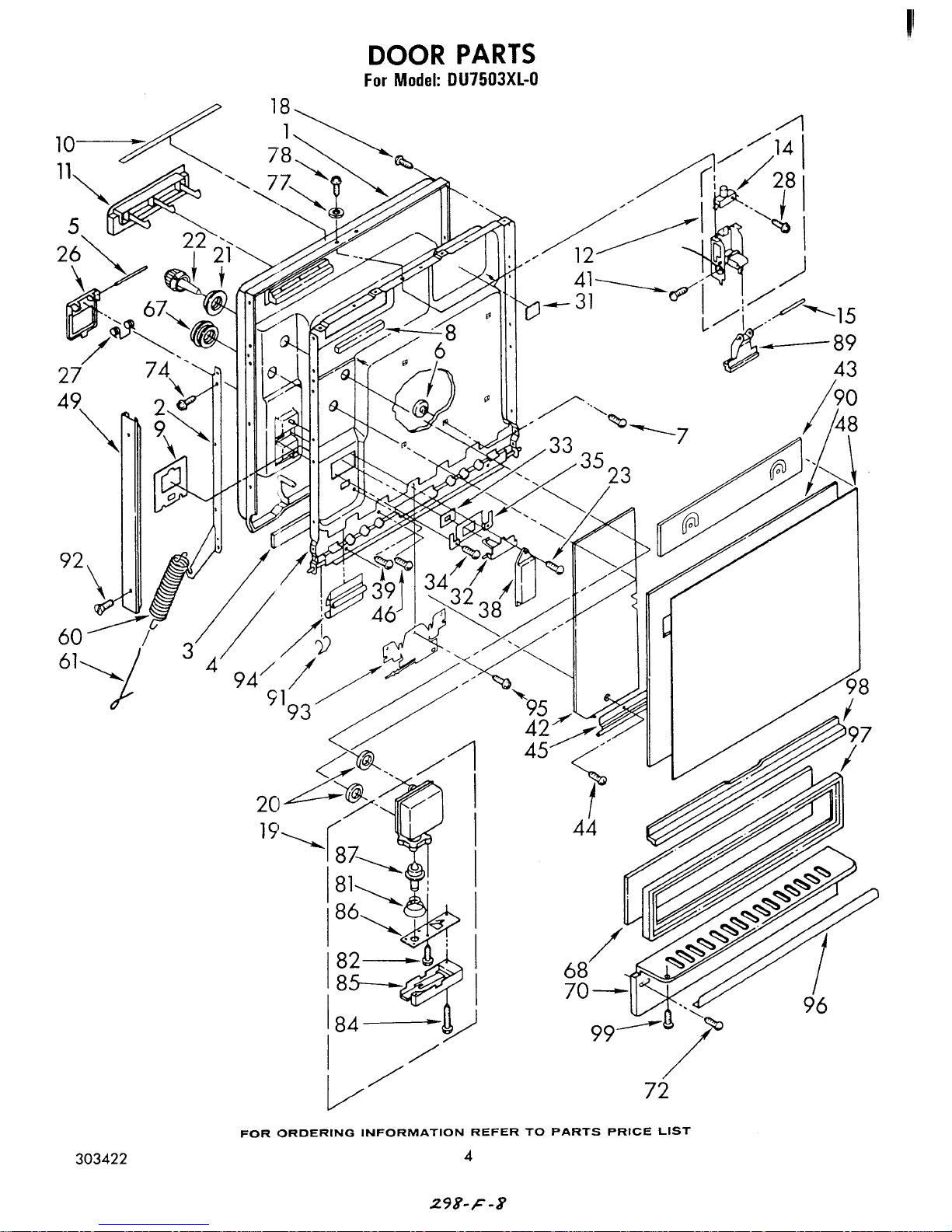

1 303270 Door, Inner (Includes Illus.4)

2 303197 Support, Door (R.H.)

303196 Support, Door (L.H.)

3 717921 Gasket, Door

4 303202 Liner, Door

5 300115 Pin, Lid Hinge

6 300239 Button, Retainer (5)

7 300250 Screw, 8-18 x 3/8 Hi-Lo (5)

8 719860 Baffle

9 303978 Baffle

10 LIT303498 Label, User Guide

11 300246 Screen, Vent

12 300235 Latch Assembly

14 Switch, Interlock

300232 Alternate

303075 Alternate

15 300234 Pin, Pivot

18 301458 Screw, 8 x 1/2 Truss Head Tapping (2)

19 719341 Dispenser, Wetting Agent

20 713080 Washer (2)

21 718575 Nut, 1-14 Buttress Thread (1)

22 303163 Indicator, Level

23 718250 Screw, 8 x 1/2 Hi-Lo Blunt Point

26 300155 Lid, Detergent Dispenser Assembly

27 300106 Spring, Lid

28 301582 Screw, 6-32 x 1 Hex-Head Tapping (1)

31 302460 Pad, Rubber

32 300119 Lever, Catch

33 300105 Seal, Lever

34 718250 Screw, 8 x 1/2 Hi-Lo Blunt Point (2)

35 300104 Retainer, Seal

38 300109 Actuator

39 718250 Screw, 8 x 1/2 Hi-Lo Blunt Point (1)

41 90767 Screw, 8A x 3/8 Ground (1)

42 303223 Barrier, Door

43 303222 Barrier, Console

44 688983 Screw, 8-18 x 5/8 (2)

45 301971 Panel, Edging (Door)

46 90767 Screw, 8A x 3/8 Ground (1)

48 |Panel, Front

49 303501 Trim, Door

60 716425 Spring, Door

61 716401 Retainer, Spring

67 718576 Cap, Drip

68 |Panel, Access

70 717968 Plate, Toe

72 302868 Screw, 8-18 x 1/2 Hex-Head Tapping (4)

74 300128 Screw, 8-18 x 1/2 (4)

77 300237 Washer

78 90767 Screw, 8A x 3/8 Hex-Head Tapping (2)

81 718592 Spring, Conical

82 98165 Screw, 8-18 x 5/8 Hex-Head Slotted (3)

84 98810 Screw, 8-18x1(2)

85 718646 Actuator Assembly

86 718596 Plate

87 718595 Diahpragm, Pin Assembly

89 300230 Lever, Release

90 301957 Spacer, Corrugated

91 301857 Clip, Wire (2)

92 302251 Screw, 8 x 1/2 (4)

93 303362 Shield, Harness

94 303121 Retainer, Clip

95 90767 Screw, 8A x 3/8 Hex-Head Tapping

96 301815 Flange, Access Panel

97 301814 Frame, Lower Panel

98 301816 Flange, Access Panel Frame

99 345304 Screw,8x3/8

|Refer To Dishwasher Replacement

Panel Parts List No. 675345.

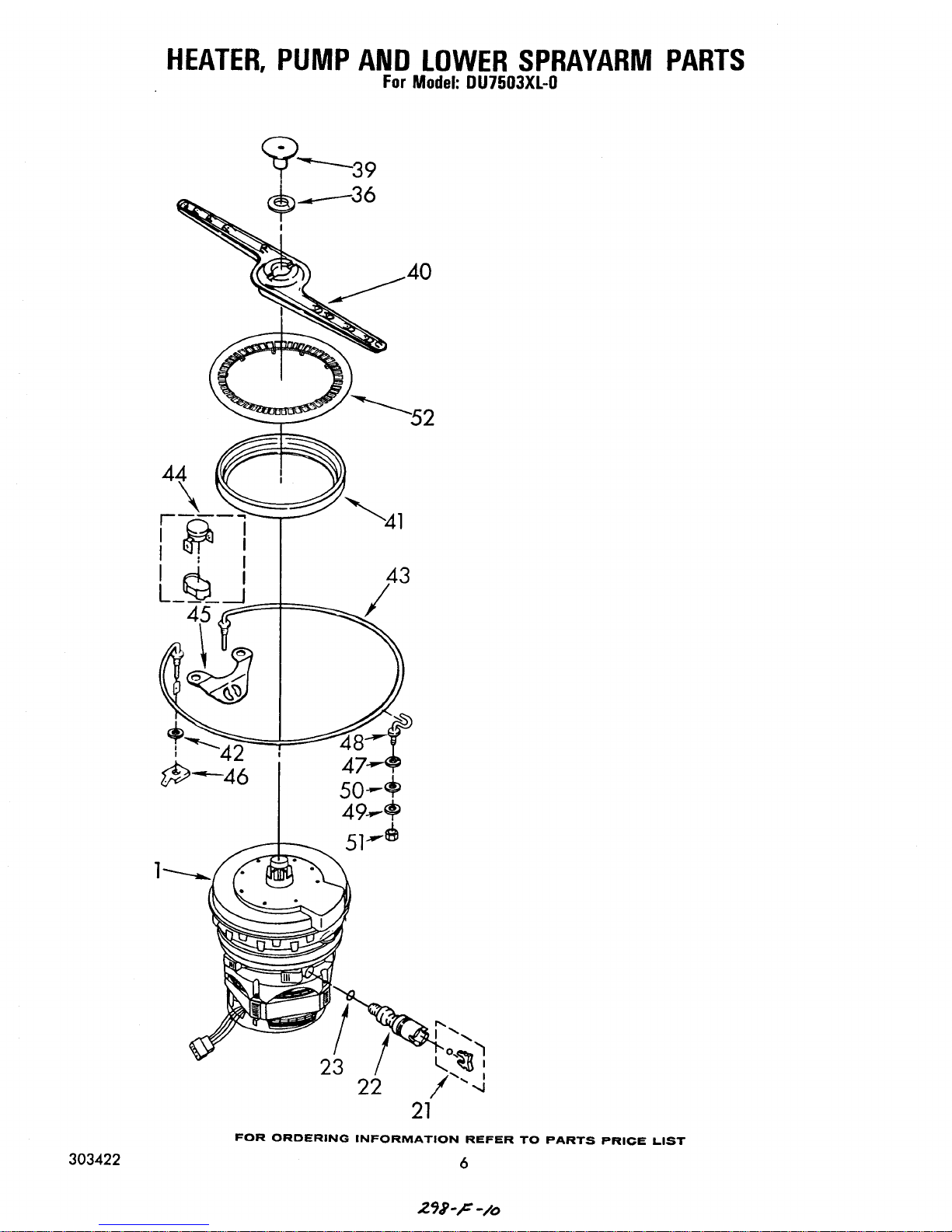

1 302740 Pump & Motor Assembly (Includes Illus. 41)

for breakdown of pump parts, refer to pump and motor parts page.

21 675488 Check Ball & Retainer

22 300800 Valve, Check (Includes Illus. 21 & 23)

23 95080 ``O'' Ring

36 719576 Bearing, Nozzle

39 302737 Cap, Nozzle

40 302767 Spray Arm, Lower

41 717000 Gasket, Pump

42 717273 Washer, Rubber (2)

43 Heater

717141 Alternate

719687 Alternate

302113 Alternate

302562 Alternate

44 302104 Thermostat

45 715073 Bracket

46 718537 Nut, 7/16 x 20 (2)

47 717289 Washer Retainer (2)

48 717096 Support, Heater (2)

49 711284 Washer (2)

50 14351 Washer (2)

51 9420162 Nut, 10-32 (2)

52 303469 Grate
