Whirlpool DU1100XTPS User manual

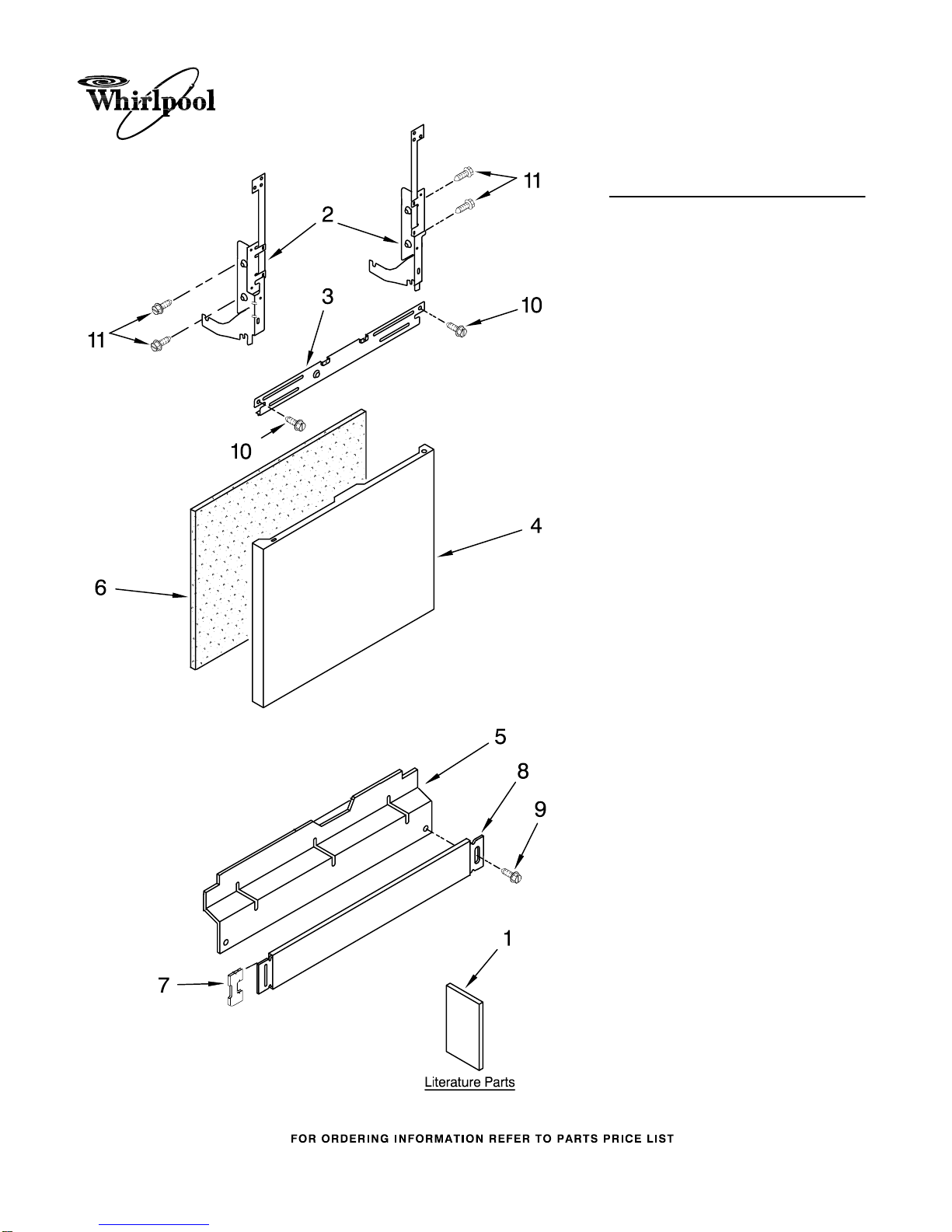

DOOR AND PANEL PARTS

For Models: DU1100XTPBB, DU1100XTPQB, DU1100XTPTB, DU1100XTPSB

(Black) (White) (Biscuit) (Stainless)

06−08 Litho in U.S.A. (els)(mek) Part No. W10162993 Rev. A

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10142914

Instructions,

Installation

W10179462

Energy Guide

Guide, Use & Care

W10130986

English/French

W10133161

Spanish

W10130990

Tech Sheet

2 Arm, Hinge

W10143374

Left

W10143373

Right

3 8268983 Stiffener,

Door

4 Panel Front

(Includes #7)

8269841 Black

8269842 White

8269844 Biscuit

W10137625

Stainless

5 Access Panel

8573255 Black

8573256 White

8573257 Biscuit

W10073520

Insulation, Door

7 8269016 Clip, Ground

8 Toe Panel

(Includes Clip)

8573286 Black

8573287 White

8573288 Biscuit

9 Screw

302868 Black

3400836 White

3400865 Biscuit

10 343641 Screw

11 489470 Screw

CONTROL PANEL PARTS

For Models: DU1100XTPBB, DU1100XTPQB, DU1100XTPTB, DU1100XTPSB

(Black) (White) (Biscuit) (Stainless)

W10162993

Illus. Part

No. No. DESCRIPTION

1 Console Asm.

(Includes Active

Overlay & Insert)

W10102850

Black

W10102851

White

W10102852

Biscuit

3 8546546 Clip, BI−Metal

W10158350

Cover Control

Shield Assembly

5 8524471 Actuator, Latch

6 661663 BI−Metal

7 3400412 Screw

8 3369051 Screw (6)

9 Handle, Latch

8534984 Black

8534985 White

8534986 Biscuit

10 8524476 Bolt, Latch

W10084142

Control,

Electronic

12 8269209 Switch, Door

DOOR AND LATCH PARTS

For Models: DU1100XTPBB, DU1100XTPQB, DU1100XTPTB, DU1100XTPSB

(Black) (White) (Biscuit) (Stainless)

W10162993

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3369051 Screw, Door

2 8269311 Inner Door

(Also Order

Item 4)

3 8558980 Vent Assembly

(Also Order

Item 4)

4 8269259 Gasket, Vent

5 8542566 Deflector, Vent

(Also Order

Item 4)

6 8565814 Dispenser,

Assembly

7 8573175 Wiring Harness

Main

8 8281154 Screw

9 8269296 Seal,

Console/door

10 8535637 Bracket, Dispenser

11 8531865 Shield, Dispenser

12 8558307 Cap, Rinse Aid

FILL, DRAIN AND OVERFILL PARTS

For Models: DU1100XTPBB, DU1100XTPQB, DU1100XTPTB, DU1100XTPSB

(Black) (White) (Biscuit) (Stainless)

W10162993

Illus. Part

No. No. DESCRIPTION

1 8268892 Lever, Overflow

Switch

2 8531412 Hose, Inlet

3 8531325 Water Inlet

(Also Order

Item 4)

4 8531323 Gasket

5 8531326 Nut, Inlet

(Also Order

Item 4)

6 371505 Clamp, Hose

7 8563405 Fill Valve

Assembly

8 304392 Screw

9 8268909 Switch, Overfill

Control

10 8545881 Standpipe,

Overfill

11 304231 Screw

12 8268913 Float & Retainer

Assembly

W10137608

Drain Loop

with Check Valve

14 356138 Clamp, Hose

15 8269297 Miscellaneous

Parts Bag

(Includes 2 Screws

& 2 Hose Clamps)

TUB AND FRAME PARTS

For Models: DU1100XTPBB, DU1100XTPQB, DU1100XTPTB, DU1100XTPSB

(Black) (White) (Biscuit) (Stainless)

W10162993

TUB AND FRAME PARTS

For Models: DU1100XTPBB, DU1100XTPQB, DU1100XTPTB, DU1100XTPSB

(Black) (White) (Biscuit) (Stainless)

W10162993

Illus. Part

No. No. DESCRIPTION

1 8575976 Tub Assembly

2 8573061 Strain Relief

3 8268888 Door Seal

4 3400014 Screw

5 8533836 Screw

6 3367670 Screw

7 8269145 Bracket,

Undercounter

8 8269831 Wheel Leg

9 8524584 Leveler, Leg

10 8524473 Spring, Door

Balance

11 8270016 Wheel & Mount

Assembly

12 3400892 Screw

13 8268991 Cover, Terminal

Box

14 8268961 Pad, Friction

15 304231 Screw

16 3378128 Washer

17 8573240 Shield, Sound

Tub

18 3378595 Bracket,

Thermostat

19 661566 Thermostat

20 8580309 Strike, Plate

21 8268990 Bushing, Door

Spring

PUMP AND MOTOR PARTS

For Models: DU1100XTPBB, DU1100XTPQB, DU1100XTPTB, DU1100XTPSB

(Black) (White) (Biscuit) (Stainless)

W10162993

PUMP AND MOTOR PARTS

For Models: DU1100XTPBB, DU1100XTPQB, DU1100XTPTB, DU1100XTPSB

(Black) (White) (Biscuit) (Stainless)

W10162993

Illus. Part

No. No. DESCRIPTION

1 8534952 Accumulator Assy

2 8283527 Shield, Motor

3 3400069 Screw

4 8572618 Sump With Seal

5 8268375 Check Valve, Sump

6 8268383 Chopper Assembly

7 9741232 Screw

8 8531857 Protector, Inlet

9 8534942 Motor Assembly

10 3400217 Screw

W10084567

Screen, Separation

12 8572615 Sump & Motor

Assembly

13 8269524 Tab, Sump

14 8533949 Nut

15 661662 Pump, Drain

16 8531019 Volute, Back

(Also Order

Items 21 & 26)

17 8269144 Hose, Drain

18 8534941 Motor

19 8268397 Seal, Volute

20 8531017 Impeller Kit

(Also Order

Item 26)

21 8268403 Face Seal Assembly

(Also Order

Item 26)

22 356138 Clamp, Hose

W10134016

Optical Water

Indicator

24 8269507 Capacitor

25 8534946 Shield,

Capacitor

26 8531018 Washer

UPPER WASH AND RINSE PARTS

For Models: DU1100XTPBB, DU1100XTPQB, DU1100XTPTB, DU1100XTPSB

(Black) (White) (Biscuit) (Stainless)

W10162993

Illus. Part

No. No. DESCRIPTION

1 8579224 Feed Tube

Assembly

(Also Includes

Items 3 & 9)

2 8533889 Screw

3 8557720 Spinner, 3rd

Level Wash

4 3400919 Cover, Screw

5 3385159 Mount

6 8268845 Manifold

7 3385160 Holder, Feed Tube

8 8268433 Seal, Sprayarm

9 8562095 Nozzle

10 8535083 Sprayarm

HEATER PARTS

For Models: DU1100XTPBB, DU1100XTPQB, DU1100XTPTB, DU1100XTPSB

(Black) (White) (Biscuit) (Stainless)

W10162993

Illus. Part

No. No. DESCRIPTION

W10134009

Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

4 8269262 Bracket,

Heater Support

NOTE:

If heater element is

removed, it must be replaced.
