Whirlpool DU1100XTPB6 User manual
DOOR AND PANEL PARTS
1
For Models: DU1100XTPB6, DU1100XTPQ6, DU1100XTPT6, DU1100XTPS6
(Black) (White) (Biscuit) (Stainless)
8−05 Litho in U.S.A. (ebk) Part No. 8194252
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8535437 Instructions,
Installation
8535642 Energy Guide
8535541 Guide, Use & Care
Tech Sheet
8535451 English/French
2 Arm, Hinge
8534858 Left
8534857 Right
3 8268983 Stiffener,
Door
4 Panel Front
8269841 Black
8269842 White
8269844 Biscuit
8269845 Stainless
5 Access Panel
8543834 Black
8543835 White
8543836 Biscuit
6 8268580 Insulation, Door
8 Toe Panel
8268999 Black
8269000 White
8269001 Biscuit
9 8269740 Clip, Grounding
12 Screw
302868 Black
3400836 White
3400865 Biscuit
13 343641 Screw
15 3369181 Screw
CONTROL PANEL PARTS
2
For Models: DU1100XTPB6, DU1100XTPQ6, DU1100XTPT6, DU1100XTPS6
(Black) (White) (Biscuit) (Stainless)
8194252
Illus. Part
No. No. DESCRIPTION
1 Console Asm.
(Includes Active
Overlay & Insert)
8573209 Black
8573210 White
8573211 Biscuit
4 8283512 Cover Control
Shield Assembly
5 8524471 Actuator, Latch
6 8269213 Fuse, Thermal
Electronic
7 3400412 Screw
8 3369051 Screw (6)
9 Handle, Latch
8534984 Black
8534985 White
8534986 Biscuit
10 8524476 Bolt, Latch
11 8564544 Control,
Electronic
12 8269209 Switch, Door
DOOR AND LATCH PARTS
3
For Models: DU1100XTPB6, DU1100XTPQ6, DU1100XTPT6, DU1100XTPS6
(Black) (White) (Biscuit) (Stainless)
8194252
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
3 8269311 Inner Door
(Also Order
Item 6)
5 8542603 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7 8542566 Deflector, Vent
(Also Order
Item 6)
8 8531825 Dispenser,
Assembly
9 8269258 Seal, Front
12 8573180 Wiring Harness
Main
13 8281154 Screw
14 8269296 Seal,
Console/door
15 8535637 Bracket, Dispenser
16 8531865 Shield, Dispenser
17 8558307 Cap, Rinse Aid
4
LOWER WASHARM PARTS
For Models: DU1100XTPB6, DU1100XTPQ6, DU1100XTPT6, DU1100XTPS6
(Black) (White) (Biscuit) (Stainless)
8194252
Illus. Part
No. No. DESCRIPTION
1 8268333 Wash Arm Assembly
2 8268317 Cap, Internal
Rear Feed
(Also Order
Item 3)
3 8268340 Seal, Sprayarm
4 8268342 Hub, Lower
Sprayarm
(Also Order
Item 3)

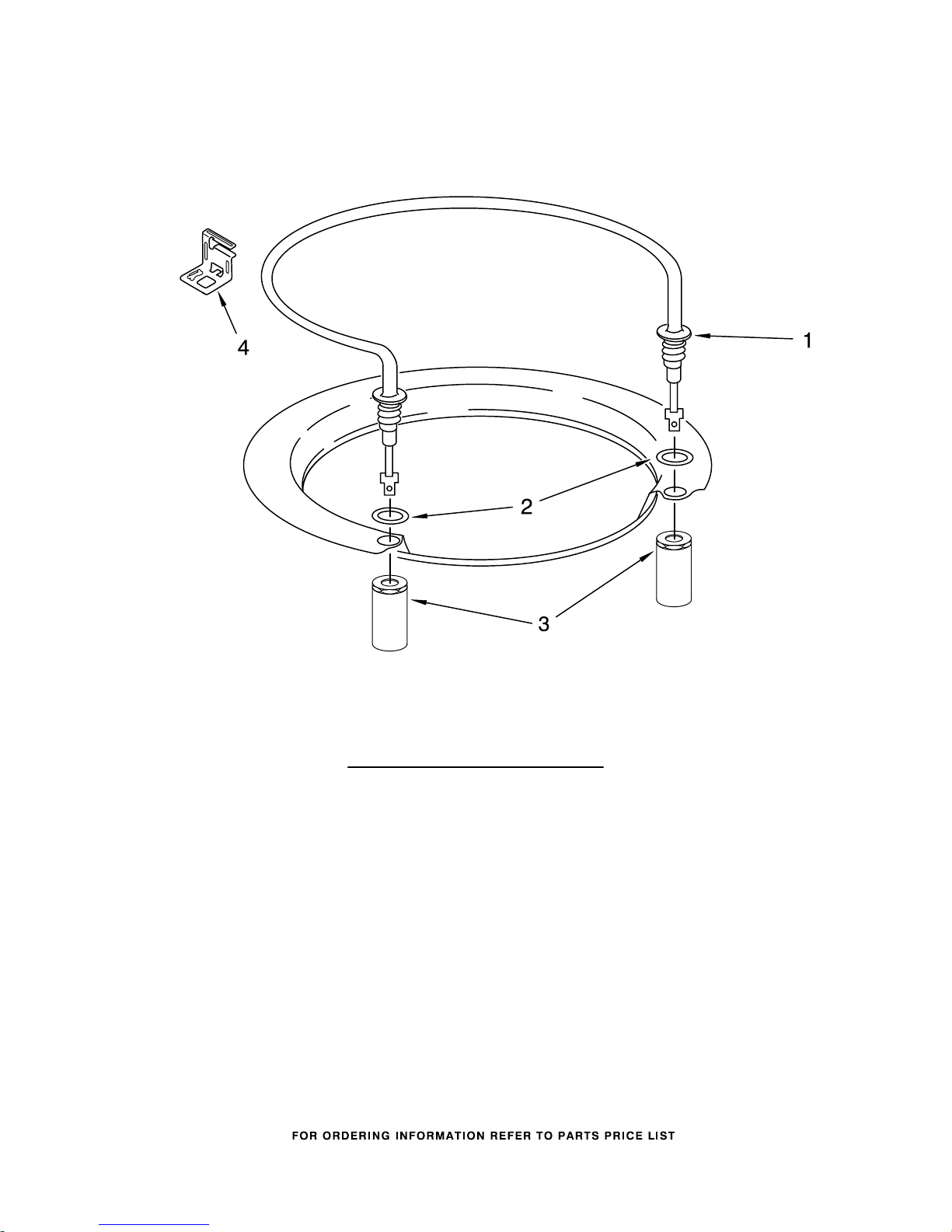

HEATER PARTS
5
For Models: DU1100XTPB6, DU1100XTPQ6, DU1100XTPT6, DU1100XTPS6
(Black) (White) (Biscuit) (Stainless)
8194252
Illus. Part
No. No. DESCRIPTION
1 8572861 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 8269262 Bracket,
Heater Support
NOTE:
If heater element is
removed, it must be replaced.
FILL AND OVERFILL PARTS
6
For Models: DU1100XTPB6, DU1100XTPQ6, DU1100XTPT6, DU1100XTPS6
(Black) (White) (Biscuit) (Stainless)
8194252
Illus. Part
No. No. DESCRIPTION
2 8531412 Hose, Inlet
3 8531325 Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5 8531326 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7 8531670 Fill Valve
Assembly
8 304392 Screw
11 8268909 Switch, Overfill
Control
12 8545881 Standpipe,
Overfill
13 304231 Screw
15 8268913 Float & Retainer
Assembly
16 8268892 Lever, Overflow
Switch
TUB AND FRAME PARTS
7
For Models: DU1100XTPB6, DU1100XTPQ6, DU1100XTPT6, DU1100XTPS6
(Black) (White) (Biscuit) (Stainless)
8194252
TUB AND FRAME PARTS
8
For Models: DU1100XTPB6, DU1100XTPQ6, DU1100XTPT6, DU1100XTPS6
(Black) (White) (Biscuit) (Stainless)
8194252
Illus. Part
No. No. DESCRIPTION
1 8573152 Tub Assembly
2 8573061 Strain Relief
3 8268888 Door Seal
5 8531022 Drain Loop
With Check Valve
8 8533836 Screw (8)
10 3367670 Screw
11 8269145 Bracket,
Undercounter
15 8269831 Wheel Leg
16 8524584 Leveler, Leg
18 8524473 Spring, Door
Balance
19 8270016 Wheel & Mount
Assembly
20 3400892 Screw
21 8268991 Cover, Terminal
Box
23 8268961 Pad, Friction
26 304231 Screw
27 8269016 Clip, Grounding
28 8531032 Shield, Sound
Tub
29 3378595 Bracket,
Thermostat
30 661566 Thermostat
31 8269111 Strike, Latch
32 9741232 Screw
33 8268990 Bushing, Door
Spring
34 3378128 Washer
35 3400014 Screw
46 8542575 Switch, Pressure
48 356138 Clamp, Hose (1)
50 8269297 Miscellaneous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
PUMP AND MOTOR PARTS
9
For Models: DU1100XTPB6, DU1100XTPQ6, DU1100XTPT6, DU1100XTPS6
(Black) (White) (Biscuit) (Stainless)
8194252
PUMP AND MOTOR PARTS
10
For Models: DU1100XTPB6, DU1100XTPQ6, DU1100XTPT6, DU1100XTPS6
(Black) (White) (Biscuit) (Stainless)
8194252
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8534882 Sump With Seal
5 8268375 Check Valve, Sump
6 8268383 Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
10 8534942 Motor Assembly
11 3400217 Screw
12 8268391 Screen, Separation
14 8535150 Sump & Motor
Assembly
15 8269524 Tab, Sump
16 8533949 Nut
17 661658 Pump, Drain
18 8531019 Volute, Back
(Also Order
Items 23 & 30)
19 8269144 Hose, Drain
20 8534941 Motor
21 8268397 Seal, Volute
22 8531017 Impeller Kit
(Also Order
Item 30)
23 8268403 Face Seal Assembly
(Also Order
Item 30)
24 356138 Clamp, Hose
25 8269208 Thermister
26 8269507 Capacitor
27 8534946 Shield,
Capacitor
30 8531018 Washer
