Whirlpool ADP 4108/1 User manual

WH/II/B/GB

How to use the appliance

Further indications are given in the single chapters and in the user instructions.

Press the ON / OFF button.

Compartment A:

With each wash cycle.

Compartment B:

For programmes with pre-wash only.

If using combined action dishwasher

tabs, follow the user instructions!

Mechanical indicator C.

Electric indicator on control panel (if provided).

On models with water softener

system only.

Mechanical indicator D. Electric

indicator on control panel (if provided).

Refer to the dishwasher loading instructions.

The last programme selected will light up.

Select the desired programme (using the specific button or knob).

The corresponding indicator lamp lights up.

If necessary (and if provided).

The corresponding indicator lamp lights up.

The selected programme is

then memorised (even in the

event of power failure).

- Only open the dishwasher if necessary

(Warning: beware of hot steam).

- If the appliance is switched off during a

wash cycle, when switched on again it

will resume the cycle from where it was

interrupted.

Only after the START button has switched off: Press the ON / OFF button.

All the indicator lamps switch off.

Warning: When the door is opened steam comes out!

Unload the appliance, starting from the lower rack.

Switch on the appliance

Fill the detergent dispenser ABC

Check the rinse aid level

Check the

regeneration salt level

Load the racks

Close the dishwasher door,

turn on the water tap

Select a programme

Select additional options

Press the Start button

“Change programme in progress”

Press the START button for 2 sec. until the

Start indicator lamp switches off.

Select another programme and press the

START button again.

Wash cycle

Switch off the appliance

Turn off the water tap,

unload the racks

WH/III/GB

Dishwasher loading instructions and racks provided

Upper rack: depending on the model

Multi-purpose support (A): 1)

Depending on the position, for long-

handles utensils, cups and glasses. May

be used in three different positions.

Crockery holders (B):

Dependingontheposition,forexample

plates, cups and long-stemmed glasses.

Revolving glass support (C): 2)

Dependingontheposition,forexample

small or long-stemmed glasses.

Long-handled utensils (e.g.

carving forks, knives) must be

arranged with the sharp end

facing in towards the appliance.

Half Load:

Load the upper rack (see description

of Options).

Place the cutlery basket (D) in the

upper rack.

Rack height adjustment

(also when loaded):

•Lower adjustment: pull out the

two rack handles outwards (E)

and lower the rack.

•Upper adjustment: pull the two

handles (E) upwards until the rack

clicks into place (Factory setting).

The rack must be level on both

sides.

Removing the top rack to provide

clearance for large items of

crockery in the bottom rack:

Open the rack guide retainers (F) on

the right and left and remove the top

rack.

When the upper rack is in place the

retainers must always be closed.

Lower rack:

Dependingonthemodelwith fixed or

tilting plate holders (G).

Half Load:

Load the lower rack (see description

of Options).

Greater washing power, particularly

for plates and saucepans.

Cutlery basket (J) or (H):

Some models are provided with a grid

(I) that can be fitted onto the cutlery

basket to keep items separated.

Cutlery basket (D), if provided, for

appliances with half load only.

Sharp knives and forks that might

cause injury must be placed in the

cutlery basket with the sharp end

facing downwards.

Only use dishwasher-proof crockery and dishes. Do not use the appliance for items not suitable for washing in a

dishwasher, for example wooden items, aluminium, plastic utensils, tin, hand-decorated crockery (unglazed), silver cutlery.

Spare parts which are sold separately:

1) Multi-purpose support (A) - N. AMH 369 series.

2) Revolving glass support (C) - N. WGH 1000 series.

Retainer

closed Retainer

open

WH/IV/GB

What to do if...

If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem (* see

also the corresponding chapter in the user instructions).

Problem Cause Remedy

The appliance is not

working • No water supply. • Open the tap.

• The appliance does not load sufficient

water. • Clean the water supply tap filter.

• Ensure there are no kinks in the water hose.

• There is a power failure. • Insert the plug into the mains socket.

• Press the Start button.

• Close the door.

• Check the safety circuit breaker.

• Starting the selected programme. • The programme can be set to “0” to start.

If crockery is not

perfectly dry • Insufficient rinse aid. •Increasedosage*.

• Residual water in cavities. • Load crockery at an angle.

If crockery is not

perfectly clean • The water jet does not reach the

crockery. • Arrange crockery so that items do not touch each

other. Load crockery upside down.

• Insufficient detergent. • Follow recommended detergent dosage.

• Unsuitable programme. • Select a more intense wash cycle.

• Spray arms blocked. • The spray arms must be able to turn freely.

• Spray arm nozzles clogged. • Remove any impurities obstructing the water flow *.

• Incorrect detergent/detergent too old. • Use a good quality detergent.

Sandy or grainy

residues • Clogged filters. • Check filters regularly/if necessary clean *.

• Filters incorrectly assembled. • Insert the filter correctly *.

Colour of plastic parts

faded • Tomato/carrot juice, ... • Depending on the material, if necessary use a

detergent with a greater whitening power.

Deposits on crockery

•Removable • Streaks on the crockery/glasses. • Increase the rinse aid dosage *.

• Streaks on glasses. • Reduce the rinse aid dosage *.

• Layer of salt on crockery/glasses. • Close the salt container lid properly *.

• Not removable • Insufficient water softening, calcium

deposits. • Change water hardness setting, if necessary add salt *.

Opaque glasses/ glasses

not sparkling • Cannot be washed in the dishwasher. • Use suitable glasses.

Rust on cutlery • Not made of stainless steel. •Usesuitablecutlery.

Identifying appliance

faults • The START indicator lamp flashes.

• Indicator F... (if provided). • Ensure the filter assembly is not clogged and that

there is no interruption to the water supply

(if necessary, clean the filters *). Start the programme

again. Press the START button for 2 seconds, until the

START indicator lamp switches off. Select a new

programme and press the Start button again.

If after carrying out the above checks the malfunction persists or appears again, turn the appliance off and turn off the water

supply tap, then call our After-Sales Service (see guarantee).

Before contacting our After-Sales Service, take note of the following:

• The nature of the fault

• The appliance type and model

• The service code (the number indicated on the adhesive rating plate)

inside the door on the right-hand side.

Whirlpool is a registered trademark of Whirlpool USA

5019 396 01764

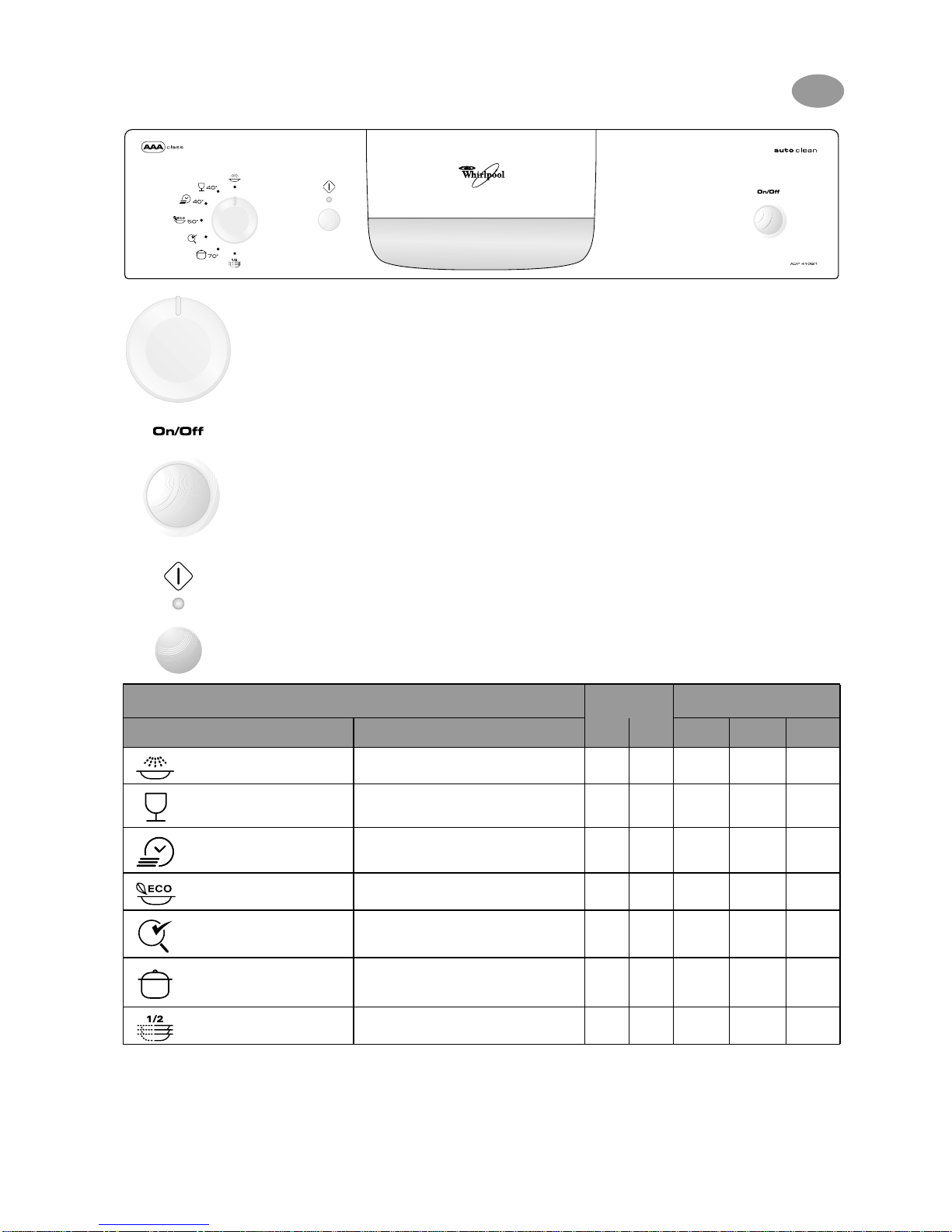

ADP 4108/1 Quick Reference Guide

Before using the dishwasher, read the user instructions!

WH/I/B/GB

(We reserve the right to make technical modifications)

1) Reference programme for energy label EN 50242;

2) Refer to “User instructions”;

3) The data relevant to programmes are values obtained in the

laboratory in conformity with Standard EN 50242. In practice

there may be time variations or leaps depending on different

loads, function options, sensor calibration (only for sensor-

controlled programmes) water temperatures or hardness and

different power supply voltages.

4) The bacteria removal efficiency has been tested by the Institut

Pasteur de Lille (France), based on the NF EN 13697 standard

of November 2001.

5) Programme interruption (e.g. the door being opened) may

compromise the result of the antibacterial rinse.

Programme selector knob

On / Off button

Start button

Switches “on” when the dishwasher is

operating. Flashes when a fault occurs.

Switches off at the end of the programme.

Programme chart Detergent 2) Consumption 3)

Programmes Loading instructions A B Litres kWh Minutes

Pre-Rinse cold Crockery to be washed later. - - 5.0 0.02 10

Glasses 40°C Light soiling, for example glasses and

cups. X - 13,0 0,90 97

Quickwash 40°C Lightlysoiledcrockerywithnodried-on

food. X - 13.0 0.70 30

Eco 1) 50°C Normally soiled crockery. X X 15.0 1.05 150

Antibacterial 4) 5) Normally or heavily soiled crockery,

with additional antibacterial action. X X 16.0 1.75 120

Intensive 70°C Recommended programme for heavily

soiled crockery, especially suitable for

pans and saucepans. X X 17.0 1.65 145

Half Load 50°C Ideal for washing a half load of lightly or

normally soiled crockery. X X 13.0 1.00 130

Important information for Test Laboratories:

For detailed information on the EN comparison test and other tests, contact the following address: “[email protected]”.
