Westinghouse WST6508 User manual

OSCILLATING DESK FAN

WST6508

You can be sure ... if it’s Westinghouse

WST6508_IB_3 languages_Print 1/11/07 1:15 AM Page 1

Fan blade

Oscillation

button

handle

screw

Rear

protector

Plastic

strip

Front

protector

shaft

Motor unit

clamp

column

screw

screws

shaft

base

Flat washer

Spring washer

Screw

Introduction

Read the instructions before use and keep them safe. If you pass the product

on, pass on the intructions too. Remove all packaging, but keep it till you’re

satisfied the product is working.

Important safeguards

When using electrical appliances, basic safety precautions should be followed,

including the following:

1. This appliance should be used by, or under the direct supervision of, a

responsible adult.

2. Do not put the appliance in liquid; do not use it in the bathroom,

near water, or outside.

3. Unplug the appliance when it is not in use, and before moving or cleaning it.

4. Do not put fingers, pencils or any other object through the protectors.

5. To avoid possible danger, do not allow children touch the product.

6. Put the base of the fan on a stable surface. Do not place it on a soft or

unstable surface like a bed or upholstery.

Speed control

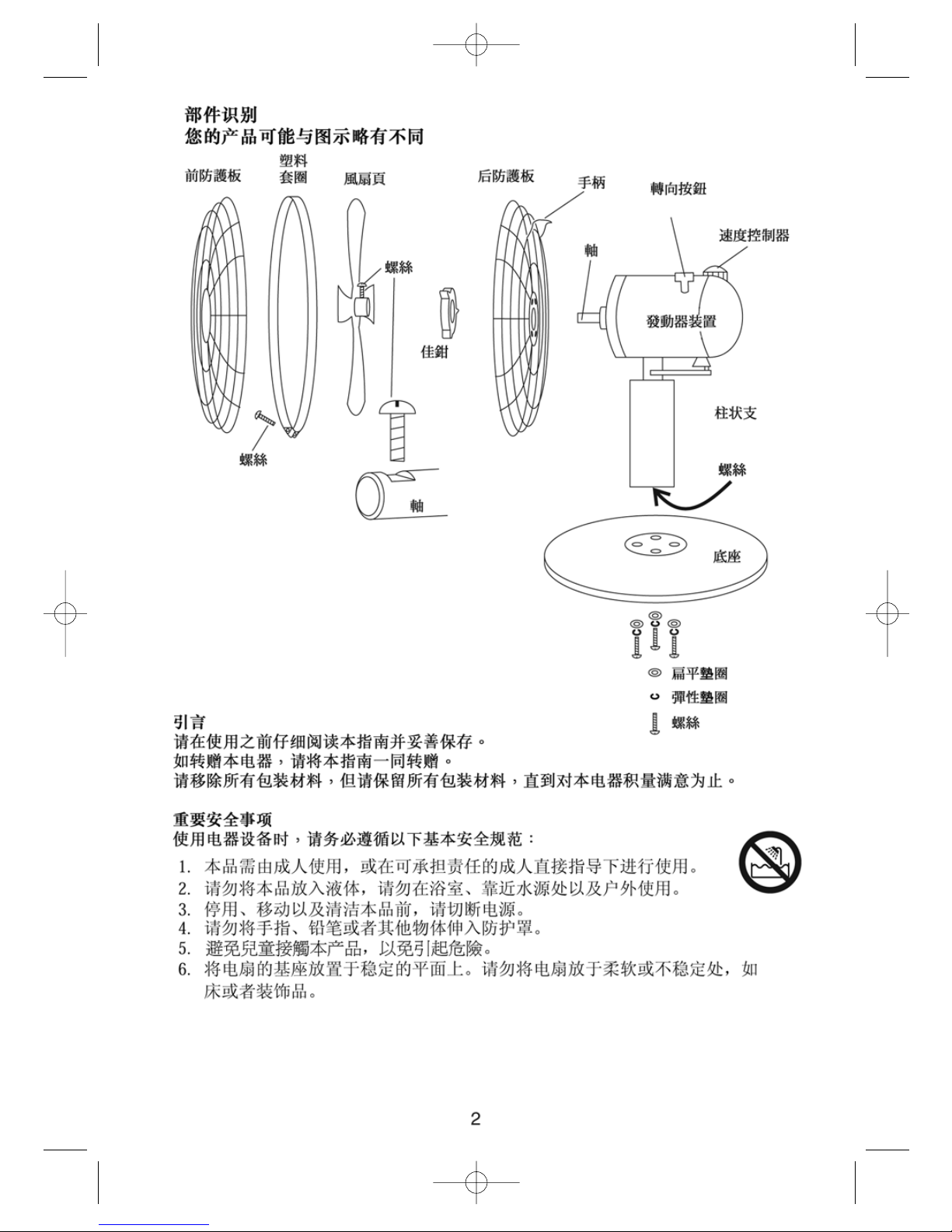

Parts Idenification

Your product may vary slightly from illustration.

WST6508_IB_3 languages_Print 1/11/07 1:15 AM Page 2

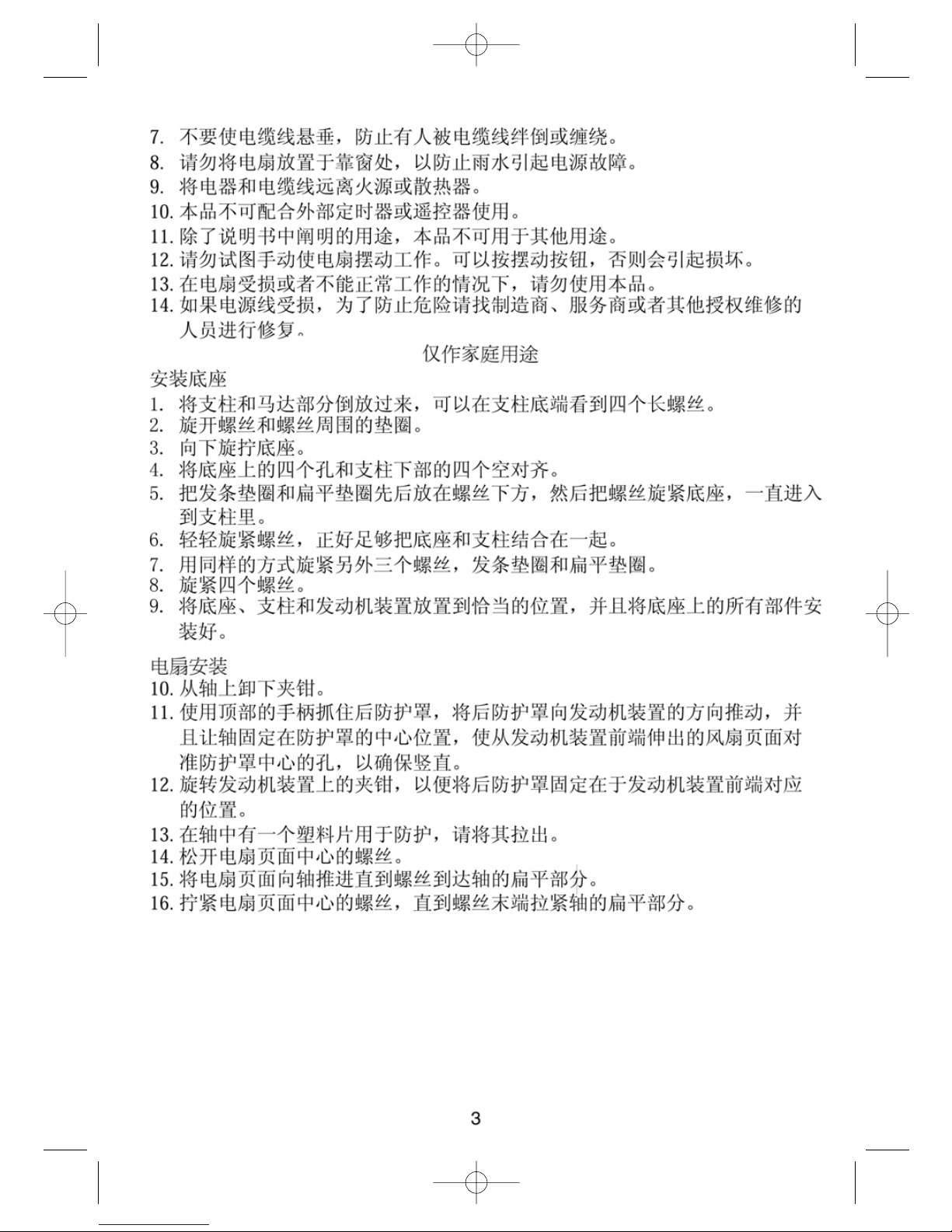

7. Place the cable in such a way that it does not hang down, for someone to

trip over or get entangled in.

8. Do not place the appliance near an open window, to avoid the possibility

that rain could cause an electrical fault.

9. Keep the appliance and cable away from fires and heaters.

10. The appliance should not be used with an external timer or remote control

system.

11. Do not use the appliance for any purpose other than described in the

instructions.

12. Do not try to make the fan oscillate manually. Turn it on and use the

oscillation button or you will break it.

13. Do not use the appliance if it is damaged or not working correctly.

14. If the cable is damaged, it should be changed by the manufacturer, its

service agent or another qualified person – to avoid danger.

For household use only

Mount the base

1. If you turn the column and the motor unit upside down, you will see four

long screws on the bottom of the column.

2. Unscrew the screws and the washers around them.

3. Turn the base downwards.

4. Line up the 4 holes in the base with the 4 holes in the lower part of the

column.

5. Fit a screw with a spring washer, then a flat washer and then push the screw

through the base into the column.

6. Tighten the screw slightly – just enough to keep the base and the column

together.

7. Fit the other three screws, spring washers and flat washers in the same way.

8. Tighten the four screws.

9. Turn the base, the column and the motor unit to the right direction,

and rest all of it on the base.

Fit the fan

10. Unscrew the clamp from around the shaft.

11. Hold the rear protector with the handle at the top and push it against the

motor unit in such a way that the shaft stops in the centre of the protector

and the blades which stick out from the front part of the motor unit go

through the holes in the centre of the protector to keep it straight.

12. Turn the clamp in the motor unit to hold the rear protector in place against

the front part of the motor unit.

13. There is a piece of plastic inside the shaft to protect it. Pull this out of the

shaft.

14. Loosen the screw in the centre of the fan blade.

15. Push the fan blade into the shaft until the screw reaches the flat part of the

shaft.

16. Tighten the screw in the centre of the fan blade until the final part of the

screw tightens against the flat part of the shaft.

WST6508_IB_3 languages_Print 1/11/07 1:15 AM Page 3

17. The plastic strip which covers the outside edge of the rear protector has

two slits in its circumference.

18. Loosen the screw at the bottom of the plastic strip and move it carefully by

the rear protector in such a way that the edge of the rear protector fills the

rear part of the two slits.

19. Line up the front protector with the rear protector and carefully move the

front part of the plastic strip onto the front protector in such a way that the

side of the front protector fills the front part of the two slits in the plastic

strip.

20. Check that the plastic strip is correctly fitted the whole way around its

circumference.

21. Tighten the screw in the lower part of the plastic strip.

22. Sit down, make a cup of tea and have a nice cake – you deserve a rest!

Preparation

23. Place the base of the fan on a stable surface. Do not place it on a soft or

unstable surface like a bed or upholstery.

24. Place it where it cannot be knocked by anyone.

25. Keep the appliance away from open windows to avoid the possibility that

rain could cause an electrical fault.

26. Arrange the cable in such a way that it does not overhang and cause

anyone to trip over it or become entangled.

Inclination (up/down)

27. The fan has three inclination positions, down, straight or up.

28. Take hold of the handle on the upper part of the rear protector and push it

up or pull it down.

29. The friction created at the top of the column will hold it in the position you

choose.

Turning on

30. Check that the speed control is set to 0.

31. Plug the appliance into the socket.

32. Turn the speed control to the level you require. I = low, II = medium, III =

high.

33. Turn it to 0 to turn off.

Oscillation (right/left)

34. Do not try to use the oscillation button if the fan is not turned on and

operating.

35. Press the oscillation button until to make it oscillate, and lift it to to

stop it oscillating.

36. As the fan moves from side to side, the oscillation button also moves. This

is normal, don’t worry.

37. If you want the fan to point in a specific direction, lift the oscillation button

when it is pointing in the direction you want.

38. Do not try to turn the fan manually or you will break it.

WST6508_IB_3 languages_Print 1/11/07 1:15 AM Page 4

Care and maintenance

1. Turn it off (0) and unplug it before cleaning.

2. Clean the external surfaces with a damp surface.

3. Use a brush to clean the dust from the protectors.

4. To clean the fan blade, release the screw in the lower part of the plastic

strip, and gently move the front protector away from the plastic strip.

5. When you have cleaned the fan blade, check that the screw in the centre of

the blade is secure.

6. Put the front protector back on the plastic strip (see page 5) and tighten the

screw on the lower part.

7. Do not put the motor unit in water or in any other liquid.

8. Do not allow humidity to enter the motor unit through the oscillation

button or the ventilation of the motor unit.

9. Do not use abrasive cleaning substances or solvents.

WST6508_IB_3 languages_Print 1/11/07 1:15 AM Page 5

Information and service

The appliance isn’t user–serviceable. If it’s not working properly, check:

1.You’ve followed the instructions correctly.

2.The main supply fuse/circuit breaker hasn’t blown/tripped.

If you need information or if you have a problem, please visit our oversea

oﬃces/ agents at:

For Middle East, Africa and Indian subcontinent, contact

Mapana (Middle East) FZCO

Unit 1002, 10th Floor,

Twin Tower, Beniyas Road, Deira

P.O. Box 18728, Dubai, UAE.

www.mapaname.com or e-mail [email protected]

Tel: +971 4 221 8893

For People's Republic of China, contact

Shanghai Peak Performance Trading Co.,Limited

26/F, Zhong Da Square, 989 Dong Fang Road, Lujiazui,

Pudong, Shanghai, China. Postal Code: 200122

www.peakperformance.com.cn or e-mail

[email protected]

Tel: +86 21 50812007

For Hong Kong S.A.R. and rest of Asia, contact

Markpeak Limited

Room 703, Block A, Po Lung Centre, 11 Wang Chiu Road,

Kowloon Bay, Hong Kong, China.

www.markpeak.com or e-mail [email protected]

Tel: +852 21486702

In line with our policy of continuous product development we reserve the

right to change product, packaging and documentation speciﬁcations without notice.

Terms of guarantee

Any defect aﬀecting the functionality of the appliance which becomes apparent within

one year of its purchase will be corrected by free repair or replacement provided that it

has been used and maintained in accordance with the instructions and has not been

misused in any way.

WST6508_IB_3 languages_Print 1/11/07 1:15 AM Page 6

WST6508_IB_3 languages_Print 1/11/07 1:15 AM Page 7

WST6508_IB_3 languages_Print 1/11/07 1:15 AM Page 8

WST6508_IB_3 languages_Print 1/11/07 1:15 AM Page 9

WST6508_IB_3 languages_Print 1/11/07 1:15 AM Page 10
