Western Digital BLACK 2 User manual

WD BLACK²

Fusion and Dual Drive Configuration for Mac®

Installation Guide

WD Service and Support

Should you encounter any problem, please give us an opportunity to address it before returning this

product. Most technical support questions can be answered through our knowledge base or e-mail

support service at http://support.wd.com. If the answer is not available or, if you prefer, please

contact WD at the best telephone number shown below.

Your product includes 30 days of free telephone support during the warranty period. This 30-day

period starts on the date of your first telephone contact with WD technical support. E-mail support is

free for the entire warranty period and our extensive knowledge base is available 24/7. To help us

keep you informed of new features and services, remember to register your product online at:

https://www.wd.com/register.

Accessing Online Support

Visit our product support website at http://support.wd.com and choose from these topics:

Downloads - Download drivers, software, and updates for your WD product.

Registration - Register your WD product to get the latest updates and special offers.

Warranty & RMA Services - Get Warranty, Product Replacement (RMA), RMA Status, and Data

Recovery Information.

Knowledge Base - Search by keyword, phrase, or answer ID.

Installation - Get online installation help for your WD product or software.

WD Community – Share your thoughts and connect with other WD users.

Contacting WD Technical Support

When contacting WD for support, have your WD product serial number, system hardware, and

system software versions available.

United States/North America

English 800.ASK.4WDC (800.275.4932)

Spanish 800.832.4778

Asia Pacific (toll free where

available)

+800.6008.6008

Asia Pacific (non toll free) +65.6848.6008

Japan 00 531 650442/ 0120 994 120

Australia & New Zealand +800.2275.4932

South America http://support.wd.com/contact

Europe (toll free*) 00800.27549338

* Austria, Belgium, Denmark, France, Germany, Ireland, Italy, Netherlands, Norway, Spain, Sweden,

Switzerland, United Kingdom

Europe (non toll free) +31.880062100

Russia 8 10 8002 335 50110

Middle East 0031.880062100

iii

Table of Contents

1 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2 WD Black² Firmware Update Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Creating the Bootable Linux USB Flash Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installing the Linux ISO Image on the USB Flash Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Update the Drive Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3 Setting Up the WD Black² Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Preparing your WD Black2Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Configuring the WD Black2 Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Create a Mac Fusion Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Create a Dual Drive (Non-Fusion) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Verify Creation of a Fusion Drive or Dual Drive (Non-Fusion) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4 Restoring the Master Drive Image to the WD Black² Drive . . . . . . . . . . . . . . 17

Restoring to a Fusion Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Restoring to a Dual Drive (Non-Fusion) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

WD Black² Fusion and Dual Drive Configuration for Mac

Installation Guide

GETTING STARTED 1

Getting Started

This document is intended to guide you through the process of installing your new

WD Black² as a Mac Fusion or dual drive (non-Fusion) configuration.

Important: To install the WD Black² dual drive, you must have a Mac

System that supports a 9.5 mm (2.5") drive with Mavericks OSX 10.9.x.

Items needed to perform this process:

A Phillips screwdriver with “0” tip head

SATA to USB adapter cable (included in retail box)

Image Backup of Mac System drive (Refer to your Apple system documentation

for information on using Time Machine.)

A blank 2 GB, or larger, USB flash drive

Download the following zip files to your local drive. These will be needed in the

procedures that follow.

WD Black² Firmware Update for Mac

WD Black² Configuration Utilities for Mac

WD Black² Fusion and Dual Drive Configuration for Mac

Installation Guide

GETTING STARTED 2

WD BLACK² FIRMWARE UPDATE PROCEDURE 3

WD Black² Firmware Update Procedure

You must update the WD Black² drive firmware before setting up or configuring the

drive. Updating the WD Black² drive firmware requires creating a bootable Linux

USB flash drive.

Creating the Bootable Linux USB Flash Drive

CAUTION: During this procedure, all data on your flash drive will be erased.

Please backup your data before you proceed.

1. Locate the WD_Black2_Firmware_Update_Utility zip file that you downloaded in

the “Getting Started” section, and unzip it on your desktop.

2. Double-click the WD Black2 Firmware Update Utility file to mount it.

3. Plug in the USB flash drive. If a pop up message appears, click Ignore.

4. Launch the Disk Utility (Applications > Utilities).

5. Select the USB flash drive in the left pane.

Important: Verify the correct flash drive is selected or the wrong disk will be

formatted.

6. Select the Partition tab.

7. Under Partition Layout, select 1 Partition.

8. Select Options.

9. Select Master Boot Record, then click OK. Enter a temporary name for the

flash drive. This name will be overwritten in the following procedure.

10.Under Format, select MS-DOS (FAT).

11.Click Apply to apply changes to your flash drive.

12.Click Partition to create the partition on the USB flash drive.

WD Black² Fusion and Dual Drive Configuration for Mac

Installation Guide

WD BLACK² FIRMWARE UPDATE PROCEDURE 4

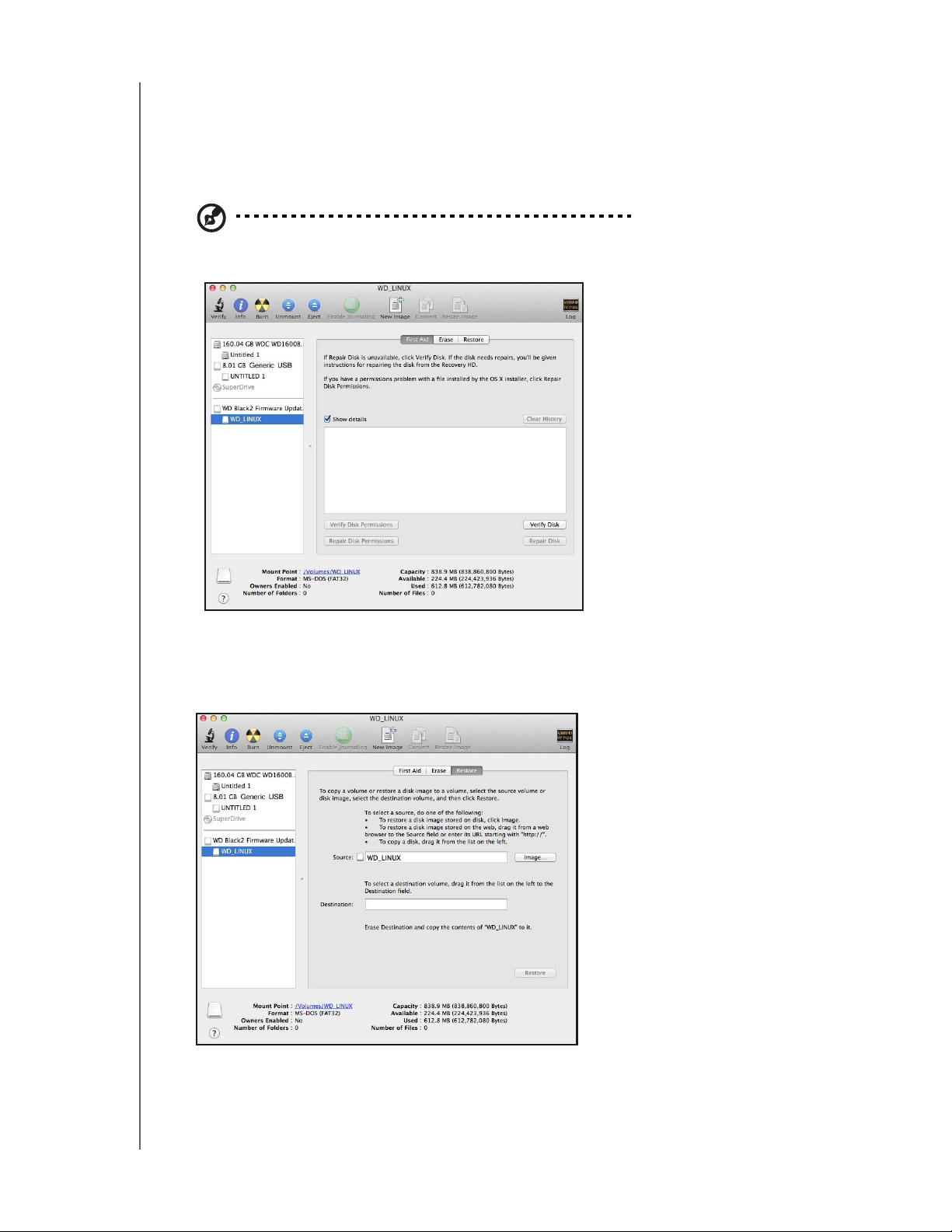

Installing the Linux ISO Image on the USB Flash Drive

1. The WD Black2Firmware Update Utility file should be mounted in Disk Utility

under the divider line on the left side. Select the mounted partition WD_LINUX.

Note: If WD Black2Firmware Update Utility is not mounted in Disk Utility, you will need

to double click the file to mount it, as stated in Step 2 on page 3.

2. Select the Restore tab. The WD_LINUX volume name appears in the Source

field.

WD Black² Fusion and Dual Drive Configuration for Mac

Installation Guide

WD BLACK² FIRMWARE UPDATE PROCEDURE 5

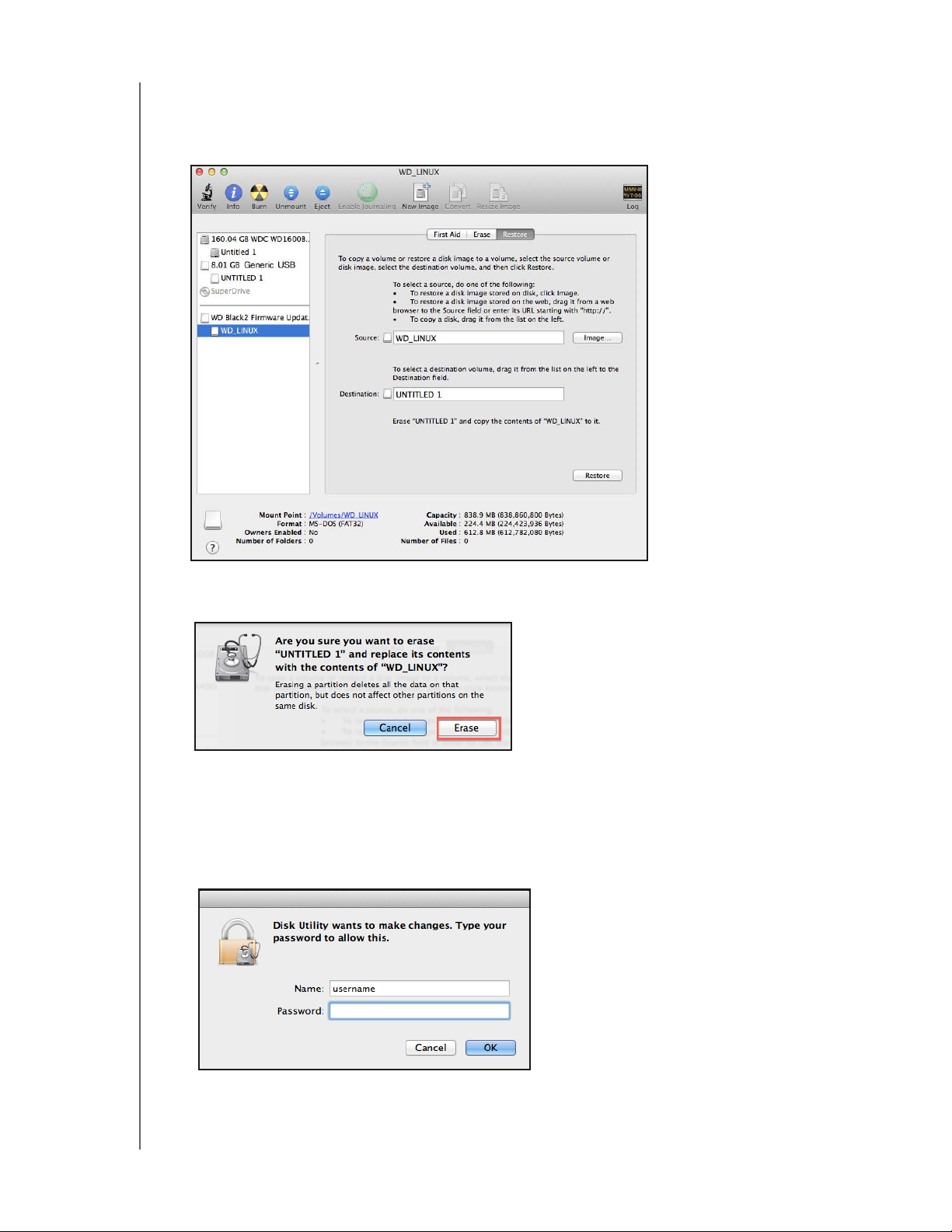

3. To select a destination volume, drag the partition with the temporary name you

gave the flash drive in Step 9 on page 3, from the list on the left to the Destination

field.

4. Click Restore. The following message appears.

5. Click Erase to confirm that you want to erase your USB flash drive.

The Linux ISO is restored to the USB flash drive which is now bootable.

6. If the following screen appears prompting for a password, Enter the

administrator password that you created for the Mac.

WD Black² Fusion and Dual Drive Configuration for Mac

Installation Guide

WD BLACK² FIRMWARE UPDATE PROCEDURE 6

Allow approximately 4 minutes for Linux to load onto the USB flash drive. When

complete, the USB bootable Linux flash drive is ready to boot to Linux and

update the firmware.
