Watt box WB-800ICH1U-IPVM-8 User manual

WB-800ICH1U-IPVM-8

Quick Start Guide

Important Safety Instructions

Read and observe the following safety points at all times.

Notice

For indoor user only. Internal components are not sealed form the environment. The device can only be used

in a ﬁxed location such as a telecommunication centre, or a dedicated computer room. When you install

the device, ensure that the protective earthing connection of the socket-outlet is veriﬁed by a skilled person.

Suitable for installation in Information Technology Rooms in accordance with Article 645 of the National

Electrical Code and NFPA 75.

Only use brackets/attachments/accessories speciﬁed by the manufacturer.

Do not place the device in an unstable position where it might fail and cause injuries. This equipment is not

suitable for use in locations where children are likely to be present.

Do not cover this device with a cloth. Do not install it on a carpet or rug.

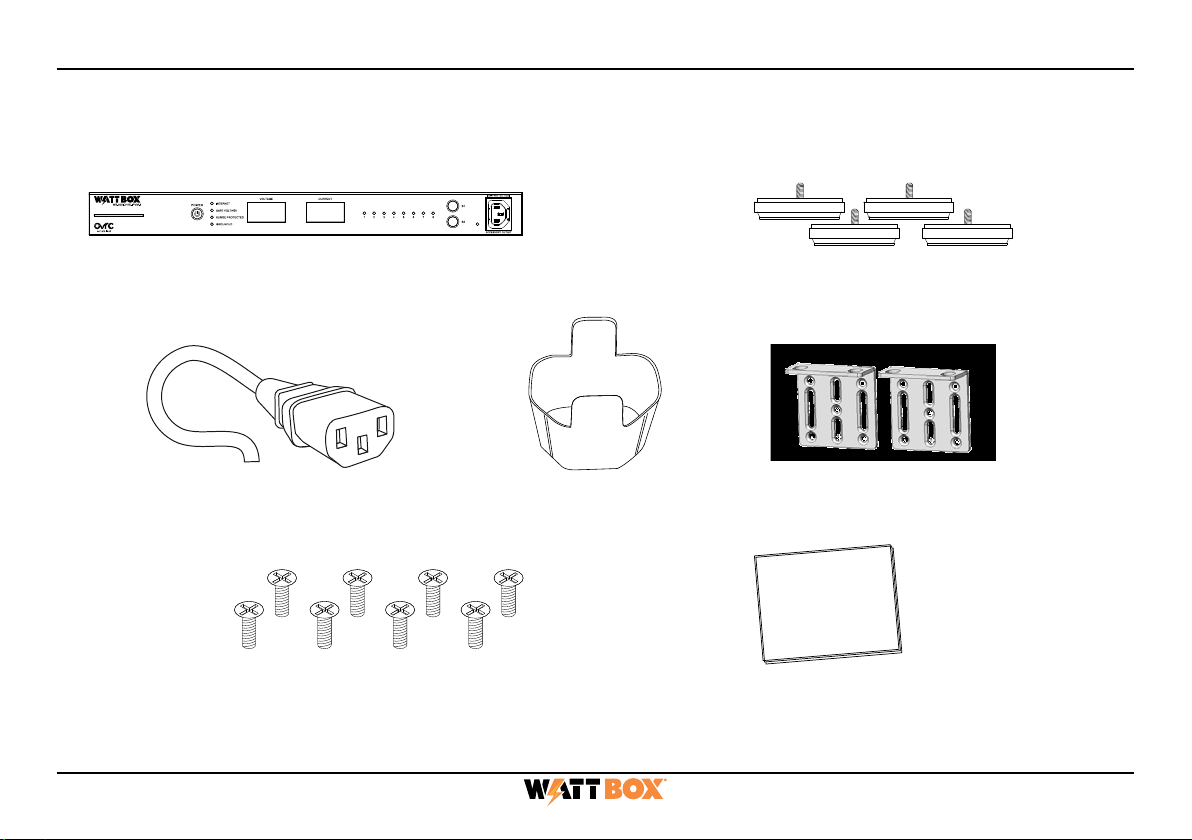

Package Contents

(1) WB-800ICH1U-IPVM-8 (4) Screw-in feet and screws

(1) Removable, region-speciﬁc

power cord (in over-pack box, not

PDU carton)

(1) IEC sleeve (2) Rack mounting brackets

(8) Mounting bracket screws

(M3 x 6 mm)

(1) Quick Start Guide

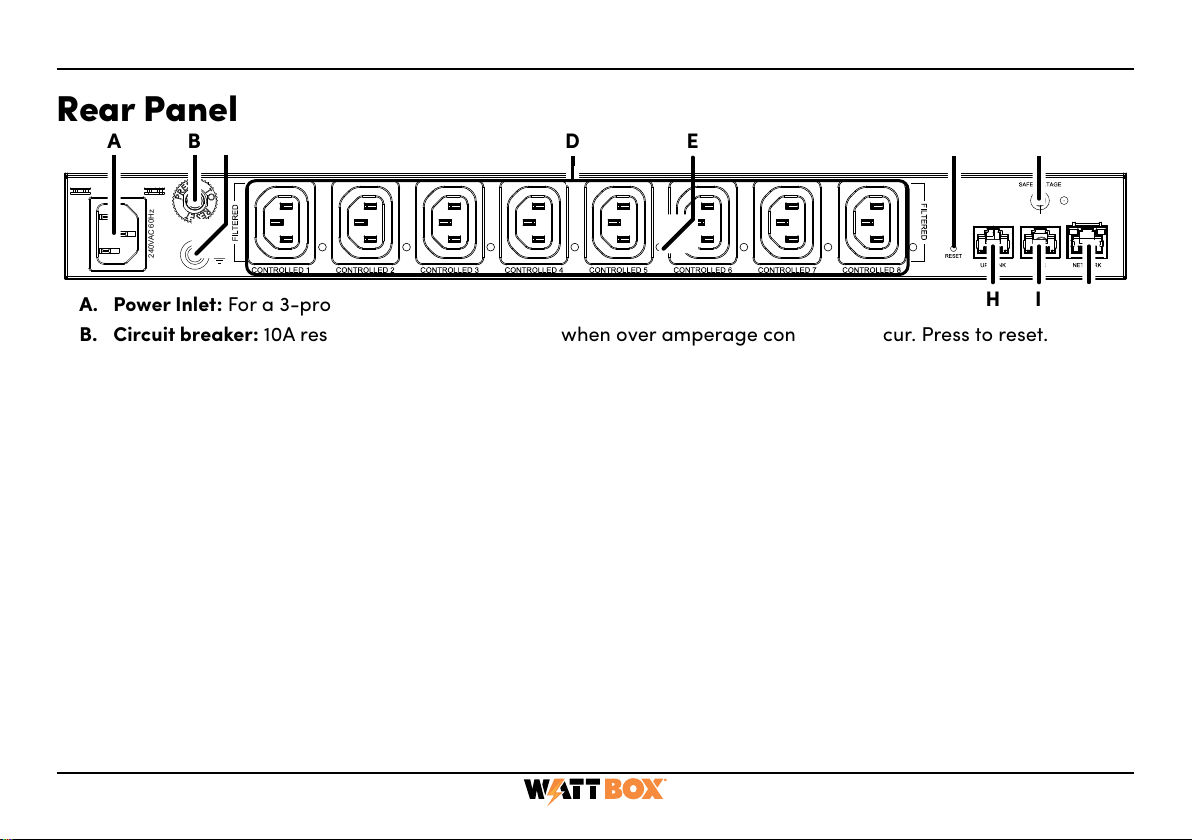

Rear Panel

A. Power Inlet: For a 3-prong IEC power cord.

B. Circuit breaker: 10A resettable breaker that trips when over amperage conditions occur. Press to reset.

C. Bonding Point: Post for bonding equipment.

D. Controllable outlets 1-8: All outlets are ﬁltered against EMI/RF and individually switchable (IP controlled).

E. Power indicators for outlets 1-8: Illuminates when power is on (x8 – 1 for each outlet).

F. Reset button: Press and release to restart the network card, press and hold ﬁve seconds to reset network settings,

and press and hold 10 seconds to restore to factory defaults.

G. Safe Voltage button: Toggles the Safe Voltage feature on and o. When enabled, Safe Voltage turns o outlets to

protect connected equipment from out-of-range input voltage.

H. UPS Link: For future use to connect a WattBox OvrC-enabled UPS.

I. ACC port: Accessory port for future use.

J. Network port: Connect to the local area network (LAN) for IP control and monitoring.

240VAC 60Hz

A B D E F G

H I

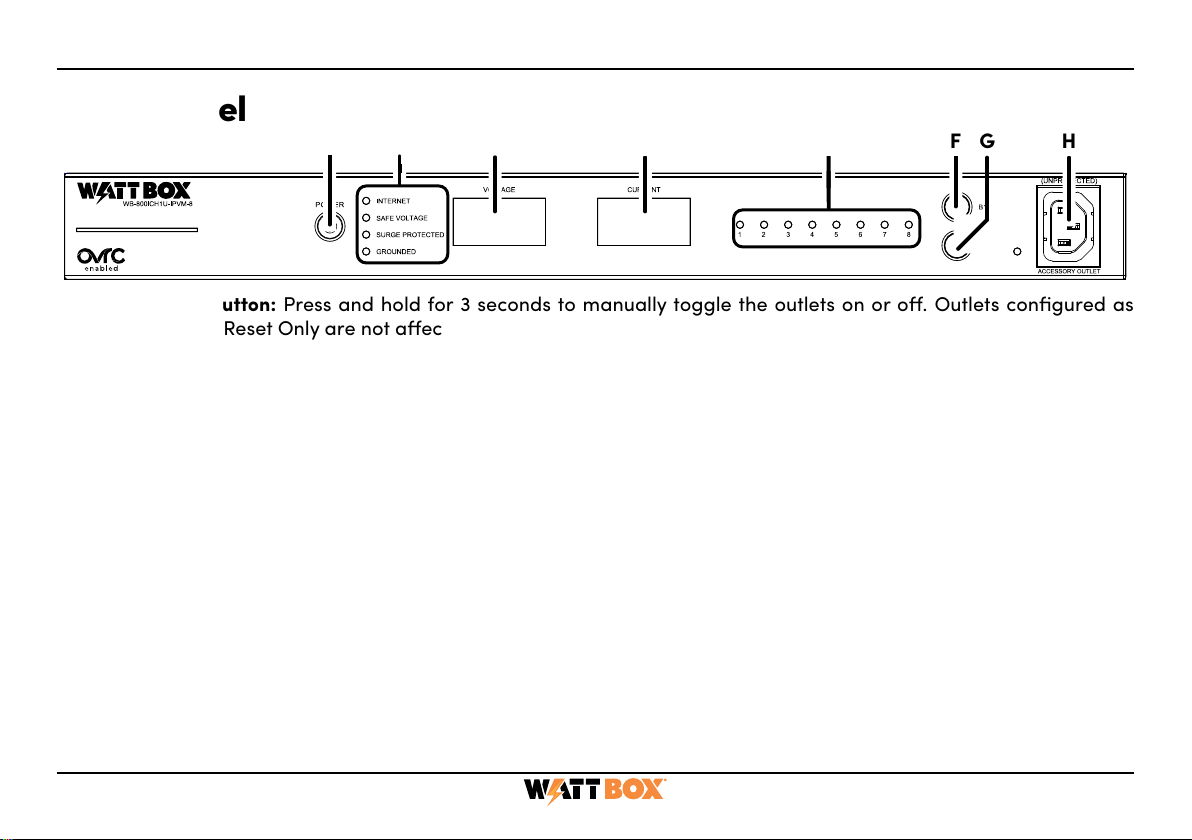

Front Panel

A. AC Power button: Press and hold for 3 seconds to manually toggle the outlets on or o. Outlets conﬁgured as

Disabled or Reset Only are not aected.

B. LED indicators: See the status of the internet, Safe Voltage, surge protection, and whether the unit is properly

grounded. Refer to “LED Operation” on page 8.

C. Input Voltage display: Displays the input voltage being supplied from the outlet.

D. Output Current display: Displays current draw in amps (A). This ﬁgure can be an aggregate of the combined

outlets or a single outlet.

E. Outlet power indicator: Illuminates when the corresponding controlled outlet number is powered.

F. Button 1: Sequences through outlets 1 through 8 (left to right) displaying the Current for the speciﬁed outlet.

Aggregate of all outlets display when clicking past outlet 8. This button is also used to reset individual outlets. See

“How to Manually Reset Individual Outlets from the Faceplate” on page 6.

G. Button 2: Sequences through outlets 8 through 1 (right to left) displaying the Current for the speciﬁed outlet.

Aggregate of all outlets display when clicking past outlet 8. This button is also used to reset individual outlets. See

“How to Manually Reset Individual Outlets from the Faceplate” on page 6.

H. Accessory Outlet (Unprotected): Always-on, front-facing outlet for service use. Not IP controllable. A solid blue

LED indicates the outlet has power and is working.

ABD E F GH

How to Sequence Through Individual Outlets

• Tap B1 to sequence through outlets 1-8 (moving left to right).

• Tap B2 to sequence through outlets 8-1 (moving right to left).

As you sequence through the outlets, the corresponding outlet LED ﬂashes to indicate which outlet number

you are on. The displays show the corresponding Current for the outlet speciﬁed.

Note: The LED light ﬂashes on the speciﬁed outlet for 5 minutes, during this time the display windows

show the Current for the selected outlet. Once the 5 minutes has expired, the WattBox defaults

back to displaying the aggregate total of the entire unit, and all LEDs default back to being

illuminated.

How to Manually Reset Individual Outlets from the Faceplate

1. Tap B1 or B2 to sequence through the outlets.

2. With the outlet number that needs to be reset ﬂashing, press and hold B1 or B2 for 3 seconds. The

Current display shows a rotating 0as the outlet resets.

How to Manually Reset All Outlets from the Faceplate

To reset all of the outlets, press and hold B1 and B2 at the same time for 3 seconds. The Current display shows

a rotating 0 as the outlets reset.

Note: The reset follows the Power-On delay set in OvrC. Outlets designed as Disabled in OvrC do not

reset.

LED Operation

Note: LEDs on the front and back of the WattBox function identically.

Internet

Blue (Solid) All host sites/IP addresses are communicating with the WattBox.

Blue (Flashing) Host ping partial fail. At least one host site/IP address ping is communi-

cating with the WattBox.

Red (Solid) None of the host sites/IP addresses are communicating with the WattBox.

Safe

Voltage

Blue (Solid) Safe Voltage is enabled and current incoming AC voltage is safe for

operation. All outlets are receiving power.

Blue (Slow Blink) Safe Voltage is enabled, but the incoming voltage is not safe.

O Safe Voltage is disabled.

Surge

Protected

Blue (Solid) The WattBox is powered on and outlets are protected.

O The WattBox is not powered on, or the MOVs have opened, removing

power from the outlets.

Grounded

Blue (Solid) Incoming AC outlet is grounded.

O Incoming AC outlet is not grounded and requires inspection by an

electrician.

Positioning Options

The WB-800ICH1U-IPVM-8 can be mounted in a rack or placed in a cabinet.

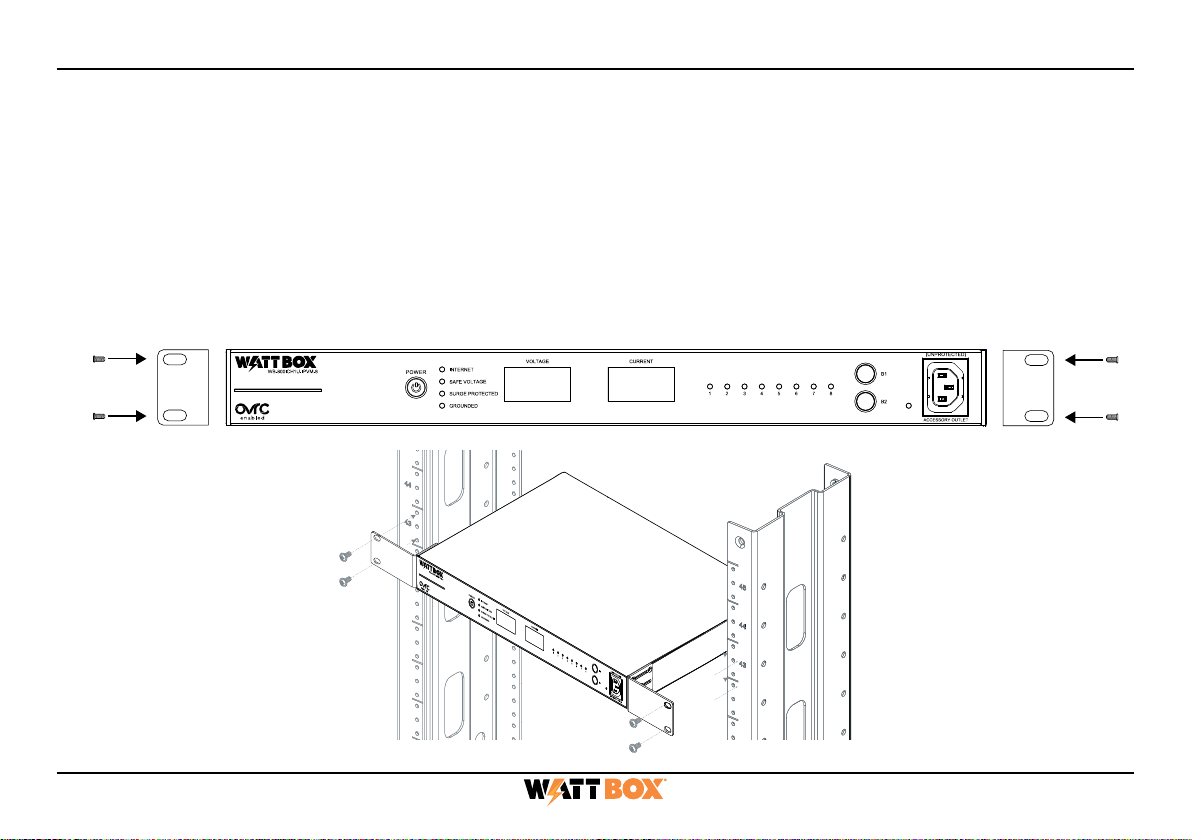

Rack Mounting

Attach mounting brackets to the WattBox using the supplied hardware, then install the WattBox into the rack

using standard rack screws (not included).

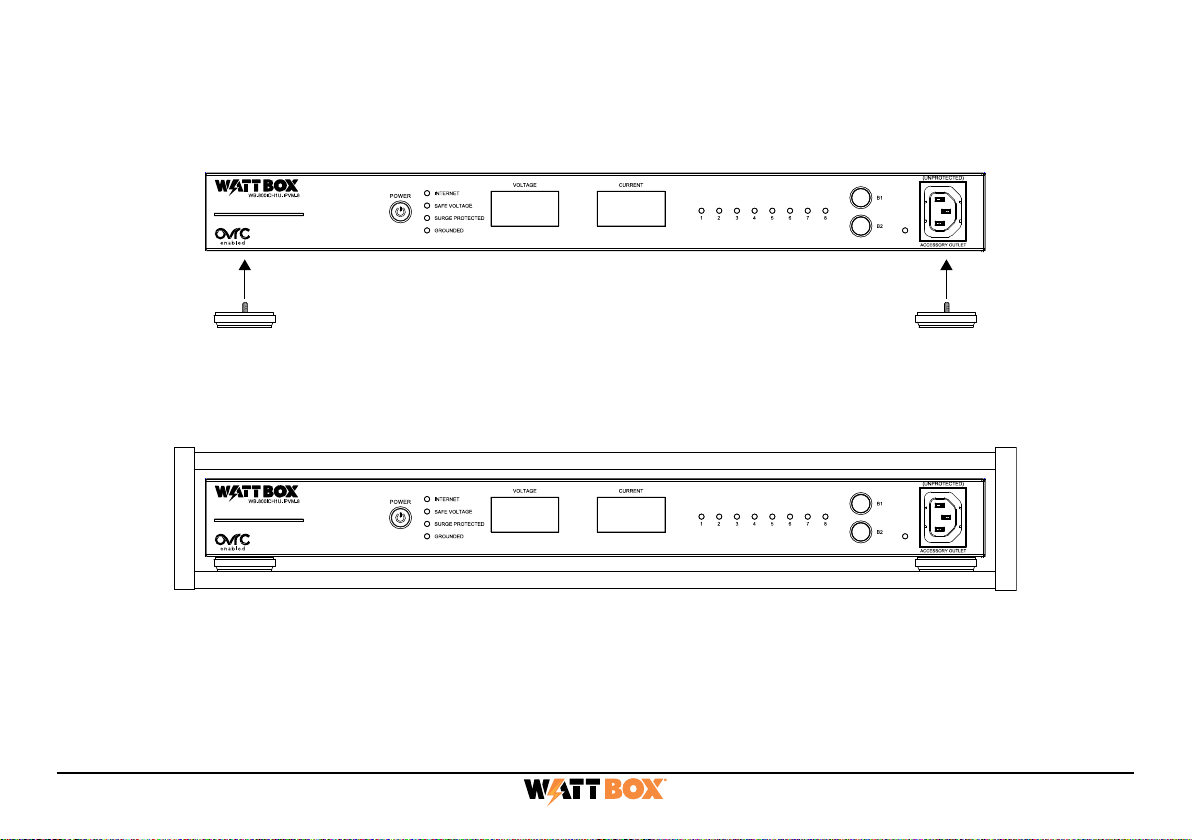

Cabinet Placement

Attach supplied feet to the bottom of the WattBox for cabinet placement.
