Volvo 10 CD User manual

Instruction No Version Part. No.

30730089 1.0

CD changer 10 CD

D3903690

Instruction No Version Part. No.

30730089 1.0

CD changer 10 CD

D3903690

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation CD changer 10 CD

30730089

V1.0

Page 1 / 17

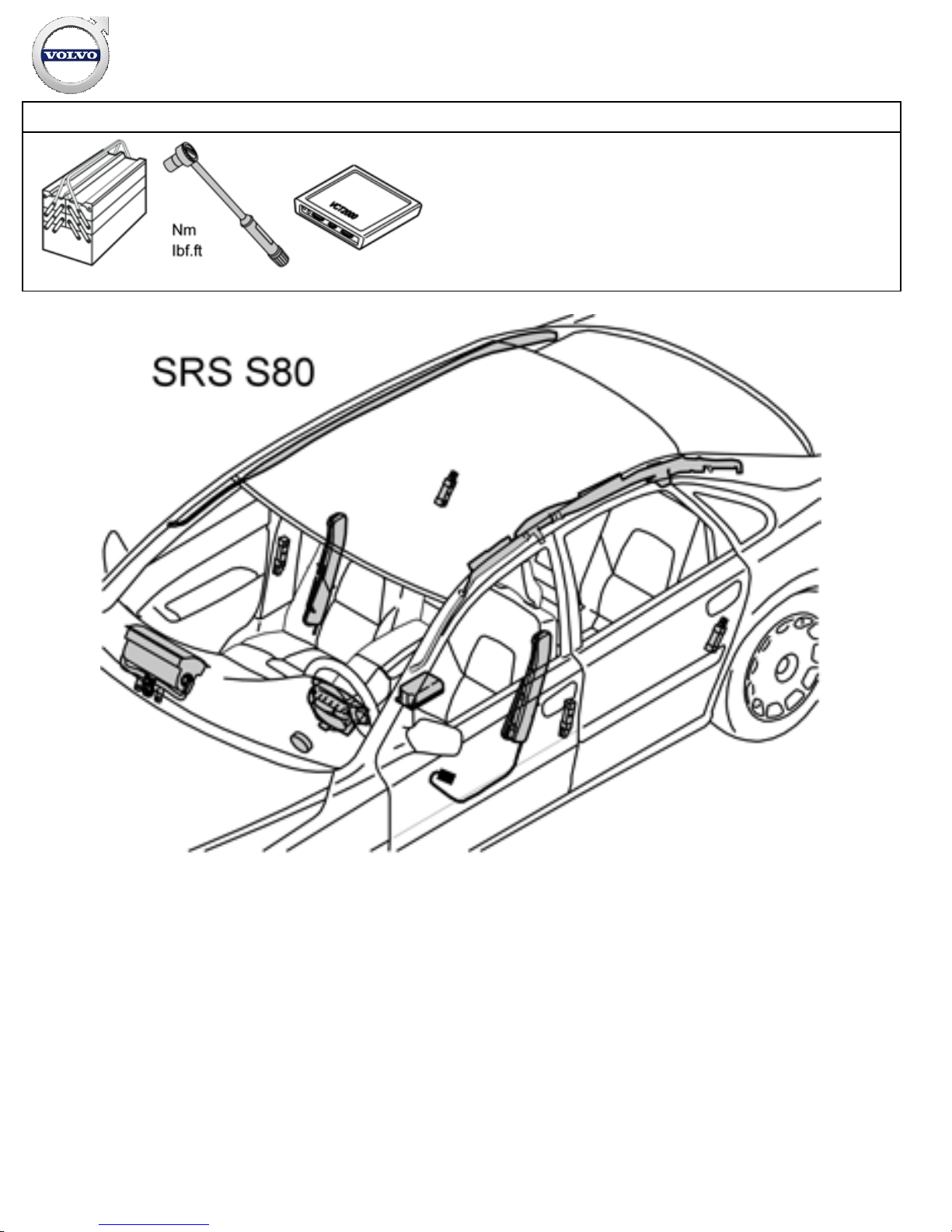

Equipment

A0000162 A0000161 A0801178

D8802049

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation CD changer 10 CD

30730089

V1.0

Page 2 / 17

D3904947

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation CD changer 10 CD

30730089

V1.0

Page 3 / 17

INTRODUCTION

Read through all of the instructions before starting installation.

Notifications and warning texts are for your safety and to

minimise the risk of something breaking during installation.

Ensure that all tools stated in the instructions are available

before starting installation.

Certain steps in the instructions are only presented in the form

of images. Explanatory text is also given for more complicated

steps.

In the event of any problems with the instructions or the

accessory, contact your local Volvo dealer.

Note!

This accessory requires software unique to the car.

Applies to cars with RTI (road traffic information)

For cars with RTI, the required cable harnesses are already

routed except for a DIN cable which must be connected

between the CD changer and the DVD reader or the TV

receiver.

This DIN cable must be purchased separately

Only the following points apply to cars with RTI: row 1, , , , , , ,

Preparations

Applies to cars with power seats

Move the left front seat to its rearmost position.

Turn the ignition key to position 0

Remove the key from the ignition switch (does not apply to cars

with automatic gearboxes)

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation CD changer 10 CD

30730089

V1.0

Page 4 / 17

A8800136

Disconnect the battery negative lead.

Note!

Wait at least five minutes before disconnecting the connectors

or removing other electrical equipment.

D8502224

Detach the panel (1) and gear selector lever boot. Use a

weatherstrip tool.

M8503890

Move the gear selector lever to its rearmost position

Pull the panel (1) and the boot backwards. Turn the panel as

illustrated

Remove the screws (2) from the dashboard environment panel.

Angle the dashboard environment panel outwards so that it is

possible to insert a couple of fingers between the centre

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation CD changer 10 CD

30730089

V1.0

Page 5 / 17

D8703527

console and the reverse of the panel

Detach the dashboard environment panel by pulling it

downwards while maintaining the same angle. Some force is

required because the panel is tightly installed

Disconnect the connectors on the reverse of the dashboard

environment panel. Place the dashboard environment panel to

one side.

Note!

If any of the outer hooks break off, these must be repaired. The

method for this can be found in the Workshop Manual in the

section about the dashboard.

D8503946

Remove the screws (1) from the radio bracket

Pull out the bracket with the radio. Pull the lower corner while

pressing downwards

Disconnect the connectors on the radio. Place the bracket and

the radio to one side.

D8502410

Move the left front seat to its rearmost position.

Remove:

the left-hand side panel (1) from the centre console. First turn

the clip. Pull the panel outwards and backwards

the sill trim panel (2) at the left front door

the cover (3) and the screws (4) for the front mountings in the

left-hand front seat.

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation CD changer 10 CD

30730089

V1.0

Page 6 / 17

D8502411

Tip the left

-hand front seat backwards

Push the floor carpet to one side so that the air ducts (1) are

accessible.

D8502766

Remove the seat cushion from the left-hand rear seat(1). Lift the

front edge of the cushion and then pull forwards

Remove the sill trim panel (2) at the left

-hand rear door.

Remove the seat belts from the guide (1) on the left-hand side

cushion

Insert a hand down the side of the lower section of the left-hand

side cushion. Release the catches. At the same time lift the side

cushion. Place the cushion to one side

Fold the backrest forward.

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation CD changer 10 CD

30730089

V1.0

Page 7 / 17

D8502761

M8902133

Lift out the cargo compartment carpet

Press the centres of the clips at the bottom of the folding side

panel on the left-hand side. Press the clips until a click is heard

Remove the two clips

Remove the plastic nut at the front edge of the side panel.

D8504070

Applies to all cars

Turn the knob (1) on the left-hand side a quarter turn

Fold down the side panel.

Only applies to cars without RTI

Lift out and place the side panel to one side. A new panel is in

the kit.

Remove the clips (1) and the plastic nut in the left front side

panel in the cargo compartment. It is easiest to access the front

upper clip from the side of the rear seat

Remove the front side panel.

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation CD changer 10 CD

30730089

V1.0

Page 8 / 17

M8503515

Cable routing

D3701510

Cable routing

Route the DIN cable for the CD changer up between the front air

duct (1) and the bulkhead stay (2)

Route the cable through the radio compartment

Clamp the cable to the stay. Use the clamp (3) from the kit

Route the cable above and along the front air duct to the seat

mounting member (4)

Clamp the cable to the existing cable harness (5).

D3702872

Continue to route the DIN cable under the carpet along the door

sills to the rear seat

Install the protective caps on the lugs (1) for the cable ducts.

16A Illustration A applies to cars up to and including -

2004 (CH

-389999)

Take the power supply cable for the CD-changer from the kit.

Connect the ground lead to the front ground terminal (1) in the

rear seat

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation CD changer 10 CD

30730089

V1.0

Page 9 / 17

D3702873

16B

M3703304

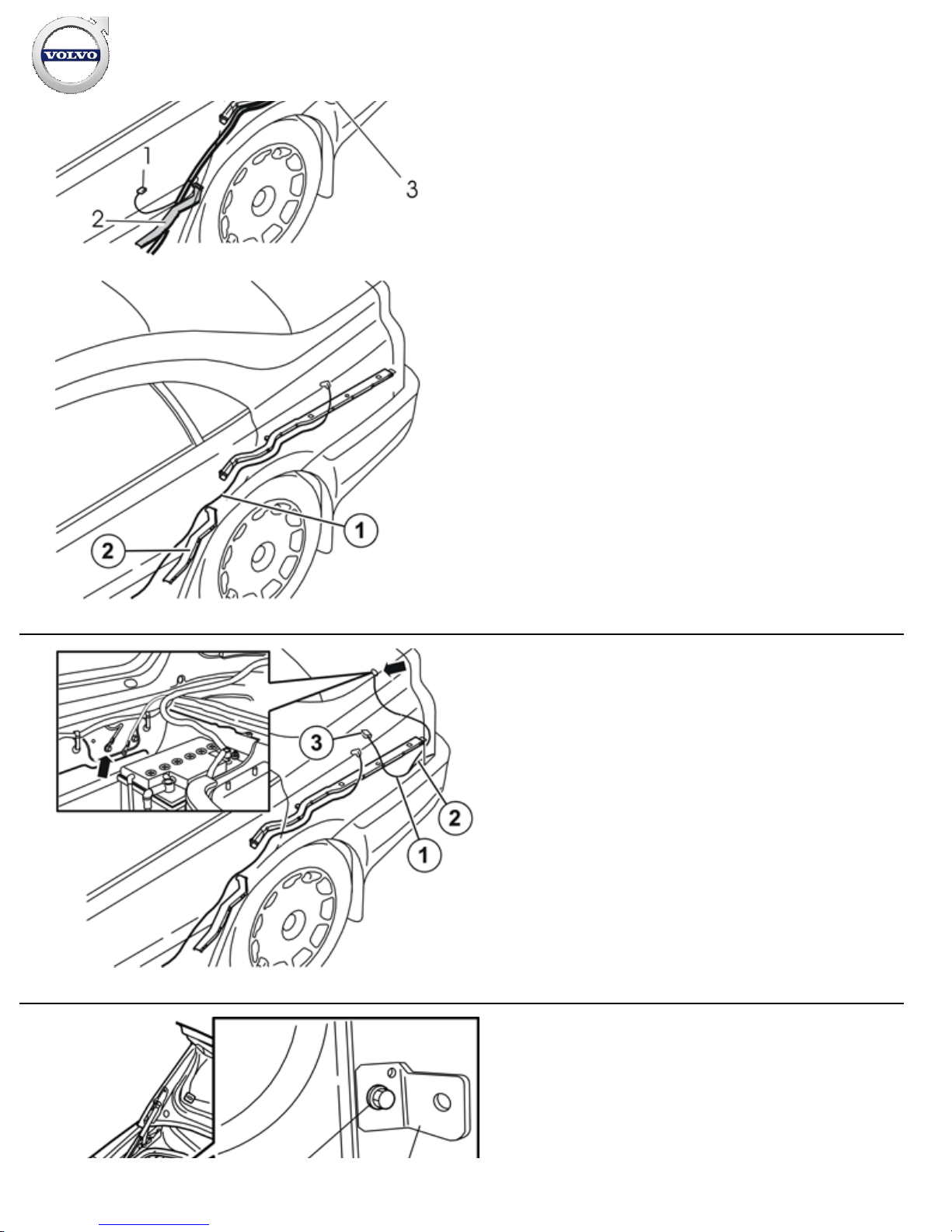

Route the power supply cable and the DIN cable on the right-

hand side of the air duct (2) and under the wiring. Continue out

through the hole in the car body behind the left-hand backrest

and along the left-hand side of the cable duct (3). Position the

single pre-routed red/white (R/W) cables by the rear fuse holder.

Illustration B applies to cars from model year 2005-(

390000-)

Route the DIN cable (1) along the two cable ducts (2) under the

insulation panel and out through the hole in the bodywork to the

engine compartment

Route the DIN cable under the four connectors in the front cable

duct.

M3703375

Applies to cars from model year 2005-(

CH 390000

Take the cable (1) for power supply from the kit. Connect the

ground lead to the existing ground terminal behind the battery.

Tighten the screw. Tighten to 10 Nm (7 lbf.ft.). Position the

red/white (R/W) single cables (2) by the rear fuse holder

Route the cable harness on the left-hand side of the cable duct.

The cable with the blue connector (3) must be routed to the pre-

routed connector for the DIN cable.

18 Applies to all models

Install the small bracket (1) (for the CD ROM reader bracket) in

the rear crossmember under the left tail lamp. Use the screw (2)

from the kit.

Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Volvo Car Corporation CD changer 10 CD

30730089

V1.0

Page 10 / 17
